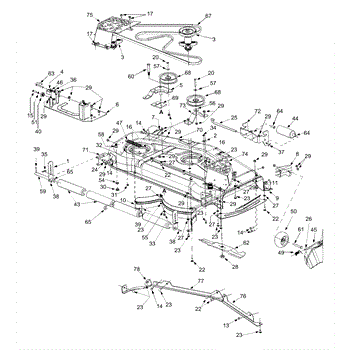

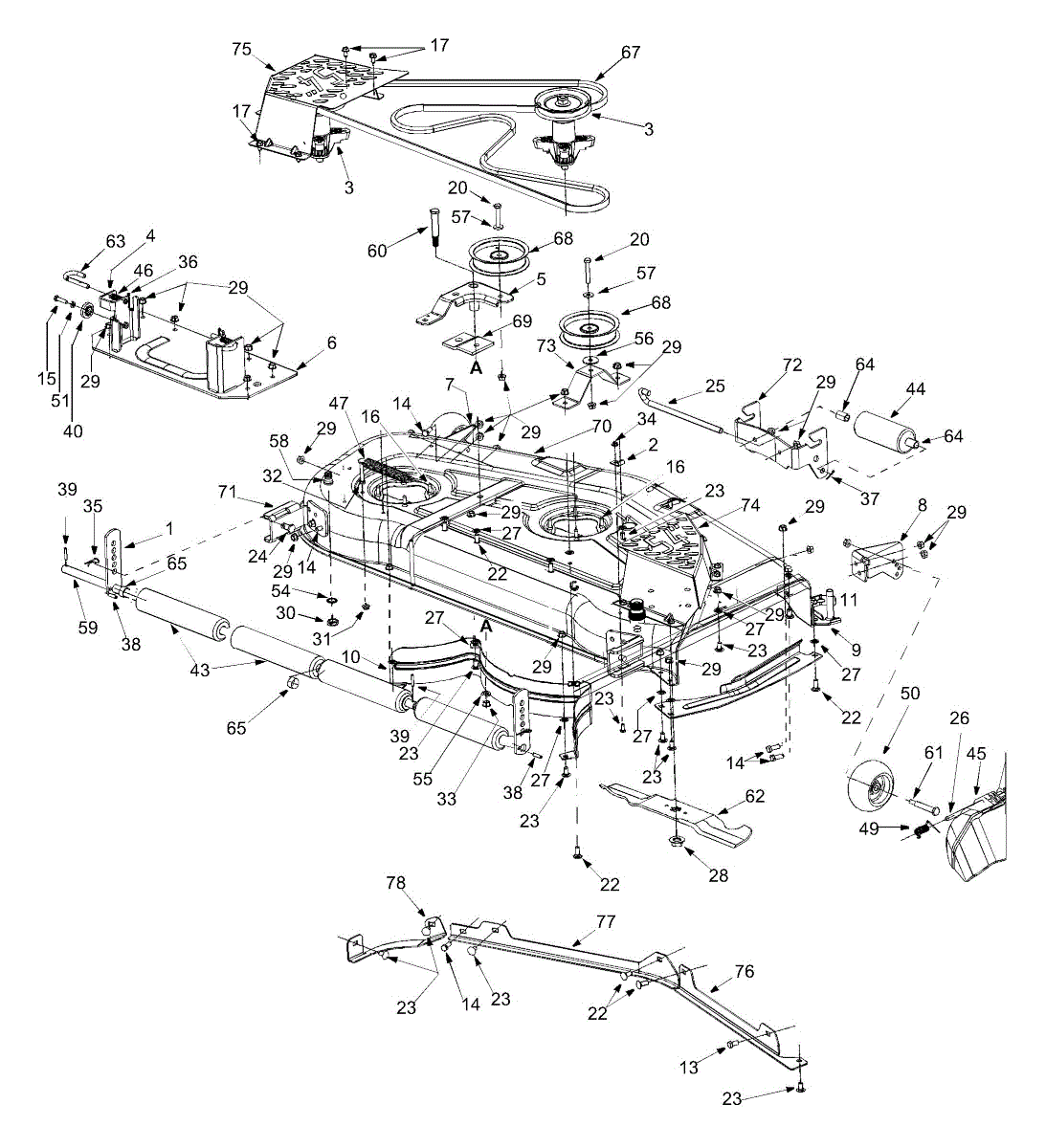

Parts for Yard-Man 14AR814K401 / 2002: Deck Assembly 54-Inch Parts

This idler pulley is for lawn mowers. The idler pulley provides tension and helps to guide the belt that drives the lawn mower's cutting blade. Pulleys ensure that the belt moves smoothly and without obstructions.Pulleys are critical to the proper functioning of the lawn mower. Over time, a pulley might become worn from spinning against the belt. A worn pulley can reduce tension, resulting in belt slippage or damage to the belt. Pulleys themselves may also become damaged over time. Damaged pulleys can cause sounds, such as rattling, clattering, rumbling, or squeaking, that are audible when the lawn mower is running. Pulleys may loosen, causing them to wobble. Or the bearings might freeze, preventing the pulley from spinning freely. In all of these cases, it may be necessary to replace the pulley. Due to the location of the idler pulley, wearing gloves is recommended when replacing the pulley. Care must also be taken to ensure that the mower does not accidentally turn on when the idler pulley is being replaced. This lawn mower idler pulley is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with lawn mowers made by Craftsman, Cub Cadet, MTD, and Troy-Bilt.

This is an inner rear baffle OEM part that is sourced directly from the manufacturer for use on lawn mowers and lawn tractors. It directs the flow of grass clippings from underneath the mower to the chute and out of the mower. This is a part that can be damaged by rocks and other debris that the mower runs over. Over time, the elements can cause the part to deteriorate and possibly fall off. If this occurs, the baffle should be replaced. If the baffle is missing or damaged, the grass clipping may not be discharged and will build up underneath the mower. This can cause the blades to become clogged and not turn properly, which can cause an uneven cut. Grass clippings that are not distributed through the discharge chute evenly and wind up in clumps on the lawn are not only unsightly but can also cause fungus to grow underneath and smother the grass. The lawn tractor should not be used until the baffle is replaced with a new one. This is a black metal part that is sold individually. It does not come with screws. This baffle is designed for use on lawn mowers and tractors manufactured by MTD, Troy Bilt, and Craftsman.

This replacement part is a hex screw. This is a genuine replacement part made by MTD. This type of screw is commonly found in many types of machinery and appliances. Screws are able to keep certain parts stable and connected so that they are secure during use. A new hex screw might be needed if the current one is visibly damaged in any way or missing. It is not uncommon for screws to become stripped down or lodged in place after years of normal use. If this is the case they should be replaced as soon as possible. If the screw is lodged in place, pliers might be required on top of a screwdriver to complete this repair. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part to ensure proper fit and long-lasting use.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This is a self-tapping screw that can be used on a wide variety of lawn and garden equipment in many applications. A self-tapping screw is used to secure metal, wood, plastic, and brick together. When using a self-tapping screw, there's no need to drill a pilot hole since the screw makes its own hole. The only exception is with metal, which will still need a drilled hole before installation. There are many situations when a screw may need to be replaced. Some screws are damaged or broken, while others can become loose and no longer hold materials together. Screw heads can become stripped, which will also mean they need to be replaced. A visual inspection can often give an indication of whether you should replace a self-tapping screw. This is a genuine OEM hex head screw that can be used on various lawn and garden equipment, including wood chippers, lawn mowers, snowblowers, log splitters, tillers, edgers, and leaf blowers. It's compatible with products by MasterCut, Craftsman, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Troy-Bilt, Montgomery Wards, Murray, Huskee, Yard Machines, MTD, and more. This screw is sold individually.

This replacement part is a bolt and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This bolt has many different uses and is a versatile part in lawn mowers and power tools. Bolts help other parts of the machine or appliance stay together and in place so that the entire machine is able to run smoothly. A new bolt might be needed if the current one is missing or damaged in any way. It is common for bolts to become stripped overtime due to normal wear and tear and need to be replaced. It's common for users to have some on hand so consider purchasing more than one. This repair should be simple and require no more than a screwdriver and possible pliers if the previous part is stuck. This bolt is sold individually and is a genuine OEM replacement part.

This carriage bolt is a genuine MTD part, sold individually. This carriage bolt can be used as a replacement part in a variety of small engine outdoor appliances including lawn mowers, snowblowers, and chainsaws. The purpose of the carriage bolt for one of these outdoor appliances is to work in conjunction with a nut as a fastening component to affix metal to metal or metal to wood so that the parts remain attached to one another while the appliance is in operation.The carriage bolt in an outdoor appliance is a small component that can be easily lost or misplaced or can be damaged through general wear and tear over long-term use or as the result of an accidental collision with a hard object. If the carriage bolt is lost, misplaced, or sufficiently damaged as to not maintain the stable attachment of two or more components, the carriage bolt should be replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This carriage bolt is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, Yard Man, and MasterCut.

This clevis pin is a metal fastener without threads like most screws. It has similarities to a bolt and is often inserted into a pre-drilled hole to secure two or several items together in yard and garden equipment. Clevis pins will have a hold through the end where cotter pins can be attached to secure the pins into place. Sometimes these pins can become corroded or experience damage which will require them to be replaced.If the clevis pin is falling out, broken, or damaged, it needs to be removed. Spraying it with penetrating oil and letting it sit for a few hours before pulling the cotter pin away from the clevis pin is the best technique. A pry bar can be used to take the pressure away from the clevis pin before hammering against the clevis pin to take it out. At that point, the new clevis pin can be installed.Created for use in chainsaws, lawnmowers, and snowblowers, this clevis pin fits lawn and garden equipment by MasterCut, Craftsman, Yard-Man, Toro, Yard Machines, Cub Cadet, MTD, and Murray. This is a genuine OEM product directly sourced from the manufacturer that comes as an individual component.

This genuine part is a MTD .5 inch pin roller for tractors and riding lawn mowers. This is also known as a pin roller or a deck roller rod. This pin roller is used as an axle for the roller on the front edge of the mower deck, and holds the deck roller between the brackets. The roller pin is inserted through the roller rod, which is then secured by two brackets. This part is a replacement for a MTD .5 inch pin roller that is damaged, faulty, or missing. This high quality OEM replacement part is sourced directly from the manufacturer, and is sold individually. This part fits a variety of models of MTD, Craftsman, Cub Cadet, Troy-Bilt, White Outdoor, Yard Man, Yard Machines Tractors and riding lawn mowers. For safety, please refer to the original instruction manual and wear gloves when installing this part, as there is risk to the hands when performing this installation. Do not attempt to drill out a broken roller pin, as it may cause damage to the equipment.

This replacement part is a hinge pin. This part is a genuine replacement part made by MTD. This hinge pin is small but important in many different types of machinery and appliances. The pin is able to hold different parts together and keep them secure while the machine is in use. A new hinge pin might be needed if the user notices that the current one is missing or damaged in any way. This can include being dented, cracked, bent, or chipped. The pin must be in proper working order to allow for the overall machine to work. Be sure the engine is completely powered down before attempting to replace this part.This hinge pin is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part made for long-lasting use.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

This is a genuine hex nut replacement designed for select MTD outdoor lawn and garden equipment. The hex nut is a piece of standard hardware that may have several applications on different units. It is generally used to secure other hardware, handles, or connections. It may be subject to vibrations and constant pressure, which can result in wear over time. These nuts may also get lost during other repairs or if they come loose. In most cases, the unit will be inoperable until the nut is replaced. This genuine OEM replacement hex nut is designed for use in MTD lawn equipment and engines, along with machines from RYOBI, Troy-Bilt, Husky, Yard-Man, Cub Cadet, Bolens, and Yard Machines. The metal nut will require a wrench to replace but should only take a matter of minutes. This is a left-hand threaded nut that is sold as an individual part. Be sure to allow equipment to cool and always wear gloves when performing repairs. The location and function of this nut will vary depending on the unit in question, but it can be used with chippers, lawn tractors, trimmers, edgers, snow throwers, and cultivators.

This is a genuine 5/16 hex nut, a standard piece of hardware used to affix various components securely. This MTD nut is used in multiple applications and has several placement options depending on the model of the engine. Nuts can become stripped or worn over time. In some cases, the screws they are attached to may become stripped, which might require a replacement of both. A wrench is required to complete the replacement. This hex nut is designed to work with several brands that feature MTD engines, including RYOBI, Yard Machines, Yard-Man, MTD, Troy-Bilt, Husky, Bolens, and Cub Cadet. There are hundreds of machines that use this nut, including tractors, lawnmowers, blowers, cultivators, and snowblowers. This nut is sold individually; purchase additional parts as necessary.

This hex nut is a genuine MTD part, sold individually. This hex nut can be used as a replacement part in lawn mowers, snowblowers, tillers, chainsaws, and log splitters. The purpose of the hex nut for one of these small engine outdoor appliances is to serve as a fastening component for one or more parts.The hex nut in an outdoor appliance might need to be replaced if the small component is lost, misplaced, or damaged over long-term use. The hex nut can go missing without disturbing the function of the appliance, but if the hex nut is found to be missing or is found to be sufficiently stripped so that it cannot serve as a fastening component, the hex nut should be replaced by this genuine OEM replacement part.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This hex nut is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Yard Man, and MasterCut.

Click pins are used in various lawn equipment machines to hold the wheels on. For larger riding lawn mowers, click pins are only used on the smaller front wheels. The click pin penetrates through the axle spindle to hold the tire in place. The part can get lost, damaged, or wear out with regular use. It's also possible to misplace the click pin when changing a tire because it has to be removed first before working on the wheel. A missing, damaged, or worn click pin must be replaced.Click pins are very easy to replace with only a pair of pliers. Wear gloves when making the repair. Start by pulling out the old click pin from its location with the pliers. Insert the new click pin back into the hole located in the spindle.This click pin is a genuine OEM replacement part. It is made with durable, high-quality metal. It is supplied by the manufacturer. It is compatible with both MTD and Murray brands. The equipment the click pin can be used with includes lawn tractors, lawn machines, and other lawn equipment. It is sold as an individual unit.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

A cotter pin is a standard piece of hardware typically used on lawn and garden equipment as a method of securing something to an axle or round shaft. These pins are thin and, although they are durable, they can rust or become damaged over time. In some instances, they can break off or become lost in the process of other repairs. A replacement with the right size and style of cotter pin will ensure that equipment is in working order at all times. This genuine OEM cotter pin replacement can be used with select lawn and garden equipment from MTD, Huskee, Yard Man, Yard Machines, Troy-Bilt, Bolens, Cub Cadet, and Murray. It can be used on lawn tractors, log splitters, chipper/shredder units, and snowblowers. There are more than 150 compatible units, so owners should consult their parts diagram for application(s) of this pin. Note that this pin may have multiple applications on a single machine. This cotter pin is sold individually and may require needle nose pliers to replace.

This front roller is used as a replacement part on lawnmowers from major lawn and garden manufacturers. It attaches to the lawn mower's front deck to keep the mower level with the surface of the yard. If the roller is damaged or missing, the lawnmower deck will be unlevel, which can cause various problems. If the front roller is too low, the mower can scalp the lawn leaving bare spots. These spots will turn brown and have to be reseeded to restore the grass. If the front is too high, the grass will be cut unevenly.If the lawnmower is cutting but not cutting evenly or is leaving bald areas, the front roller should be inspected and replaced as needed. Normal wear and tear may have loosened it, or it may be damaged from hitting rocks and sticks in the yard. Replacement is simple and can normally be completed in less than half an hour. Make sure the lawnmower is cool and parked on a level surface. Pliers are needed to remove and replace the roller.This front roller is a genuine OEM part sourced directly from the manufacturer. It is sold as an individual unit. The front roller is made compatible with lawnmowers manufactured by Cub Cadet, Huskee, MTD, and Troy-Bilt.

This deflector chute is a genuine MTD part, sold individually. This deflector chute can be used as a replacement part in a lawn mower.The deflector chute might have to be replaced at some point within the typical lifespan of a lawn mower. This could occur if the deflector chute has been punctured, ripped, torn, scraped, dented, or warped to the point that it cannot hold or properly dispel grass clippings during the standard use of the lawn mower. If this occurs, the deflector chute should be removed and replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This deflector chute is compatible with the following outdoor appliance brands: MTD, Troy-Bilt, and Yard Man.

This torsion spring is a genuine MTD part. It is a replacement part for lawn tractors, garden tractors, pro-turf riders, and lawn mowers.On these machines, the torsion spring exerts torque. They create tension by countering the force created by parts they are connected to on either end. This is an important function for the engine.This torsion spring is a genuine OEM part sourced directly from the manufacturer. It is sold individually. It is designed to be compatible with machines made by Husky, Cub Cadet, MTD, Troy-Bilt, Yard Man, and White Outdoor. It also replaces several obsolete parts, numbers: 01000388, 732-3070 and 932-3070.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This lock washer is a genuine MTD part, sold individually. This lock washer can be used as a replacement part in lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, log splitters, and wood chippers.The lock washer in a small engine outdoor appliance is a small component that can easily be lost or misplaced during the typical lifespan of the appliance. If this occurs, it should be replaced once the operator of the appliance notices its absence. The washer can also be stripped away as a result of general wear and tear, in which case it should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This lock washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Broan, Yard Machines, Huskee, Montgomery Wards, Yard Man, Turf King, and MasterCut.

This replacement part is a washer. This is a genuine replacement part made by MTD. Washers are small but important to many different types of machinery and appliances. These parts work with screws and nuts to hold certain parts together and secure during use. A new washer might be needed if the current one is no longer up to working standard. It is common for washers to become damaged or stripped over time due to normal wear and tear. If this is the case they should be replaced. Replacing a washer should be simple and only require common household tools. It is recommended that the engine be shut down before attempting to repair or replace any part within an appliance. This is a genuine OEM replacement part which ensures proper fit. This part is sold individually and is sourced directly from the manufacturer.

This is a replacement isomount washer that works with a range of lawn and garden equipment. The flat metal washer can be used to attach to the idler arm bracket in certain machines. Washers are beneficial for ensuring there is a tight, proper connection between various pieces in a machine. They can also help to protect the surface of the connected parts.Washers are made to last, but they can still wear down over time. The metal could start to corrode, and the washer might break. It could also become bent. there is also the risk of losing a washer when working on other parts of the machine. They should be replaced when needed. Replacement is simple and will often require a wrench.The replacement washer can be used with models of lawn and garden tools such as snow blowers, lawnmowers, and lawn tractors from MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky. It is a genuine OEM replacement part from the manufacturer. It is sold individually. Owners might want to buy several to have available.

Here is a replacement shoulder screw that is commonly used for various types of outdoor power equipment. Another name for the shoulder screw is a shoulder pin. The screw is often used to help secure the plastic wheels to the deck of a machine. However, different machines may have different uses for shoulder screws and other types of hardware. The shoulder screw is made from metal and is durable. However, the pin may still need to be replaced at some point. Whether it is because of corrosion or being bent, it is important to replace a failed screw with a new one. When performing maintenance on the machine, it is also possible that the screw could become lost, which would require a replacement. This is a genuine OEM replacement shoulder screw. It is sold individually and works with many types of makes and models. The screw is often used for edgers, snowblowers, lawn mowers, and chainsaws. Brands that have models that will be compatible with the shoulder screw include Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Huskee, Yard-Man, and MasterCut.

The spacer is a standard piece of hardware that is used on various lawn mowers. This spacer has multiple applications based on the model and design. It is typically installed on shafts and in places where an additional gap is needed between connections or hardware. These parts are durable, but can become damaged or worn over time and require a replacement. Without functioning spacers, parts may rub together and create friction or simply fail to work properly. Replacing parts with genuine OEM hardware like these standard spacers will get the equipment back in working order. This genuine OEM spacer is designed for use with a number of mowers from MTD, Yard Machines, Troy-Bilt, Husky, Cub Cadet, and Yard Man. This spacer is made of durable metal and sold as a single unit. Those who need more than one will have to order multiple quantities. Always wear gloves when performing lawn mower repairs.

This part is a replacement flat idler pulley. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or malfunctioning flat idler pulley in lawn tractors.The flat idler pulley guides the path of the tractor's belt as it rotates. It attaches to the mower deck and is essential for proper equipment functionality. This part should be replaced if faulty, jammed, bent, or ineffective in any way. When working on or near an engine, it's important to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this flat idler pulley, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality metal. This flat idler pulley can be used with different models of lawn tractors that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.

This replacement part is a deck skirt. This is a genuine replacement part made by MTD. This deck skirt is often attached to the back of certain lawn mowers to prevent the wheels and other parts from becoming clogged with mulch and other debris. A new deck skirt might be needed if the current one is damaged or missing. If the deck skirt is no longer attached it is recommended that it be replaced as soon as possible. The deck skirt is able to prevent grass clippings and small debris from clogging the wheels and other areas under the lawn mower. Be sure the engine is completely powered down before replacing this part. This part is sold individually and is sourced directly from the manufacturer for long-lasting use. This part is a genuine OEM replacement part to ensure proper fit.
