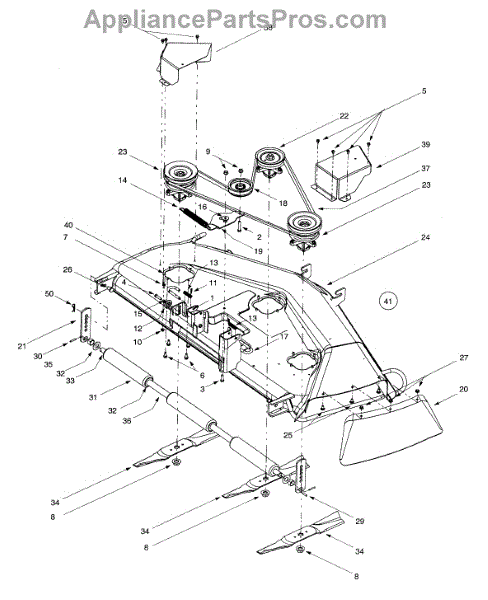

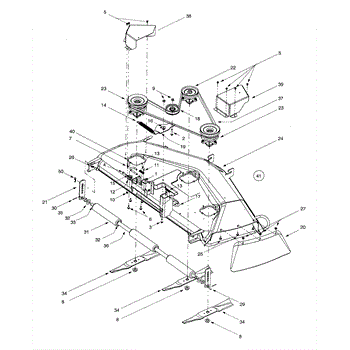

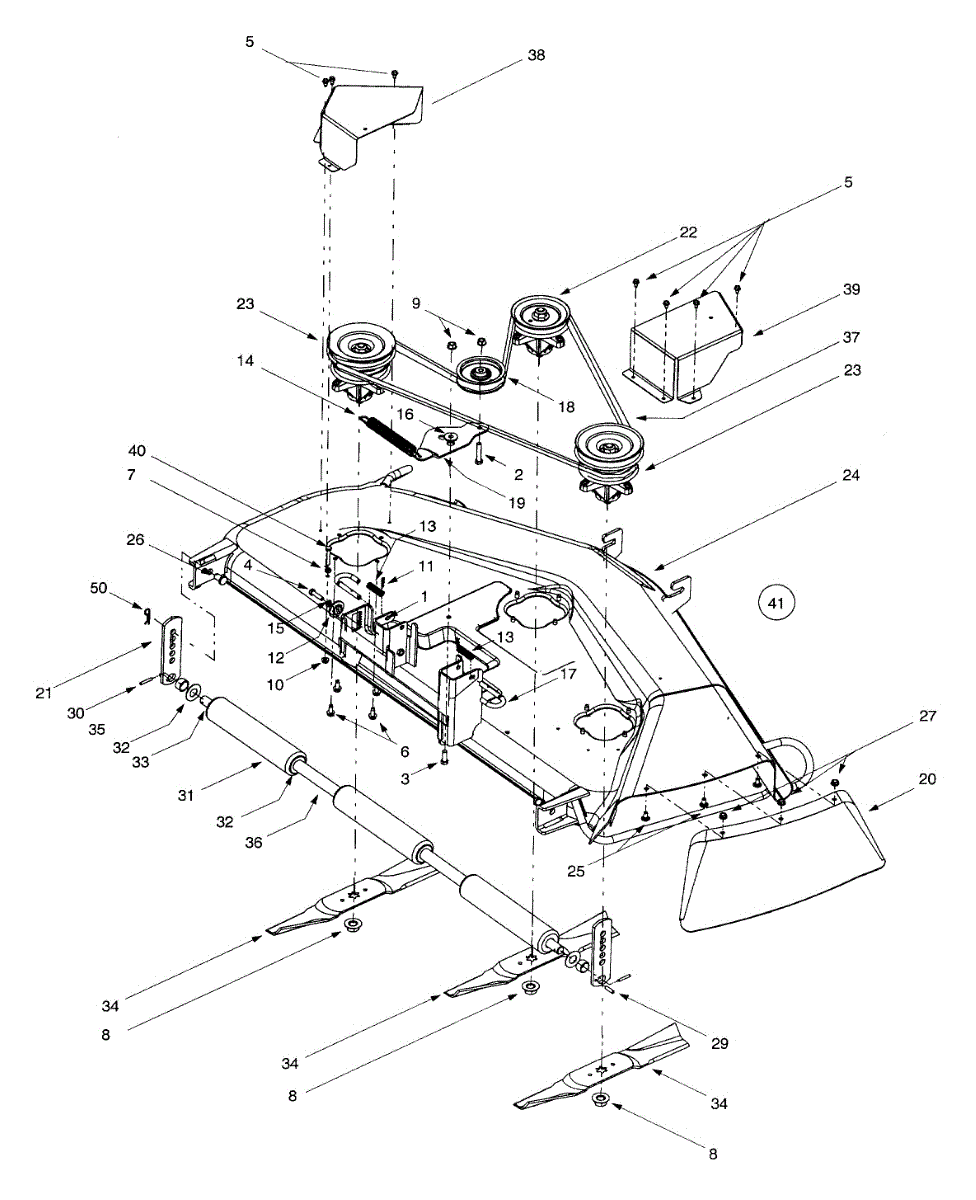

Parts for Yard-Man 14AV804P401 / 2001: Deck Assembly "P" Parts

This carriage bolt is a self-locking bolt designed to be used in an unthreaded square or round hole. These bolts are used in outdoor lawn and garden equipment due to their ability to handle heavy weight loads.Carriage bolts are often used to join lawnmower handles to the base of the mower. Over time, the vibration of the lawnmower may cause the bolt to become loose. During routine maintenance, if the bolt is loose, use a wrench to tighten the nut holding the bolt in place. If the bolt is missing, this carriage bolt replacement can be installed. Push the bolt through the hole; if the fit is snug, it may need to be lightly tapped. Once the bolt is through the other side, thread a nut on the bolt. Tighten the nut with a wrench.This is a genuine OEM part sourced directly from the manufacturer. It is sold as an individual unit and does not come with the nut. This carriage bolt is designed for lawnmowers, snowblowers, and other outdoor lawn and garden equipment manufactured by Bolens, Craftsman, Cub Cadet, Huskey, Troy-Bilt, Turf Pro, MTD, Ryobi, and Mastercut.

This screw is used on a variety of lawn and garden equipment from many manufacturers. This hex screw is a large bolt that has a six-sided head that can be used to fasten metal to wood or wood to wood. This type of screw is unique from traditional screws because the bolt head needs to be held with a socket while a second wrench is used to tighten or loosen the part. The bolts have a smooth shank and small threads. These screws can break or become damaged and no longer do their job. When that happens, they will need to be replaced. A hex key wrench can be placed into the slot of the screw and turned counterclockwise to loosen up the bolt. The replacement hex screw can then be placed in the original hole to adhere parts together on lawn equipment. This is a genuine replacement OEM screw that is commonly used on Craftsman, Toro, Murray, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, MasterCut, Cub Cadet, and Huskee lawn mowers, log splitters, snowblowers, chainsaws, tillers, and string trimmers. The screw is sold individually and made of durable metal.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

The mower double deck pulley is an important part of many lawn mowers. The deck pulleys are used as a means to drive the blades on the mower. If the lawn's cut is uneven after mowing, the deck pulley may be the issue. In some cases, a damaged deck pulley might prevent the mower from working at all. Squealing sounds, buzzing sounds, and unusual vibrations are also signs of a damaged deck pulley.The double deck pulley could become damaged from simple wear and tear over years of use. It might also become damaged when using the equipment or while in storage. If there is an issue with the deck, it will need to be replaced as soon as possible to ensure the machine functions properly.This double pulley deck is for use with select lawn and garden tractors from MTD, Troy-Bilt, Yard-Man, Husky, and Yard Machines. This piece is sold individually. It is a genuine OEM replacement part that has been sourced from the manufacturer.

This is a deck pulley that can work as a replacement for a range of lawn tractors. The pulley is used to help spin the blades on the tractor's mower deck. If the pulley has been damaged or is broken, the blades will not spin, which means the tractor can't cut the lawn. This will significantly reduce the functionality of the tractor.The deck pulley tends to be durable, but it could need to be replaced at some point. It might break, or it might become stripped. This could cause the belt to snap eventually. Replacing the part is essential. An impact driver and a 7/8 socket are needed to complete this project. Wait for the tractor to cool before starting a repair.This deck pulley can work with select models of lawn tractors from MTD, Troy-Bilt, Yard-Man, Yard Machines, and Bolens. The pulley is sold individually. This is an authentic OEM replacement deck pulley that has been sourced from the manufacturer.
