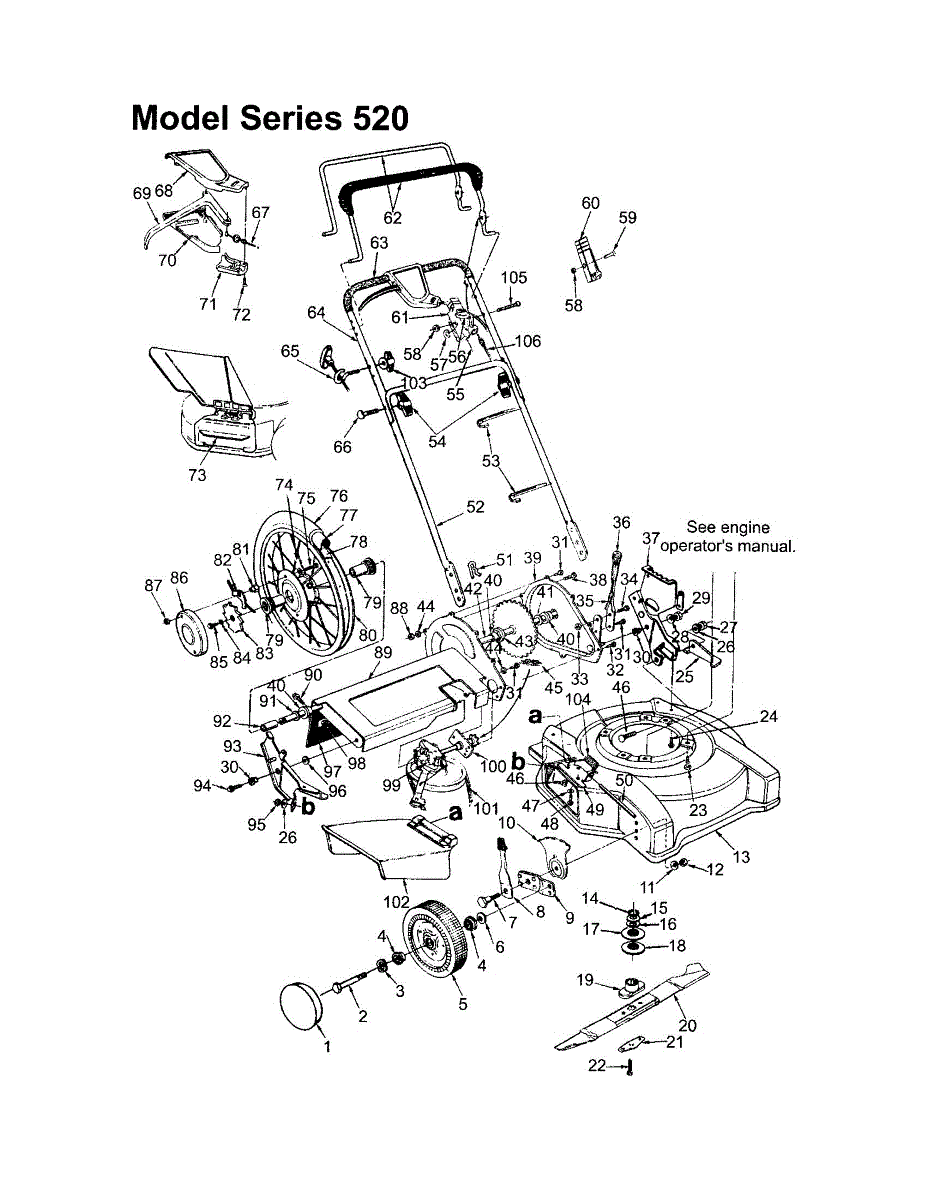

Parts for Mtd 520-MOWER: 22" Deck / 22" Blade / Handle Parts

Shield mounting screw for lawn mowers and tillers. Secures protective shields and covers to the mower deck. Replace if screw is stripped, missing, or damaged.

Wave washer helps secure fasteners and improve operation on lawn mowers and walk-behind equipment. Direct fit replacement part for push and self-propelled models.

Replace worn, cracked, or missing tire and rim assembly on your lawn mower or tiller. Installs on wheel axle for smooth rolling and maneuverability.

Replace your lawn mower's worn or broken wheel assembly with tire. Direct fit for damaged wheels that crack, wear down, or go missing over time.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

Pivot bar bracket for lawn mowers. Mounts to the mower deck to support handle height adjustment mechanism. Replace if bent, cracked, or broken.

Replace a lost, stripped, or corroded nut on your lawn mower, tractor, or outdoor power equipment. Secures components for safe operation.

Engine crankshaft spacer for walk-behind mowers. Maintains proper spacing between engine components. Replace if worn, damaged, or missing during repair.

Secures the mower blade to the spindle shaft on walk-behind mowers. Includes adapter, bolt, and bell support. Replace when worn or damaged.

Connects the cutting blade to the drive shaft on push mowers. Replace if adapter is chipped, cracked, worn, or loosened to restore secure blade mounting.

Replace your worn or damaged 22-inch mulching blade. This lawn mower blade installs under the deck to finely cut grass clippings for mulching.

Replacement 22-inch cutting blade for walk-behind mowers. Restores cutting performance when blade is dull, bent, cracked, or damaged from impacts.

Metal blade support spacer that mounts between the mower blade and bolt. Secures the blade to the deck base. Replace if worn, damaged, or missing.

Hex bolt secures blade adapter and other components on lawn mowers. Replace if bolt is stripped, damaged, or missing to properly fasten parts.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Hex lock nut secures bolted joints on outdoor lawn equipment. Replace if threads are stripped, nut is missing, or won't hold proper tension.

Replace worn, cracked, or missing handle grips on your lawn mower or snow blower. Restores comfortable control and cushioning to equipment handles.

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

Hinge pin fastener for lawn mowers. Secures moving components and panels. Replace if bent, missing, or damaged to restore proper attachment and function.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

Can't control mower speed or engine won't maintain RPM? Replace the throttle cable. Easy 15-minute repair restores smooth speed control on your mower.

This is a throttle lever that is used in many types of lawn and garden equipment. It is one of the components in the throttle assembly. The purpose of the throttle lever is to stop the engine whenever the user moves the lever into the full choke position. Sometimes, wear and tear or damage can cause issues with the throttle lever. If the lever is broken, it may not be possible to move the component, and it will need to be replaced. Excessive dirt and debris can also cause issues with the throttle lever. If the throttle lever needs to be replaced, pliers and a screwdriver will be needed for the process. The first step is to remove the throttle assembly and the cable attachment on the clutch. Take the cable out of the throttle lever before removing the lever itself. The new component can be installed in the same position before reassembling the tool.This throttle lever is an authentic OEM replacement part that is sourced directly from the manufacturer. It is sold as an individual component. The lever is made for use with edgers and lawnmowers manufactured by Bolens, Cub Cadet, Huskee, MTD, and Yard Machines.

Nylon nut for lawn equipment. Secures and connects components throughout the machine. Replace if cracked, stripped, or missing for proper assembly.

Fix a mower that won't start or has loose throttle cable control with a new throttle housing. This plastic grip component secures the throttle cable.

This is a throttle body intended for use with lawnmowers and tractors. The throttle body is attached to the control cable, the throttle control wire, and the throttle lever. It can be damaged or wear out with regular use. Signs that the throttle body is failing or going bad include a very low idle or poor idle. Stalling of the machine when stopping the device is another indicator that the throttle body is bad. When this happens, a new throttle body must be installed.Replacing a throttle body is simple. It requires a set of pliers, a wrench, and a screwdriver. Always wear gloves when working on a throttle body repair. Make sure to allow time for the machine to cool completely before beginning the repair.This throttle bottle is an authentic OEM part. It is supplied directly from the manufacturer. The throttle body is made of high-quality, durable plastic material. It is sold as an individual unit. The throttle body is compatible with Huskee, MTD, Yard Machines, Yard-Man, and Cub Cadet brands. It can be installed in various machines, including push-behind lawn mowers, lawn tractors, and other lawn equipment."

Foam handle grip for lawn mowers and tillers. Replaces worn, torn, or missing grips on control handles. Provides cushioned comfort and secure hold.

Rope guide eyebolt for lawn mower recoil starters. Guides the starter rope smoothly during pull starts. Replace if bent, broken, or missing.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Mower won't engage or self-propel? This clutch cable connects your control handle to the drive system. Moderate DIY repair, typically 30-45 minutes.

Control handle assembly for lawn mowers and walk-behind equipment. Replaces cracked, broken, or damaged handles. Includes mounting hardware for installation.

Control lever won't stay engaged or releases unexpectedly? This lawn mower latch secures the control lever in position. Quick DIY fix in 15 minutes.

Control handle assembly for lawn mowers and walk-behind equipment. Replaces cracked, broken, or damaged handles. Includes mounting hardware for installation.

Control handle assembly for lawn mowers and walk-behind equipment. Replaces cracked, broken, or damaged handles. Includes mounting hardware for installation.

Hex cap screw for securing components on lawn mowers, tractors, and outdoor power equipment. Replace if stripped, rusted, or missing hardware.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

Replacement flat washer for lawn mowers and outdoor power equipment. Replaces worn, missing, or damaged washers. Installs between bolts and components.

Replacement discharge chute deflector assembly for lawn mowers. Installs on the side deck to direct grass clippings. Replace if cracked or broken.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

This is an oval c-sunk screw commonly used in mowers and snowblowers to help secure the throttle housing to the upper handle. If there is a problem with the screw, it should be replaced to ensure the proper function of the machine.The screw is made from metal and it should last a long time. However, there could be several reasons to replace the screw. It might become lost when working on other parts of the machine. The threads could be stripped, or the head of the screw could start to wear away or corrode over time. Replacement of this piece is usually fast and easy, but it can depend on the location of the screw.The oval c-sunk screw will work with models of machines from MTD, Mastercut, Husky, Western Sun, Lawn Hawk, Wizard, Servistar, and Tradesman. The screw is sold individually. It is a genuine OEM replacement part.

This control cable is a replacement part for use with many models of walk-behind mowers. The cable connects to the mower's control bar and is used to run the engine. When the cable is released, the engine will shut off. It is an important part of the machine, and if it is broken, it will not run.The cables are durable, but they may break over time. In some cases, they might wear out and snap or break from damage. In other cases, the ends might snap and break off. The cable might fray or kink, as well. Regardless of the problem, the owner will want to replace it right away.This control cable is for use with select mower models from Yard-Man, Husky, Yard Machines, and MTD. The cable is sold individually. This is a genuine OEM replacement part that has been sourced directly from the manufacturer.
