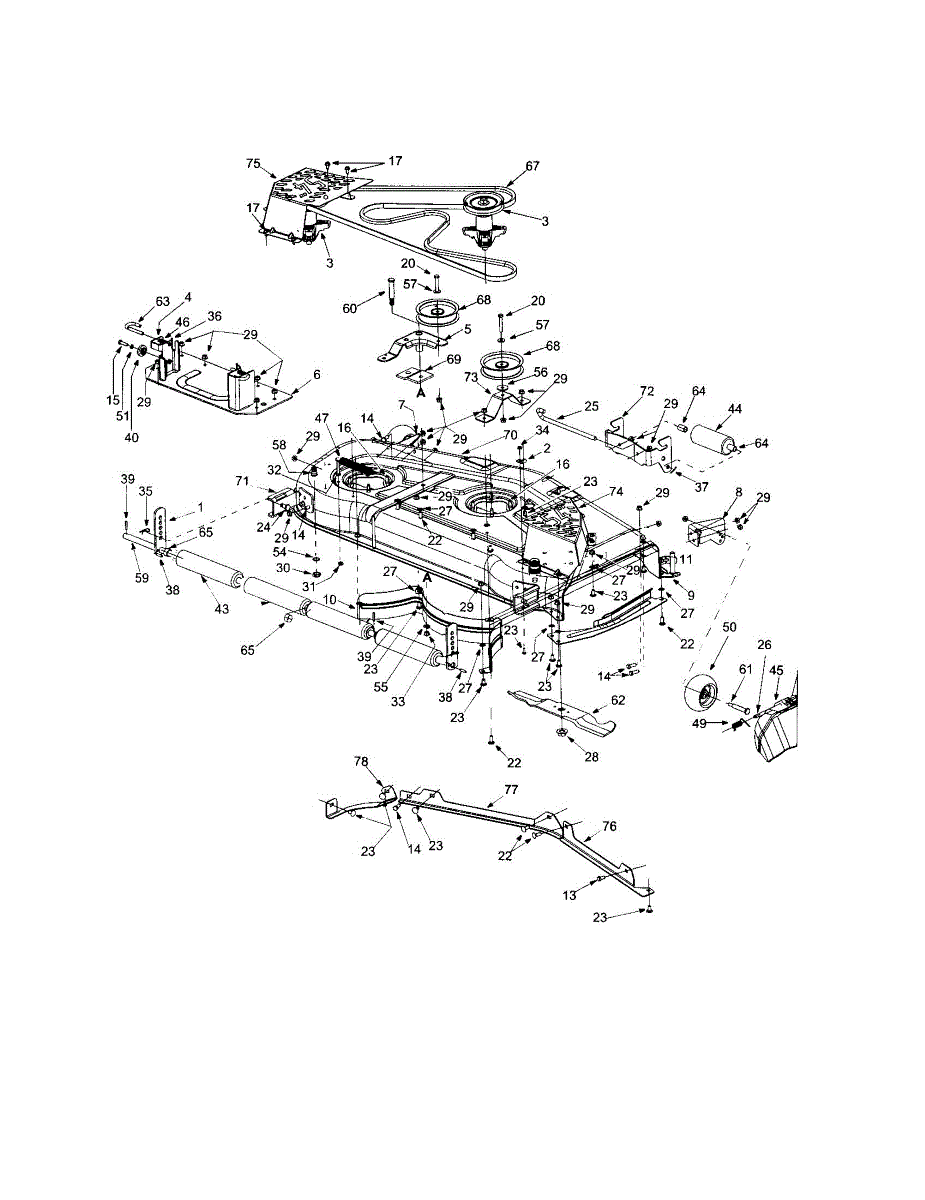

Parts for Troy-Bilt 14AT809H766: Deck Parts

Spindle assembly for lawn tractor mower decks. Mounts to the deck and holds the blade pulley. Replace when cracked, bent, or worn bearings cause wobble.

Left-hand deck bracket assembly for lawn tractors and riding mowers. Mounts and supports the mower deck. Replace if bent, cracked, or broken.

Idler pulley guides and tensions the blade drive belt on lawn tractors. Replace if worn, cracked, or causing belt slippage. Verify fit with your model.

Deck lift bracket assembly for lawn and garden tractors. Connects the lift lever to the mower deck for height adjustment. Replace if bent, cracked, or worn.

Chute deflector stop for lawn tractor grass catchers. Secures the discharge chute in position. Replace if cracked, broken, or missing for proper fit.

Inner rear baffle that directs grass clippings from under the mower deck to the discharge chute. Replace if cracked, bent, or damaged by debris impact.

Hex screw for lawn mowers and outdoor power equipment. Secures components and panels. Replace if stripped, rusted, or missing for proper assembly.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

Versatile bolt for lawn tractors and mowers. Secures various components throughout the machine. Replace when damaged, stripped, or missing.

Carriage bolt for riding mowers and lawn tractors. Secures deck components and structural parts. Replace if bolt is stripped, broken, or missing.

Metal clevis pin secures parts on lawn tractors and riding mowers. Replace if bent, worn, or missing to restore proper attachment and connection.

Deck roller pin serves as the axle for the front mower deck roller. Replace if bent, worn, or causing uneven deck movement. Verify fit with your model.

Replace a broken, worn, or missing hinge pin on your lawn tractor or riding mower. This small metal pin secures moving parts together during operation.

Replace a missing, damaged, or worn push nut on your lawn tractor or riding mower. This fastener securely holds parts in place during operation.

Replaces a stripped, damaged, or missing 5/8" hex flange nut on your lawn mower or snow thrower. Secures blades and other components with integrated washer.

Hex lock nut for lawn mowers and outdoor power equipment. Secures blade assemblies, wheels, and components. Replace if stripped, corroded, or missing.

Replacement hex nut for lawn mowers, snowblowers, and outdoor power equipment. Used as a fastening component throughout the machine. Replace if missing.

Secures wheels and attachments to axles on lawn mowers and tractors. Replace if bent, rusted, broken, or lost to restore safe equipment operation.

Deck height adjustment gear for lawn tractors and riding mowers. Replaces broken or worn gears that control cutting deck position and leveling.

Nozzle adapter for lawn tractors and riding mowers. Connects hoses or tubes in the fuel or deck wash system. Replace if cracked, stripped, or missing.

Mower deck roller for lawn tractors and garden tractors. Supports deck movement and reduces friction. Replace if worn, cracked, or damaged bearings.

Front deck roller mounts to the underside of your mower deck to maintain proper cutting height. Replace if damaged, cracked, or missing for level cutting.

Deflector chute for lawn tractors and riding mowers. Mounts to the mower deck to direct grass clippings. Replace if cracked, punctured, or broken.

Compression spring for lawn mowers and outdoor power equipment. Replaces broken, worn, or missing springs. Essential hardware for proper operation.

Extension spring for riding mowers and lawn tractors. Replaces worn, broken, or missing springs in various linkage and control systems. Direct fit part.

Deck won't stay up or is hard to raise? This lift assist spring restores smooth mower deck operation. Quick DIY fix for most lawn tractors.

This torsion spring is a genuine MTD part. It is a replacement part for lawn tractors, garden tractors, pro-turf riders, and lawn mowers.On these machines, the torsion spring exerts torque. They create tension by countering the force created by parts they are connected to on either end. This is an important function for the engine.This torsion spring is a genuine OEM part sourced directly from the manufacturer. It is sold individually. It is designed to be compatible with machines made by Husky, Cub Cadet, MTD, Troy-Bilt, Yard Man, and White Outdoor. It also replaces several obsolete parts, numbers: 01000388, 732-3070 and 932-3070.

Deck wheel kit for lawn mowers and tractors. Replaces cracked, broken, or worn deck wheels. Includes mounting hardware for easy installation.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Lock washer prevents fasteners from loosening due to vibration in lawn mowers, snowblowers, and outdoor power equipment. Simple replacement part.

This is a replacement isomount washer that works with a range of lawn and garden equipment. The flat metal washer can be used to attach to the idler arm bracket in certain machines. Washers are beneficial for ensuring there is a tight, proper connection between various pieces in a machine. They can also help to protect the surface of the connected parts.Washers are made to last, but they can still wear down over time. The metal could start to corrode, and the washer might break. It could also become bent. there is also the risk of losing a washer when working on other parts of the machine. They should be replaced when needed. Replacement is simple and will often require a wrench.The replacement washer can be used with models of lawn and garden tools such as snow blowers, lawnmowers, and lawn tractors from MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky. It is a genuine OEM replacement part from the manufacturer. It is sold individually. Owners might want to buy several to have available.

Deck wash nozzle for lawn mowers and tractors. Connects to your garden hose for easy underside deck cleaning. Replace if cracked, broken, or missing.

Roller shaft for lawn tractors and garden equipment. Replaces worn, bent, or damaged shafts in roller assemblies. Essential for deck or attachment operation.

Shield mounting screw for lawn tractors and garden tractors. Replaces damaged, stripped, or missing screws that secure protective shields and covers.

Deck release pin secures the mower deck to the tractor frame. Replace if bent, broken, or missing to properly attach and support your cutting deck assembly.

Hardware spacer for lawn mowers. Installs on shafts to create proper gaps between connections. Replace if cracked, damaged, or missing for correct fit.

Flat idler pulley guides and maintains proper belt tension on lawn tractors. Replace if belt slips, squeals, or shows wear. Verify fit with your model.

Right-side spindle cover for lawn tractors. Protects the mower deck spindle assembly from debris and impacts. Replace if cracked, broken, or missing.

Left-hand spindle cover for lawn tractors and riding mowers. Protects spindle assembly from debris. Replace if cracked, broken, or missing.

This replacement part is a deck skirt. This is a genuine replacement part made by MTD. This deck skirt is often attached to the back of certain lawn mowers to prevent the wheels and other parts from becoming clogged with mulch and other debris. A new deck skirt might be needed if the current one is damaged or missing. If the deck skirt is no longer attached it is recommended that it be replaced as soon as possible. The deck skirt is able to prevent grass clippings and small debris from clogging the wheels and other areas under the lawn mower. Be sure the engine is completely powered down before replacing this part. This part is sold individually and is sourced directly from the manufacturer for long-lasting use. This part is a genuine OEM replacement part to ensure proper fit.

Left-hand deck skirt extension for lawn and garden tractors. Replaces cracked, broken, or missing skirt panels that protect the mower deck edge.
