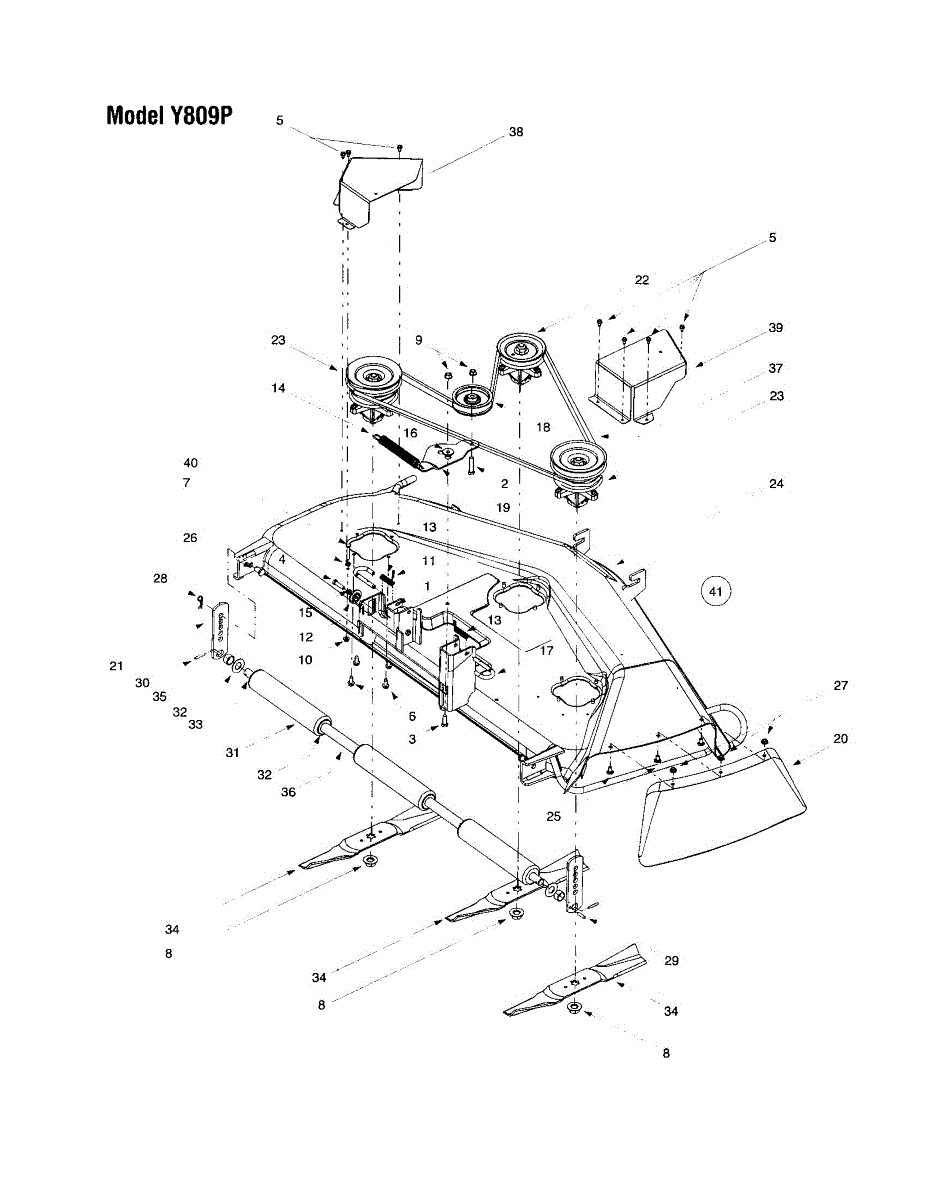

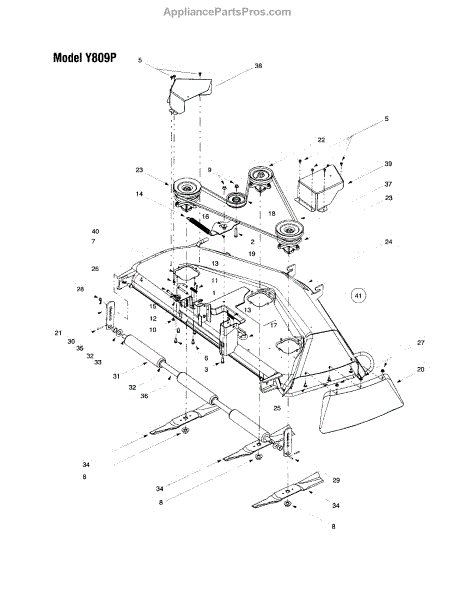

Parts for Troy-Bilt 14AB809H063: 50" Deck Shell - Y809p Parts

This carriage bolt is a self-locking bolt designed to be used in an unthreaded square or round hole. These bolts are used in outdoor lawn and garden equipment due to their ability to handle heavy weight loads.Carriage bolts are often used to join lawnmower handles to the base of the mower. Over time, the vibration of the lawnmower may cause the bolt to become loose. During routine maintenance, if the bolt is loose, use a wrench to tighten the nut holding the bolt in place. If the bolt is missing, this carriage bolt replacement can be installed. Push the bolt through the hole; if the fit is snug, it may need to be lightly tapped. Once the bolt is through the other side, thread a nut on the bolt. Tighten the nut with a wrench.This is a genuine OEM part sourced directly from the manufacturer. It is sold as an individual unit and does not come with the nut. This carriage bolt is designed for lawnmowers, snowblowers, and other outdoor lawn and garden equipment manufactured by Bolens, Craftsman, Cub Cadet, Huskey, Troy-Bilt, Turf Pro, MTD, Ryobi, and Mastercut.

This replacement part is a headlight harness. This is a genuine replacement part made by MTD. This particular harness is made up of different wires and is responsible for connecting certain parts together so that the headlights are able to turn on and off according to the user's preferences. A new headlight harness might be needed if the current harness is unable to stay attached or is damaged in any way. After years of normal wear and tear the wires in the harness might have become stripped and should be replaced if this is the case. If the headlight is not turning on when the switch is working, it might be a faulty harness. Be sure the engine is completely powered down before attempting to repair this specific part.This headlight harness is sold individually and is sourced directly from the manufacturer to ensure proper fit. This part is a genuine OEM replacement part.

This screw is used on a variety of lawn and garden equipment from many manufacturers. This hex screw is a large bolt that has a six-sided head that can be used to fasten metal to wood or wood to wood. This type of screw is unique from traditional screws because the bolt head needs to be held with a socket while a second wrench is used to tighten or loosen the part. The bolts have a smooth shank and small threads. These screws can break or become damaged and no longer do their job. When that happens, they will need to be replaced. A hex key wrench can be placed into the slot of the screw and turned counterclockwise to loosen up the bolt. The replacement hex screw can then be placed in the original hole to adhere parts together on lawn equipment. This is a genuine replacement OEM screw that is commonly used on Craftsman, Toro, Murray, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, MasterCut, Cub Cadet, and Huskee lawn mowers, log splitters, snowblowers, chainsaws, tillers, and string trimmers. The screw is sold individually and made of durable metal.

This harness assembly is a genuine MTD part, sold individually. A harness assembly can be used as a replacement part in a lawn mower. This genuine OEM part is made out of durable, high quality materials meant to stand up to the elements and to regular long-term usage over the standard lifespan of a lawn mower.The harness assembly in a lawn mower might need eventual replacement if its function has been rendered reduced or negated after overuse or an accidental collision with a hard object. If this occurs, the harness assembly should be removed and replaced by this genuine OEM replacement part. Refer to the manual for detailed instructions.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This harness assembly is compatible with the following outdoor appliance brands: MTD and Cub Cadet.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

The hex lock nut is found on many different types of outdoor lawn equipment, as well as other types of equipment. The lock nut works to secure bolted joints by adding friction to the bolt threads. The nut has flat sides, which can easily be gripped by a wrench to be tightened or loosened as needed. These types of nuts are common, as they provide easy assembly and disassembly of various parts. Buyers may need a new hex lock nut for a range of reasons. The nut that is currently on the equipment could have become damaged or lost while working on the machine. It is vital for all of the nuts to be in place and properly secured on the equipment before use. This is an authentic OEM part. Some of the products that use hex lock nuts include lawn mowers, snowblowers, tillers, edgers, string trimmers, and log splitters. Common equipment brands using these nuts include Craftsman, Toro, Cub Cadet, Yard Machines, and Troy-Bilt.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

A flat idler pulley is a crucial piece of hardware designed for use with many different models of lawn mowers and snowblowers. It is compatible with products by brands such as Craftsman, Yard Machines, Yard Man, MTD, and Troy-Bilt.The flat idler pulley part is crucial for the proper functioning of the lawn mower because it connects to the idler bracket. The purpose of the flat idler pulley is to apply tension to the v-belt. The replacement process of the flat idler pulley will require a wrench.This flat idler pulley is made out of metal. It is sold individually. The flat idler pulley is an original OEM part sourced directly from the manufacturer, MTD.

This is a deck pulley that can work as a replacement for a range of lawn tractors. The pulley is used to help spin the blades on the tractor's mower deck. If the pulley has been damaged or is broken, the blades will not spin, which means the tractor can't cut the lawn. This will significantly reduce the functionality of the tractor.The deck pulley tends to be durable, but it could need to be replaced at some point. It might break, or it might become stripped. This could cause the belt to snap eventually. Replacing the part is essential. An impact driver and a 7/8 socket are needed to complete this project. Wait for the tractor to cool before starting a repair.This deck pulley can work with select models of lawn tractors from MTD, Troy-Bilt, Yard-Man, Yard Machines, and Bolens. The pulley is sold individually. This is an authentic OEM replacement deck pulley that has been sourced from the manufacturer.

This spindle assembly is a genuine MTD part, sold individually. A spindle assembly can be used as a replacement part in a lawn mower. This genuine OEM part is made out of high quality, durable metal material; its purpose within a lawn mower is to facilitate the rotation of the wheels such that the appliance can be driven across a variety of surfaces by its operator while in use.The spindle assembly in a lawn mower can be subject to puncturing, denting, cracking, warping, or eroding. If this damage renders the spindle assembly unusable, it should be removed and replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This spindle assembly is compatible with the following outdoor appliance brands: MTD, Huskee, Yard Man, and Yard Machines.

The mower double deck pulley is an important part of many lawn mowers. The deck pulleys are used as a means to drive the blades on the mower. If the lawn's cut is uneven after mowing, the deck pulley may be the issue. In some cases, a damaged deck pulley might prevent the mower from working at all. Squealing sounds, buzzing sounds, and unusual vibrations are also signs of a damaged deck pulley.The double deck pulley could become damaged from simple wear and tear over years of use. It might also become damaged when using the equipment or while in storage. If there is an issue with the deck, it will need to be replaced as soon as possible to ensure the machine functions properly.This double pulley deck is for use with select lawn and garden tractors from MTD, Troy-Bilt, Yard-Man, Husky, and Yard Machines. This piece is sold individually. It is a genuine OEM replacement part that has been sourced from the manufacturer.

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

This clevis pin is a metal fastener without threads like most screws. It has similarities to a bolt and is often inserted into a pre-drilled hole to secure two or several items together in yard and garden equipment. Clevis pins will have a hold through the end where cotter pins can be attached to secure the pins into place. Sometimes these pins can become corroded or experience damage which will require them to be replaced.If the clevis pin is falling out, broken, or damaged, it needs to be removed. Spraying it with penetrating oil and letting it sit for a few hours before pulling the cotter pin away from the clevis pin is the best technique. A pry bar can be used to take the pressure away from the clevis pin before hammering against the clevis pin to take it out. At that point, the new clevis pin can be installed.Created for use in chainsaws, lawnmowers, and snowblowers, this clevis pin fits lawn and garden equipment by MasterCut, Craftsman, Yard-Man, Toro, Yard Machines, Cub Cadet, MTD, and Murray. This is a genuine OEM product directly sourced from the manufacturer that comes as an individual component.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.
