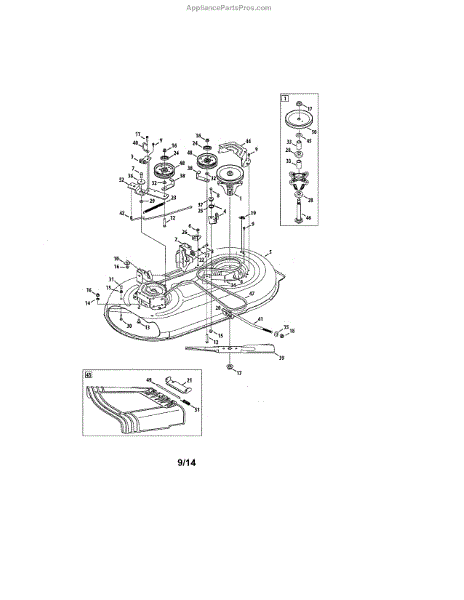

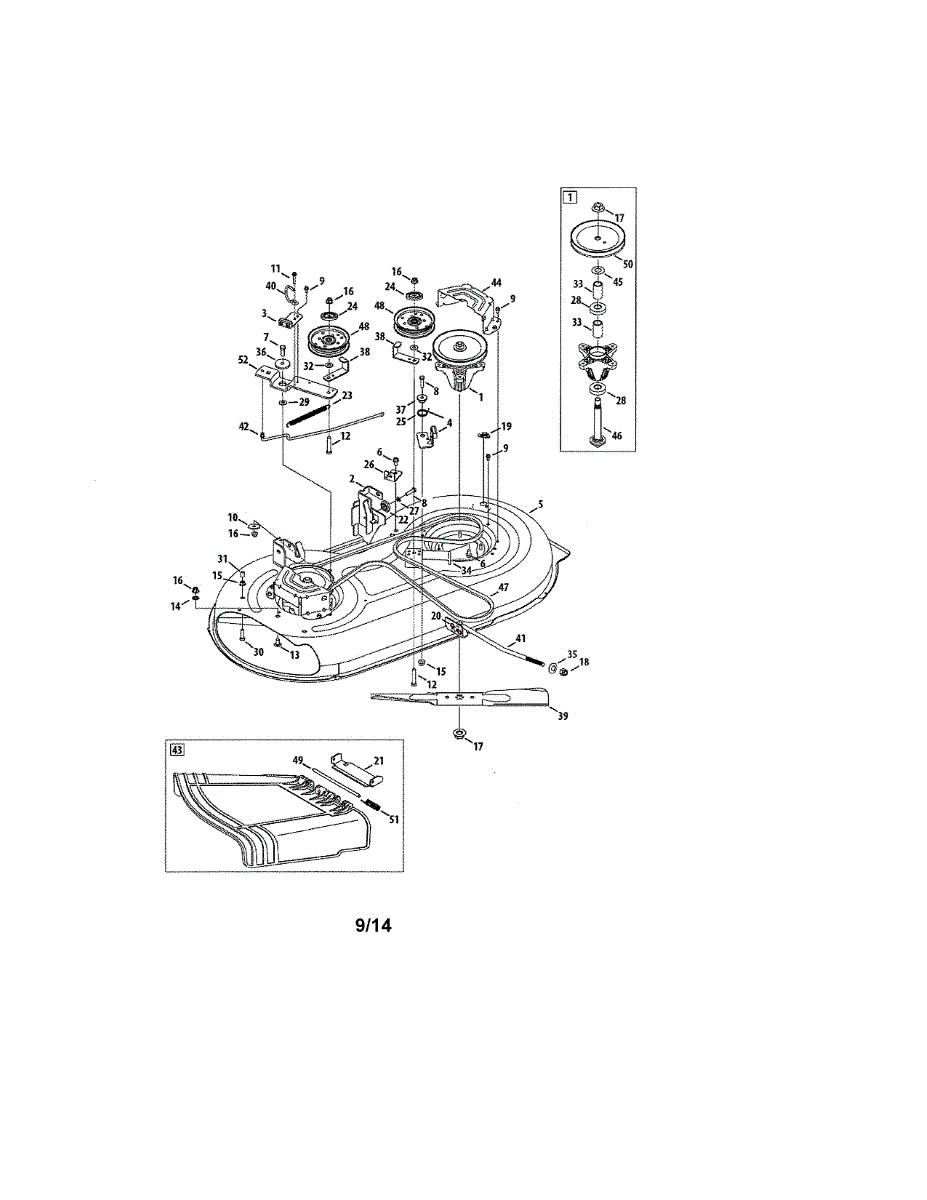

Parts for Craftsman 247203720: Deck / Spindle / Chute Parts

Seat wiring harness jumper for front-engine lawn tractors. Connects seat safety switch to electrical system. Replace if frayed, damaged, or corroded.

Left-hand deck bracket assembly for lawn tractors and riding mowers. Mounts and supports the mower deck. Replace if bent, cracked, or broken.

Replace your lawn tractor's main wiring harness if you're experiencing electrical failures, non-starting engine, or intermittent power issues.

Deck brake assembly stops mower blades safely when disengaged. Fixes blades that won't stop spinning or take too long to halt. Moderate DIY repair.

Deck won't stop spinning after disengaging blades? This lawn tractor deck brake assembly stops mower deck rotation for safe operation and blade changes.

Hex head self-tapping screw for outdoor power equipment. Securely fastens components throughout your machine. Replace if missing, stripped, or worn.

Hex screw for lawn tractors and garden equipment. Replaces missing, loose, or deteriorated fasteners in various mounting applications across the machine.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Small metal washer that secures parts on lawn tractors and riding mowers. Replace if worn, cracked, or missing to properly fasten components together.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

Hex bolt for lawn tractors and riding mowers. Secures structural components and attachments. Replace if stripped, rusted, or missing for proper assembly.

Carriage bolt for riding mowers and lawn tractors. Secures deck components and structural parts. Replace if bolt is stripped, broken, or missing.

Replace a missing, damaged, or worn push nut on your lawn tractor or riding mower. This fastener securely holds parts in place during operation.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Replaces a stripped, damaged, or missing 5/8" hex flange nut on your lawn mower or snow thrower. Secures blades and other components with integrated washer.

Replacement hex nut for riding mowers and lawn tractors. Secures components together throughout the equipment. Replace when stripped, missing, or damaged.

Split pin fastener for lawn tractors and outdoor power equipment. Secures axles, linkages, and moving parts. Replace when bent, missing, or corroded.

Deck height adjustment gear for lawn tractors and riding mowers. Replaces broken or worn gears that control cutting deck position and leveling.

Extension spring manages component placement through tension on lawn tractors. Replace if stretched, broken, or losing tension. Verify fit with your model number.

This torsion spring is an authentic OEM replacement part sourced directly from the manufacturer. It is used to hold the idler pulley securely against the belt so that the belt can turn. Over time, the torsion spring may become worn and not function properly. If this happens, the belt will not turn, and the tractor will not run. The torsion spring should be replaced and the belt inspected for damage. Before replacing the torsion spring, make sure the tractor engine is cool. Remove the keys from the tractor and disconnect the battery terminals to prevent the engine from being started. Locate the idler pulley and loosen the screws holding it in place. This will loosen the belt so that it can be removed to access the torsion spring. Once the spring is located, remove it and install the new one. Reinstall the belt and tighten the idler pulley. Reassemble the tractor and reconnect the battery. Test the tractor to make sure the torsion spring is installed correctly. This torsion spring is a gold-colored metal part that is sold individually. This spring is designed to be tractors manufactured by MTD and Craftsman.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This part is a replacement screw. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken, stripped, or misplaced screw in outdoor power equipment. Screws are critical for holding together parts of the equipment and can be used in many different areas. They are a standard piece of hardware that will need replaced if stripped, corroded, or otherwise defective. It's important when working on or near to any engine to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this screw, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this screw is suitable for use on several outdoor power equipment manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Please This is a genuine part made of high-quality, durable metal and is sold individually.

Shoulder spacer for lawn tractors and riding mowers. Installs to maintain proper component spacing. Replace if cracked, worn, or missing.

Shoulder spacer for lawn tractors and riding mowers. Installs between moving parts to reduce friction. Replace if worn, cracked, or missing.

This is a two in one blade that can be used as a lift blade to bag clippings, as well as a side discharge for clippings. It is time to consider replacing this blade when there are uneven or even missed areas of cutting or bagging when using the mower. It may be that the blade has been dulled by prolonged use or bent or damaged by striking rocks and dense roots. Either way, replacing the blade is a relatively easy repair to make and should be considered a part of routine maintenance. The repair requires the use of the proper tools, including wrenches and sockets. An appropriate flange bolt may need to be purchased as well if the original has been damaged or worn. "This OEM replacement cutting blade works with more than 150 types of tractors and mowers made by Craftsman, Yard Machines, Yard-Man, MTD, and Troy Bilt. This ships singly and is a high-quality blade made of durable materials.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.

Fix a deck that won't lift or adjust properly. This pivot cup lets the lift arm move freely while staying secured to your mower deck. Easy DIY fix.

Shoulder spacer for lawn tractors and riding mowers. Installs to maintain proper spacing between components. Replace if worn, damaged, or missing.

Belt guard for 46-inch lawn tractors and riding mowers. Replace if cracked, damaged, or missing to protect belts and ensure safe operation. Verify fit.

Belt keeper rod for lawn tractors. Holds drive belt in proper position to prevent slippage and maintain tension. Replace if bent or damaged. Verify fit with your model number before ordering.

Front deck lift rod for lawn tractors and riding mowers. Connects mower deck to lift mechanism. Replace if bent, damaged, or corroded for proper operation.

Replace your lawn tractor's deck brake rod if mowing deck won't stop spinning or brake feels loose. Direct-fit part restores safe deck engagement control.

Replace your cracked or broken lawn tractor discharge chute assembly. Mounts to the mower deck to direct grass clippings away from the cutting area.

Replace your lawn tractor's 42-inch deck belt cover to protect the drive belt from debris and damage. Fits select front-engine models. Verify fit.

Flat washer for lawn tractors and garden equipment. Distributes load under bolt heads and prevents surface damage. Replace if worn or missing.

Fix wobbling mower blades with this spindle shaft. Common repair for uneven cuts and blade vibration. Moderate DIY with socket set and hammer.

A V-belt is used on riding lawn mowers and yard tractors to turn the blades and the accessories of these power tools. The engine pulley, which supplies power, is connected to the cutting deck pulley, which turns the mower blades, with a V-belt. Over time the V-belt, which is made of rubber, may stretch, calling for the tension on the belt to be adjusted. Eventually the belt will wear to the point that it no longer turns the cutting deck pulley fast enough for the blades to cut grass. Sometimes the belt will crack with dry rot and break. In any of these instances, the solution is to replace the V-belt. In order to replace the V-belt, the cutting deck must be lowered completely. A worn belt will likely slip off the cutting pulley with little resistance. In case the belt is missing, the user will find a diagram with the proper V-belt routing on top of the cutting deck. When replacing the V-belt, make sure to use a genuine OEM replacement part such as this one, which is manufactured to be an exact replacement for the original. This V-belt is compatible with riding mowers from MTD, Murray, Huskee, Troy-Bilt, Yard Machines, and Yard Man.

Idler mandrel pulley kit for lawn tractor mower decks. Includes pulley, spacer, and bushing. Replace if bearing is damaged, broken, or lost.

Chute hinge pin for lawn tractors and riding mowers. Secures the discharge chute hinge assembly. Replace if bent, broken, or missing to restore proper fit.

Deck blade drive pulley for lawn tractors and riding mowers. Attaches to spindle shaft to rotate mower blades via belt. Replace if cracked or worn.

This replacement part is a torsion spring and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This spring is found in different types of lawn mowers and is able to assist other parts working together to allow the engine to run properly and smoothly. Though this spring is small it is an important part of many machines.A new torsion spring might be needed if the current one is damaged or missing. Because of the nature of the spring, it is not unusual for it to become stripped or snapped due to normal wear and tear within the machine. Unusual noises may come from inside the machine if the torsion spring is not working properly. This torsion spring is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part.

Fixes belt slipping or falling off on your riding mower. This idler pivot bracket maintains proper belt tension. Moderate DIY difficulty replacement.

Replace cracked or deteriorated vent hose on your lawn tractor or riding mower. This 3/16" ID hose connects fuel tank ventilation components.
