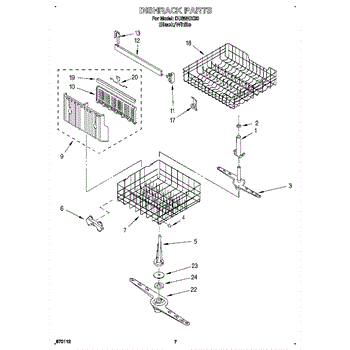

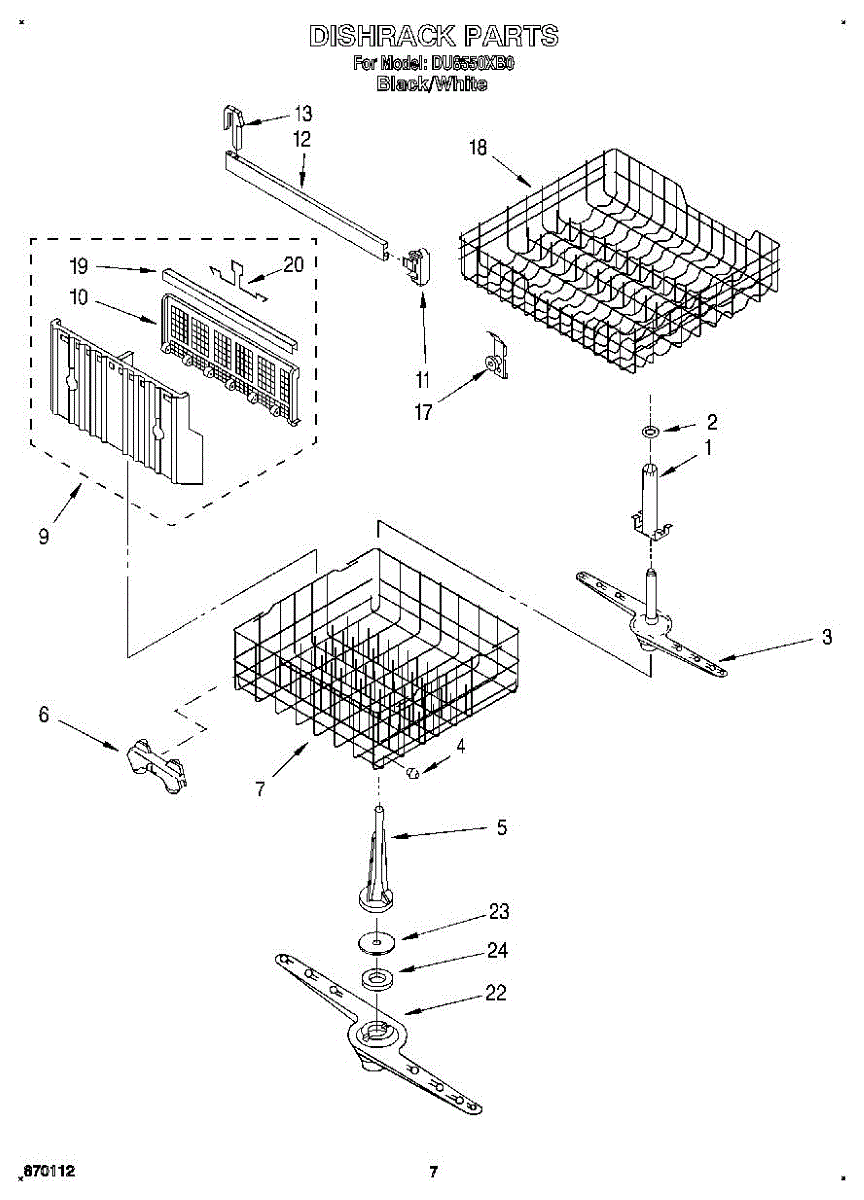

Parts for Whirlpool DU8550XB0: 05 - Dishrack, Lit / Optional Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

A small mounting clip that secures interior panels or trim pieces to the appliance, keeping parts aligned and preventing rattling or movement during operation. Simple replacement restores proper fit and reduces noise from loose components. What it does:

• Holds a panel, trim or small component in place on the cabinet or housing
• Keeps parts aligned so doors, panels or covers fit and operate smoothly
• Prevents rattling or vibration caused by loose or missing fasteners
• A worn or broken clip can allow gaps, movement, or noise during use

• Disconnect power (unplug or switch off breaker) before servicing
• Replacement typically requires only basic hand tools; keep track of any removed fasteners
• Inspect surrounding mounting points and adjacent clips for wear and replace as needed

Includes spray arm support W10851031 and clip WP303722.

This package contains one roller. To order a set of 4 use 4317933.

The Lower Dishwasher Rack Assembly is an OEM part for Whirlpool dishwashers. This part holds and organizes dishes, pots, and pans in the lower section of the dishwasher, ensuring they are properly positioned for effective cleaning.

Causes of a bad lower rack can include wear and tear from regular use, exposure to harsh detergents or high temperatures, and physical damage from heavy or improperly loaded items.

Symptoms of a bad lower dishwasher rack assembly include:

• Rust or corrosion on the rack
• Broken or missing tines
• Difficulty sliding the rack in and out
• Poor arrangement of dishes, leading to ineffective cleaning

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: white. Measures about 2 inches wide by 9-1/2 inches high by 15 inches deep.

Color: white. Measures about 2 inches wide by 9-1/2 inches high by 15 inches deep.

Dishwasher upper track endcap.

This part has been discontinued by the manufacturer and is no longer available.

The Rack Adjuster is an OEM part for Whirlpool dishwashers, designed to allow for the easy adjustment of the dishwasher rack's height. This feature accommodates dishes of various sizes. By providing the flexibility to adjust the rack height, this part enhances the dishwasher's adaptability to different washing needs.

Symptoms of a failing Rack Adjuster include:

• Difficulty in adjusting the dishwasher rack's height
• The rack becoming loose or detaching from the adjuster
• Visible wear or damage to the adjuster components

Causes of a bad Rack Adjuster can range from normal wear and tear, which gradually degrades its components, to accidental damage during loading or unloading of dishes.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This dishrack replaces a damaged, rusted, or warped rack to restore smooth loading and secure support for dishes. A solid rack keeps items upright for better spray coverage, cleaner results, and helps prevent rust transfer and chipping.

• Holds and organizes plates, bowls, and cookware for proper spacing and spray access
• Provides stable support to reduce tipping and breakage during wash cycles
• Replaces racks with rust, broken wires, or bent/missing tines
• Can help resolve issues like rust marks on dishes and loading difficulties

• Disconnect power at the breaker before servicing
• Open the door; slide the old rack out—on some models, release rack stops to remove
• Transfer any reusable accessories from the old rack to the new rack if applicable
• Wear cut-resistant gloves; set the new rack on the rails and verify smooth movement and proper door closure

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This lower spray arm assembly circulates pressurized wash water across the bottom rack to help remove food soil and improve cleaning. It replaces a worn or damaged lower arm to restore proper spray coverage. What it does:

• Directs water flow from the pump to wash dishes on the lower rack.
• Helps maintain even spray pattern and consistent cleaning performance.
• Can prevent poor cleaning or missed spots caused by cracked, clogged, or broken arms.
• Connects to the dishwasher's spray tube or hub to rotate during the wash cycle.

• Disconnect power to the dishwasher before servicing.
• Remove the lower rack to access and remove the old spray arm; typically snaps or unscrews from the hub.
• Inspect the spray arm hub and spray tube connection for debris before installing the new arm.
• Reinstall the lower rack and run a short cycle to verify proper rotation and no obstructions.

Cap with rubber pressure seal to hold down lower spray arm. Instruction sheet included.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Color: White.

This part has been discontinued by the manufacturer and is no longer available.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This part has been discontinued by the manufacturer and is no longer available.

Color: Almond.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Color: Blue. Includes 125 caps used to cover damaged tips on your dishracks. For white order 675679. For gray order 676458. To attach these tine tips you will need to order the dishrack blue touch-up paint W10840471.

Instruction sheet included. This is a heavy duty spring kit used for heavy doors. Kit includes 2 springs.

Color: White. Size: 13 oz. Spray paint primer. can.

This lower wash arm bearing keeps the dishwasher's lower spray arm turning smoothly so dishes get even water coverage. It replaces a worn bearing to reduce noise and restore proper spray-arm rotation. What it does:

• Supports the lower spray arm so it can spin freely during cycles
• Helps maintain even water distribution for better cleaning
• Reduces grinding or scraping noises caused by a worn bearing
• Prevents wobbling or misalignment of the lower spray arm

• Disconnect power and shut off the water supply before starting any repair
• Inspect the spray arm and mounting surfaces for damage; clean before installing the new bearing

Touch-up paint for repairing small chips, scratches and scuffs on painted appliance surfaces. Restores the appearance of localized damage so repaired areas better blend with the surrounding finish. What it does:

• Covers small chips and surface scratches to improve cosmetic appearance.
• Helps conceal finish wear on painted metal and plastic trim.
• Lets you spot-repair without replacing large panels or parts.
• Works for quick, visible fixes where full repainting isn't needed.

• Clean and dry the repair area thoroughly before applying; remove loose paint or rust.
• Test on an inconspicuous area first to confirm color match and compatibility.
• Apply sparingly in thin coats with a small brush or cotton swab; allow each coat to dry before adding more.
• Use in a well-ventilated area and keep out of reach of children; follow any handling instructions on the product label.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Color: White. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For grey order 676458. To attach these tine tips you will need to order the dishrack white touch-up paint WP676453.

Color: White. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For grey use WP676455. For tips use 675679

Color: Grey. 4oz bottle with brush used for touching up damage to your dishracks. For blue use W10840471. For white use WP676453. For tips use 676458.

Color: Gray. Includes 125 caps used to cover damaged tips on your dishracks. For blue order 12022. For white order 675679. To attach these tine tips you will need to order the dishrack gray touch-up paintWP676455.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
