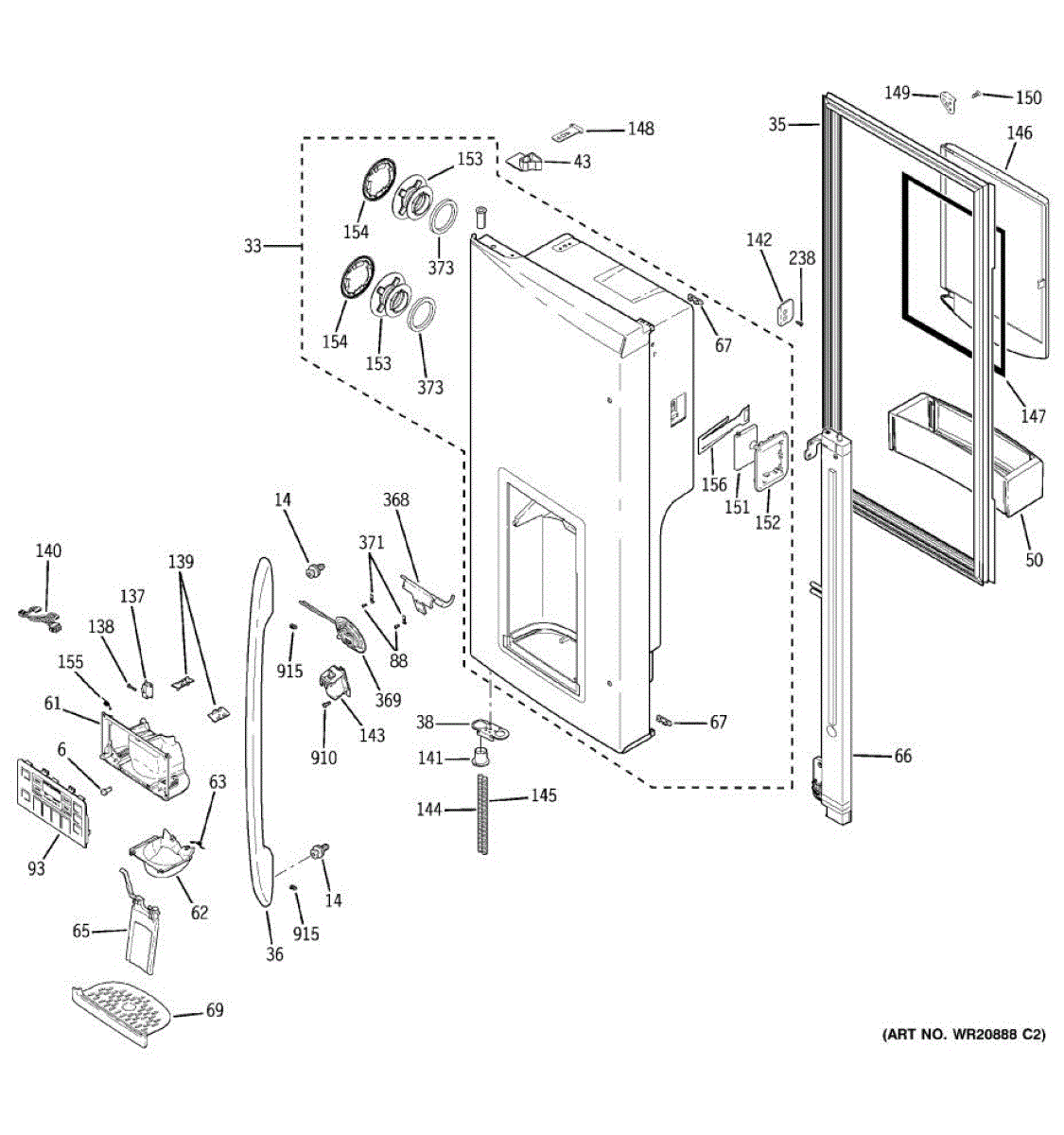

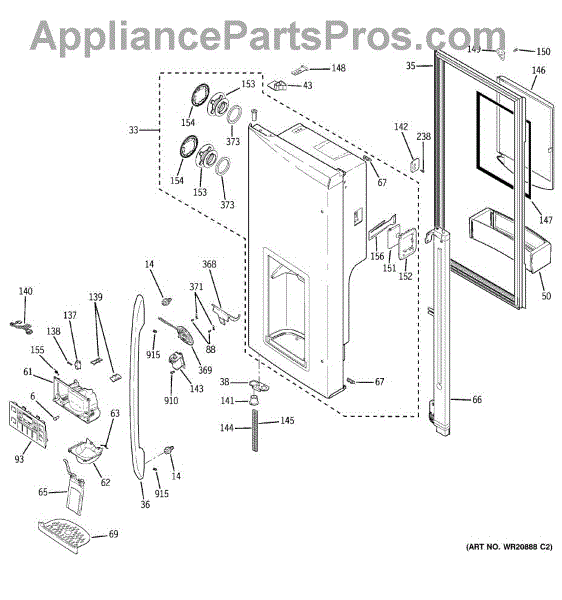

Parts for Ge PGSS5RKZCSS: 01 - Dispenser Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This OEM fastener secures interior components and trim on compatible appliances to restore proper fit and reduce movement. It's a direct-replacement hardware piece used where the original mounting screw or retainer is lost or worn. What it does

• Secures panels, trim pieces, brackets or small assemblies to the appliance frame
• Restores firm attachment to reduce rattles, gaps or misalignment
• Replaces missing or stripped hardware that prevents proper part installation
• Helps maintain proper operation by keeping service parts seated and stable

• Disconnect power or unplug the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the fastener, then tighten snugly—do not over-torque
• Replace any additional damaged fasteners with the same OEM part for best fit

The Refrigerator Door Gasket is an OEM part for GE refrigerators. It is designed to create an airtight seal around the refrigerator door, preventing warm air from entering and cool air from escaping. This gasket is essential for maintaining the refrigerator's internal temperature, ensuring energy efficiency, and preserving the freshness of stored food.

Over time, the door gasket can become worn out or damaged. Causes of a bad door gasket can include regular wear and tear, exposure to temperature fluctuations, or physical damage such as tears or cracks. A compromised gasket can lead to increased energy consumption and reduced cooling efficiency.

Symptoms of a bad refrigerator door gasket include:

• The refrigerator door not sealing properly
• Visible cracks, tears, or deformities in the gasket
• Condensation or frost buildup around the door edges
• The refrigerator running more frequently or for longer periods

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This handle assembly replaces a damaged or worn refrigerator fresh-food door handle to restore a secure grip and straight door appearance. It provides a factory-fit replacement that mounts where the original handle attaches. What it does:

• Replaces a cracked, loose or broken fresh-food door handle
• Restores a safe, comfortable grip for opening the refrigerator door
• Corrects misaligned or crooked handle appearance
• Helps the door latch and seal operate normally by providing proper handle support

• One handle assembly as shown

• Unplug the appliance or disconnect power before beginning any repair
• Keep original fasteners; install with the same screws or clips provided and tighten snugly — do not overtighten
• Handle with care to avoid scratching the door finish; wear gloves to protect hands from sharp edges

A replacement cam closure that helps the refrigerator/freezer door latch and close smoothly to maintain a proper seal. Fits into the door hinge/closure assembly to restore correct door movement and alignment. What it does:

• Guides and supports the door as it closes to help the gasket seat evenly
• Helps prevent door sagging, misalignment, or incomplete latching
• Restores consistent door travel and engagement with the strike/latch
• Commonly replaced when the door feels loose, sticks, or does not fully close

• Safety first: unplug the appliance or disconnect power before beginning work
• Remove door trim or hinge covers as needed to access the cam; keep track of fasteners
• Align the cam with the hinge/closure assembly and test door movement before reassembling

This dispenser housing shield covers the refrigerator dispenser opening to restore appearance and help direct water or ice into cups. It replaces a cracked, faded, or damaged dispenser trim for a cleaner dispense area. What it does:

• Replaces damaged or faded dispenser trim for a neat, finished look
• Helps guide water and ice into containers and protects underlying components
• Reduces drafts and light from the dispenser opening
• Commonly replaced if cracked, warped, or cosmetically worn

• Remove power to the appliance before beginning work to reduce shock risk
• Typically installs with clips or screws—inspect fasteners and the surrounding trim for damage
• Handle carefully to avoid scratching the finish during installation

This ice dispenser funnel guides cubed or crushed ice from the chute into your glass. Replacing a cracked or missing funnel helps prevent stray ice, reduce jams, and restore clean, controlled dispensing at the refrigerator door.

• Directs ice through the dispenser opening for accurate, mess-reducing filling
• Helps minimize ice scatter, clogs, and bounce-back into the door cavity
• Common signs of failure: cracks, broken tabs, misalignment, or ice missing the glass
• Restores proper fit and alignment within the dispenser housing

• Unplug the refrigerator before servicing the dispenser area
• Access the funnel by removing the dispenser trim/panel per your service information
• Transfer any mounting hardware, springs, or clips from the original part
• Ensure secure seating and alignment; restore power and test ice dispensing

This plug-in SCR is a solid-state replacement that controls electrical power to appliance circuits, restoring reliable on/off control and helping eliminate intermittent operation. It's a direct-fit replacement when the original SCR fails. What it does

• Regulates current flow in the control circuit to switch power to motors or heating loads.
• Stops erratic cycling or loss of power caused by a failed control semiconductor.
• Helps restore consistent operation when an appliance has intermittent start, no heat, or no motor run.
• Provides a rugged, compact replacement with a 5/16" connection style.

• One plug-in SCR

• Disconnect power to the appliance before accessing or replacing the SCR.
• Remove the appliance's control or access panel to reach the control board; note wire locations before unplugging.
• Plug the new SCR into the original connector or replace per the service manual.
• Verify correct operation after installation and reassemble all panels before restoring power.

This dispenser interface is the user-facing control board that lets the dispenser send commands to the ice/water system, restoring responsive button operation and dispenser controls. It's the board behind the dispenser touchpad and LED indicators. What it does:

• Accepts button or pad inputs and sends signals to the dispenser and ice/water actuator
• Helps restore unresponsive dispenser buttons, lights, or selector functions
• Works with the dispenser housing and wiring harness to control dispense actions
• Affects dispenser lock, water dispense, and ice selection when faulty

• One dispenser interface control board

• Disconnect power to the appliance before starting any work
• Remove dispenser trim or housing panels to access the interface; avoid sharp edges
• Handle the board by the edges and avoid contact with circuitry or connectors
• Reconnect all wiring harnesses securely; no programming required in most models

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory screw secures panels, brackets, and other components inside your refrigerator. Replacing a missing or stripped fastener restores a tight fit, reduces vibration, and helps keep parts aligned so covers and assemblies stay in place.

• Fastens sheet-metal, plastic, and bracket assemblies to the cabinet or liner
• Replaces lost, corroded, or stripped hardware
• Can help address loose or rattling parts and minor misalignment
• Fits original threaded mounting points for a proper, secure hold

• Disconnect power; shut off water supply if working near water lines
• Match to the original location; start threads by hand to avoid cross-threading
• Tighten snugly only—overtightening can strip threads or crack plastic

This electronic board powers and controls the light at the refrigerator's water/ice dispenser. Replacing it restores reliable illumination and proper on/off operation so you can clearly see the dispenser area during everyday use.

• Supplies regulated power to the dispenser light circuit for consistent brightness
• Responds to dispenser/control inputs to turn the light on and off
• A failing board can cause flickering or dim lighting
• Common symptoms include no dispenser light, intermittent light, or a light that stays on

• Disconnect power to the refrigerator before servicing
• Access the board behind the dispenser panel/escutcheon; remove trim carefully to avoid damage
• Handle the board by the edges and avoid static discharge; ensure connectors are fully seated

This thimble is a small sleeve that fits into the dryer vent opening to protect and guide the vent duct while helping maintain a secure, centered connection. It reduces wear on the duct and helps keep the vent aligned for proper exhaust flow. What it does:

• Guides and centers the dryer vent/duct at the cabinet opening to reduce rubbing and abrasion
• Helps create a consistent pathway for exhaust air to the exterior
• Minimizes gaps that can allow lint buildup or air leakage when properly seated
• Supports a secure connection between the vent duct and the appliance outlet

• One thimble

• Disconnect power to the appliance and follow manufacturer safety instructions before servicing
• Use only the fasteners or clamps specified by the appliance manufacturer; do not force oversized ducts
• Inspect surrounding area for lint and damage; replace damaged ducts or seals as needed

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This door ice box assembly replaces a damaged or worn ice storage door to help keep ice contained and maintain proper freezer airflow. It restores the door barrier that helps prevent ice spill and reduces frost buildup around the ice compartment. What it does:

• Replaces a cracked, broken or missing ice box door to contain ice and prevent spillage inside the freezer
• Restores a proper barrier for cold air to reduce frost buildup and preserve freezer temperature stability
• Helps maintain neat ice storage and supports any attached shelves or dispensing features
• Can stop airflow leaks that cause uneven cooling or excessive frost in the ice compartment

• One door ice box assembly

• Unplug the appliance or disconnect power before starting any repair
• Support the freezer door and remove any shelves or components that block access before replacing the assembly
• Handle plastic components carefully to avoid cracking; tighten fasteners securely but do not overtighten

This port gasket seals the dispenser opening to prevent water leaks and reduce moisture intrusion at the dispenser/ice port. It restores a tight seal so the dispenser area operates cleanly and helps prevent dripping or pooling. What it does:

• Seals the dispenser/port opening to stop water leaks and slow moisture buildup
• Helps prevent water from pooling or dripping around the dispenser area
• Reduces opportunity for frost or ice buildup near the port
• Restores a proper seal when the old gasket is cracked, warped, or worn

• One port gasket

• Disconnect power and shut off the water supply before replacing the gasket
• Remove old gasket carefully; clean the mating surfaces of debris and mineral buildup
• Seat the new gasket fully into the channel and ensure an even, gap-free fit
• Test the dispenser at low flow and check for leaks before restoring normal use

This screw is a genuine General Electric part, sold individually. This screw can be used as a replacement part for a refrigerator. A screw can suffer damage in the lifespan of a refrigerator. It can also be easily lost or misplaced. Screws are small parts and are usually installed in multiples to ensure components are reliably attached, so one screw loosening or going missing might not necessarily affect the operability of the refrigerator. However, if the components loosen or the screw suffers damage that strips the part, such as punctures or erosion to the metal material from general wear and tear or from a direct impact, the screw should be removed and replaced with this genuine OEM replacement part. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This screw is compatible with the following appliance brands: General Electric, Hotpoint, RCA, and Americana.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Thin adhesive-backed foam tape that seals and cushions refrigerator components to reduce air leaks, vibration and moisture intrusion. Helps maintain consistent cooling and prevents drafts or frost buildup around panels and trim. What it does

• Creates a tight seal between cabinet parts, reducing cold-air loss and helping prevent frost or ice buildup.
• Cushions panels and trim to reduce rattles and vibration noise.
• Fills small gaps and evens contact surfaces for better insulation performance.
• Adheres to clean, dry surfaces for a long-lasting seal.

• Clean and dry the mounting surface thoroughly before applying; remove old adhesive residue.
• Measure and trim the tape to fit; press firmly along the length to ensure full contact.
• Replace only with the exact part if original fit or thickness is required.
• Handle adhesive with care; avoid contact with skin and keep away from high-heat areas.

This SCR is a solid-state switching module that controls on/off power flow in select appliance circuits. Replacing a failed SCR helps stop intermittent operation and restores reliable switching for affected motors or heating elements. What it does:

• Regulates electrical switching in the control circuit to turn motors or heaters on and off.
• Used where a solid-state switch is required for smooth, repeatable control.
• Symptoms of a failing SCR: appliance won't start, runs intermittently, hums without operating, or a controlled circuit does not respond.
• Restores proper switching when the original SCR is shorted, open, or erratic.

• Disconnect power to the appliance before beginning service; follow lockout/tagout procedures.
• Handle as an electronic component—avoid static discharge and protect the spade terminals from bending or contamination.
• Ensure correct orientation and secure mounting; reconnect wiring exactly as shown on the appliance wiring diagram.

The Set Screw is an OEM part for GE refrigerators. It is used to secure various components within the refrigerator, ensuring they remain firmly in place during operation.

Over time, a set screw can become worn, stripped, or lost due to regular use or during repairs. A missing or damaged set screw can lead to loose components, which may cause operational issues or even damage other parts of the refrigerator.

Symptoms of a bad Set Screw include:

• Loose or rattling components inside the refrigerator
• Difficulty in keeping parts securely fastened
• Noise coming from the area where the screw is used
• Misalignment of parts, leading to improper functioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
