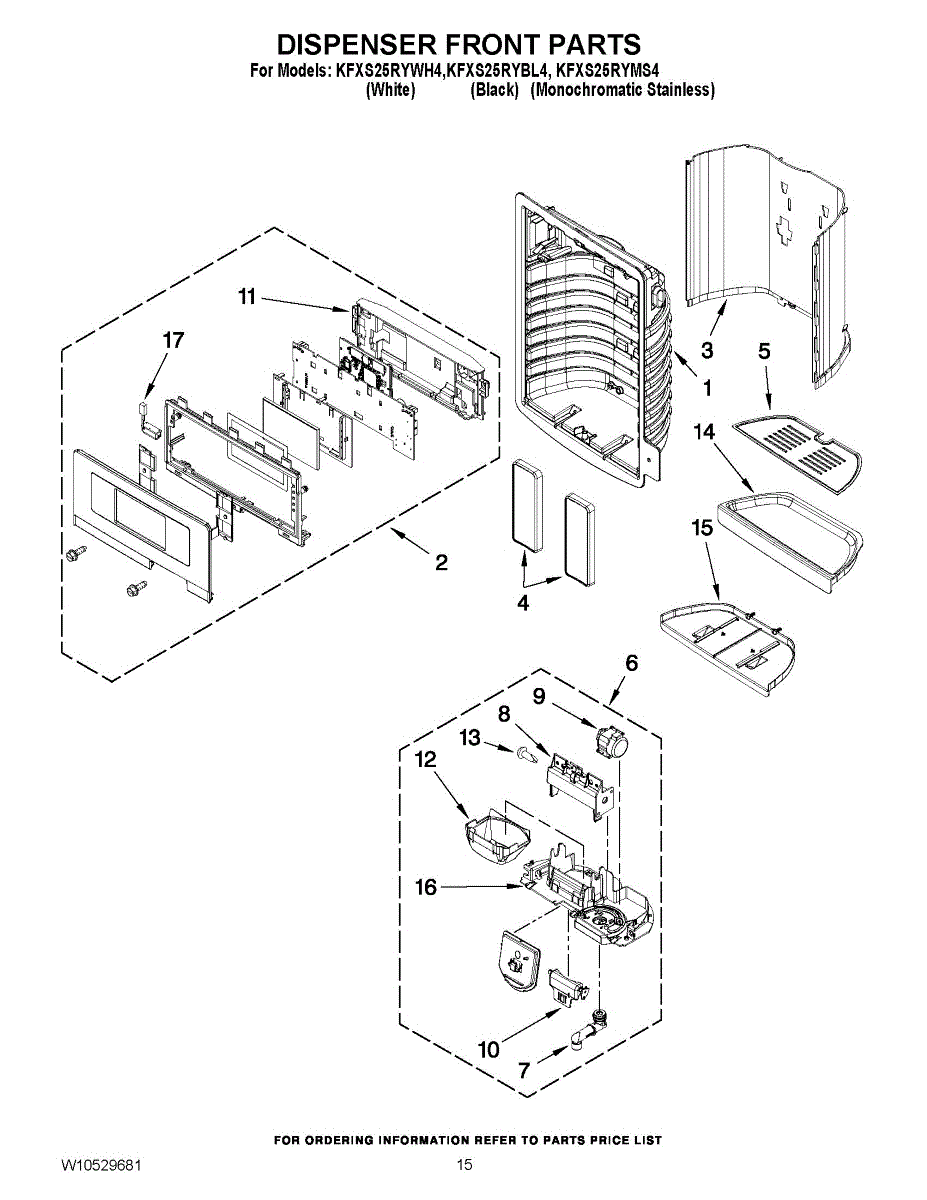

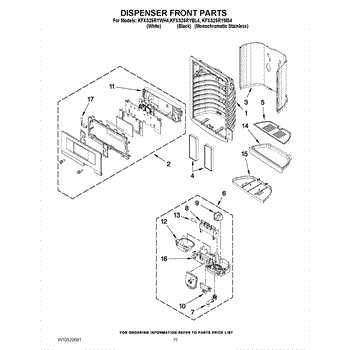

Parts for Kitchenaid KFXS25RYBL4: 08 - Dispenser Front Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This part is a replacement electronic control board for a water and ice dispenser on a refrigerator. It is manufactured by Whirlpool. The control board is responsible for facilitating all dispenser operations, including dispensing ice and water, and turning the light on or off. When the user selects an action, a signal is sent to the control board, which then activates the appropriate system.Electronic control boards can last for many years. However, exposure to moisture and general wear and tear of contacts and soldered parts may lead to failure. If the control board has failed, the dispenser will not function, or will function erratically. Replacing the control board will require using a flathead screwdriver to pry off the dispenser cover. Locate the board, disconnect the wires, and remove it. Install the new board by following the steps in reverse.This genuine OEM part is sold individually. It fits Whirlpool brand refrigerators.

The pads are an OEM component of Whirlpool refrigerators equipped with built-in ice and water dispensers. These paddles are responsible for dispensing ice on demand when the lever is engaged.

Symptoms of faulty dispenser paddles include:

• Difficulty dispensing ice or inability to dispense at all
• Ice getting jammed or stuck inside the dispenser chute
• Grinding or clicking noises coming from the dispenser area

Causes can relate to wear from years of repeated use, or damage from blockages like crushed ice. Paddles may become bent or broken over time.

This OEM part fits select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore brand models.

The Dispenser Pad is an OEM part for Whirlpool refrigerators. It is the user interface component that allows you to control and operate the water and ice dispensers.

Causes of a bad part can include physical impact or mishandling, exposure to moisture or liquid spills, or general wear and tear over time, leading to deterioration of the pad's internal electronics or surface.

Symptoms of a bad Dispenser Pad include:

• Unresponsive or non-functional dispensers
• Difficulty in selecting water or ice options
• Visible cracks, damage, or wear on the pad surface

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This dispenser separator assembly forms the interior of the refrigerator's ice/water dispensing area. It guides ice and water into your glass and helps seal the chute to limit warm air intrusion, drips, and frost at the opening.

• Forms and supports the dispenser recess and chute opening
• Provides sealing surfaces to help prevent air leaks that lead to frost or condensation around the dispenser
• Directs ice/water flow for cleaner, more controlled dispensing
• Replace if cracked, warped, loose, or if you notice frost/moisture around the chute or splashing/dripping during dispense

• Unplug the refrigerator and shut off the water supply before service
• Remove the dispenser front/trim to access the separator; handle wiring/connectors with care and reuse existing fasteners
• Avoid prying on finished surfaces; use non-marring tools
• Restore power and test ice and water dispensing; check for proper chute sealing

This spigot routes water from the internal supply to the dispenser outlet, delivering a controlled stream. Replacing a cracked or worn spigot helps restore proper dispensing and reduces drips or leaks at the dispenser area.

• Directs water from the internal tubing/reservoir to the dispenser outlet
• Maintains a defined flow path to help prevent splashing and after-drip
• Common symptoms of failure: dripping at the dispenser, slow/erratic flow, leaks inside the door, or visible cracks at the outlet
• Replace if damaged, leaking, or obstructed by mineral buildup

• Unplug the appliance and shut off the household water supply
• Dispense water to relieve line pressure before replacement
• Access the dispenser; note tubing orientation and fully seat/secure connections
• Restore water and power; flush the system and check all joints for leaks

This bracket is a factory-design mounting support that secures internal components in place for stable operation and alignment. It helps keep parts seated correctly to reduce noise and prevent component movement. What it does:

• Provides structural support for internal assemblies and panels
• Holds components in correct alignment to maintain proper operation
• Helps reduce rattling or vibration caused by loose parts
• Compatible where the OEM bracket W10174827 is specified

• Disconnect power to the appliance before starting any repair
• Use the correct fasteners and torque as specified by the manufacturer
• Wear safety gloves and eye protection to avoid cuts on sharp edges

This ice door motor drives the dispenser flap that opens for ice dispensing and closes to seal the chute. Replacing a weak or failed motor restores smooth door movement and helps prevent warm air and moisture from entering the freezer. What it does:

• Actuates the ice chute door during dispensing and returns it closed for a proper seal
• Helps reduce frost, condensation, and ice clumping around the dispenser
• Can address ice not dispensing due to the door not opening/closing
• May resolve clicking or grinding noises from the dispenser area

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove dispenser trim/control panel to access the ice door assembly; handle wiring carefully
• Note linkage and wire orientation before removal to ensure proper reassembly
• After installation, test the dispenser to verify the door opens/closes and seals the chute

This ice door support bracket holds and stabilizes the freezer ice door so it opens and closes smoothly and keeps the ice compartment sealed. Replaces a worn or broken support to restore proper door alignment and operation. What it does:

• Supports the ice door assembly to prevent drooping or misalignment
• Helps ensure the ice door opens and closes smoothly for reliable dispensing
• Reduces rattling or noise from a loose or damaged door support
• Prevents gaps that can lead to frost buildup or ice spillage

• Disconnect power to the appliance before starting any repair
• Remove the ice bin or door panel per service instructions to access the support
• Use common hand tools; handle plastic parts gently to avoid cracking
• Secure all fasteners; test door movement after installation

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This drip tray collects defrost and condensation water under the refrigerator to help prevent leaks and water pooling on the floor. It restores proper water capture and drainage for affected fridge models. What it does:

• Catches defrost and condensation runoff from the evaporator or drain system
• Helps prevent water pooling beneath the appliance and potential floor damage
• Works when original tray is cracked, warped, clogged, or missing
• Compatible with factory mounting points and drain alignment when the correct part is used

• One replacement drip tray

• Disconnect power before servicing to avoid electrical shock
• Access may require removing kick plate or lower front panel; follow your model's service instructions
• Slide or snap the tray into place and secure any retaining clips or screws removed earlier

Replacement drip tray that collects defrost and condensation water and channels it to the drain path, helping prevent leaks and water damage in the refrigerator cabinet. What it does

• Captures defrost and condensation water from the evaporator area and routes it to the drain pan.
• Prevents water pooling inside the cabinet or onto the floor when functioning properly.
• Common symptoms of a failing tray: visible water under the fridge, leaks from the base, or damp/musty odors.
• Designed for select Whirlpool refrigerators.

• Disconnect power before servicing to avoid electrical shock.
• Access and remove the old tray by removing the lower access panel or toe grille; replace with the new tray and secure panels.
• Ensure the tray and drain path are aligned and clear of debris so water can flow to the drain pan.

Color: Stainless

This slide tray is the removable drip tray that catches spills and condensation from the refrigerator dispenser, keeping the cabinet floor and shelf area clean and dry. It slides out for quick cleaning and maintenance. What it does:

• Collects drips and overflow from the water/ice dispenser to prevent puddles under the dispenser
• Slides outward for easy access when wiping up spills or removing debris
• Re-seats into the dispenser assembly to maintain proper alignment and coverage
• Helps reduce need for frequent cleanups and keeps the dispenser area sanitary

• Disconnect power and turn off the water supply before servicing dispenser components
• Remove old tray by sliding it out; align new tray and slide in until it clicks or seats firmly
• Use only gentle pressure—do not force or pry parts into place
• If tray doesn't seat correctly, check for obstructions or damaged mounting tabs before operating

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation
