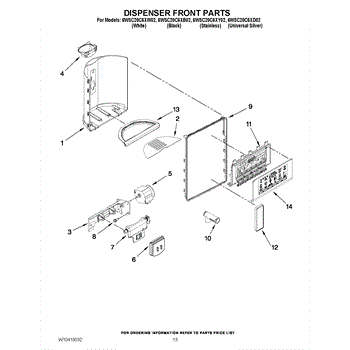

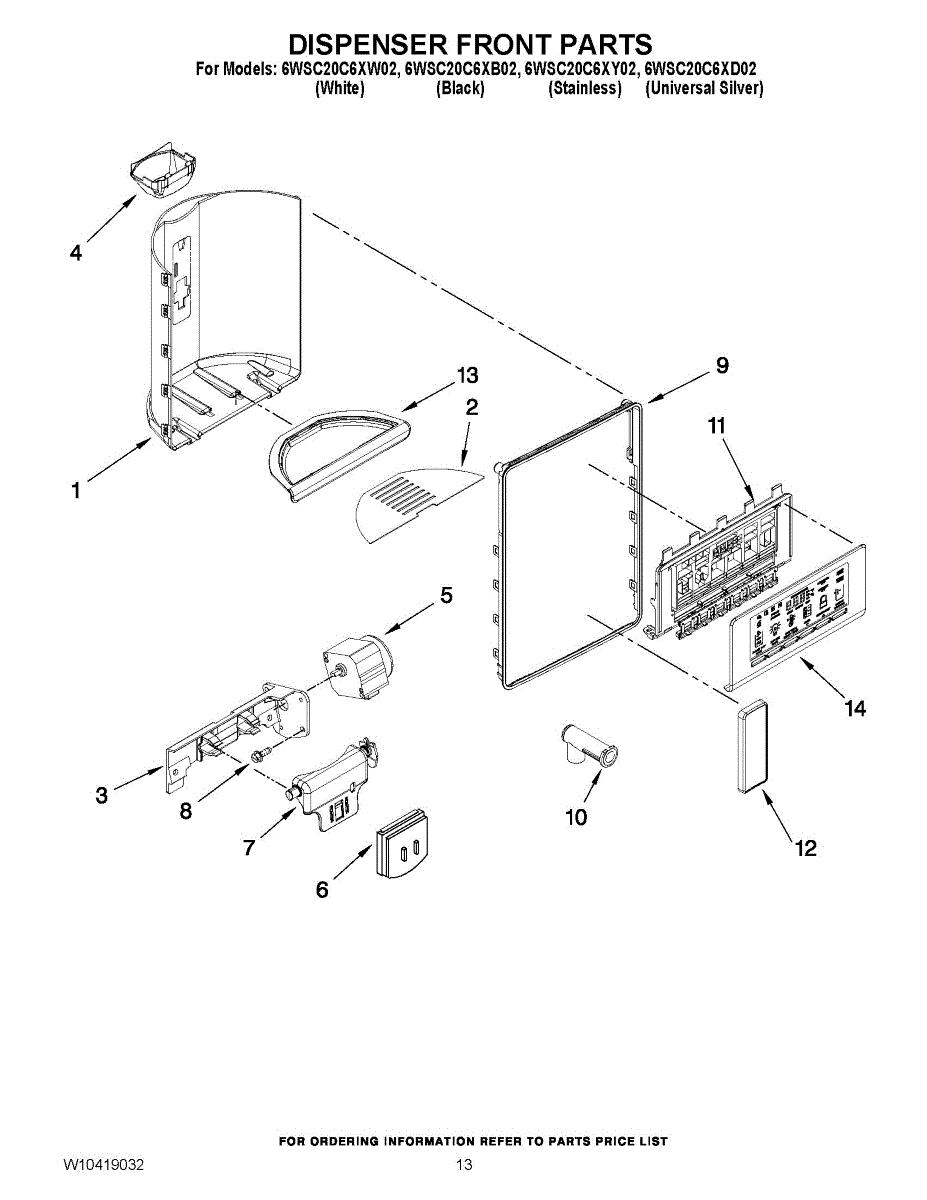

Parts for Whirlpool 6WSC20C6XB02: 08 - Dispenser Front Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This bracket is a factory-design mounting support that secures internal components in place for stable operation and alignment. It helps keep parts seated correctly to reduce noise and prevent component movement. What it does:

• Provides structural support for internal assemblies and panels
• Holds components in correct alignment to maintain proper operation
• Helps reduce rattling or vibration caused by loose parts
• Compatible where the OEM bracket W10174827 is specified

• Disconnect power to the appliance before starting any repair
• Use the correct fasteners and torque as specified by the manufacturer
• Wear safety gloves and eye protection to avoid cuts on sharp edges

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

Screw for control panel.

This spigot directs water from the refrigerator's water/ice system to the dispenser or ice maker, restoring proper flow and containment. Replace a cracked or worn spigot to stop leaks and poor dispensing. What it does:

• Channels water from the internal water line to the dispenser or ice/ice-maker area
• Prevents leaks and directs flow into the dispenser or ice chute
• Can stop drips, spraying, or pooling caused by a damaged spigot
• Works as a simple replacement when the original is cracked, warped, or blocked

• One replacement spigot

• Disconnect power and shut off the refrigerator water supply before starting
• Remove access panels or bin(s) as needed to reach and remove the old spigot
• Inspect seals and gaskets; replace if damaged to ensure a watertight fit
• After installation, restore water and power, then check carefully for leaks

Color: Black

Color: White

Color: Midnight Grey

This drip tray collects and channels defrost water away from the evaporator, helping prevent leaks and puddling under the appliance. It restores proper drainage and reduces the risk of water damage. What it does:

• Catches condensation and defrost runoff from the evaporator coil
• Directs water to the drain or evaporator heater area to avoid pooling
• Helps limit musty odors and mold by keeping water contained
• Supports normal defrost drainage to prevent leaks onto the floor

• One drip tray

• Disconnect power to the appliance before servicing
• Remove nearby panels or shelves as needed for safe access
• Inspect surrounding seals and the drain path while replacing the tray

This escutcheon is the trim piece that surrounds and protects a refrigerator control or dispenser panel, restoring a clean finished look and stabilizing the button/lever area. It helps keep the control area sealed from spills and debris. What it does

• Covers and protects the control or dispenser opening to prevent dirt and moisture from reaching internal components
• Keeps buttons, levers and switches properly aligned for reliable operation
• Restores the appliance's finished appearance after damage or wear
• Commonly replaced when cracked, broken, loose or missing and allowing exposed mounting points

• Basic trim replacement; remove power or lock controls per manufacturer instructions before starting
• Use appropriate hand tools to remove fasteners and lift the old escutcheon straight out to avoid damaging adjacent parts
• Confirm fit and alignment before reinstalling fasteners; do not force into place
