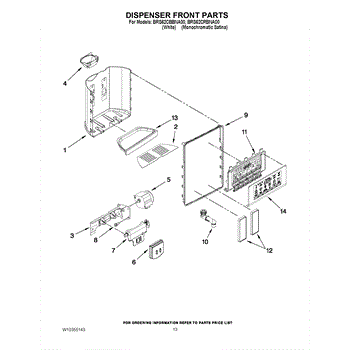

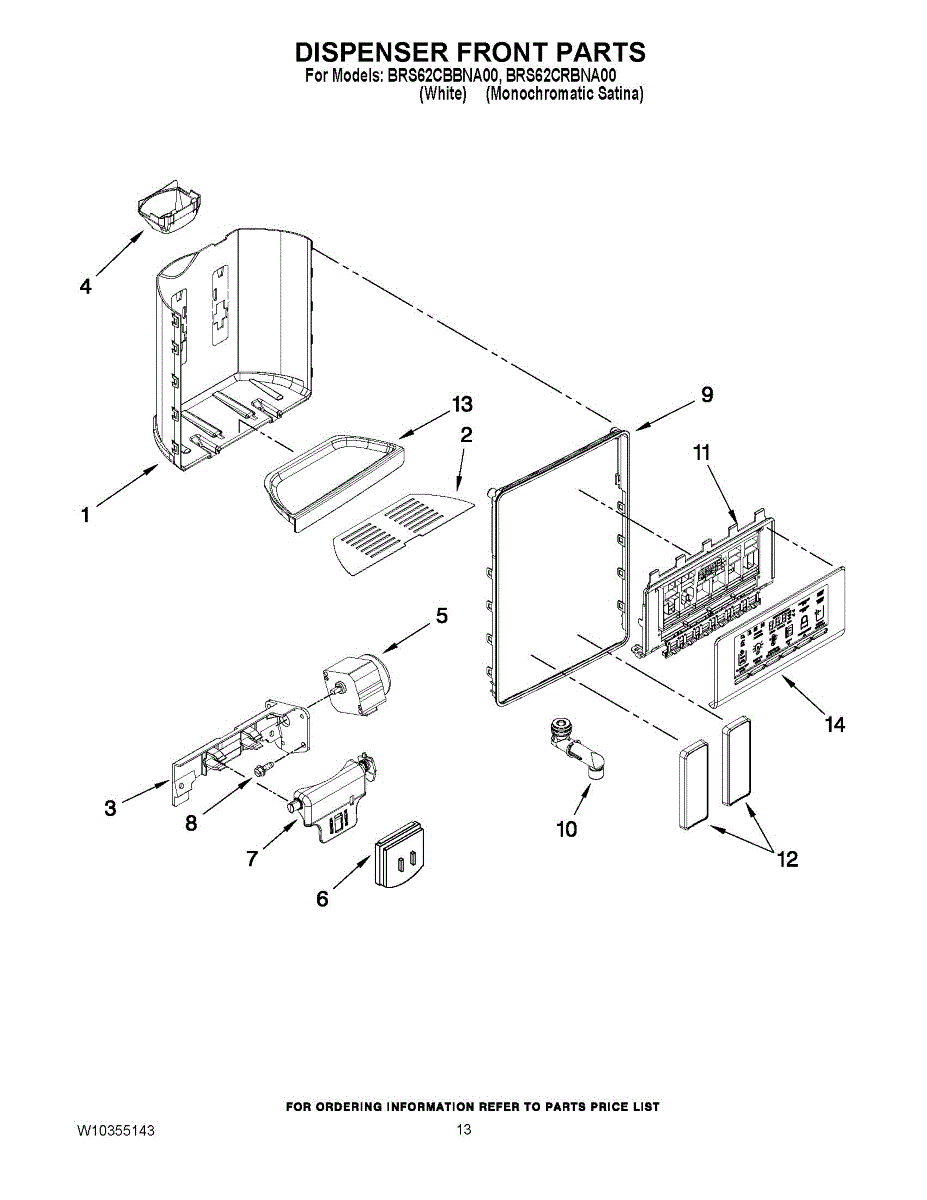

Parts for Whirlpool BRS62CBBNA00: 08 - Dispenser Front Parts

Removes contaminants for clean, great-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit with your model number.

This replacement cooktop grate with an integrated drip lip supports cookware on gas burners and helps contain spills for easier cleanup. It restores a stable cooking surface and keeps the burner area neater. What it does:

• Supports pots and pans over a single gas burner
• Channels minor spills away from the burner with the built-in drip area
• Helps prevent direct contact between spills and the burner cap
• Restores even, stable cookware placement for safer cooking

• One grate with attached drip

• Make sure the range is turned off and completely cool before handling
• Lift old grate straight up; set the new grate into place so it seats on the cooktop supports
• Wear gloves to protect hands from sharp edges and residual grease

Dispenser grille that covers the drip tray on your refrigerator. Replace if original is cracked, broken, or stained to restore proper appearance.

Mounting bracket secures internal refrigerator components for stable alignment. Replace if cracked, bent, or broken to restore proper support and positioning.

Guides ice from the freezer bin into the dispenser chute. Replace if cracked, broken, or misaligned to restore proper ice flow and prevent jams.

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

Guides ice from the freezer bin into the dispenser chute. Replace if cracked, broken, or misaligned to restore proper ice flow and prevent jams.

Guides ice from the freezer bin into the dispenser chute. Replace if cracked, broken, or misaligned to restore proper ice flow and prevent jams.

Screw for control panel.

Replace the trim piece around your refrigerator's water and ice dispenser. This part covers the dispenser opening and may need replacement if cracked or worn.

Fix a cracked or faded dispenser front panel with this exterior trim bezel. Restores a finished look around your ice and water dispenser controls.

Fix weak water flow or dripping at your refrigerator dispenser with this spigot assembly. Routes water from supply line to dispenser outlet.

White dispenser lever paddle for refrigerator water and ice dispensers. Replaces broken, cracked, or worn paddles with damaged clips or hinges.

Color: Midnight Grey

Replacement dispenser drip tray for your refrigerator. Catches water and ice spills below the dispenser. Replace if cracked, broken, or missing.

Collects defrost and condensation water beneath your refrigerator cabinet. Replace if cracked, broken, or missing to prevent leaks and water damage.
