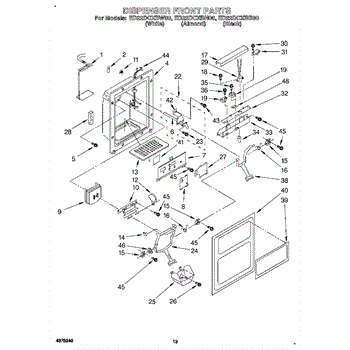

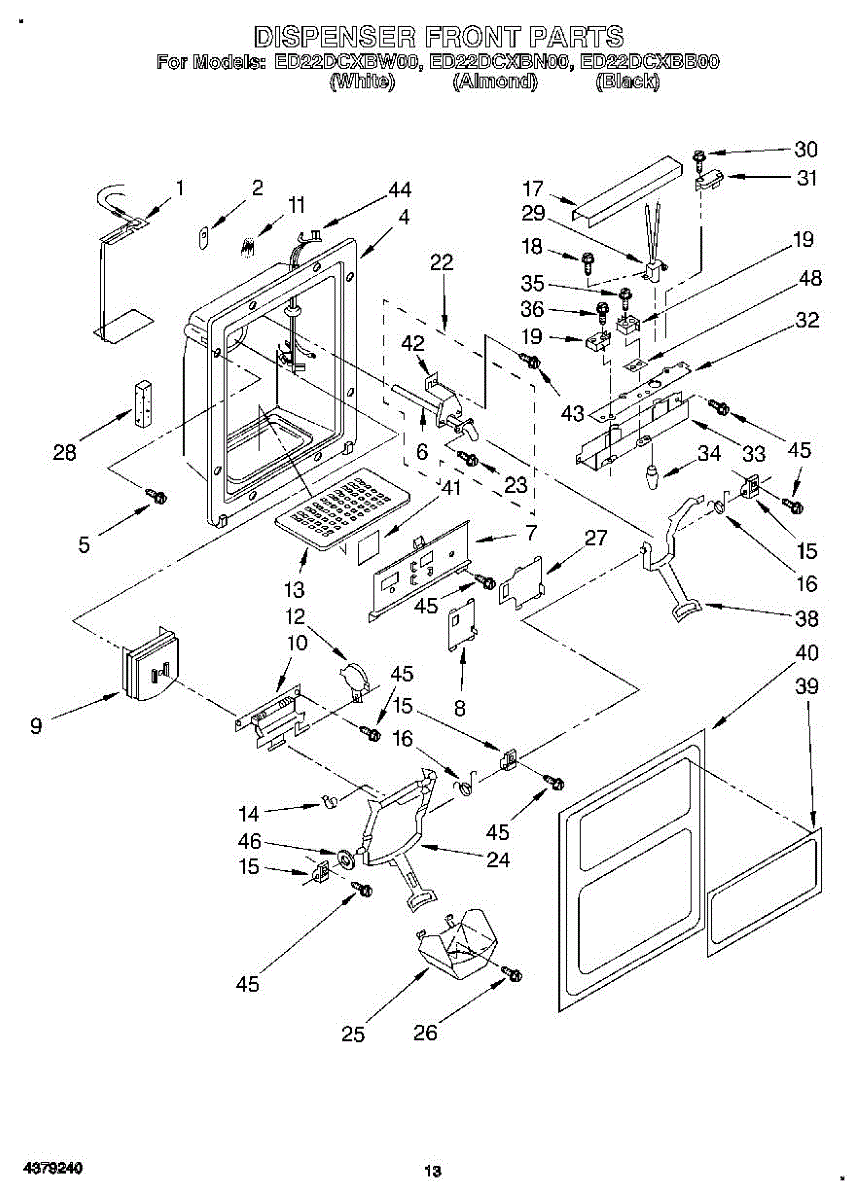

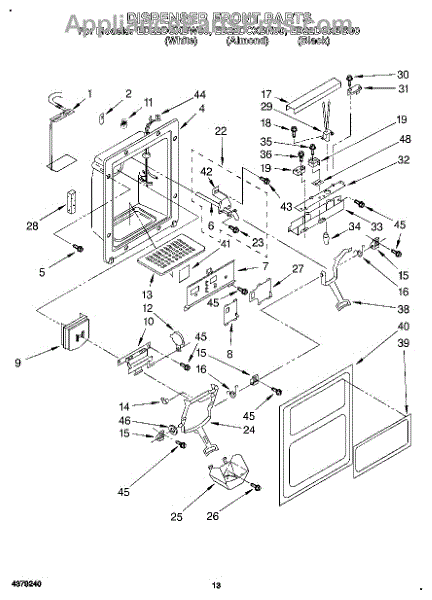

Parts for Whirlpool ED22DCXBB00: 09 - Dispenser Front Parts

All other colors have been discontinued by Whirlpool.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

An ice maker delay mechanism is the small timing device that staggers the steps of the ice-making cycle so each action happens in the right order. Replacing a worn unit helps restore steady, predictable ice production.

• Provides a brief, controlled delay in the ice maker cycle so components engage in the correct order
• Helps prevent short cycling or erratic operation
• Failure may result in no ice, intermittent ice, or stalls mid-cycle
• May be accompanied by repeated clicking or ticking from the ice maker head

• Disconnect power to the refrigerator and shut off the water supply before servicing
• Remove the ice maker assembly to access the delay mechanism
• Transfer any brackets or clips from the original part if required
• Align components carefully during reassembly to avoid bending any lever arms

Color: black. Chrome Is No longer Available. Measures about 6-1/2 inches wide by 3-1/2 inches deep.

Screw: 8-16 x 3/8 inch.

The Water Tube Assembly is an OEM part for Whirlpool refrigerators. It supplies water from the inlet valve to the ice maker and water dispenser, ensuring a steady and reliable flow of water for ice production and drinking.

Causes of a bad water tube assembly can include blockages from mineral deposits, kinks or cracks in the tubing, or damage from regular use. If the tube becomes compromised, it can lead to inadequate water supply or leaks.

Symptoms of a bad water tube assembly include:

• Reduced or no water flow to the ice maker or dispenser
• Leaking water inside or outside the refrigerator
• Ice maker not producing ice
• Water dispenser not functioning properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

White

White

The Micro Switch is an OEM part for Whirlpool refrigerators that is responsible for controlling the ice and water dispenser. The switch operates by responding to mechanical actions, like the pressing of the dispenser paddle or button to open or close to allow water and ice to be dispensed.

Symptoms of a bad Micro Switch include:

• The ice or water dispenser not functioning
• Intermittent operation of the dispenser
• Stuck dispenser preventing ice or water from stopping

Causes of a bad Micro Switch can include physical damage from heavy use, wear and tear over time, or electrical issues such as short circuits that impair the switch's function.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Light Bulb is an OEM part for Whirlpool dryers. This bulb is specifically designed to provide illumination inside the dryer drum, allowing for better visibility when loading and unloading laundry. It ensures a well-lit drying environment.

Causes of a bad dryer light bulb can include normal wear and tear, electrical issues, or accidental breakage.

Symptoms of a bad dryer light bulb may include:

• The bulb not turning on when the dryer door is open.
• Dim or flickering light inside the dryer drum.
• A burnt-out or broken bulb.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
