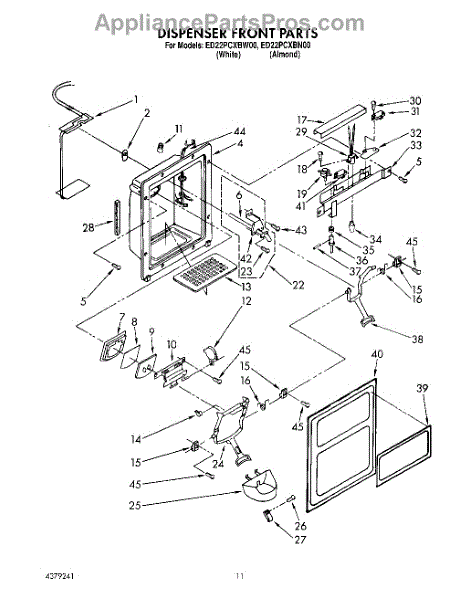

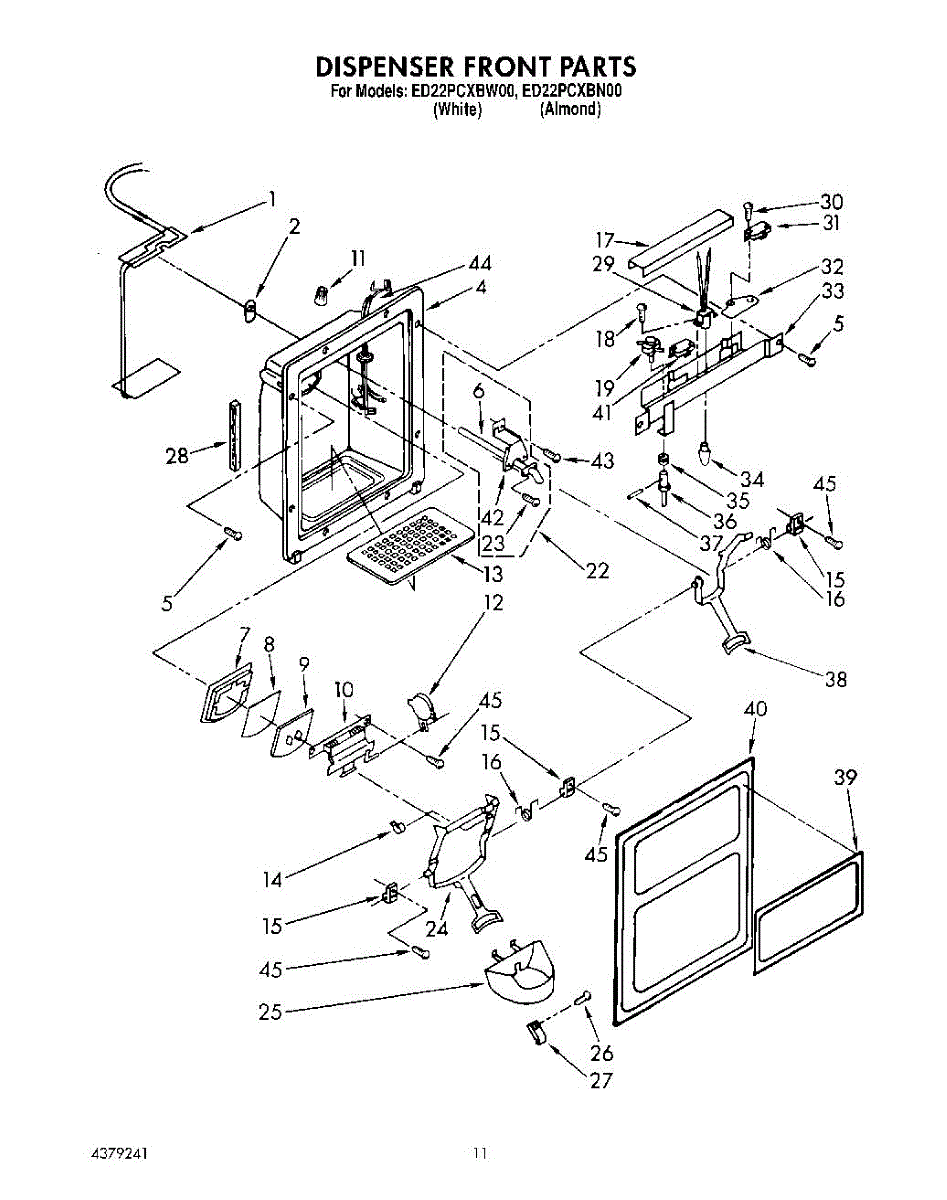

Parts for Whirlpool ED22PCXBN00: 08 - Dispenser Front Parts

All other colors have been discontinued by Whirlpool.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

This is the small motor assembly that opens and closes the ice chute door on the refrigerator's dispenser. It activates when the dispenser lever is pressed, allowing ice to pass through, and closes afterward to keep cold air from escaping. Replace this part if the ice chute door does not open when dispensing, stays stuck open allowing cold air to leak out, or makes grinding noises during operation.

Color: black. Chrome Is No longer Available. Measures about 6-1/2 inches wide by 3-1/2 inches deep.

Screw: 8-16 x 3/8 inch.

Water tube assembly supplies water from inlet valve to ice maker and dispenser in your refrigerator door. Replace if cracked, leaking, or broken.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

This pressure regulator controls and stabilizes incoming water pressure to the appliance, helping maintain consistent operation and protect internal valves and seals. Fits systems that use a 3/4 inch inlet regulator. What it does:

• Reduces high incoming water pressure to a safe, steady level for the appliance
• Prevents pressure-related leaks, valve chatter, and premature wear on seals
• Helps maintain consistent water flow for reliable cycles and operation
• Commonly replaced when irregular pressure, humming valves, or water leaks occur

• One pressure regulator (3/4 in.)

• Turn off water supply and power to the appliance before starting; relieve system pressure first
• Inspect connection fittings and seals; use appropriate thread sealant if required by the OEM
• Tighten to manufacturer torque recommendations and check for leaks after restoring water

Fix a refrigerator water or ice dispenser that won't activate or keeps running continuously. This micro switch controls dispenser operation. DIY-friendly.

Illuminates the dryer drum for better visibility when loading and unloading. Replace when bulb burns out or fails to light. Confirm fit with your model.

Size: 8-28 x 3/4 inch.

Secures panels, brackets, and internal components in your refrigerator. Replace missing, stripped, or corroded screws to restore tight assembly fit.
