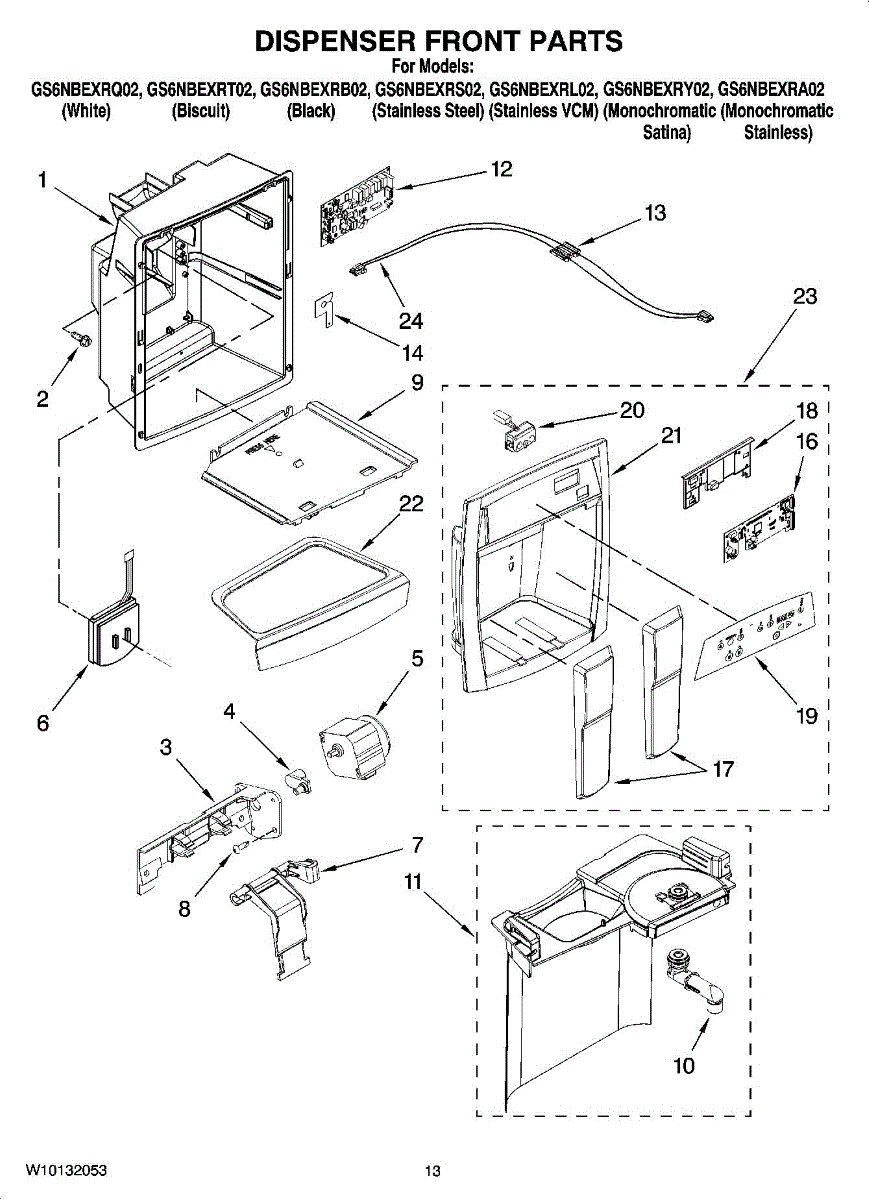

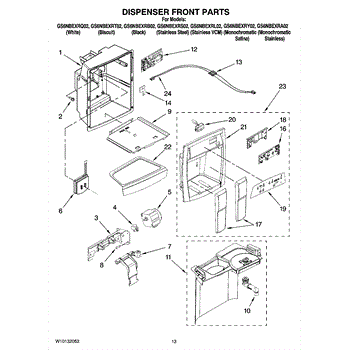

Parts for Whirlpool GS6NBEXRT02: 08 - Dispenser Front Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This screw anchor is a small plastic fastener that secures panels and trim on appliances, preventing screws from stripping or pulling out. It provides a reliable anchor point for screws where threaded material is thin or absent. What it does:

• Creates a secure mounting point for screws in sheet metal, plastic or thin panels
• Helps prevent screw looseness, stripping, and parts that shift or rattle
• Commonly used to hold trim, panels, or interior components in place
• Works with compatible screws to distribute load and stabilize attachments

• Use the correct screw size and length; anchors are made for specific screw diameters—do not force oversize screws
• Align anchor in the prepared hole before driving the screw to avoid cracking the anchor or surrounding material
• Hand-start screws until seated, then tighten gradually—do not overtighten to prevent stripping or damage
• Disconnect power and follow appliance safety procedures before accessing internal panels

This mounting bracket secures the ice maker motor assembly to the freezer housing so the motor stays aligned for reliable ice production. Replacing a damaged bracket restores proper motor positioning and reduces unwanted movement. What it does:

• Secures the ice maker motor to the freezer housing to maintain correct alignment.
• Prevents motor wobble or misalignment that can cause noisy operation or incomplete ice ejection.
• Helps ensure the motor drives the ice maker gears properly for consistent ice production.
• Commonly replaced when the bracket is cracked, bent, or missing mounting points.

• Always disconnect power to the appliance before servicing.
• Access the ice maker per the service manual; remove the ice maker or access panel as needed to reach the bracket.
• Reuse original mounting hardware unless new hardware is explicitly included; align bracket so the motor turns freely without binding.

This door bracket connector links the door bracket to its mating linkage in select refrigerator door assemblies. Replacing a worn or broken connector restores a solid connection so the door operates smoothly and stays properly aligned. What it does:

• Couples the door bracket to the hinge/actuator linkage to maintain alignment
• Helps ensure smooth door opening and closing
• Supports proper door sealing to reduce gaps or misalignment
• Replace if cracked, broken, or missing; common symptoms include a loose, clicking, or misaligned door

• Disconnect power before servicing; support the door as needed to prevent strain on hinges
• Remove the relevant bracket/cover to access the connector; note the connector's orientation
• Transfer and reuse existing screws/fasteners
• After installation, check door alignment and gasket contact all around

The Ice Dispenser Motor is an OEM part for Whirlpool refrigerators. This part powers the mechanism that dispenses ice from the ice maker to the user, ensuring smooth and efficient ice dispensing.

Causes of a bad ice dispenser motor can include wear and tear over time, electrical issues, or physical damage to the motor components.

Symptoms of a bad ice dispenser motor include:

• Ice dispenser not working
• Unusual noises coming from the dispenser area
• Ice not dispensing properly or at all
• The dispenser motor running but not dispensing ice

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Chute is an OEM part for Whirlpool refrigerators. This part directs ice from the ice maker into the ice bucket or dispenser chute. The door chute ensures a smooth and controlled flow of ice, preventing spills and maintaining the efficiency of the ice dispensing system.

Common issues include cracks, warping, or blockages that can obstruct the flow of ice and affect the dispenser's performance.

Symptoms of a bad door chute include:

• Ice not dispensing properly
• Ice jamming or clogging in the chute
• Leaks or drips around the ice dispenser area
• The door chute not sealing correctly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part is the dispenser ice door support. It mounts and aligns the ice chute flapper (ice door) in the freezer door so it pivots and seals correctly, helping reduce warm air leaks, frost, and ice clumping. What it does:

• Provides the pivot/mount for the dispenser ice chute door (flapper)
• Keeps the ice chute door aligned to help maintain a proper seal
• Wear or broken tabs may cause the flapper to stick open/closed
• May lead to frost in the chute, condensation, air leaks, or clumping ice

• 1 ice door support

• Unplug the refrigerator and remove the ice bin before servicing
• Remove dispenser trim/control to access the chute assembly
• Note spring and flapper orientation; transfer the door, seal, spring, and any hardware to the new support
• Verify smooth flapper movement and full seal before reassembly and restoring power

Screw for control panel.

The Drip Tray Slide is an OEM part for Whirlpool refrigerators. This tray provides a smooth sliding surface for the drip tray to rest on, preventing damage or leaks.

Causes typically relate to cracks, snags, or warps in the slide material that impact proper tray movement over many years.

Symptoms of a faulty slide include:

• The drip tray becoming stuck and difficult to remove
• Excessive rattling or shaking from the tray area
• Puddles or leaks under the refrigerator
• Accidental spills due to the tray not sliding freely

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small mounting retainer secures interior panels and components so covers, trims, or small assemblies stay aligned and stable. Replacing a broken clip restores fit and reduces rattles or loose panels for a neater appliance appearance. What it does:

• Holds trim, panel, or small component in place to maintain proper alignment
• Prevents vibration-related noise by keeping parts securely seated
• Replaces a worn, cracked, or lost factory clip to restore original fit
• Works where the original snap-in retainer or mounting tab is used

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access may require removing an exterior panel or trim; keep fasteners organized
• Use appropriate tools and gentle prying to avoid damaging surrounding parts

This replacement cover is a protective panel that helps shield internal components from dust and debris and restores the appliance's finished appearance. Installing the correct cover keeps parts protected and helps maintain safe, reliable operation. What it does:

• Protects internal electronics and wiring from dust, lint, and incidental contact
• Restores the appliance's exterior finish where the original cover was damaged or removed
• Helps prevent accidental access to moving or energized components
• Can reduce noise by covering openings near motors or fans

• One replacement cover

• Disconnect power to the appliance before beginning any work
• Handle edges carefully to avoid cuts and to prevent damage to the cover finish
• Verify orientation and fastener locations before tightening screws; do not overtighten
