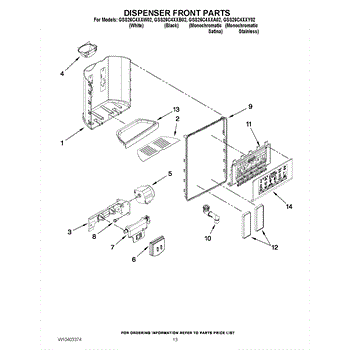

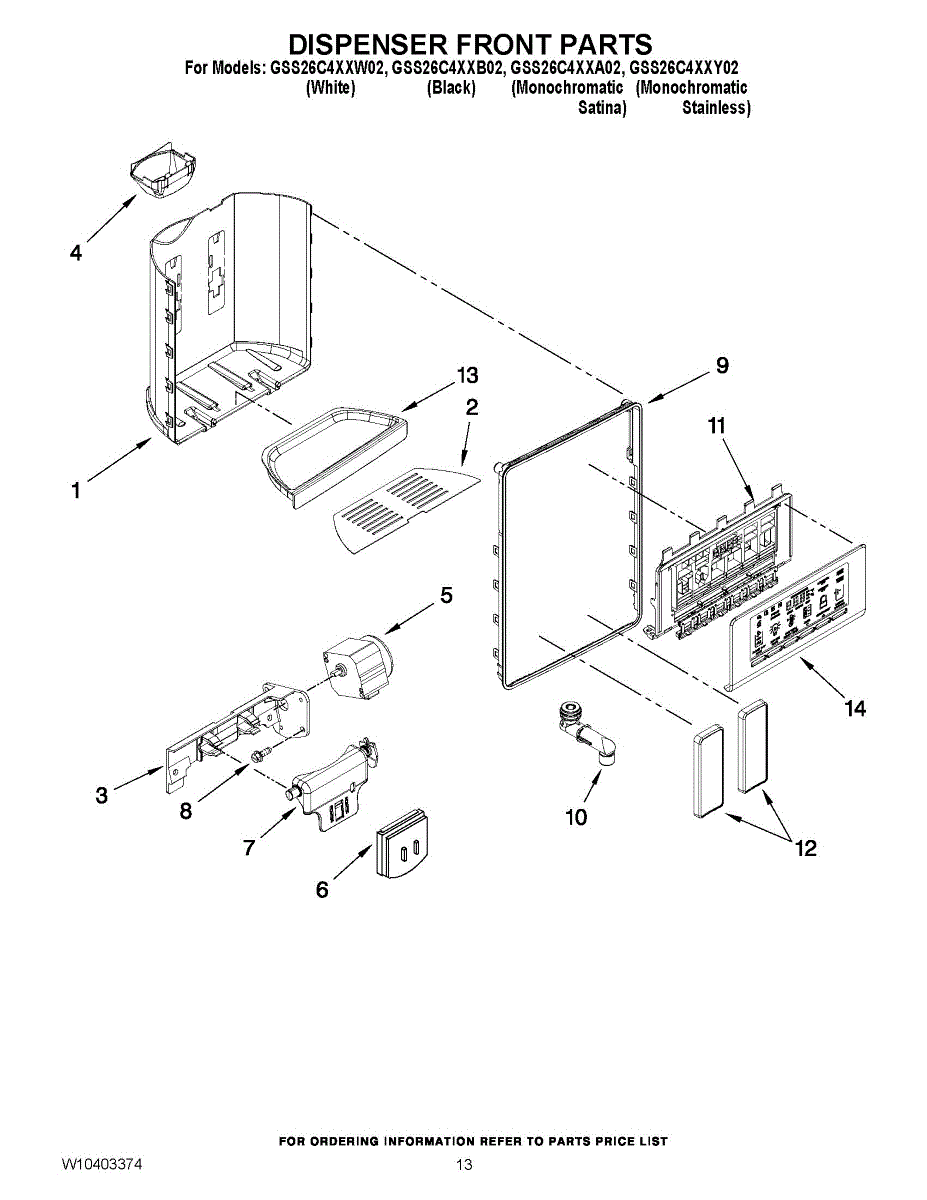

Parts for Whirlpool GSS26C4XXA02: 08 - Dispenser Front Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This dispenser drip tray grille sits on the refrigerator's ice/water dispenser tray. It provides a stable rest for cups and lets drips pass into the tray below, keeping the dispenser area neat with a finished, stainless look.

• Supports glasses and mugs while dispensing ice or water
• Slotted design allows moisture to drain into the tray beneath
• Replaces a cracked, warped, stained, or missing grille
• Restores a clean, factory appearance around the dispenser

• Lock the dispenser or disconnect power before servicing near controls
• Lift out the old grille from the drip tray and clean any debris or mineral buildup
• Place the new grille into the tray; ensure it sits flat and drain openings remain clear
• Avoid abrasive cleaners that can damage the finish

This bracket is a factory-design mounting support that secures internal components in place for stable operation and alignment. It helps keep parts seated correctly to reduce noise and prevent component movement. What it does:

• Provides structural support for internal assemblies and panels
• Holds components in correct alignment to maintain proper operation
• Helps reduce rattling or vibration caused by loose parts
• Compatible where the OEM bracket W10174827 is specified

• Disconnect power to the appliance before starting any repair
• Use the correct fasteners and torque as specified by the manufacturer
• Wear safety gloves and eye protection to avoid cuts on sharp edges

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

Screw for control panel.

This spigot body assembly routes water from the refrigerator supply to the dispenser and replaces a worn, cracked, or leaking dispenser spigot. It restores proper water flow and helps stop drips or visible leaks at the dispenser. What it does:

• Channels water from the supply line through the dispenser area for normal dispense operation.
• Provides the structural mounting for the dispenser valve and actuator components.
• Common symptoms it can address: leaking or dripping at the dispenser, visible cracks or broken spigot housing, or intermittent water flow from the dispenser.
• Works with existing dispenser valve and seals when those components are undamaged.

• Disconnect power to the appliance and shut off the water supply before starting work.
• Access may require removing the refrigerator door panel or inner dispenser bezel.
• Inspect and replace any worn O-rings or seals during reassembly to prevent leaks; tighten fasteners only to specified torque if provided by the manufacturer.

This user interface (UI) assembly controls the front touch/display functions on the appliance, restoring responsive controls and normal display operation for oven/range features. Replaces a worn, damaged, or unresponsive control panel. What it does:

• Provides the touchpads, display, and control logic for setting temperatures, timers, and modes
• Sends user commands to the oven/range control system so selected functions start correctly
• Commonly replaces a panel that is unresponsive, has missing or flickering display segments, or shows error codes related to the UI
• Restores visible button/indicator feedback and normal front-panel operation

• One user interface (UI) assembly (stealth) as shown

• Disconnect power at the breaker before starting to avoid shock or damage
• Handle the assembly carefully to avoid damaging the display or ribbon connectors
• Verify connector seating and routing; secure any mounting screws and trim after installation

Color: Black

Color: White

Color: Midnight Grey

This drip tray is the molded drain pan that collects and channels excess water away from appliance components to help prevent pooling and water damage. It replaces a worn, cracked, or missing tray to restore proper drainage. What it does:

• Collects condensation and defrost water and guides it to the appliance drain
• Helps prevent water from pooling under internal components or on the floor
• Restores proper fit and alignment where a damaged tray allowed leaks
• Commonly replaced when tray is cracked, warped, or has drainage openings blocked

• One drip tray

• Disconnect power and water before accessing internal panels or removing the old tray
• Remove any items or shelves blocking access; handle plastic parts gently to avoid breakage
• Confirm correct tray orientation and seating before reassembling panels

This drip tray is the evaporator drain pan that collects defrost and condensate water to help prevent leaks and water damage beneath the appliance. It restores proper drainage and keeps the cabinet dry. What it does:

• Collects and channels defrost/condensate water away from internal components
• Helps prevent water pooling under or around the appliance
• Reduces risk of water-related damage and odors when installed correctly
• Fits into the factory location to restore original drainage performance

• Disconnect power to the appliance before beginning service to avoid shock.
• Access the tray by removing the lower access panel or grille per the owner's manual.
• Inspect surrounding seals and drain tubing; clear any clogs before installing the new tray.
• Handle parts carefully to avoid damaging adjacent panels; for model-specific instructions.
