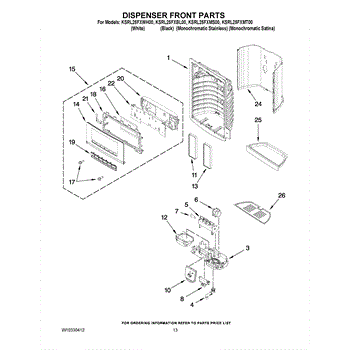

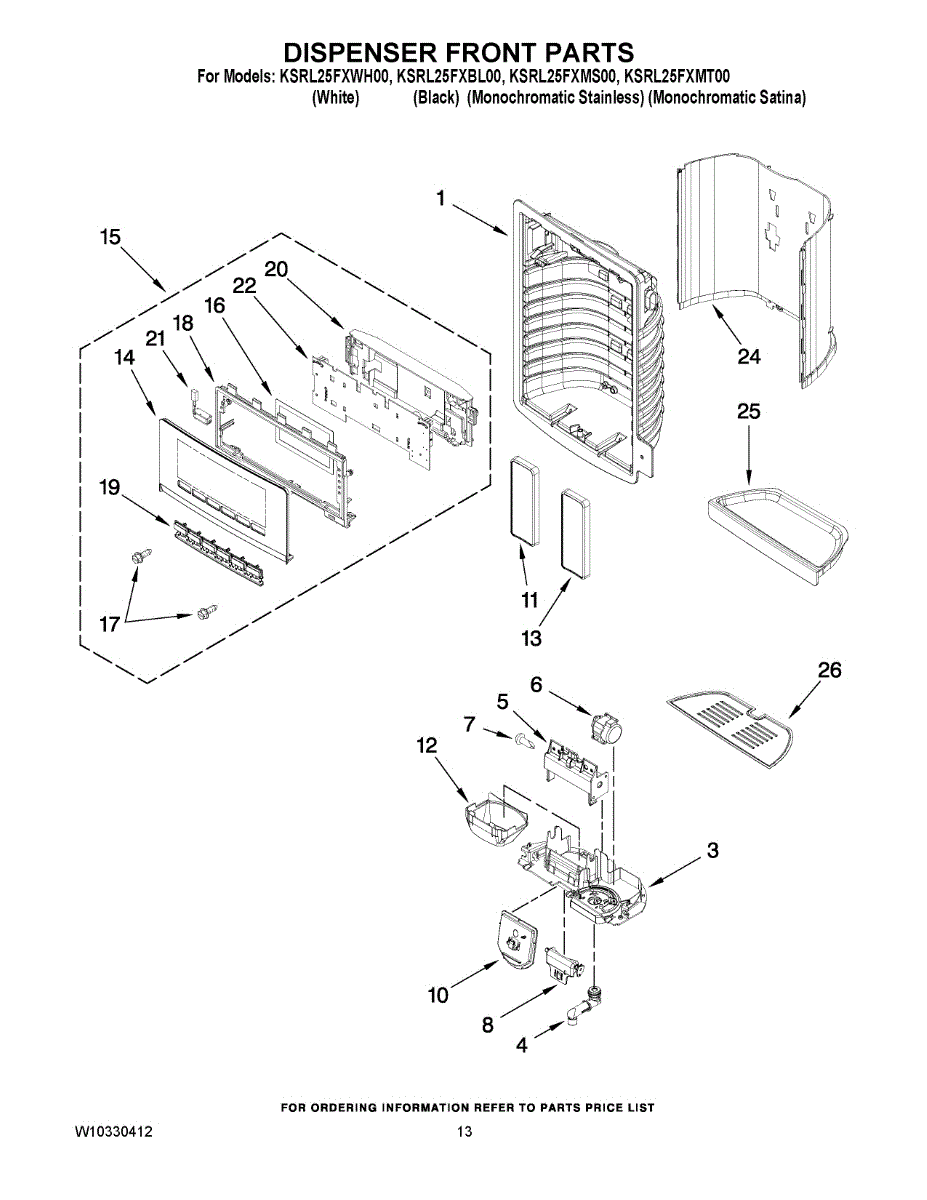

Parts for Kitchenaid KSRL25FXBL00: 08 - Dispenser Front Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This spigot body assembly routes water from the refrigerator supply to the dispenser and replaces a worn, cracked, or leaking dispenser spigot. It restores proper water flow and helps stop drips or visible leaks at the dispenser. What it does:

• Channels water from the supply line through the dispenser area for normal dispense operation.
• Provides the structural mounting for the dispenser valve and actuator components.
• Common symptoms it can address: leaking or dripping at the dispenser, visible cracks or broken spigot housing, or intermittent water flow from the dispenser.
• Works with existing dispenser valve and seals when those components are undamaged.

• Disconnect power to the appliance and shut off the water supply before starting work.
• Access may require removing the refrigerator door panel or inner dispenser bezel.
• Inspect and replace any worn O-rings or seals during reassembly to prevent leaks; tighten fasteners only to specified torque if provided by the manufacturer.

This bracket is a factory-design mounting support that secures internal components in place for stable operation and alignment. It helps keep parts seated correctly to reduce noise and prevent component movement. What it does:

• Provides structural support for internal assemblies and panels
• Holds components in correct alignment to maintain proper operation
• Helps reduce rattling or vibration caused by loose parts
• Compatible where the OEM bracket W10174827 is specified

• Disconnect power to the appliance before starting any repair
• Use the correct fasteners and torque as specified by the manufacturer
• Wear safety gloves and eye protection to avoid cuts on sharp edges

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

The Ice and Water Dispenser Pads is an OEM replacement part for Whirlpool refrigerators. It consists of two actuator pads that attach directly to the dispenser housing and are responsible for activating both the water and ice dispensers. The pads work together to trigger the dispensing mechanism and intuitively control the flow of water and release of ice cubes.

Constant use can cause actuator pads to become worn out or damaged.

Symptoms of bad pads include:

• Intermittent or unreliable dispensing
• Increased difficulty activating the dispensers
• Dispensers activating on their own without input

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

The Ice and Water Dispenser Pads is an OEM replacement part for Whirlpool refrigerators. It consists of two actuator pads that attach directly to the dispenser housing and are responsible for activating both the water and ice dispensers. The pads work together to trigger the dispensing mechanism and intuitively control the flow of water and release of ice cubes.

Constant use can cause actuator pads to become worn out or damaged.

Symptoms of bad pads include:

• Intermittent or unreliable dispensing
• Increased difficulty activating the dispensers
• Dispensers activating on their own without input

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This replacement screw secures appliance panels and internal components. Installing a correct OEM fastener restores a tight fit, reduces rattles and vibration, and helps keep assemblies aligned so your machine operates smoothly.

• Fastens brackets, panels, ducts, or housings to the cabinet or frame
• Replaces missing, stripped, or corroded hardware
• Helps stop rattles, vibration, and loose or misaligned parts
• Maintains proper alignment for reliable operation

• Disconnect power; shut off gas and water before servicing
• Match this screw to the original location and hardware type used on your model
• Start threads by hand to avoid cross-threading; use the correct driver
• Snug only—do not overtighten, especially into plastic or thin sheet metal

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation
