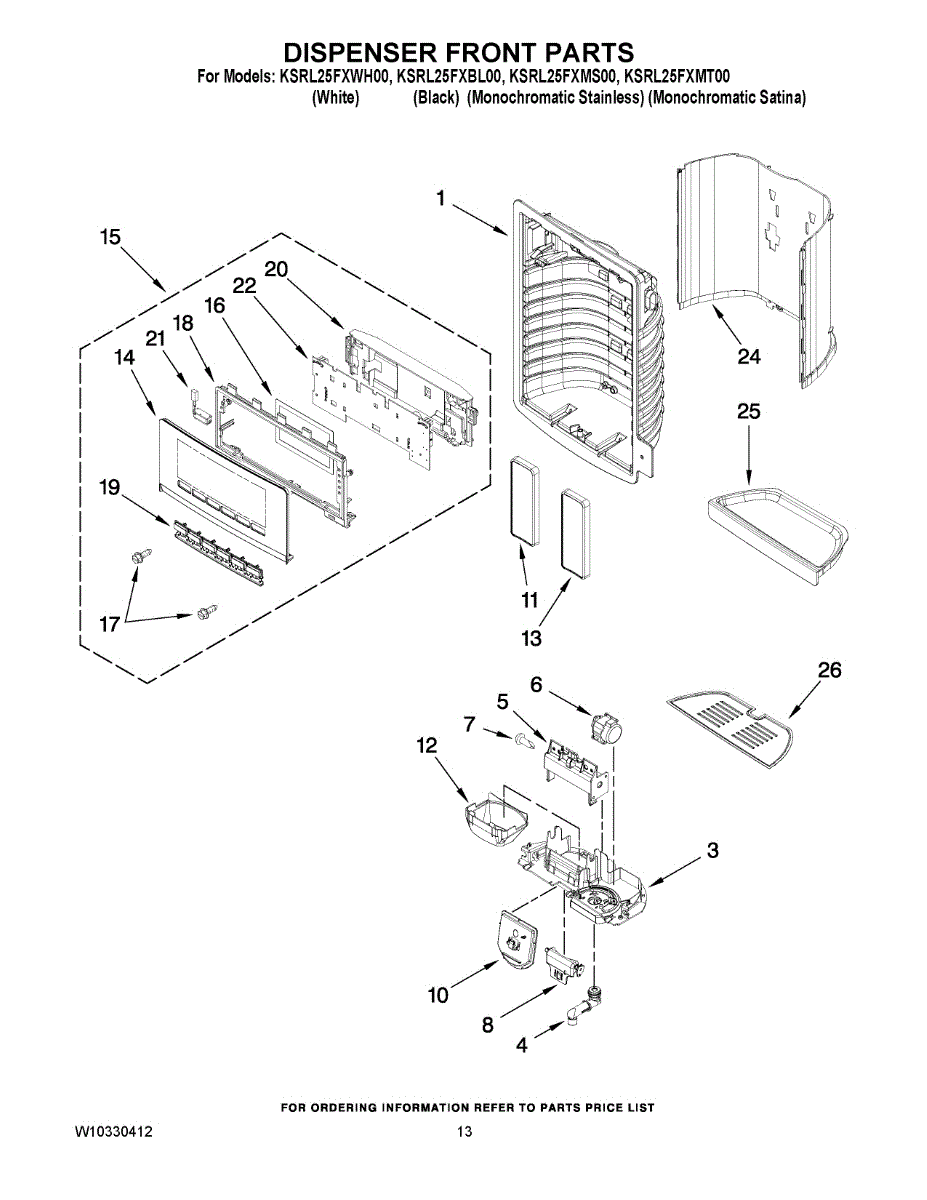

Parts for Kitchenaid KSRL25FXMT00: 08 - Dispenser Front Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Fix weak water flow or dripping at your refrigerator dispenser with this spigot assembly. Routes water from supply line to dispenser outlet.

Mounting bracket secures internal refrigerator components for stable alignment. Replace if cracked, bent, or broken to restore proper support and positioning.

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

Refrigerator mounting clip secures components in place. Replace if broken, loose, or missing to prevent rattling and ensure proper part alignment.

Guides ice from the freezer bin into the dispenser chute. Replace if cracked, broken, or misaligned to restore proper ice flow and prevent jams.

Guides ice from the freezer bin into the dispenser chute. Replace if cracked, broken, or misaligned to restore proper ice flow and prevent jams.

Replacement dispenser actuator pads for refrigerator ice and water controls. Installs on dispenser housing. Replace if cracked, broken, or worn.

Guides ice from the freezer bin into the dispenser chute. Replace if cracked, broken, or misaligned to restore proper ice flow and prevent jams.

Replacement dispenser actuator pads for refrigerator ice and water controls. Installs on dispenser housing. Replace if cracked, broken, or worn.

Secures panels, brackets, and internal components in your refrigerator. Replace missing, stripped, or corroded screws to restore tight assembly fit.

Replacement cover for bottom-mount refrigerators. Restores appearance when the original is cracked, broken, or missing. Installs on interior components.

Illuminates your refrigerator's ice and water dispenser area. Replace if light is dim, flickering, or out. Confirm fit with your model number.
