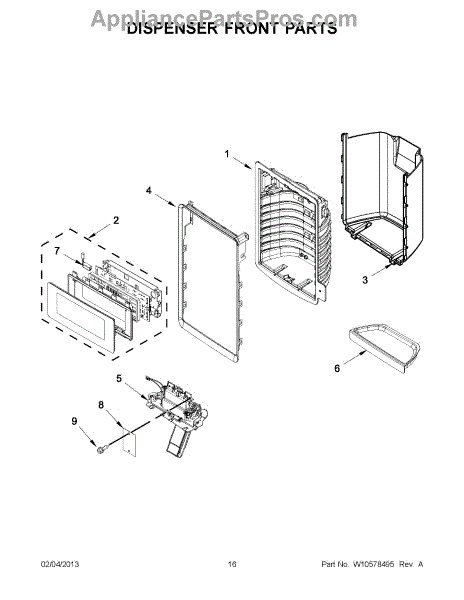

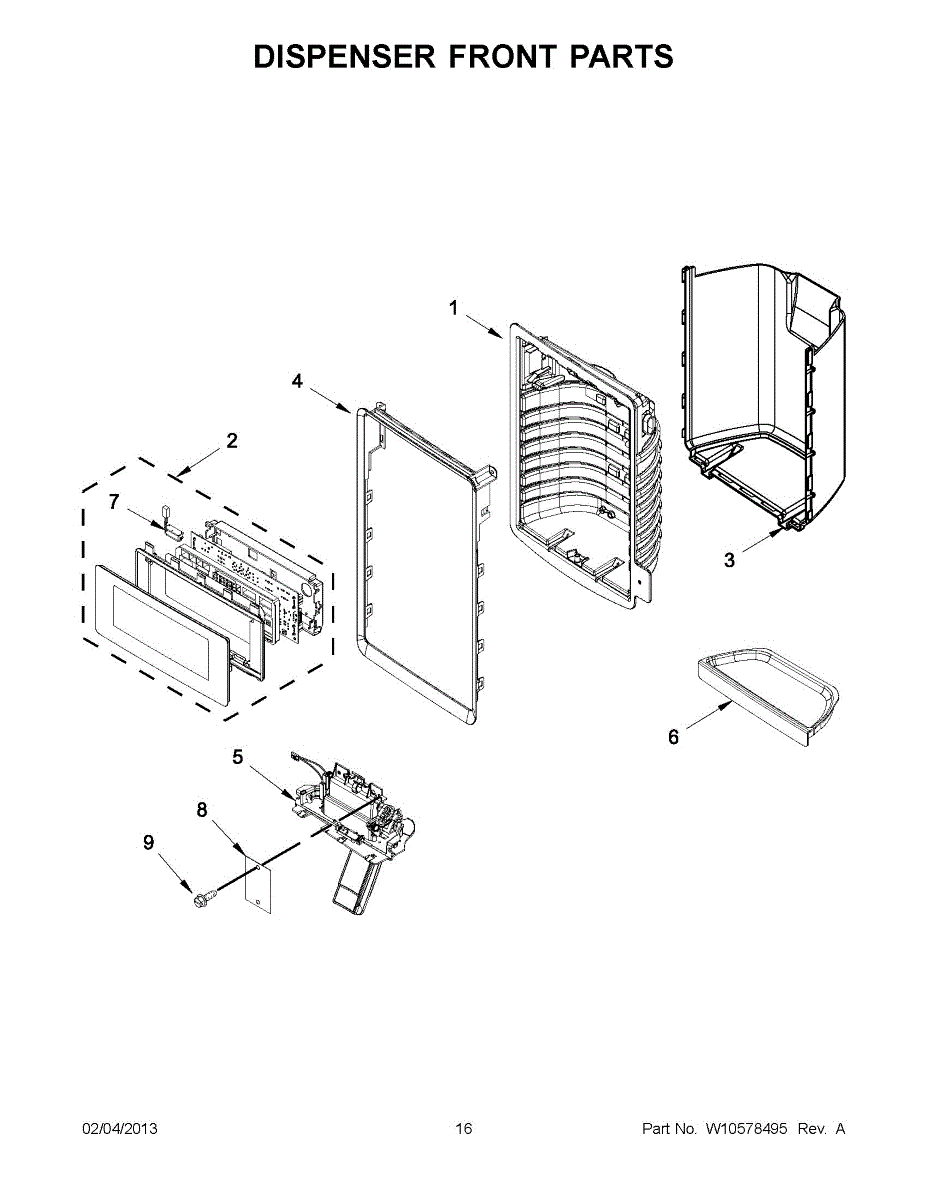

Parts for Whirlpool WRF736SDAM10: 08 - Dispenser Front Parts

This electronic control board is the primary circuit module that governs your appliance's functions. Replacing a failed board can restore power to the controls and bring cycles and features back to normal operation.

• Directs power to motors, valves, heaters, and other components based on user selections and sensor inputs
• Coordinates timing and cycle logic; monitors status and protective interlocks
• Addresses issues such as an unresponsive control panel or display, failure to start, mid-cycle shutdowns, erratic operation, or control-related error codes

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD protection and handle the board by the edges to avoid static damage
• Photograph/label all connections; move connectors to the new board one at a time
• Some models require service-mode programming or calibration after installation—follow the tech sheet for your model

This separator housing directs and isolates fluid flow inside the appliance to help the pump and drainage systems work correctly. Replacing a worn or cracked separator restores proper flow routing and helps reduce leaks and drainage problems. What it does:

• Channels water away from sensitive components to prevent cross-contamination or leaks
• Helps maintain correct pump suction and drainage performance
• Reduces the risk of water reaching electrical parts that could cause errors or shorts
• Can stop symptoms such as visible leaks, poor draining, or unusual pump noise

• One separator housing

• Disconnect power and water supply before starting any repair
• Inspect mating seals and clamps; replace if worn to ensure a watertight connection
• Handle plastic parts carefully to avoid cracks; do not overtighten clamps or fasteners

This ice door is the dispenser door that opens and closes to allow ice to pass from the freezer bin into the dispenser chute, helping keep the ice compartment closed when not in use. Fits select Whirlpool freezer door dispensers. What it does:

• Covers the ice chute and seals the dispenser opening to help reduce warm air entering the freezer.
• Opens and closes with dispenser actuation to release ice on demand.
• Prevents loose ice from falling into the chute when the dispenser is not in use.
• Common symptom indicators: door is broken, cracked, hanging, or ice does not dispense cleanly.

• Disconnect power to the refrigerator before beginning any work.
• Remove interior dispenser trim/panels to access the door; retain fasteners for reuse.
• Inspect door pivot pins and linkage for wear; replace damaged hardware as needed.
• Test dispenser mechanism for proper movement and sealing after installation.

This separator directs ice from the freezer ice maker into the dispenser and helps control airflow to reduce melting. It replaces a cracked, warped, or missing ice door to restore reliable dispensing and ice containment. What it does:

• Guides ice through the dispenser chute so cubes drop cleanly into the cup or bin
• Helps seal the ice chute to limit warm air entering the ice compartment
• Reduces ice jams and sticking by maintaining proper chute alignment
• Restores proper operation if the original door is broken, warped, or not closing

• One separator

• Basic hand tools required; locate and access the ice maker/dispenser area before starting
• Handle plastic parts carefully to avoid cracking; align door on its hinge before securing
• Disconnect power to the appliance before beginning work to avoid injury

This ice door replaces the flip/cover on the refrigerator ice dispenser to help control ice flow and keep the ice chute sealed. Restores proper opening and closing so ice dispenses cleanly and helps reduce warm air entering the compartment. What it does:

• Covers and seals the ice chute to help keep ice inside the bin and reduce melting or clumping
• Opens and closes with the dispenser mechanism to allow ice to pass through while minimizing drafts
• Prevents debris from entering the ice chute and helps maintain dispenser hygiene
• Helps restore normal dispensing if the original door is cracked, broken, or sticking

• Disconnect power to the appliance before starting any repair
• Remove ice bin and any obstructing parts per your model's service instructions to access the door
• Typically secures with clips or a small screw; handle plastic tabs carefully to avoid breakage

Replacement drip tray that collects defrost and condensate water and helps direct moisture to the refrigerator drain, reducing the chance of leaks and water damage. Fits into the evaporator/drain area to restore proper drainage. What it does:

• Collects defrost and condensation runoff and channels it to the drain system
• Helps prevent water pooling or leaks under the appliance
• Replaces cracked, warped, clogged, or missing trays that allow water to escape
• Can reduce musty odors caused by standing water in the tray area

• Disconnect power and remove food before accessing internal refrigerator components
• Access often requires removing the kickplate, evaporator cover, or shelves
• Make sure the drain path is clear and the tray is seated correctly before restoring power; dry any standing water before testing

This dispenser drip tray sits beneath the ice/water dispenser recess to catch small drips and spills. Replacing a cracked or missing tray helps protect the door and floor while keeping the dispenser area neat and easier to clean. What it does:

• Collects water and beverage drips from the dispenser area
• Helps prevent moisture from running down the door or onto the floor
• Restores a clean, finished look if the original is cracked, warped, stained, or missing
• Improves fit if the old tray no longer sits securely

• One dispenser drip tray

• Unplug the refrigerator and turn off the water supply before servicing
• Lift the old tray straight out; clean the recess of debris and residue
• Align and press the new tray in until it sits flush and secure
• Do not force or pry against surrounding trim to avoid damage

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal
