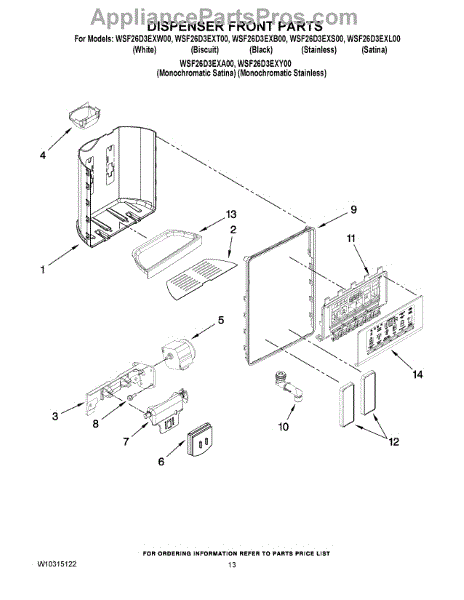

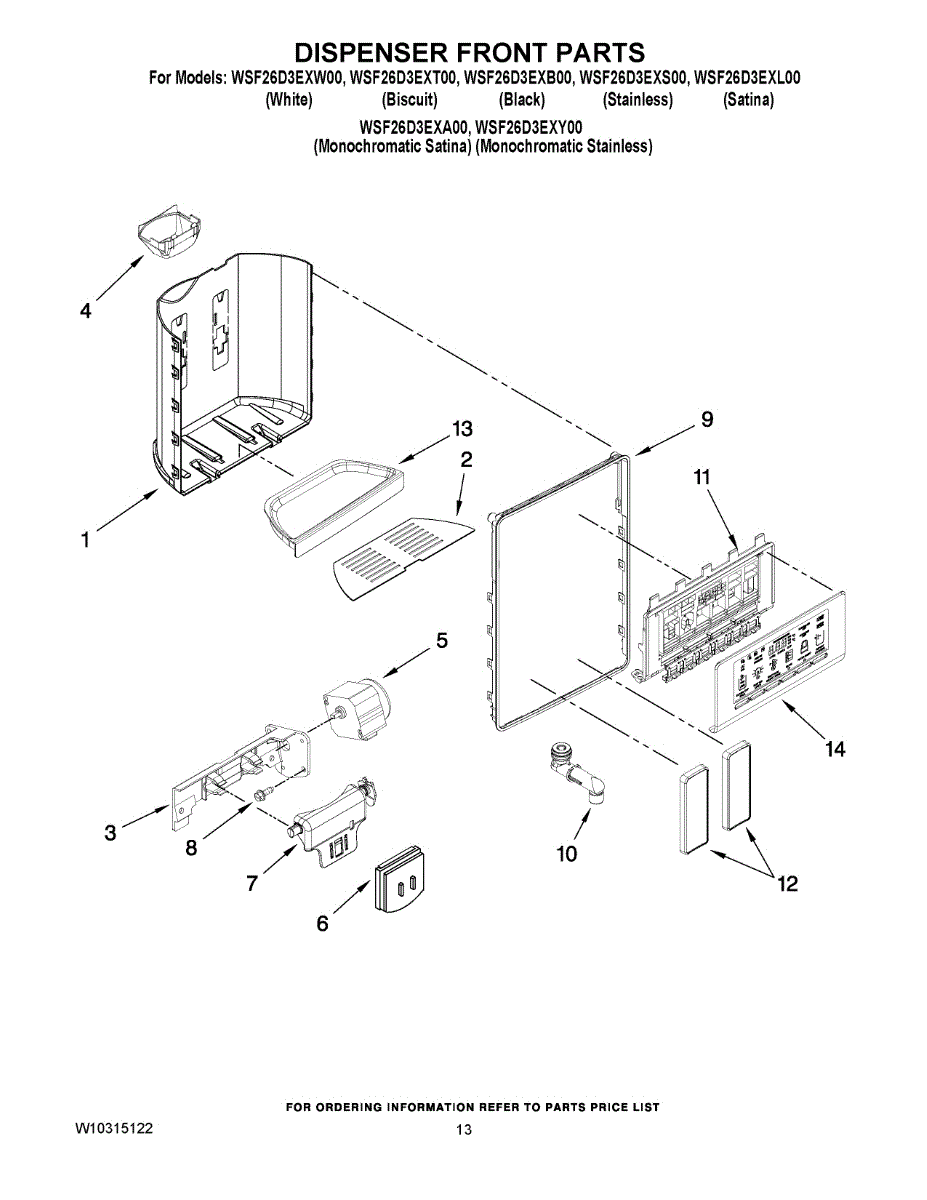

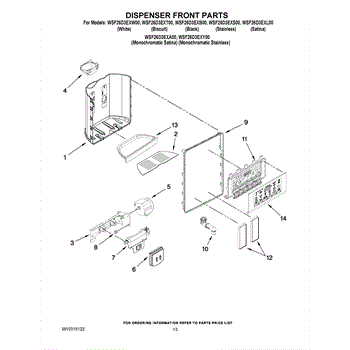

Parts for Whirlpool WSF26D3EXT00: 08 - Dispenser Front Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This replacement cooktop grate with an integrated drip lip supports cookware on gas burners and helps contain spills for easier cleanup. It restores a stable cooking surface and keeps the burner area neater. What it does:

• Supports pots and pans over a single gas burner
• Channels minor spills away from the burner with the built-in drip area
• Helps prevent direct contact between spills and the burner cap
• Restores even, stable cookware placement for safer cooking

• One grate with attached drip

• Make sure the range is turned off and completely cool before handling
• Lift old grate straight up; set the new grate into place so it seats on the cooktop supports
• Wear gloves to protect hands from sharp edges and residual grease

This grille fits over the drip tray to protect internal components and help catch spills, keeping the cooktop area cleaner and easier to maintain. It restores proper fit and appearance when the original grille is damaged. What it does:

• Covers and protects the drip tray from food and liquid spills
• Helps contain messes so spills are easier to wipe away
• Prevents debris from contacting components beneath the cooktop
• Addresses symptoms like visible damage, warped or missing grille, and recurring food buildup

• One grille/drip tray cover

• Disconnect power to the appliance before attempting any service
• Remove surrounding components to avoid damage
• Handle carefully to avoid bending or scratching the grille
• If hardware is not visible, verify if existing clips or screws are reused; only parts explicitly listed ship

This bracket is a factory-design mounting support that secures internal components in place for stable operation and alignment. It helps keep parts seated correctly to reduce noise and prevent component movement. What it does:

• Provides structural support for internal assemblies and panels
• Holds components in correct alignment to maintain proper operation
• Helps reduce rattling or vibration caused by loose parts
• Compatible where the OEM bracket W10174827 is specified

• Disconnect power to the appliance before starting any repair
• Use the correct fasteners and torque as specified by the manufacturer
• Wear safety gloves and eye protection to avoid cuts on sharp edges

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

This ice guide directs ice from the freezer ice maker or bin into the dispenser chute to keep cubes flowing and reduce jams. It restores proper alignment so the dispenser delivers ice cleanly to the cup or container. What it does:

• Guides ice from the ice maker/bin into the dispenser chute for smooth delivery
• Helps prevent ice from catching on the chute or falling off-center
• Reduces noisy or irregular dispensing caused by misaligned ice flow
• Works with the ice-maker/dispenser assembly to maintain consistent dispensing

• One ice guide

• Turn off ice/dispenser functions and unplug power before starting work
• Handle gently to avoid cracking the plastic guide; align tabs with mounting points before snapping into place
• No special tools typically required; refer to appliance manual for access steps
• If ice continues to jam after replacement, inspect ice maker, bin, and chute for ice buildup or other damage

Screw for control panel.

This dispenser trim is the exterior bezel that surrounds a refrigerator's ice/water dispenser, restoring a finished appearance and protecting internal dispenser components from daily wear. It replaces cracked, chipped, or faded trim pieces. What it does:

• Provides a finished, protective bezel around the dispenser opening
• Helps keep the dispenser area aligned and prevents gaps that trap dirt or moisture
• Commonly replaced when trim is cracked, broken, loose, or cosmetically damaged
• Restores proper fit and appearance after impact or wear

• Disconnect power to the appliance before starting work; shut off the water supply if the dispenser is connected to plumbing
• Installation typically requires removing the inner dispenser panel or door trim; keep track of all fasteners
• Handle edges carefully — trim pieces or adjacent metal can be sharp

This spigot body assembly routes water from the refrigerator supply to the dispenser and replaces a worn, cracked, or leaking dispenser spigot. It restores proper water flow and helps stop drips or visible leaks at the dispenser. What it does:

• Channels water from the supply line through the dispenser area for normal dispense operation.
• Provides the structural mounting for the dispenser valve and actuator components.
• Common symptoms it can address: leaking or dripping at the dispenser, visible cracks or broken spigot housing, or intermittent water flow from the dispenser.
• Works with existing dispenser valve and seals when those components are undamaged.

• Disconnect power to the appliance and shut off the water supply before starting work.
• Access may require removing the refrigerator door panel or inner dispenser bezel.
• Inspect and replace any worn O-rings or seals during reassembly to prevent leaks; tighten fasteners only to specified torque if provided by the manufacturer.

Color: Black

Color: White

Color: White

Color: Midnight Grey

This drip tray collects and channels defrost and condensation water to the refrigerator's evaporation area, helping prevent puddles and water damage under the appliance. Durable plastic design fits beneath the freezer/refrigerator cabinet. What it does:

• Catches defrost and condensation runoff so water doesn't pool on the floor
• Directs water toward the evaporator or drain to allow controlled evaporation
• Reduces risk of leaks and related floor damage when installed correctly
• Helps maintain proper drainage and prevents water from contacting components

• One drip tray

• Disconnect power to the appliance before accessing the tray or removing panels
• Remove the toe kick or rear access panel as needed to reach and replace the tray
• Ensure the tray seats fully and drain channels align with the refrigerator's drain path
• If you see persistent leaking, check the drain tube and evaporator area for clogs or damage
