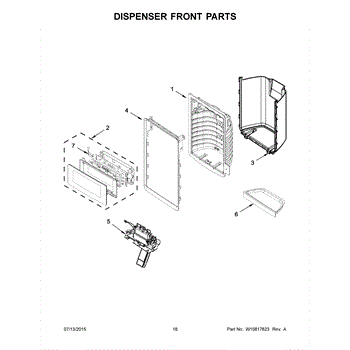

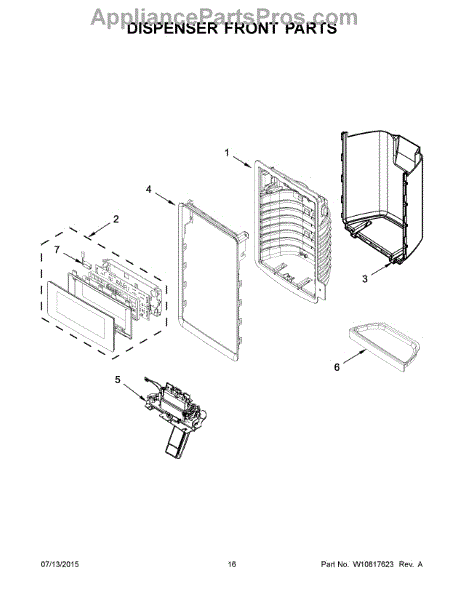

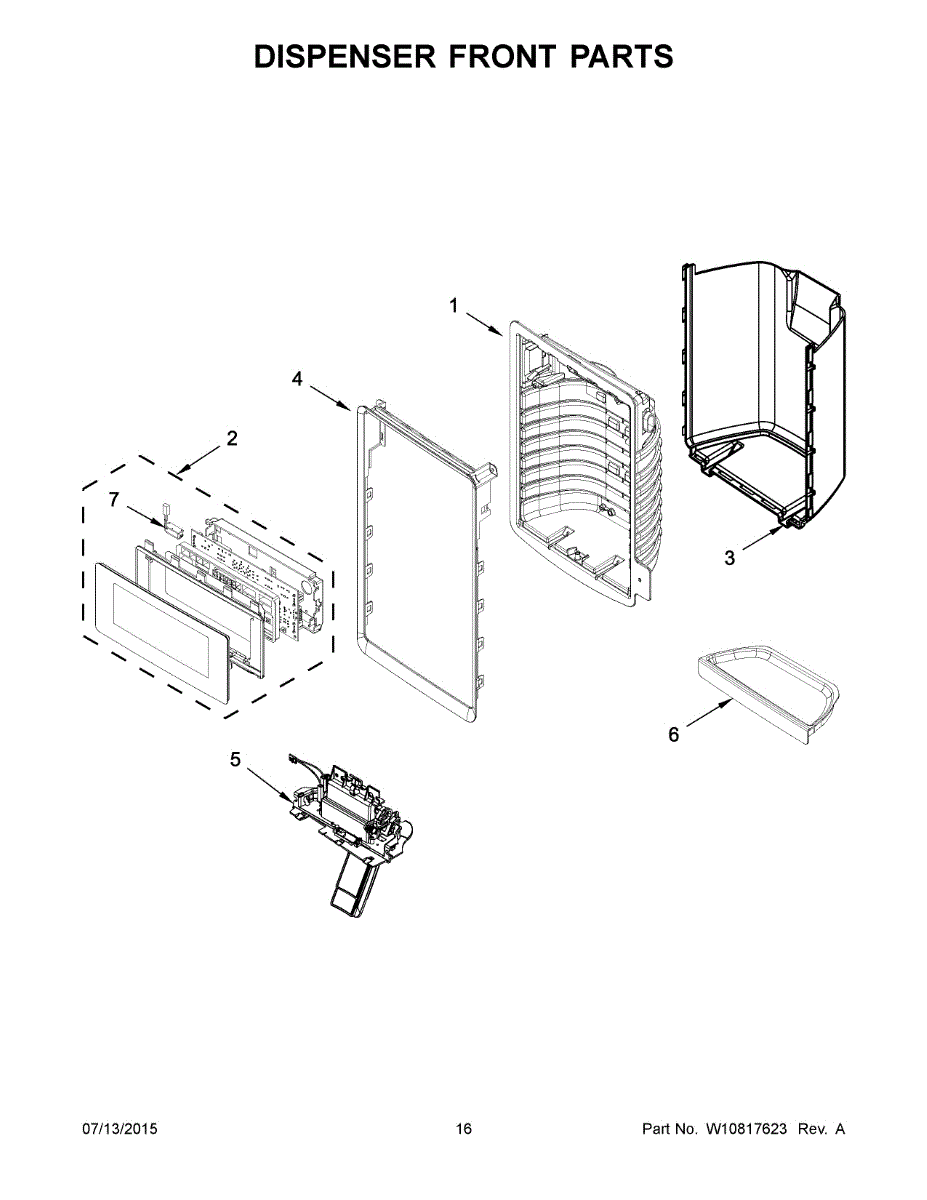

Parts for Whirlpool WRF736SDAB13: 09 - Dispenser Front Parts

This separator housing directs and isolates fluid flow inside the appliance to help the pump and drainage systems work correctly. Replacing a worn or cracked separator restores proper flow routing and helps reduce leaks and drainage problems. What it does:

• Channels water away from sensitive components to prevent cross-contamination or leaks
• Helps maintain correct pump suction and drainage performance
• Reduces the risk of water reaching electrical parts that could cause errors or shorts
• Can stop symptoms such as visible leaks, poor draining, or unusual pump noise

• One separator housing

• Disconnect power and water supply before starting any repair
• Inspect mating seals and clamps; replace if worn to ensure a watertight connection
• Handle plastic parts carefully to avoid cracks; do not overtighten clamps or fasteners

This separator directs ice from the freezer ice maker into the dispenser and helps control airflow to reduce melting. It replaces a cracked, warped, or missing ice door to restore reliable dispensing and ice containment. What it does:

• Guides ice through the dispenser chute so cubes drop cleanly into the cup or bin
• Helps seal the ice chute to limit warm air entering the ice compartment
• Reduces ice jams and sticking by maintaining proper chute alignment
• Restores proper operation if the original door is broken, warped, or not closing

• One separator

• Basic hand tools required; locate and access the ice maker/dispenser area before starting
• Handle plastic parts carefully to avoid cracking; align door on its hinge before securing
• Disconnect power to the appliance before beginning work to avoid injury

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation
