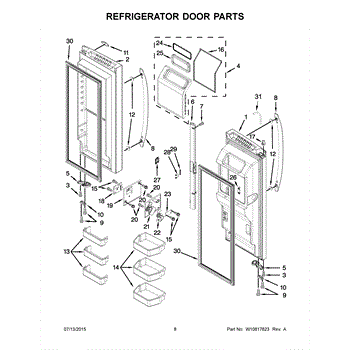

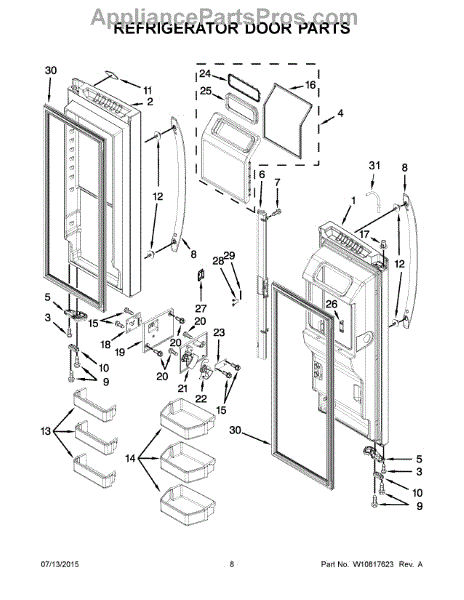

Parts for Whirlpool WRF736SDAB13: 05 - Refrigerator Door Parts

This is a replacement 8-18 thread screw used to secure panels and components on compatible Whirlpool appliances. It provides a simple, reliable fastener to restore proper fit and reduce rattling or loose parts. What it does:

• Fastens panels, brackets, or small components where an 8-18 thread screw is required
• Restores secure attachment to stop vibrating, loosening, or misalignment
• Works wherever the OEM 8-18 thread screw is specified in the appliance
• Small, durable fastening solution for routine part replacement

• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread into the mating hole carefully; do not cross-thread
• Tighten until snug—avoid overtightening which can strip threads or crack plastic
• Disconnect power and follow appliance safety guidelines before accessing internal parts

The Door Ice Maker is an OEM component specifically designed for Whirlpool refrigerators. It harvests ice from the internal icemaker and stores it within an access door on the refrigerator.

The door ice maker plays an important role in conveniently dispensing and storing ice. It allows homeowners easy access to ice without having to reach into the freezer compartment.

Causes of a bad ice maker door include cracks or breaks from accidental impacts over time. Hinges or seals around the door may become deteriorated, resulting in leaks.

Symptoms of a bad door ice maker include:

• Ice is no longer dispensed or stored properly
• Door difficult to open or close securely
• Cracks along door surfaces or frames
• Water leaks from door seals or hinges

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Left Hand Closer

Right Hand Closer

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Color: Black

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This door bumper cushions and stabilizes the appliance door to reduce noise and wear from slamming. It helps the door close smoothly and maintain proper alignment for reliable operation. What it does:

• Absorbs impact to prevent metal-on-metal contact and reduce slamming noise
• Helps the door sit evenly to improve latch engagement and sealing
• Reduces vibration and rattling during operation
• Simple replacement that restores proper door feel and alignment

• Disconnect power to the appliance before starting any repair
• Access the bumper by opening the door; some models may require removing the door or inner panel
• Press or snap the bumper into the locating hole or slot until secure; replace any retaining clips if present

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Refrigerator Trivet is an OEM part for Whirlpool refrigerators. It is designed to hold and support items on refrigerator shelves, providing a stable surface to prevent spills and keep food items organized. The bin measures 13 3/8” wide, 3 5/8” tall, and 4 3/4" deep.

Causes of a bad refrigerator trivet can include regular wear and tear, damage from heavy items, or accidental breakage. Over time, the trivet can become less effective at providing a stable surface, leading to potential issues with food storage.

Symptoms of a bad Refrigerator Trivet include:

• Cracks or breaks in the trivet
• Unstable or wobbling surface
• Difficulty in organizing items on the shelf
• Spills or items falling due to a lack of support

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Bin is an OEM part for Whirlpool refrigerators. This bin is designed to fit into the door of the refrigerator, providing additional storage space for items such as bottles, condiments, and smaller containers. It helps maximize the storage capacity of the refrigerator and keeps frequently used items organized and easily accessible.

Symptoms of a failing Door Bin include:

• Cracks or breaks in the plastic, which can cause items to fall out
• The bin not fitting securely into the door slots
• Sagging or bending of the bin, especially when loaded with heavier items
• Difficulty in removing or replacing the bin due to damage or warping

Causes of a bad door bin can include regular wear and tear from frequent use, overloading with heavy items that exceed the bin’s weight capacity, or exposure to temperature fluctuations that can cause the plastic to become brittle and break.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

6 - 19 x .250

This gasket seals the ice compartment door to help maintain proper cold temperatures and reduce frost or moisture buildup inside the ice storage area. A worn seal can let warm air in and harm ice quality. What it does:

• Seals the ice compartment door to help keep ice cold and dry
• Helps reduce frost buildup and excess condensation inside the compartment
• Can improve cooling consistency and reduce strain on the refrigerator
• Common symptom fix: visible gaps, torn or compressed seal, frost or melting in the ice area

• One ice compartment door gasket

• Clean the door surface and channel before installing to ensure a proper seal
• Press the gasket into the door channel evenly, working around the perimeter for a uniform fit
• If needed, loosen or remove the door per the manufacturer's instructions for easier access
• Avoid sharp tools that could damage the gasket; check the seal after installation and allow time for it to fully seat

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

This replacement cover is a molded housing piece that protects internal components and restores the appliance's exterior appearance. It keeps wiring and controls shielded while helping reduce noise and debris entry. What it does:

• Protects internal components and wiring from physical damage and contamination
• Helps reduce vibration noise and rattling by covering exposed parts
• Restores a finished appearance to the appliance cabinet or control area
• Can prevent loose parts from shifting during operation

• Disconnect power (unplug appliance or switch off breaker) before beginning service
• Use basic hand tools; support the appliance panel while removing fasteners
• Handle with care to avoid scratching painted surfaces or breaking tabs

This slide is the replacement rack glide that helps a rack roll smoothly in and out of the appliance, restoring proper rack movement and preventing scraping or sticking during use. Fits where the factory rack glide has worn or broken. What it does

• Provides a smooth track for a rack to slide in and out without binding
• Replaces cracked, worn or missing glide that causes rubbing or uneven movement
• Helps keep the rack properly aligned during loading and unloading
• Reduces noise and drag from a damaged or missing glide

• One replacement slide/rack glide

• Remove power supply or disconnect appliance before starting any repair
• Access the glide by sliding the rack out and removing any retainer clips or screws as required
• Snap or screw the replacement slide into place and verify smooth rack movement before restoring power
• If other rack parts are damaged, replace them to ensure proper function

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. This board manages the ice maker’s production by monitoring the ice level in the ice bin, ensuring that ice is made when needed and halting production when the bin is full.

Causes of a bad ice level control board can include electrical issues such as power surges, wear and tear over time, or damage from moisture or debris.

Symptoms of a bad ice level control board include:

• The ice maker not producing ice
• Continuous ice production even when the bin is full
• Error codes related to the ice maker
• Irregular or inconsistent ice production

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement retainer secures the ice chute door assembly inside the dispenser, helping maintain a proper seal and smooth ice dispensing. Use it to restore alignment and reduce frost or dripping at the dispenser opening.

• Secures the ice chute/flapper assembly within the dispenser housing
• Helps keep the chute sealed to minimize warm air entering the freezer
• Replace if the chute door is loose, misaligned, or won't stay closed
• Common symptoms include frost/ice buildup at the chute, ice not dispensing smoothly, or visible damage to the retainer

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the dispenser front/escutcheon to access the chute; note part orientation
• Transfer any reusable hardware and seat the new retainer fully
• Restore power and test ice dispensing and chute door sealing

This ice dispenser chute gasket seals the opening at the freezer door's ice chute, helping block warm, humid air from entering. A proper seal reduces frost and moisture around the dispenser and helps keep ice from clumping near the chute.

• Seals the gap between the ice door/flapper and chute to limit air leaks
• Helps minimize frost, condensation, and ice buildup in the dispenser area
• Replaces a torn, flattened, or missing gasket that prevents a tight seal

• Disconnect power to the refrigerator before servicing
• Remove the dispenser front panel/escutcheon to access the ice door and chute area
• Remove the old gasket, clean the mating surfaces, and seat the new gasket evenly all around
• Ensure the ice door/flapper moves freely and seals uniformly before reassembly

This vent directs and protects an appliance's exhaust, helping airflow move from the appliance to the ductwork for safe, efficient venting. It replaces a worn or damaged exhaust outlet to restore proper ventilation. What it does:

• Provides the finished outlet for appliance exhaust, guiding airflow into the duct system
• Helps reduce backflow and air leakage when properly installed
• Prevents larger debris and physical damage at the exhaust opening
• Can correct symptoms like reduced venting efficiency, unusual airflow, or visible damage at the vent opening

• One vent outlet piece

• Disconnect power (and gas if applicable) before servicing the appliance
• Use basic hand tools; avoid over-tightening fasteners that could distort the part
• If ductwork shows heavy lint, corrosion, or damage, repair or replace ducting for best results

This flipper spring returns the refrigerator's ice dispenser door (chute flapper) to the closed position after dispensing. It helps keep warm air and moisture out to minimize frost at the chute and reduce ice clumping in the bin.

• Provides the closing tension for the ice chute door/flapper
• Helps maintain a proper seal at the dispenser opening
• If worn or broken, you may notice the flapper not closing fully
• Frost/condensation around the chute or ice clumping in the bucket may occur

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control to access the ice chute door assembly; note spring orientation and anchor points
• Install the new spring in the same orientation; the flapper moves freely and closes under spring tension
• Wear gloves and use caution—metal edges in the dispenser area can be sharp

A small replacement pin that secures the flipper emitter assembly, restoring correct movement and alignment so the flipper can engage and operate reliably. Ideal when the original pin is bent, worn, or missing. What it does:

• Holds the flipper emitter or lever in place so the mechanism can pivot correctly
• Restores proper movement when a loose or broken pin causes misalignment
• Helps stop clicking, scraping, or intermittent operation related to a damaged fastener
• Serves as a direct-fit replacement designed for the OEM emitter/lever assembly

• One replacement pin as shown

• Disconnect power to the appliance before beginning any repair
• Handle small parts carefully; keep screws and pins organized during disassembly
• Use basic hand tools; no special tools or adhesives are typically required

Color: Black
