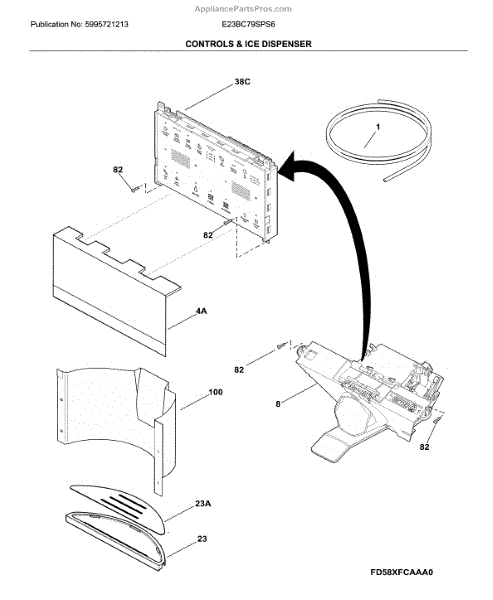

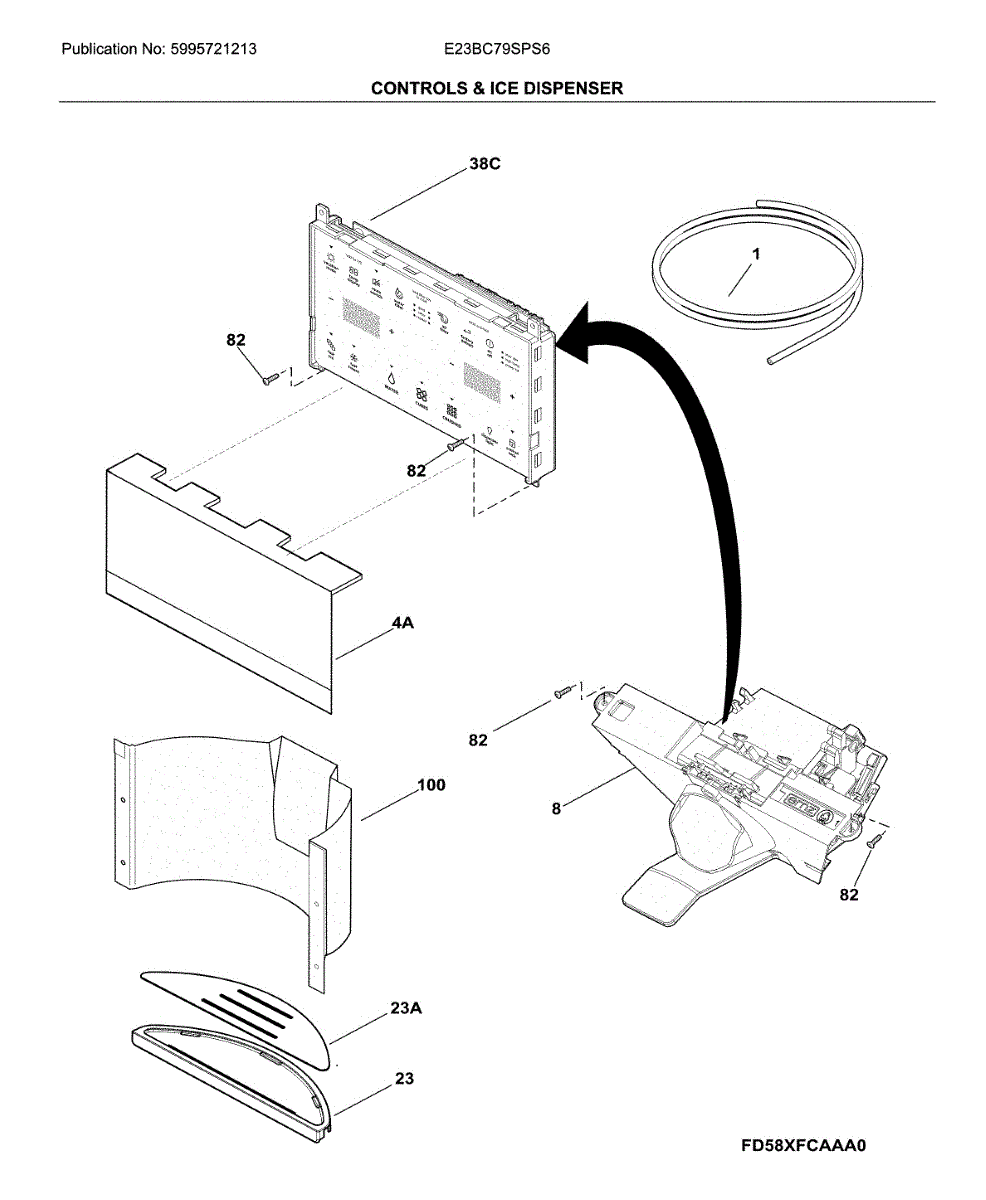

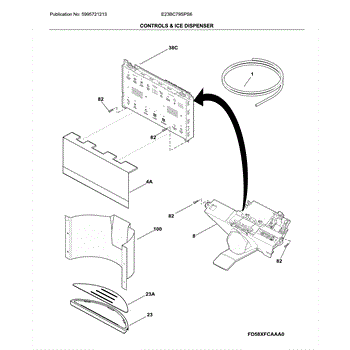

Parts for Electrolux E23BC79SPS6: Dispenser Parts

This refrigerator water tube carries fresh water between the valve, reservoir, dispenser, and/or ice maker. Replacing a cracked or kinked tube restores proper water flow and helps stop leaks inside or behind the refrigerator.

• Directs pressurized water between components in the refrigerator's water system
• Common failure signs: leaks, visible cracking, kinks, or pinhole sprays
• May cause no or slow dispenser flow, or an ice maker that doesn't fill
• Restores correct routing after tubing becomes brittle or damaged with age

• Unplug the refrigerator and shut off the household water supply before servicing
• Place a towel under connections and dispense water to relieve line pressure
• Depress quick-connect collars or loosen clamps to remove the old tube; route the new tube exactly like the original
• Fully seat tubing in fittings, perform a gentle tug test, restore water, check for leaks, and flush several cups to clear air

This dispenser module controls the refrigerator door water and ice dispenser pads and sends the control signals that operate the dispenser. Replacing a failed module restores normal button/pad response and dispenser operation. What it does:

• Receives input from the door dispenser pads or switches and sends signals to the water valve and ice dispenser components.
• Restores responsive dispense pad/button operation when the dispenser is unresponsive or intermittent.
• Can stop erratic or continuous dispensing caused by a faulty dispenser control.
• Works as the electronic interface between the user controls and the dispenser mechanisms.

• Disconnect power to the appliance before starting—electrical shock hazard.
• You may need to remove the refrigerator door inner panel to access the module; keep fasteners organized.
• Handle the module carefully to avoid static damage; avoid touching circuit traces or connectors.
• Reconnect power and test dispenser functions after installation.

This drip tray collects defrost and condensation water and helps channel it to the evaporator/evaporation area, reducing puddles and water damage under the appliance. It's a direct-fit service part designed for easy replacement. What it does:

• Catches meltwater from the defrost cycle and directs it to the evaporator/evaporation area
• Prevents water pooling under or around the appliance that can cause floor damage
• Helps reduce odor and mold risk by containing and directing moisture
• Restores proper drainage when the original tray is cracked, warped, or clogged

• Disconnect power to the appliance before beginning any service
• Remove access panels or kickplate as needed to reach the tray; keep fasteners for reinstallation
• Inspect surrounding seals and drain channel for clogs or damage while replacing the tray
• Handle carefully to avoid bending or cracking the new tray; ensure it seats flat and drains properly before restoring power

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This water tube routes potable water inside the refrigerator to the dispenser and/or ice maker, restoring normal water delivery and preventing leaks. It's a direct-fit replacement that helps maintain proper ice and water operation. What it does:

• Channels water from the refrigerator inlet/valve to the dispenser or ice maker
• Replaces cracked, kinked or punctured tubing that causes leaks
• Stops intermittent or no-water delivery caused by damaged tubing
• Restores steady water flow for ice production and dispensing

• Turn off the refrigerator power and shut off the water supply before starting
• Inspect connection fittings and tubing route; replace any worn clamps or seals as needed
• Use appropriate tools to loosen and tighten fittings without over-torquing

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

This tube adapter connects and seals a refrigerator water line to the inlet or valve, restoring a secure water pathway for the ice maker or dispenser. Use it to stop leaks and re-establish reliable water flow. What it does

• Adapts and secures the appliance water tube to the inlet or valve, forming a leak-proof connection
• Restores proper water feed to the ice maker and/or water dispenser when the original adapter is damaged
• Helps prevent drips or steady leaks at the tube connection
• Works with standard refrigerator water tubing and compression fittings where specified

• One tube adapter

• Turn off the refrigerator power and shut off the household water supply before starting
• Remove the damaged adapter and clean tube ends; replace with this adapter using appropriate compression or push-fit method
• Tighten fittings to a snug, leak-free fit; avoid over-tightening plastic parts
• After installation, restore water and power, and check thoroughly for leaks

Replacement water tube that carries water from the inlet valve to the dispenser and ice system, restoring water delivery and preventing leaks when the original tube is cracked, clogged, or disconnected. What it does:

• Routes water from the refrigerator inlet valve to the ice maker and/or water dispenser.
• Restores normal water flow when the existing tube is blocked, kinked, or leaking.
• Helps stop leaks and puddling caused by cracked or damaged tubing.
• Matches original routing and connections to maintain proper water delivery.

• Disconnect power and shut off the refrigerator water supply before starting work.
• Drain remaining water from the line and place a towel or tray to catch drips.
• Inspect connection fittings and any O-rings; replace seals if damaged to prevent leaks.
• After installation, restore water and power, then check all connections carefully for leaks.

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This water inlet tube routes water from the inlet valve to the ice maker and dispenser, restoring proper water flow and helping prevent leaks. Use when the original tube is cracked, split, or blocking water delivery. What it does:

• Directs water from the refrigerator inlet valve to the ice maker and dispenser assembly.
• Restores normal water flow if the original tube is crushed, cracked, or blocked.
• Helps stop leaks associated with damaged or deteriorated inlet tubing.
• Common symptoms: no water to ice maker or dispenser, slow dispenser flow, or visible leaking beneath the fridge.

• Disconnect electrical power and shut off the household water supply before starting.
• Handle tubing carefully and avoid sharp bends or kinks when routing.
• Check and reuse or replace any associated fittings, clips, or seals as needed for a secure, leak-free connection.

Replacement water tube that routes water from the inlet valve to the refrigerator dispenser and ice maker, helping restore proper water flow for reliable dispensing and ice production. What it does:

• Carries water from the refrigerator inlet/valve to the dispenser and ice maker fill system.
• Used when cracked, kinked, clogged or brittle tubing prevents water flow.
• Helps stop leaks and restore normal ice maker fill when tubing is damaged.
• Addresses symptoms such as no water at the dispenser, ice maker not filling, or visible leaking under the fridge.

• Turn off the water supply and unplug the refrigerator before beginning any work.
• May require basic hand tools and careful routing to avoid kinks; do not overtighten fittings.
• Inspect and replace any damaged clamps or seals; test for leaks after reconnecting the water supply.

The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
