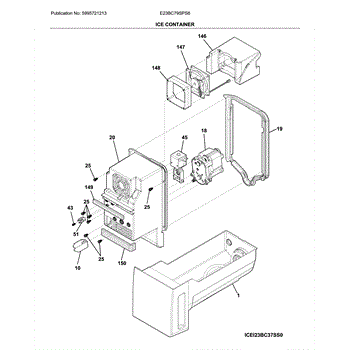

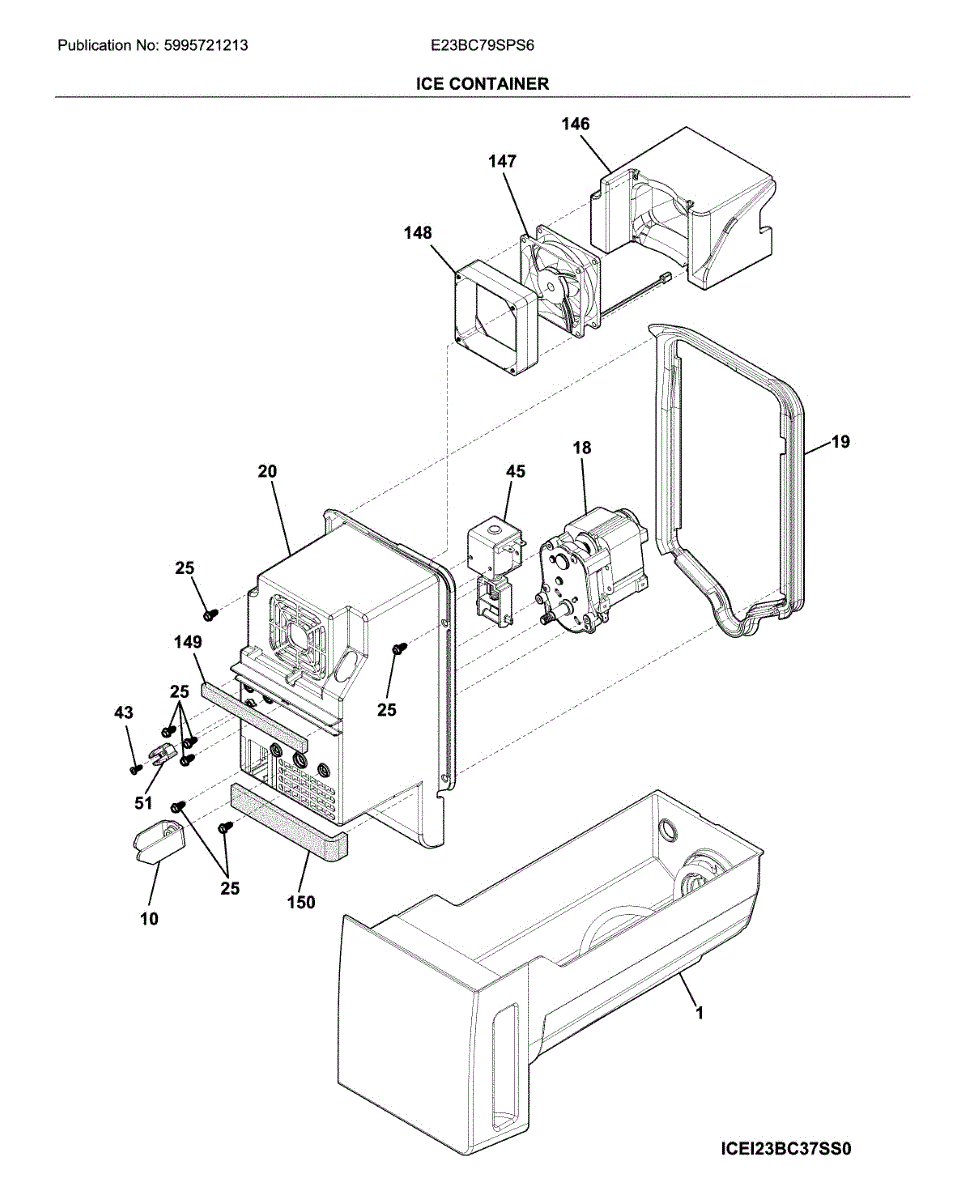

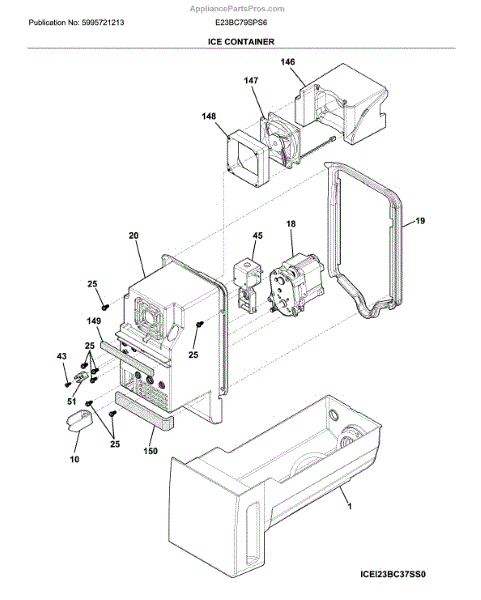

Parts for Electrolux E23BC79SPS6: Container Parts

This ice container assembly collects and stores ice from the refrigerator icemaker so you have ready ice on demand. Durable molded plastic keeps ice contained and helps the dispenser feed cubes cleanly. What it does:

• Holds and stores ice produced by the built-in icemaker
• Guides ice toward the dispenser or auger for reliable delivery
• Helps prevent ice from spilling into the freezer compartment
• Addresses symptoms like overflowing or jammed dispenser and loose or missing ice bin

• Disconnect power to the refrigerator before beginning any work.
• Remove the old ice container by sliding or lifting per fridge instructions; handle ice chutes and plastic edges carefully.
• Seat the new container fully in its track and restore power and run one or two cycles to ensure proper ice feed and dispenser operation.

This auger drive bar links the dispenser motor to the ice bucket auger, transmitting torque to move cubes or crushed ice to the chute. Replacing a worn or stripped bar restores consistent, reliable ice dispensing. What it does:

• Couples the dispenser motor to the auger/crusher assembly
• Transfers rotation so ice advances to the dispenser chute
• Interfaces with the cube/crush selector mechanism
• Common symptoms include the motor running but no ice dispensing, intermittent dispensing, the auger not turning, or grinding/clicking from the dispenser

• 1 auger drive bar

• Disconnect power and remove the ice bucket before servicing
• Note the bar's orientation; remove any retainers and separate it from the yoke/coupler
• Align the new bar with the mating parts and seat it fully; transfer any reusable retainers
• Reinstall the bin and test both cube and crush selections

The Dispenser Auger Motor is an OEM part for Frigidaire refrigerators. It powers the auger that dispenses ice from the ice maker through the dispenser chute, ensuring smooth and efficient delivery of ice to the user.

Causes of a bad auger motor can include electrical issues, wear and tear from regular use, or mechanical failure. A malfunctioning auger motor can prevent ice from dispensing properly, impacting the overall functionality of the ice maker.

Symptoms of a bad dispenser auger motor include:

• The ice dispenser not dispensing ice
• The auger not turning or making unusual noises
• The dispenser motor not responding when activated
• Ice jams or blockages in the dispenser chute

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This door gasket is a direct-fit replacement seal that restores the refrigerator door's airtight closure to help maintain temperature control and reduce energy loss. Designed to replace a worn, cracked, or misshapen seal for improved performance. What it does:

• Creates an airtight seal around the door to keep cold air in and warm air out
• Helps prevent frost buildup and condensation inside the compartment
• Supports consistent cooling and can reduce compressor run time caused by leaks
• Addresses common symptoms like warm spots, excessive cycling, and visible gaps around the door

• One replacement door gasket

• Inspect door frame and mounting channel for damage or debris before installing
• Clean mating surfaces and allow them to fully dry for the best seal
• Gaskets may require gentle stretching or warming to seat evenly; avoid sharp tools that could nick the gasket
• If the door or frame is bent/damaged, gasket replacement may not fully resolve sealing issues.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This is a replacement screw used to secure appliance panels and components. It restores proper fastening to stop rattles and keep parts aligned for reliable operation. What it does:

• Secures trim, brackets, or small panels to the appliance
• Prevents loose parts that can cause vibration, noise, or improper sealing
• Restores factory fastening where a screw is missing or damaged
• Simple, single-purpose fastener — use where the original screw was installed

• Use the matching screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage
• Disconnect power or follow appliance safety steps when working near electrical components
• Replace only the screw(s) that match the original size and type

The Solenoid and Yoke Assembly is an OEM part for Frigidaire refrigerators. It is used in the ice dispensing system to control the movement of the ice chute, allowing ice to be dispensed from the refrigerator door.

Causes of a bad solenoid and yoke assembly can include electrical issues such as a burnt-out solenoid, wear and tear from regular use, or physical damage due to mishandling or impact.

Symptoms of a bad solenoid and yoke assembly include:

• Ice not dispensing or dispensing intermittently
• Strange noises when attempting to dispense ice
• The ice chute not opening or closing properly
• Error codes related to the ice dispensing system

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This anti-twist pin secures mating parts to stop unwanted rotation and keeps linked components aligned for reliable operation. Replace a worn or broken pin to restore proper fit and reduce twisting, rubbing and noise. What it does:

• Keeps connected components from rotating or shifting, preserving alignment and part engagement.
• Helps prevent rubbing, scraping, or noisy operation caused by a loose or missing pin.
• Replaces a damaged or worn locating/retention pin that can allow assemblies to bind or move out of position.
• Simple mechanical replacement that restores intended part geometry and fit.

• Disconnect power to the appliance before servicing to avoid electrical or motion hazards.
• Remove any covers or panels as needed to access the pin; keep track of fasteners and orientation.
• Install the pin in the same orientation as the original; components move freely and are properly engaged before reassembly.

The Ice Maker Cooling Fan and Gasket Kit is an OEM part for Frigidaire refrigerators. This kit includes both the cooling fan and the necessary gasket, which work together to ensure the ice maker operates efficiently.

Causes of a bad cooling fan can include electrical issues, wear and tear from continuous use, and blockages or debris impeding the fan's operation.

Symptoms of a bad ice maker cooling fan and gasket include:

• Reduced ice production or no ice being made
• Ice melting or clumping together
• Unusual noises coming from the ice maker area
• Visible wear, cracks, or gaps in the gasket

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This rubber grommet cushions and secures appliance components, reducing vibration and wear while helping maintain proper alignment. It's a small replacement part that restores quiet operation and prevents metal-on-metal contact. What it does:

• Cushions or isolates moving parts to reduce noise and vibration
• Provides a snug mount or seal where components pass through panels
• Helps keep trim, panels or wiring from rubbing and wearing
• Commonly replaced when parts become loose, cracked, or noisy

• Disconnect power before attempting any repair.
• Access may require removing a panel or trim piece; use trim tools to avoid damage.
• Ensure the grommet seats fully in the mounting hole and that retained parts align correctly.
• Replace if torn, hardened, or deformed; do not install a damaged grommet.

This gasket seals the evaporator housing to help maintain proper airflow and refrigeration circuit integrity. It prevents air leaks that can cause frost buildup and reduced cooling performance. What it does:

• Seals the evaporator housing to keep cold air contained and airflow directed
• Helps prevent excessive frost accumulation on the evaporator
• Reduces the chance of warm air infiltration that leads to temperature problems
• Supports consistent cooling and proper defrosting operation

• One evaporator housing gasket

• Disconnect power to the appliance before beginning any work
• Remove evaporator cover and any ice buildup before replacing the gasket
• Clean mating surfaces and align the gasket carefully for a proper seal
• Inspect housing and mounting surfaces for damage; replace if cracked or warped

This refrigerator door gasket creates a tight seal around the door to help keep cold air in and reduce energy loss. Replacing a worn or torn gasket restores proper door sealing and helps the refrigerator maintain temperature. What it does:

• Seals the gap between the door and cabinet to prevent cold-air leaks
• Helps reduce frost build-up and limits warm-air infiltration
• Supports consistent internal temperatures for food safety
• Can resolve symptoms like condensation on the door, visible gaps, or excessive compressor run time

• Inspect the door frame and mating surface for debris or damage before installing
• Warm the gasket slightly to make it more flexible for fitting if needed
• Press the gasket evenly into the door channel and verify full seating around the perimeter

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
