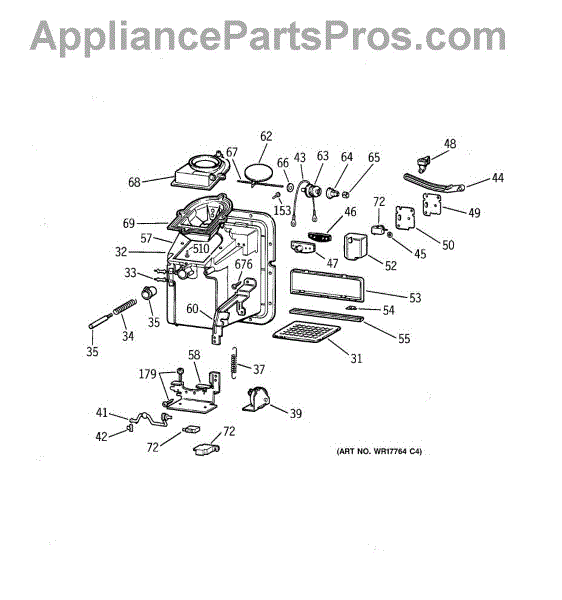

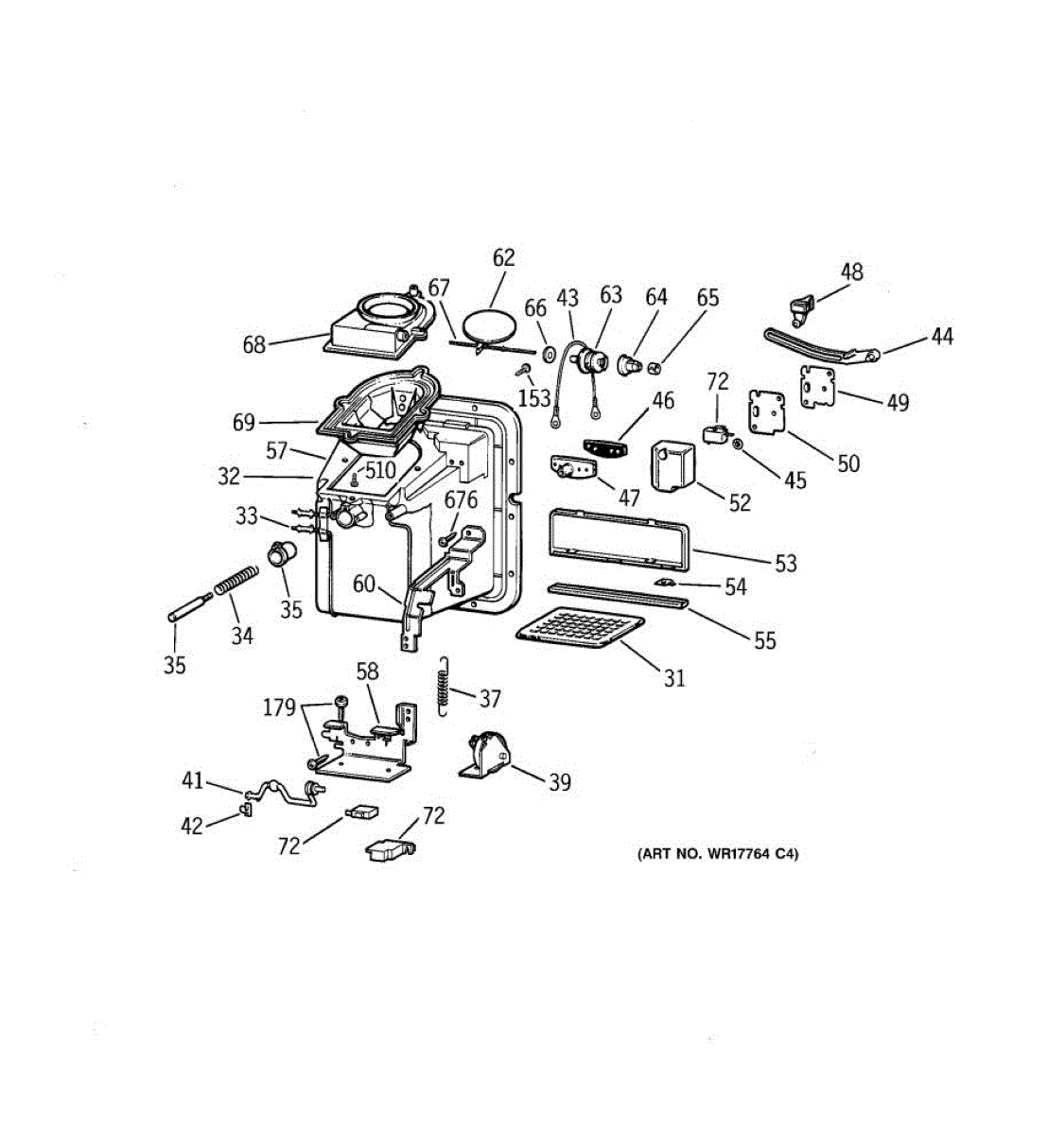

Parts for Ge TBX22PCSMRAA: 02 - Dispenser Parts

Spring for recess duct. For spring sleeve use WR2X4822.

This dispenser sleeve comes with plunger, sleeve, and screw.

Delay bracket for refrigerators. Mounts and secures delay components in place. Replace if bracket is cracked, bent, broken, or missing hardware.

Water dispenser paddle lever for top-mount refrigerators. Installs on the dispenser front panel. Replace if cracked, broken, or missing.

Molded housing that supports and aligns refrigerator dispenser components. Replace if cracked, broken, or no longer holding chute and actuator securely.

A replacement support recess that secures and centers a component in the appliance, restoring proper fit and stability. Replaces a worn or broken receptacle to stop misalignment and prevent loose or sagging parts. What it does:

• Acts as a mounting receptacle that holds and locates a related trim, panel, shelf or bracket
• Restores proper alignment so the secured component sits flush and functions correctly
• Stops movement, rattling or sagging caused by a cracked or missing receptacle
• Compatible with the appliance's original mounting points for a like-for-like repair

• One support recess

• Disconnect power to the appliance before starting any repair
• Remove any adjacent trim or panels as needed to access the recess; keep fasteners organized
• Press or snap the replacement into the original mounting location; may require light hand tools to remove the old piece
• Do not force parts; compare old and new parts for orientation before final installation

Ice maker dispenser door.

Time delay display arm.

Includes 12 washers.

Ice chute door lever for refrigerator dispensers. Replaces broken, cracked, or missing levers that control ice door opening and closing.

Support bracket that holds the cradle switch in your refrigerator. Replace if the original is cracked, broken, or missing to properly secure the switch.

Includes 12 screws.

Includes 12 screws.

Mounting screw for dryer drum support and internal components. Replaces lost, stripped, or damaged screws during repairs. Package of 12 screws included.

Size: 10-16 ab.
