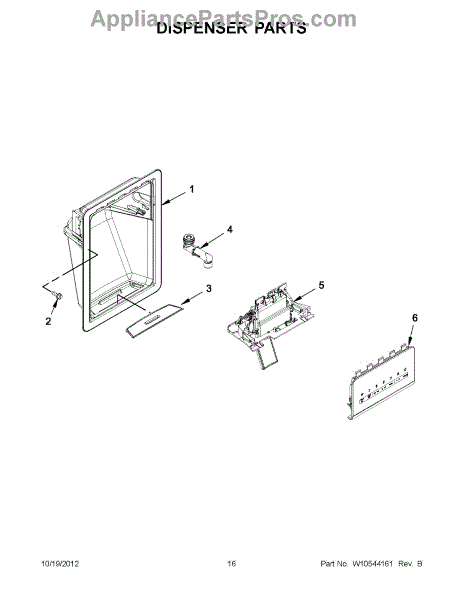

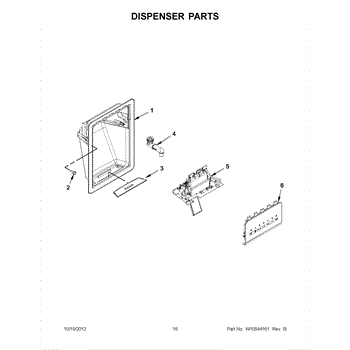

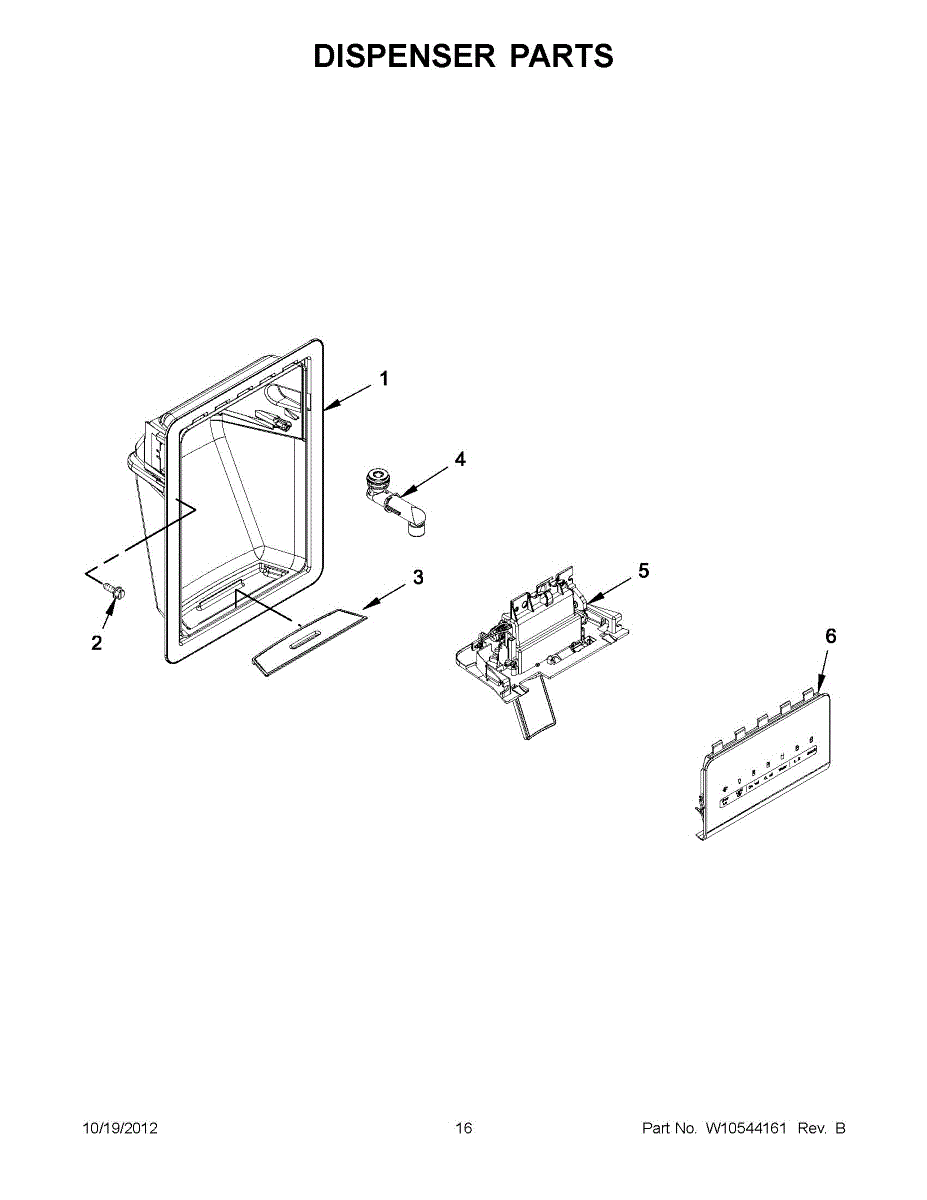

Parts for Whirlpool WRS325FDAB01: 08 - Dispenser Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This dispenser grille sits in the well beneath your refrigerator's ice and water dispenser. It catches drips and small spills and gives the dispenser area a clean, finished look that's easy to wipe down and keep tidy.

• Collects drips and runoff from dispensing to protect the door surface
• Provides a stable resting surface for cups and bottles
• Removable for quick cleaning and maintenance
• Typical symptoms include cracks, broken tabs, heavy discoloration, or a grille that won't stay seated

• Usually a drop-in replacement: lift out the old grille and set the new one in the dispenser well
• Clean the dispenser well and clear the drain opening before installing
• Align and press down until the grille sits flat; do not force the plastic tabs
• If working around electrical or water components, disconnect power and shut off water for safety

This black dispenser grille fits at the base of the refrigerator's ice/water dispenser. It provides a clean, finished surface over the dispenser well and helps catch minor drips when the original grille is cracked, stained, loose, or missing.

• Sits over the dispenser well to catch minor drips and splashes
• Protects and finishes the dispenser recess for a tidy appearance
• Helps keep moisture away from surrounding door surfaces
• Typical failure signs: cracked, warped, discolored, broken tabs, or won't stay seated

• Disconnect power and shut off the water supply before servicing.
• Lift or slide the old grille out of the dispenser recess.
• Clean the area; align the new grille with the locating tabs.
• Press down until fully seated and flush with the surrounding trim.

The Dispenser Grille is an OEM part for Whirlpool refrigerators. This grille is located at the base of the refrigerator's water and ice dispenser, collecting drips and spills to keep the dispenser area clean and dry.

Causes of a bad dispenser grille can include regular use, accidental impacts, or exposure to harsh cleaning chemicals.

Symptoms of a bad dispenser grille include:

• Visible cracks or breaks in the grille
• Discoloration or staining
• Difficulty fitting the grille into place
• Accumulation of water or debris around the dispenser area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Single water tube/fitting used in refrigerator water and ice systems to route supply water. Replacing a damaged tube restores reliable water flow and helps stop leaks and puddling under the appliance. What it does:

• Directs water from the household supply to the dispenser or ice maker.
• Common repair for visible leaks, puddles under the refrigerator, or intermittent dispenser flow.
• Restores consistent water flow so the dispenser and ice maker can fill properly.
• Replaces cracked, brittle or kinked factory tubing at the connection point.

• Shut off power and turn off the water supply before beginning work.
• Have a towel or small container ready to catch any remaining water in the line.
• Inspect connection seals and replace worn O-rings or gaskets as needed.

This ice door is the hinged flap that seals the freezer ice chute at the dispenser, helping keep cold air in and preventing warm air or debris from entering the ice bin. Restores proper sealing and ice delivery for dispenser systems. What it does:

• Seals the ice chute to help maintain proper freezer temperature and reduce melting or clumping of ice
• Opens and closes with dispenser action to allow ice to pass while blocking air when idle
• Helps keep dust, debris, and odors out of the ice delivery path
• Replaces cracked, warped, or broken dispenser doors that stick or fail to close

• Disconnect power to the refrigerator before starting any repair to avoid injury
• Removal typically requires opening the dispenser housing—keep screws and clips organized for reassembly
• Inspect surrounding hinges, actuator linkage, and mounting clips; replace any damaged fasteners to ensure smooth operation

The Ice Door is an OEM part for Whirlpool refrigerators. It guides the ice from the ice maker into the dispenser, allowing for easy access to ice cubes or crushed ice. It helps prevent any spills or messes during the dispensing process.

A bad ice door can occur due to wear and tear, damage, or blockage caused by ice buildup. If you notice symptoms such as ice not dispensing properly, irregular ice cube sizes, or water leakage during the dispensing process, it may be time to replace the funnel chute.

Symptoms of a bad ice door include:

• Improper or inconsistent ice dispensing
• Irregular ice cube sizes
• Water leakage during the dispensing process

Repair your refrigerator's ice dispenser by replacing the faulty or damaged ice door with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Color: Black

Color: White

Color: White
