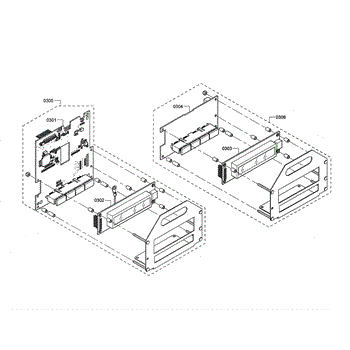

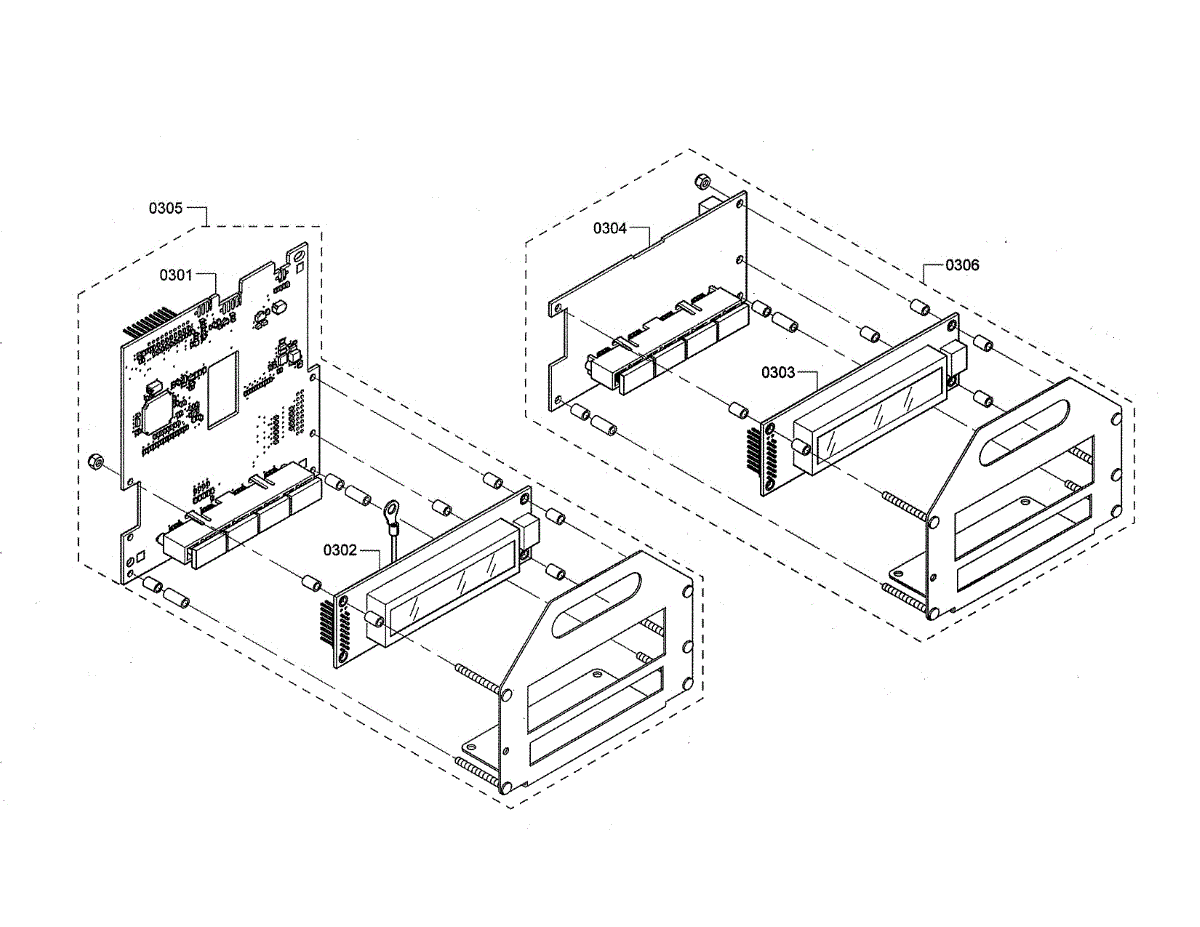

Parts for Thermador PRD48JDSGU/02: Display Board & Module Parts

This display module replaces the appliance's front-face display to restore visible cycle information and touch feedback. It provides the user interface needed to view settings, time remaining, and mode indicators. What it does:

• Shows cycle status, remaining time, and selected options on the control panel
• Relays user input from touch/buttons to the main control board
• Helps diagnose UI problems when display is blank, unreadable, or buttons don't respond
• Works with the existing control electronics as the visual/input interface

• Disconnect power at the breaker or unplug the appliance before starting
• Handle the module carefully to avoid bending pins or scratching the display
• Use basic hand tools to remove the control panel; keep screws and fasteners organized

This display module is the control panel component that shows cycle settings and status and lets you operate the appliance. It restores visible feedback and touch/press input when the original display or control surface fails. What it does:

• Shows cycle information, time remaining, and status indicators on the front control panel
• Receives user inputs from buttons or touchpad and sends commands to the main control board
• Common symptoms it helps resolve: blank or unlit display, missing status indicators, unresponsive front-panel controls, or intermittent display behavior
• Works as a direct replacement for a failed or damaged display assembly to restore normal user interface functions

• Disconnect power to the appliance before starting and confirm no voltage is present
• Handle the module carefully to avoid static discharge; wear an ESD strap if available
• Access typically requires removing the control console or overlay—keep track of fasteners and wire connectors
• After installation, reconnect power and test all display functions and buttons; if problems persist, verify connections and related control board components
