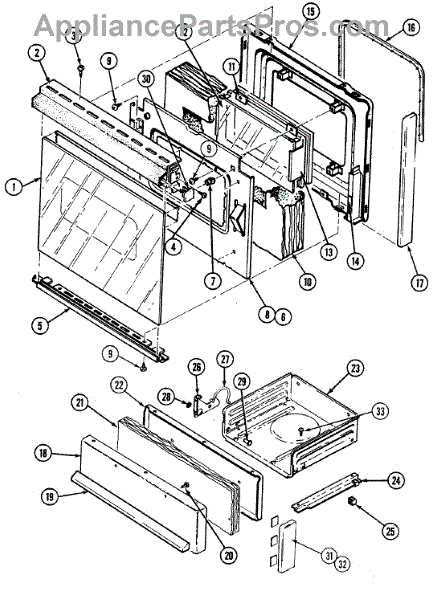

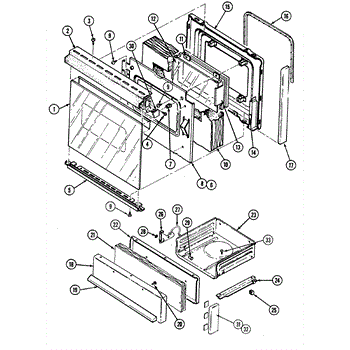

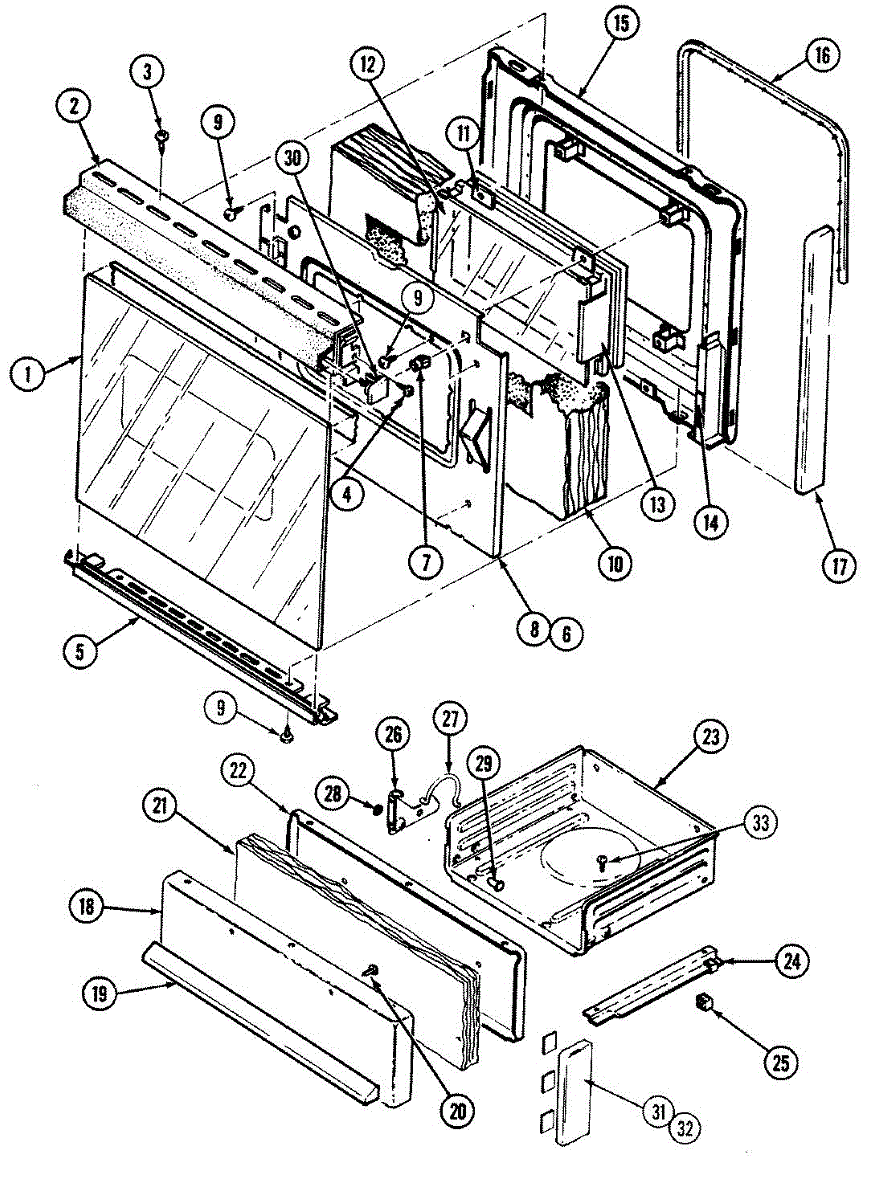

Parts for Magic Chef 3187XTA: 03 - Door / Drawer (3187Xtx Model) Parts

Color: Black. For biscuit order 98008169. For white order WP98008544.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

The Oven Door Seal is an OEM part for Whirlpool ovens. This seal is crucial for maintaining the oven’s efficiency by creating an airtight seal around the door, preventing heat from escaping during cooking. It helps ensure that the oven maintains the correct temperature, which is essential for even cooking and energy efficiency.

Common causes of a bad oven door seal include wear and tear from regular use, exposure to high temperatures, and damage from cleaning or handling.

Symptoms of a bad oven door seal include:

• Heat escaping from around the oven door
• Longer cooking times or uneven cooking
• The oven door not closing properly
• Visible cracks, tears, or deformation in the seal

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This 30-inch door handle replaces a worn or damaged refrigerator/freezer door grip to restore a solid, easy-to-use grab point for opening and door alignment. Durable design matches original fit and appearance. What it does:

• Provides a secure grip for opening and closing the door
• Restores proper door alignment and feel when the original handle is cracked or loose
• Matches original mounting locations for a direct replacement
• Works with the factory trim and hardware for consistent appearance

• Remove power to the appliance or disconnect the unit before starting work
• Handle installs with factory fasteners; retain or replace mounting screws if needed
• Support the door/handle area during removal to avoid damage

This is a replacement screw used to secure appliance panels and components so parts stay firmly mounted and functioning. Use it to replace a missing or damaged fastener for a secure repair. What it does:

• Fastens panels, brackets, or small components to prevent loosening or vibration
• Helps stop rattling, shifting, or gaps caused by a missing or stripped screw
• Restores proper alignment of mounted parts after repair or maintenance

• Use the matching driver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent damage to threads or surrounding parts
• Disconnect power and follow manufacturer safety guidelines before servicing the appliance
• Replace like-for-like: screw size and head type match the original before installation

This main top glide supports the dryer drum and reduces friction for smooth rotation, helping prevent drum wear and noisy operation. It replaces a worn glide to restore proper drum tracking and quieter drying cycles. What it does:

• Provides a low-friction bearing surface for the dryer drum to ride on
• Helps maintain correct drum alignment and smooth rotation
• Reduces squeaks, scraping noises, and uneven drum wear
• Protects the drum and cabinet contact points from damage

• One main top glide

• Use basic hand tools; access requires opening the dryer cabinet per your model's service manual
• Inspect matching bottom glides/rollers and replace as needed for best results
• Disconnect power (and gas supply if applicable) before beginning repairs

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing
