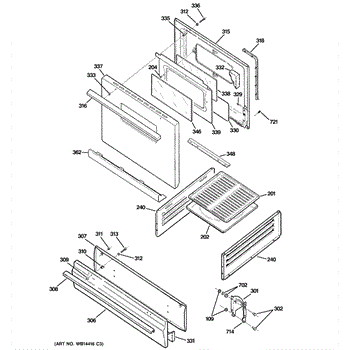

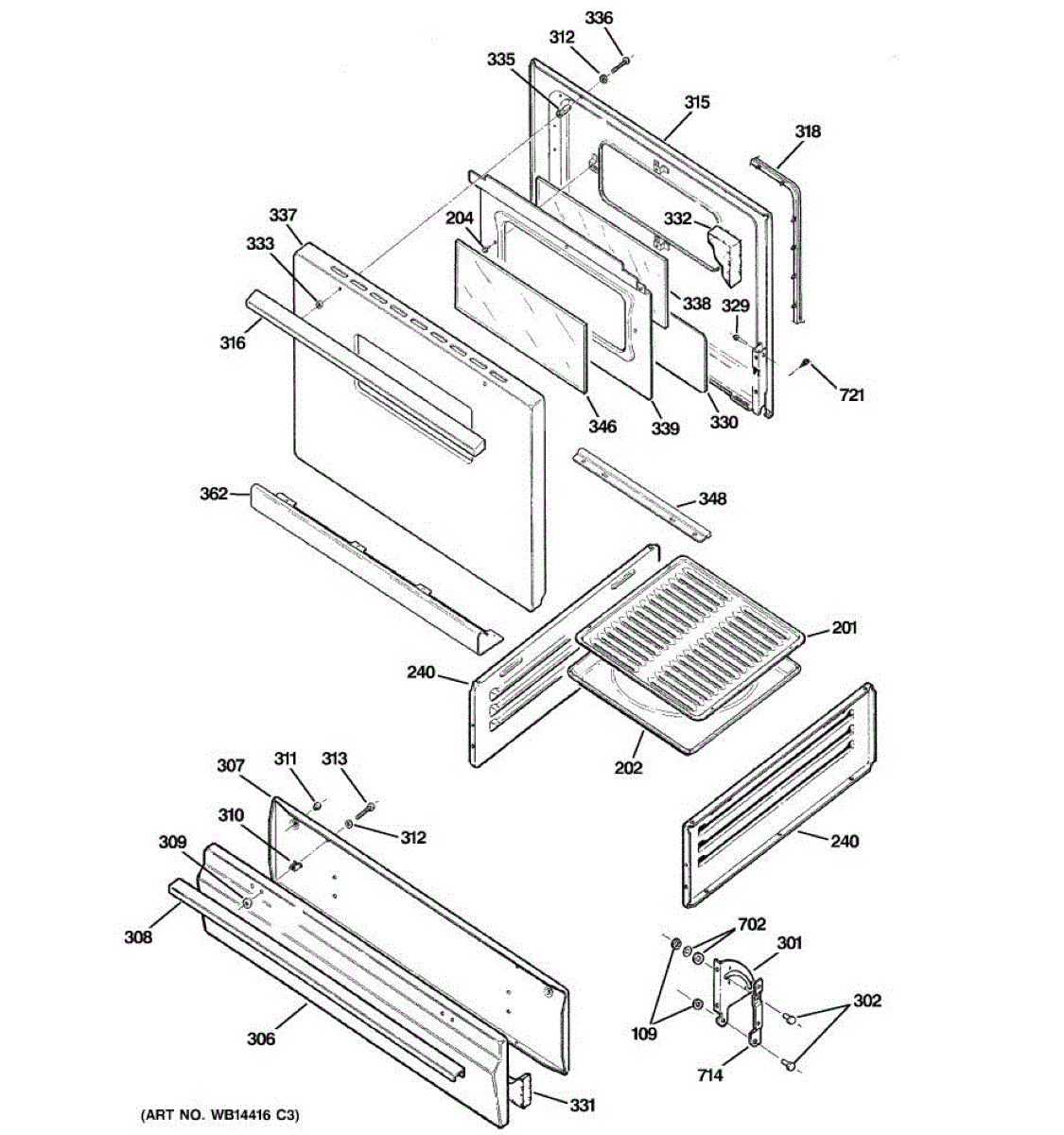

Parts for Ge AGBS300EP2BB: 04 - Door & Drawer Parts

Includes 12 speed nuts.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This replacement panel broiler restores the oven's internal broiler surface so heat reflects properly for consistent top-heat cooking and protects internal components from direct flame and spills. Fits the oven broil cavity where the broil element mounts. What it does:

• Provides the mounting and protective surface for the broil element and helps reflect broil heat across food
• Restores even browning and searing when a damaged or warped panel causes uneven broiling
• Protects internal oven walls and wiring from grease, drips and direct flame contact
• Helps reduce smoke and flare-ups caused by burned-on residue on a damaged panel

• One replacement inner broiler panel

• Disconnect power to the appliance before servicing to avoid shock hazard
• Basic hand tools are typically required; handle edges carefully — panel may have sharp metal edges
• Clean surrounding area and broil element before installation; replace only with the exact part number shown

This broiler pin secures the oven's broiler drawer or rack, letting it slide and lock smoothly for even broiling. Replaces a worn or broken pin to restore proper broiler movement and alignment. What it does:

• Acts as the hinge/anchor for the broiler drawer or rack so it opens and closes smoothly
• Prevents the drawer or rack from sagging, binding, or coming loose
• Helps maintain correct broiler alignment for even heat exposure
• Common symptom: drawer or rack won't slide, sits crooked, or falls out

• Disconnect power (and gas if applicable) and allow the appliance to cool before servicing.
• Remove the broiler drawer or rack per the owner's manual to access the pin.
• This part typically installs by sliding or snapping into a bracket; verify fit before final assembly.

This replacement drawer panel restores the front trim of the appliance drawer for a clean, finished appearance and proper fit. It replaces a damaged, dented, or worn drawer front so the drawer closes and looks like new. What it does:

• Replaces the external front surface of the drawer to restore appearance and alignment
• Helps the drawer close evenly and prevents gaps that allow items to catch
• Addresses visible damage such as dents, scratches, or paint wear on the drawer front
• Works with existing drawer hardware; does not include internal drawer bin parts

• One replacement drawer panel

• Handle part carefully to avoid surface scratches
• Power off and empty drawer before starting; remove any clips or screws securing the old panel
• Reuse original fasteners and brackets unless damaged

This white broiler handle replaces a cracked, loose, or missing handle so you can open and close the oven broiler or broiler drawer smoothly. Durable plastic construction restores safe, reliable access to the broiler compartment. What it does:

• Provides a secure grip to open and close the broiler or broiler drawer
• Replaces worn, broken, or chipped handles that are hard to use
• Helps prevent accidental slippage when accessing the broiler area
• Restores normal operation and appearance to the oven front

• One white broiler handle

• Turn off power to the appliance before beginning any work
• Installation typically requires removing the broiler drawer or access panel and fastening the handle with the original screws or clips
• Handle broken hardware may require replacement fasteners; confirm what's needed before starting
• Wear gloves to avoid cuts from sharp sheet metal edges during installation

Includes 12 washers.

This spacer fits between mating parts in select GE cooking appliances to set correct clearance and alignment. Replacing a worn or missing spacer helps secure the assembly and prevents rubbing or damage to adjacent surfaces during use.

• Maintains proper spacing so hardware tightens squarely and components sit evenly
• Helps prevent metal-to-metal contact that can cause noise, wear, or surface damage
• If missing, broken, or deformed, you may notice looseness, misalignment, rattling, or scraping
• Restores original fit and finish when replaced

• Disconnect power; if applicable, shut off gas. Allow the appliance to cool completely
• Support the part being unfastened (such as a door, handle, or trim) to avoid strain on panels or glass
• Install the spacer in the same location/orientation as the original and reuse existing hardware if serviceable
• Tighten screws evenly; do not overtighten against glass or enameled surfaces

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

Includes 12 screws.

This broil drawer handle restores a safe, comfortable grip on your range's lower broiler drawer, making it easy to open and close. Replace a cracked, loose, or missing handle to keep the drawer operating securely and looking right.

• Provides a secure handhold for the lower broiler drawer
• Helps maintain smooth, aligned drawer movement during use
• Direct replacement for a broken, cracked, or missing handle
• Common symptoms: loose or wobbly handle, difficulty opening the drawer, or cosmetic damage

• Disconnect power and allow the range to cool completely before servicing
• Remove the broiler drawer if needed for access; retain the original screws/trim
• Align the new handle and secure with the existing mounting hardware
• Do not overtighten fasteners; verify smooth, secure drawer operation

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

This handle spacer positions the appliance handle at the correct distance from the door or panel for smooth operation. Replacing a worn or missing spacer restores proper standoff, alignment, and feel, and helps prevent rubbing, rattling, or looseness.

• Maintains proper spacing between the handle base and mounting surface
• Helps keep the handle aligned and secure
• Reduces rubbing or contact with the door/panel
• Common fix for a wobbly, misaligned, or scraping handle

• Unplug power and allow hot surfaces to cool before servicing
• Support the door/handle while removing mounting screws to prevent strain
• Note the spacer's position and orientation; reinstall the new spacer in the same location
• Tighten screws snugly; do not overtighten to avoid damage

This spacer sets the correct gap and alignment between appliance components so panels, brackets, or handles mount securely and operate quietly. Replacing a worn or missing spacer helps prevent rubbing, noise, and premature wear. What it does:

• Maintains proper clearance between mating parts for accurate alignment
• Positions mounting hardware at the correct depth
• Helps prevent rattling, rubbing, or uneven gaps
• Replaces a missing, cracked, warped, or heat-damaged spacer

• 1 spacer

• Disconnect power and allow the appliance to cool before service
• Note the original order/orientation of washers and spacers during disassembly
• Install the new spacer in the same position; reuse hardware if undamaged
• Tighten fasteners evenly and avoid overtightening; verify clearances before restoring power

This is a 10-16 x 2-3/4 machine screw used to secure appliance panels and components. It replaces worn or missing fasteners to restore proper fit and reduce rattling and loose parts. What it does:

• Secures panels, brackets, or assemblies where a 10-16 thread and 2-3/4" length are required
• Restores stable mounting to stop vibration, rattling, or misaligned panels
• Matches OEM thread and length for correct fit in designated fastening points
• Used in repairs where original screws are stripped, corroded, or missing

• One 10-16 x 2-3/4 machine screw

• Use the correct screwdriver or socket to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent thread damage
• Replace only in the specified location and confirm proper alignment before final tightening
• Disconnect power and follow appliance safety guidance when accessing internal components

Replace a cracked, shattered, or heat-damaged inner oven door pane with this heat-resistant glass. It restores proper insulation and visibility, helping your oven maintain temperature and protecting the door assembly from spills and high heat.

• Replaces the interior pane within the oven door assembly
• Helps retain heat for consistent cooking performance
• Shields the door liner and insulation from spills and steam
• Common signs it's needed: cracked/shattered inner glass, missing or loose pane, heat escaping, or the door exterior feeling hotter than usual

• Disconnect power or turn off gas and allow the oven to cool completely
• Remove the door per your model's instructions and place it on a padded surface
• Wear gloves; handle glass by the edges and avoid overtightening retainers
• Transfer any brackets, trim, or gasket from the original pane if your model uses them; before reassembly

This replacement oven door window glass restores a clear view into the cavity and the integrity of the door assembly. Install a new pane when the original is cracked, shattered, or permanently stained to maintain safe viewing during cooking.

• Provides the transparent viewing panel in the oven door
• Helps restore door integrity when used with existing trim and gaskets
• Replace for visible cracks, chips, shattering, or persistent staining/cloudiness
• Resolve rattling or loose window conditions

• Disconnect power and allow the oven to cool completely
• Remove the door and place it on a padded surface
• Wear cut-resistant gloves and eye protection; handle glass edges carefully
• Transfer any trim/brackets from the old pane; avoid overtightening fasteners and clean fingerprints before reassembly

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
