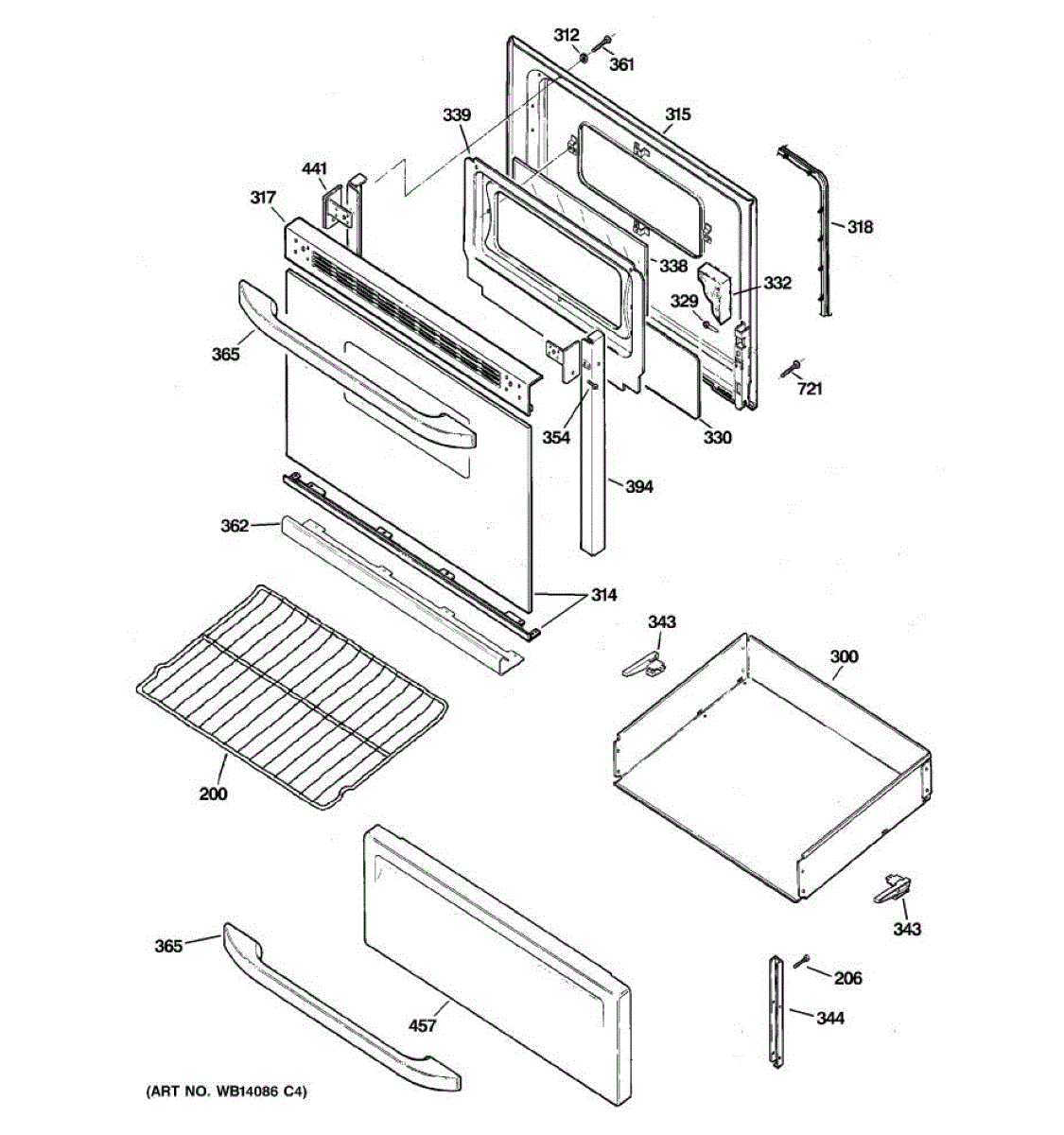

Parts for Ge JBS27SIM1SS: 03 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

Includes 12 washers.

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

Replace a cracked, shattered, or heat-damaged inner oven door pane with this heat-resistant glass. It restores proper insulation and visibility, helping your oven maintain temperature and protecting the door assembly from spills and high heat.

• Replaces the interior pane within the oven door assembly
• Helps retain heat for consistent cooking performance
• Shields the door liner and insulation from spills and steam
• Common signs it's needed: cracked/shattered inner glass, missing or loose pane, heat escaping, or the door exterior feeling hotter than usual

• Disconnect power or turn off gas and allow the oven to cool completely
• Remove the door per your model's instructions and place it on a padded surface
• Wear gloves; handle glass by the edges and avoid overtightening retainers
• Transfer any brackets, trim, or gasket from the original pane if your model uses them; before reassembly

This right-side drawer glide supports and guides the lower drawer on your range so it opens and closes smoothly. Replace a worn or broken glide to restore easy operation and keep the drawer aligned. What it does:

• Mounts to the cabinet frame on the right-hand side to guide the lower drawer
• Provides a smooth sliding surface for the drawer rail
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to open/close, rubs or binds, sags, or comes off track

• 1 right-hand drawer glide

• Disconnect power and let the appliance cool; for gas ranges, also shut off gas supply
• Remove the lower drawer to access the side glides
• Note right-side orientation; release or unfasten the old glide and install the new one in the same position
• Reinstall the drawer and check for smooth, level travel

Left side

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
