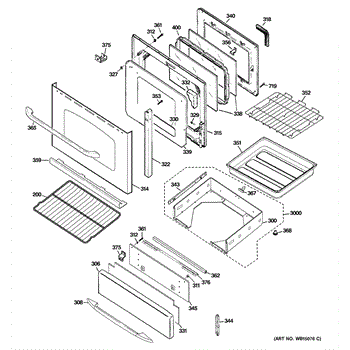

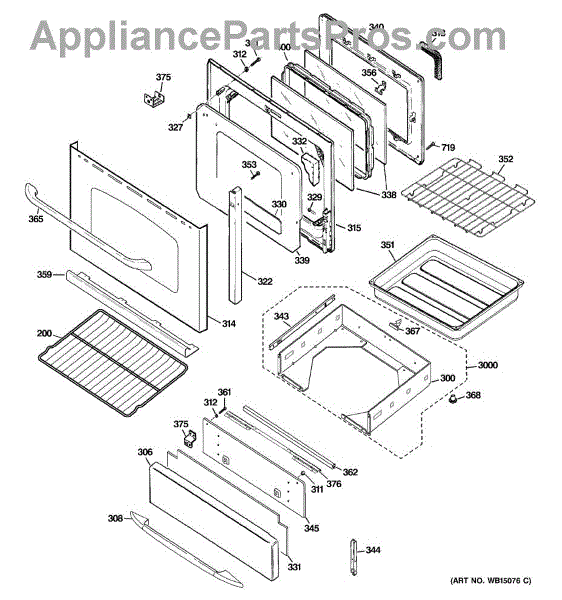

Parts for Ge JGB840SET1SS: 04 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

This welded oven door liner assembly replaces a damaged or corroded inner door liner to restore structural support and help maintain proper oven heat containment. It provides a secure mounting surface for door components and insulation. What it does:

• Replaces the oven's inner door liner to restore door rigidity and proper fit
• Helps maintain oven temperature by supporting insulation and seals
• Reduces drafts, heat loss, and uneven cooking associated with a damaged liner
• Addresses symptoms such as rattling door panels, visible inner-door damage, or oven not holding heat

• One welded oven door liner assembly

• Disconnect power (and gas, if applicable) and allow the appliance to fully cool before starting
• Follow the manufacturer's service manual for disassembly and reassembly steps and proper alignment
• Use appropriate tools and handle edges carefully—metal edges may be sharp
• If applicable, inspect door insulation and mounting hardware during replacement and replace per OEM instructions

The Door Gasket Assembly is an OEM replacement part for GE ranges and wall ovens. This assembly forms an airtight seal around the oven door to retain heat within the cooking chamber. The door gasket is responsible for ensuring optimal cooking temperatures can be maintained regardless of outdoor conditions. It prevents hot air and moisture from escaping the oven cavity.

Causes of a bad door gasket assembly can include deterioration of sealing materials over many heating and cooling cycles. Physical damage from impact or over-closing of the heavy oven door may also occur.

Symptoms of a bad oven door gasket assembly include:

• Inefficient or uneven cooking as heat escapes around the edges
• Condensation appearing on exterior oven surfaces during baking
• Visibly observable gaps around the door frame when closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black. Right hand side

Color: Black. Left hand side

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Includes 12 screws.

The Window Pack is an OEM replacement part for GE ovens. This assembly includes the glass window for the oven door, allowing users to view the contents of the oven without opening the door and disrupting the cooking process.

The window pack can become damaged due to accidental impact, thermal stress from frequent temperature changes, or general wear and tear over time. A broken or cracked window not only affects visibility but can also pose safety risks and affect oven performance.

Symptoms of a bad window pack include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven
• Difficulty maintaining oven temperature
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This internal slide is a single replacement rail used to restore smooth guidance and support for a sliding drawer or internal compartment. It prevents sticking and wobbling so the drawer opens and closes reliably. What it does:

• Guides and supports a drawer or compartment for smooth travel
• Replaces worn, bent, or damaged slide hardware that causes sticking or misalignment
• Helps restore proper drawer alignment and load support
• Reduces noise and binding when opening or closing the drawer

• Disconnect power to the appliance and remove any contents before starting
• Basic hand tools typically required; support the drawer while removing/installing the slide
• Align slide fully before tightening fasteners to ensure smooth operation
• Replace with equivalent screws for secure fit

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This rack baking drawer assembly restores a lower oven's storage and baking surface for sheet pans, pans and cookware. It provides a stable, removable rack that slides in and out for easy access and even heat exposure. What it does

• Provides a removable rack surface for baking or storing cookware in the lower drawer compartment
• Slides smoothly on drawer tracks to position pans and trays for cooking or access
• Helps promote even heat exposure to pans placed in the drawer area
• Replaces worn, bent or missing drawer rack assemblies that prevent proper sliding or support

• One rack baking drawer assembly as shown

• High-level replacement: remove the drawer from the oven, slide out old assembly, and install new drawer rack per factory diagram
• Use care to avoid scratching enamel surfaces and to keep track of any clips or rollers
• Disconnect power at the breaker for electric ovens before removing drawer components

This #6-32 machine screw fastens panels, brackets, and small assemblies in appliances to restore secure, rattle-free operation. It's a common replacement for stripped or missing fasteners used on covers, consoles, and internal components. What it does

• Secures panels, trim, brackets, and small components to prevent movement and noise
• Replaces missing or damaged screws that cause loose or rattling parts
• Helps maintain proper alignment of assemblies to avoid intermittent electrical contact
• Restores the intended fastening strength for safe, reliable operation

• Disconnect power before accessing internal components
• Use the correct driver to avoid stripping the head
• Thread gently and avoid over-tightening to prevent damage to mating parts
• Keep small parts away from children and pets

This 10-32 x 9/16 hex washer head screw secures appliance panels and components for a snug, reliable fit. It replaces worn or missing fasteners so parts stay in place and doors or panels stop rattling. What it does:

• Fastens control panels, brackets, and trim to the appliance frame
• Restores secure mounting when original screws are stripped or lost
• Helps eliminate rattling, vibration noise, and loose-fitting panels
• Works where a small machine screw with integrated washer is required

• One 10-32 x 9/16 hex washer head screw

• Unplug the appliance or disconnect power before servicing
• Use the correct 10-32 driver or nut driver to avoid stripping the head
• Do not overtighten; snug until secure to avoid damaging threads or components
• Keep small parts away from children and magnetic surfaces for safety

This lower door gasket seals the bottom edge of the appliance door to help maintain proper temperature and reduce heat loss. It replaces a worn or damaged lower seal to improve performance and efficiency. What it does:

• Forms a tight seal along the bottom of the door to limit air and heat exchange
• Helps prevent heat or cold from escaping, supporting consistent cooking or cooling
• Reduces drafts, energy waste, and uneven temperatures caused by a failing seal
• Visible signs include cracked, torn, flattened, or missing gasket material

• Disconnect power (and gas for gas appliances) and allow the appliance to cool before starting.
• Remove the door or support it per the manufacturer's service instructions to access the lower gasket area.
• Replace only the lower gasket; inspect surrounding door frame for damage or debris and clean mating surfaces before installing.
• Press the gasket into its track evenly; do not force or stretch excessively. If adhesive or fasteners are specified by the manufacturer, follow OEM guidance.

Color: Stainless

The Bumper is an OEM replacement part for GE ovens and ranges. It is designed to cushion and protect the oven door or cooktop when it is opened or closed, preventing direct contact between components. This small yet crucial part helps reduce noise and wear by absorbing impact during regular use.

Over time, bumpers can wear out, deteriorate, or become dislodged due to frequent use or exposure to heat and cleaning agents. A damaged or missing bumper can lead to increased noise and potential wear on adjoining parts.

Symptoms of a bad or missing bumper include:

• Increased noise when the oven door or cooktop is opened or closed
• Visible wear or marks on the surfaces that contact the bumper
• The door or cooktop not aligning properly during use
• Missing or deformed bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
