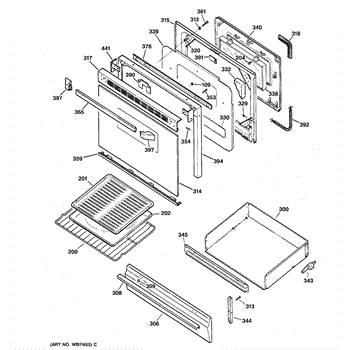

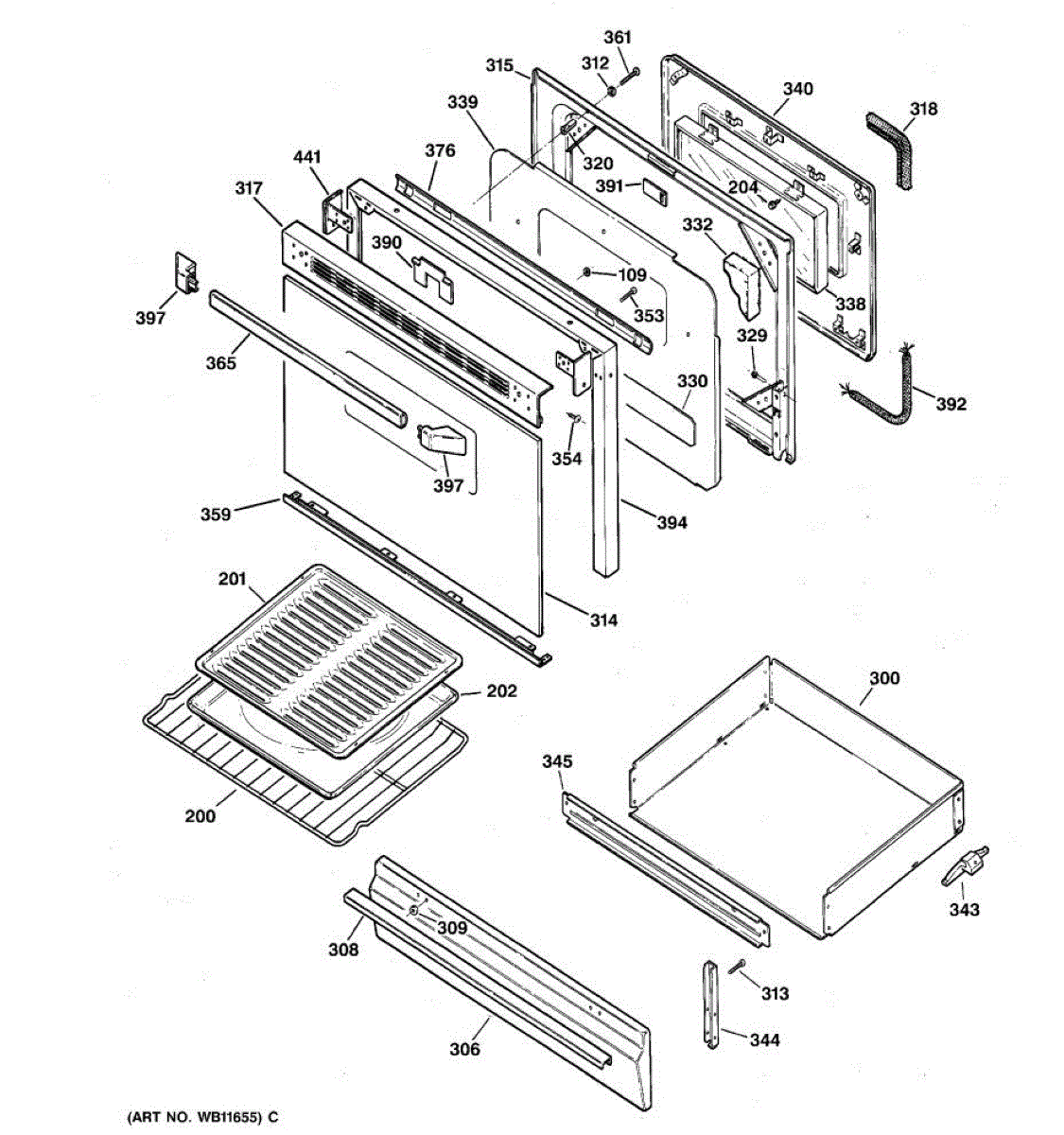

Parts for Ge JGBP30WEV2WW: 04 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This broiler pan rack is the slotted grid that rests over the broiler pan, supporting food while drippings drain into the pan during broiling. Replace a worn or missing rack to restore safe, consistent broiling results.

• Supports food above the broiler pan so fat and juices drain away while broiling
• Provides proper spacing to the heat source for searing and even browning
• Replaces a rusted, chipped, warped, or missing broiler grid
• Signs of wear can include flaking finish, bent wires, wobbling food, or uneven broiling

• Allow the oven to cool completely before handling; wear heat-resistant gloves
• Set the rack into the matching broiler pan with the slotted surface facing up; verify a stable fit
• Position the assembled pan and rack as directed in your model's use and care guide

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This replacement drawer panel restores the front trim of the appliance drawer for a clean, finished appearance and proper fit. It replaces a damaged, dented, or worn drawer front so the drawer closes and looks like new. What it does:

• Replaces the external front surface of the drawer to restore appearance and alignment
• Helps the drawer close evenly and prevents gaps that allow items to catch
• Addresses visible damage such as dents, scratches, or paint wear on the drawer front
• Works with existing drawer hardware; does not include internal drawer bin parts

• One replacement drawer panel

• Handle part carefully to avoid surface scratches
• Power off and empty drawer before starting; remove any clips or screws securing the old panel
• Reuse original fasteners and brackets unless damaged

Includes 12 washers.

Includes 12 washers.

Outer door glass for oven. Color: white. Glass has clear window.

The Oven Door Gasket is an OEM part for GE ovens. This part is designed to seal the gap between the oven door and the oven body, ensuring that heat is retained during the cooking process.

Causes of a bad Oven Door Gasket can include wear and tear from regular use, resulting in cracks or gaps, heat damage causing the gasket to become brittle or melt in places, and accidental damage such as tears or cuts.

Symptoms of a failing Oven Door Gasket include:

• Visible damage or deterioration of the gasket material.
• The oven takes longer to preheat or has difficulty maintaining the set temperature.
• Increased energy usage as the oven works harder to compensate for heat loss.
• Uneven cooking results due to heat escaping from the oven cavity.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

The Oven Drawer Glide is an OEM replacement part for GE electric and gas ranges. It functions as the suspension mechanism facilitating smooth extension and retraction of range drawer shelves.

Causes of a bad drawer glide can include wear from years of use, damage from heavy pots or pans straining the glide, or loose mounting fixtures failing to securely support shelf weight.

Symptoms of a bad drawer glide include:

• Difficulty accessing or storing items within drawers
• Squeaking or grinding noises when opening/closing
• Drawers failing to fully extend or retract
• Risk of entire drawer assembly detaching over time

This OEM GE part is also compatible with some Hotpoint, RCA and select Kenmore electric and gas range models.

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This end cap is a replacement terminal cover that protects and secures exposed connector ends on the appliance. It restores a finished appearance and helps prevent accidental contact with live terminals. What it does:

• Covers and protects terminal ends and wiring from contact and debris
• Helps maintain a secure connection by holding terminals in place
• Prevents shorting or arcing caused by exposed connectors
• Useful when the original cap is cracked, missing, or damaged

• Disconnect power to the appliance before servicing to avoid electric shock
• Verify fit and orientation before snapping the cap into place over the terminals
• If terminals or wiring are damaged, replace or repair those components before installing the cap

The Bottom Door Trim is an OEM part for GE ranges. It serves as a finishing touch, providing a seamless transition between the bottom of the oven door and the base or kick plate area.

Causes of a damaged Bottom Door Trim range from impacts during cleaning or moving the range, to general wear and tear over years of use. Exposure to high heat or spills can also contribute to the deterioration of the trim.

Symptoms of a bad Bottom Door Trim can include:

• Cracked or broken trim pieces
• Missing sections of trim
• Loose or misaligned trim
• Faded or discolored trim material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models

This part has been discontinued and is no longer available.

The End Cap is an OEM part for GE ranges. This part serves as the finishing piece for the range's handle, fitting onto either end to provide a polished look and to help secure the handle in place. The end cap is crucial for both the aesthetic appeal and the functionality of the range's door, ensuring that users can safely and comfortably open and close the oven door without encountering sharp or unfinished edges.

Causes of damage to the end cap can include physical impacts, such as accidental knocks or forceful opening/closing of the oven door, and material fatigue from regular use over time.

Symptoms of a bad End Cap include:

• The handle feeling loose or wobbly
• Visible cracks, breaks, or significant wear on the end cap
• The end cap becoming detached from the handle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
