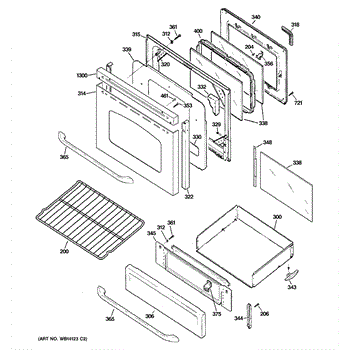

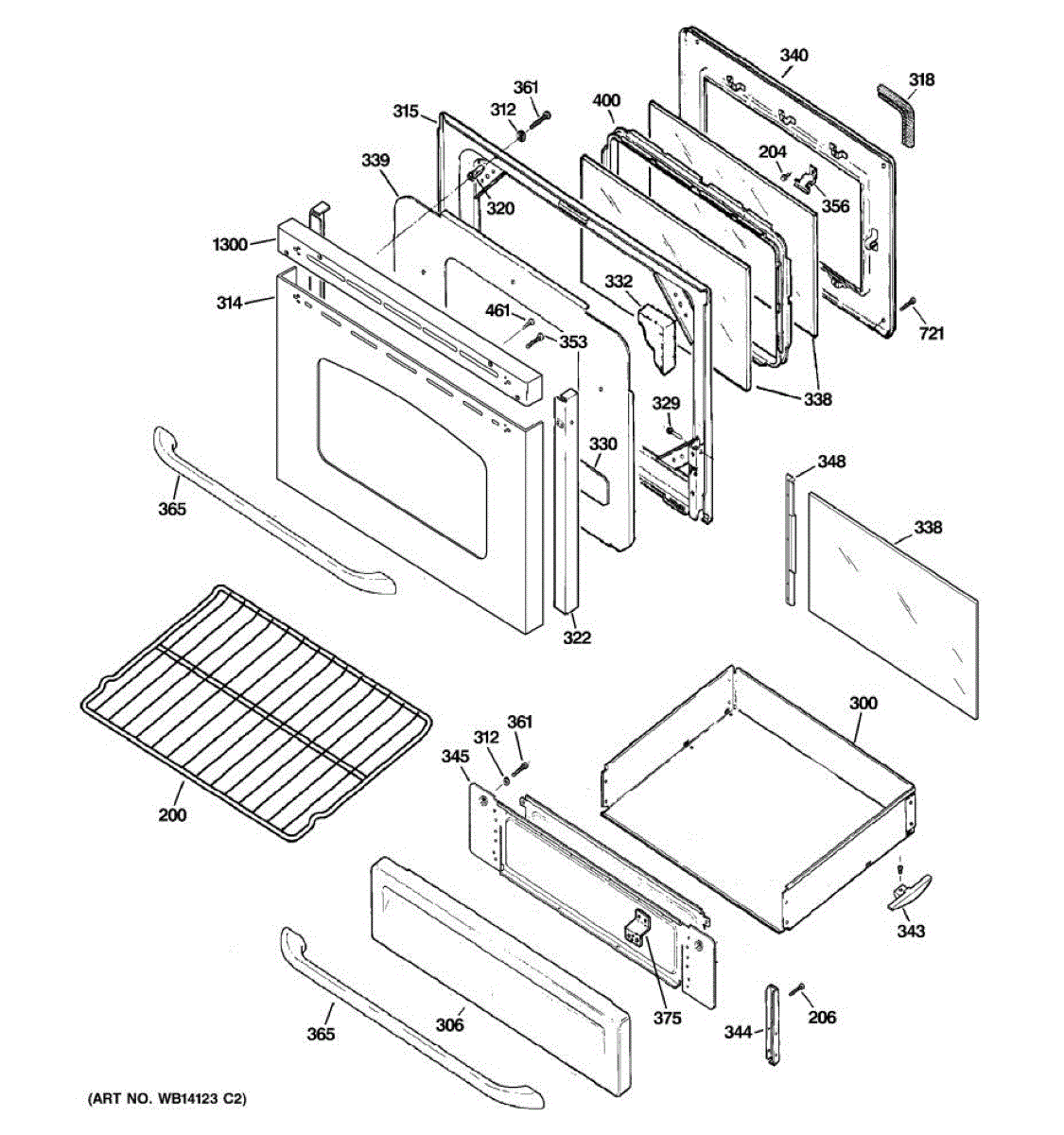

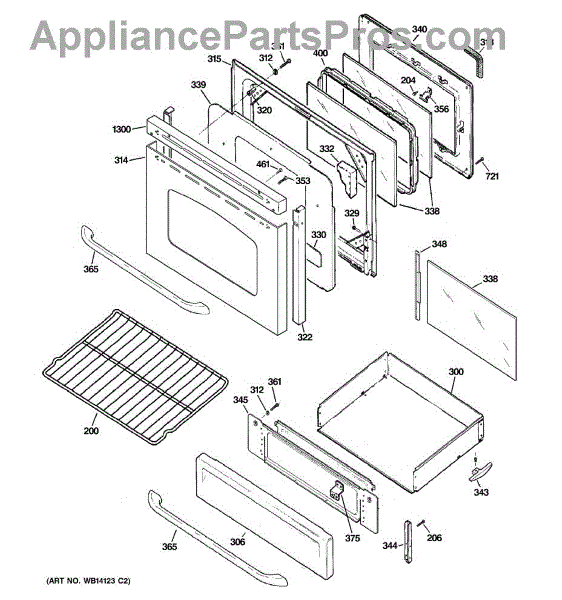

Parts for Ge JGBP32SEM2SS: 04 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Size: 10-32 GXTT FLP.595 S

Includes 12 washers.

This welded oven door liner assembly replaces a damaged or corroded inner door liner to restore structural support and help maintain proper oven heat containment. It provides a secure mounting surface for door components and insulation. What it does:

• Replaces the oven's inner door liner to restore door rigidity and proper fit
• Helps maintain oven temperature by supporting insulation and seals
• Reduces drafts, heat loss, and uneven cooking associated with a damaged liner
• Addresses symptoms such as rattling door panels, visible inner-door damage, or oven not holding heat

• One welded oven door liner assembly

• Disconnect power (and gas, if applicable) and allow the appliance to fully cool before starting
• Follow the manufacturer's service manual for disassembly and reassembly steps and proper alignment
• Use appropriate tools and handle edges carefully—metal edges may be sharp
• If applicable, inspect door insulation and mounting hardware during replacement and replace per OEM instructions

The Door Gasket Assembly is an OEM replacement part for GE ranges and wall ovens. This assembly forms an airtight seal around the oven door to retain heat within the cooking chamber. The door gasket is responsible for ensuring optimal cooking temperatures can be maintained regardless of outdoor conditions. It prevents hot air and moisture from escaping the oven cavity.

Causes of a bad door gasket assembly can include deterioration of sealing materials over many heating and cooling cycles. Physical damage from impact or over-closing of the heavy oven door may also occur.

Symptoms of a bad oven door gasket assembly include:

• Inefficient or uneven cooking as heat escapes around the edges
• Condensation appearing on exterior oven surfaces during baking
• Visibly observable gaps around the door frame when closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small mounting spacer that positions and secures components inside the appliance, helping maintain correct clearances and alignment for reliable operation. Replaces worn or missing spacers to reduce rubbing, vibration, or misalignment. What it does:

• Provides a fixed gap or support between parts to prevent contact and wear
• Keeps panels, brackets or assemblies properly aligned during operation
• Reduces vibration and noise caused by loose or missing spacing hardware
• Helps ensure correct airflow or clearance where specified by the manufacturer

• Install with the original fasteners and in the same orientation; do not force or deform the spacer
• Verify the mating surfaces are clean and free of debris before installing
• Disconnect power to the appliance before starting work and follow basic electrical safety
• Replace any other damaged mounting hardware to ensure a secure repair

Color: Black. Right hand side

Color: Black. Left hand side

Includes 12 screws.

Bottom

The Window Pack is an OEM replacement part for GE ovens. This assembly includes the glass window for the oven door, allowing users to view the contents of the oven without opening the door and disrupting the cooking process.

The window pack can become damaged due to accidental impact, thermal stress from frequent temperature changes, or general wear and tear over time. A broken or cracked window not only affects visibility but can also pose safety risks and affect oven performance.

Symptoms of a bad window pack include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven
• Difficulty maintaining oven temperature
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side drawer glide supports and guides the lower drawer on your range so it opens and closes smoothly. Replace a worn or broken glide to restore easy operation and keep the drawer aligned. What it does:

• Mounts to the cabinet frame on the right-hand side to guide the lower drawer
• Provides a smooth sliding surface for the drawer rail
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to open/close, rubs or binds, sags, or comes off track

• 1 right-hand drawer glide

• Disconnect power and let the appliance cool; for gas ranges, also shut off gas supply
• Remove the lower drawer to access the side glides
• Note right-side orientation; release or unfasten the old glide and install the new one in the same position
• Reinstall the drawer and check for smooth, level travel

Left side

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This 10-32 x 9/16 hex washer head screw secures appliance panels and components for a snug, reliable fit. It replaces worn or missing fasteners so parts stay in place and doors or panels stop rattling. What it does:

• Fastens control panels, brackets, and trim to the appliance frame
• Restores secure mounting when original screws are stripped or lost
• Helps eliminate rattling, vibration noise, and loose-fitting panels
• Works where a small machine screw with integrated washer is required

• One 10-32 x 9/16 hex washer head screw

• Unplug the appliance or disconnect power before servicing
• Use the correct 10-32 driver or nut driver to avoid stripping the head
• Do not overtighten; snug until secure to avoid damaging threads or components
• Keep small parts away from children and magnetic surfaces for safety

Color: Stainless

Hex

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
