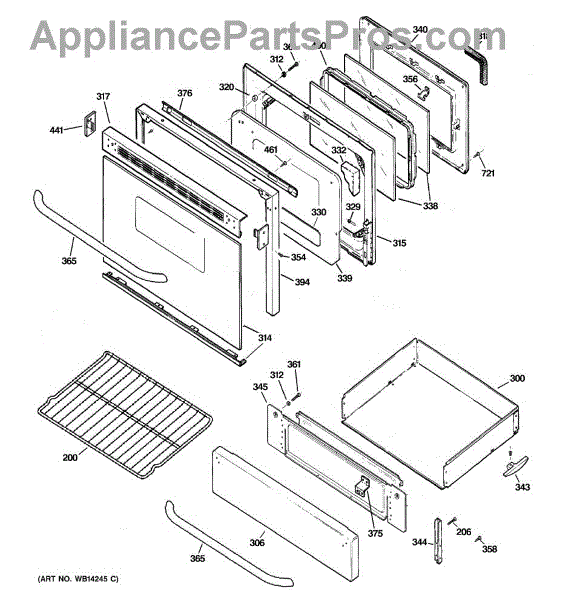

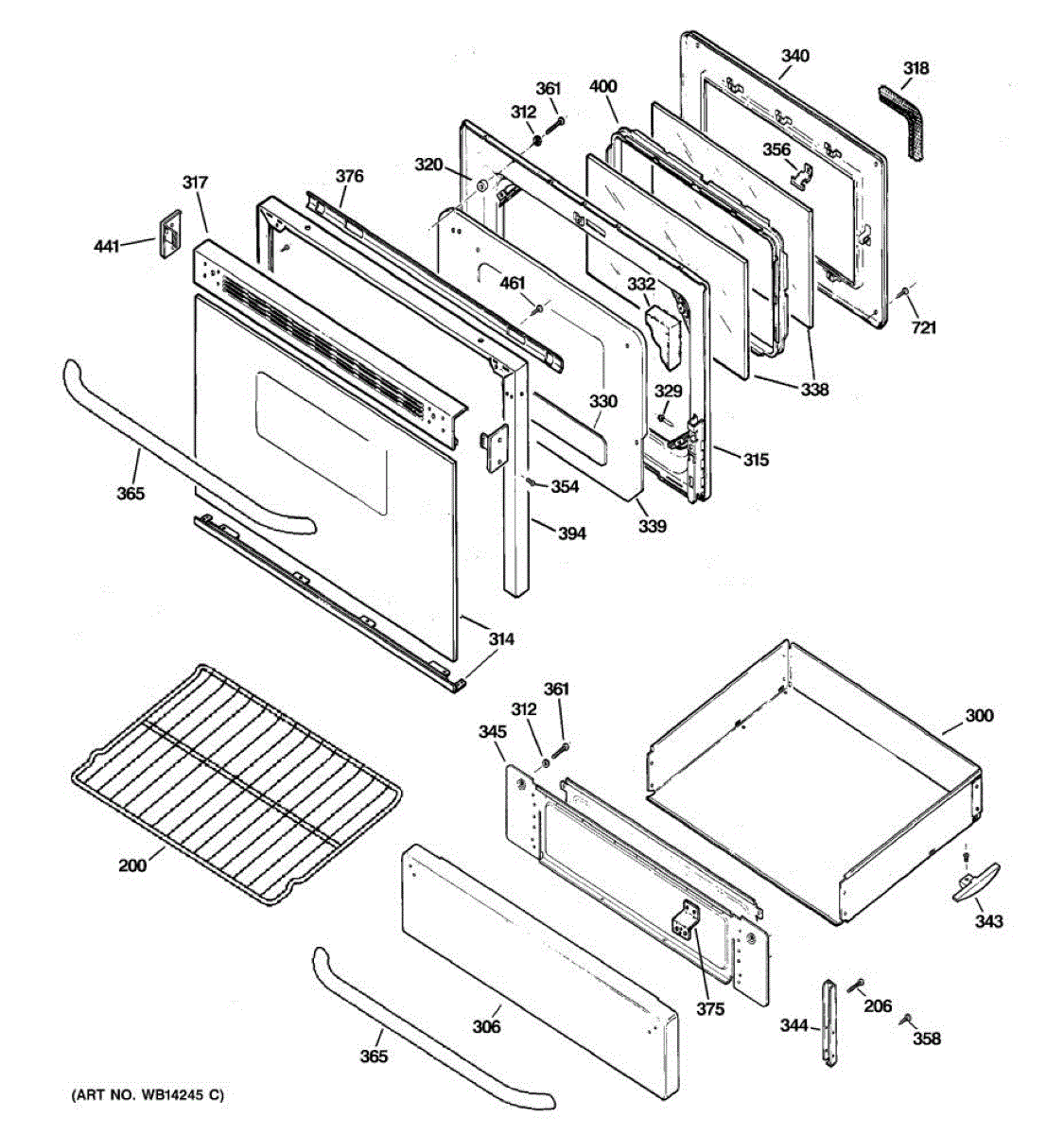

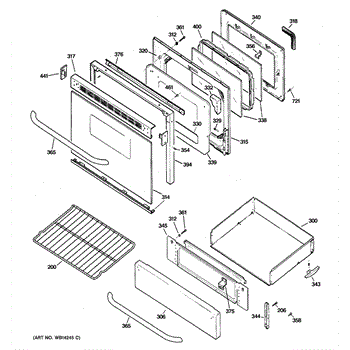

Parts for Ge JGBP33SEM1SS: 04 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-32 GXTT FLP.595 S

Includes 12 washers.

This Door Gasket Assembly seals the gap between the appliance door and front frame to contain heat and steam during operation. Replacing a worn gasket restores a snug seal for reliable performance and fewer leaks around the door.

• Creates a tight perimeter seal between the door and cabinet/front frame
• Helps maintain internal temperature and overall cooking efficiency
• Reduces noticeable heat or steam escaping around the door area
• Replace if the gasket is torn, frayed, hardened, flattened, or if the door no longer seals evenly

• Disconnect power at the breaker or unplug the appliance; allow it to cool completely
• Wear cut-resistant gloves; sharp edges may be present around the door and frame
• Remove the old gasket and clean the channel or seating surface
• Install the new gasket evenly without stretching; ensure corners are fully seated and check for uniform contact around the door

Includes 12 screws.

Side

Bottom

The Window Pack is an OEM replacement part for GE ovens. This assembly includes the glass window for the oven door, allowing users to view the contents of the oven without opening the door and disrupting the cooking process.

The window pack can become damaged due to accidental impact, thermal stress from frequent temperature changes, or general wear and tear over time. A broken or cracked window not only affects visibility but can also pose safety risks and affect oven performance.

Symptoms of a bad window pack include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven
• Difficulty maintaining oven temperature
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This inner welded panel assembly restores the stove/oven control/backguard interior structure for a secure fit and proper alignment. Replaces a bent, cracked or damaged inner panel to help stop rattling and improve component support. What it does:

• Replaces the inner welded panel that supports the control/backguard area and helps align the outer trims.
• Restores structural integrity when the original panel is dented, cracked or separated at welds.
• Reduces rattling or vibration caused by loose or damaged interior paneling.
• Provides the proper mounting surface for switches, trim pieces and related hardware.

• One inner welded panel assembly as pictured.

• Disconnect power to the appliance before starting any work.
• Handle edges and sheet metal carefully—wear gloves and eye protection.
• May require removal of control panel, backguard or cooktop to access mounting points; retain original screws and clips for reassembly.

This right-side drawer glide supports and guides the lower drawer on your range so it opens and closes smoothly. Replace a worn or broken glide to restore easy operation and keep the drawer aligned. What it does:

• Mounts to the cabinet frame on the right-hand side to guide the lower drawer
• Provides a smooth sliding surface for the drawer rail
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to open/close, rubs or binds, sags, or comes off track

• 1 right-hand drawer glide

• Disconnect power and let the appliance cool; for gas ranges, also shut off gas supply
• Remove the lower drawer to access the side glides
• Note right-side orientation; release or unfasten the old glide and install the new one in the same position
• Reinstall the drawer and check for smooth, level travel

Left side

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This replacement pan-head screw is used in refrigerators to fasten panels, brackets, and covers so they stay tight and properly aligned. Replace a missing or damaged screw to restore a solid, rattle-free fit.

• Secures interior/exterior panels, brackets, trim, and covers
• Replaces missing, stripped, or corroded hardware
• Helps maintain proper alignment of attached components

• Disconnect power before servicing; shut off water if working near water lines
• Match location to the original fastener and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal

• Thread size: #8-18 (type AB)
• Length: 1/2 inch
• Head style: Pan head, Phillips drive

This 10-32 x 9/16 hex washer head screw secures appliance panels and components for a snug, reliable fit. It replaces worn or missing fasteners so parts stay in place and doors or panels stop rattling. What it does:

• Fastens control panels, brackets, and trim to the appliance frame
• Restores secure mounting when original screws are stripped or lost
• Helps eliminate rattling, vibration noise, and loose-fitting panels
• Works where a small machine screw with integrated washer is required

• One 10-32 x 9/16 hex washer head screw

• Unplug the appliance or disconnect power before servicing
• Use the correct 10-32 driver or nut driver to avoid stripping the head
• Do not overtighten; snug until secure to avoid damaging threads or components
• Keep small parts away from children and magnetic surfaces for safety

Color: Stainless

Hex

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
