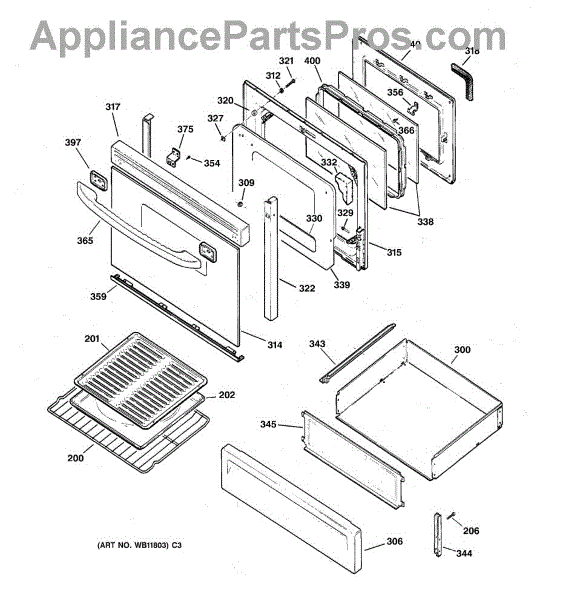

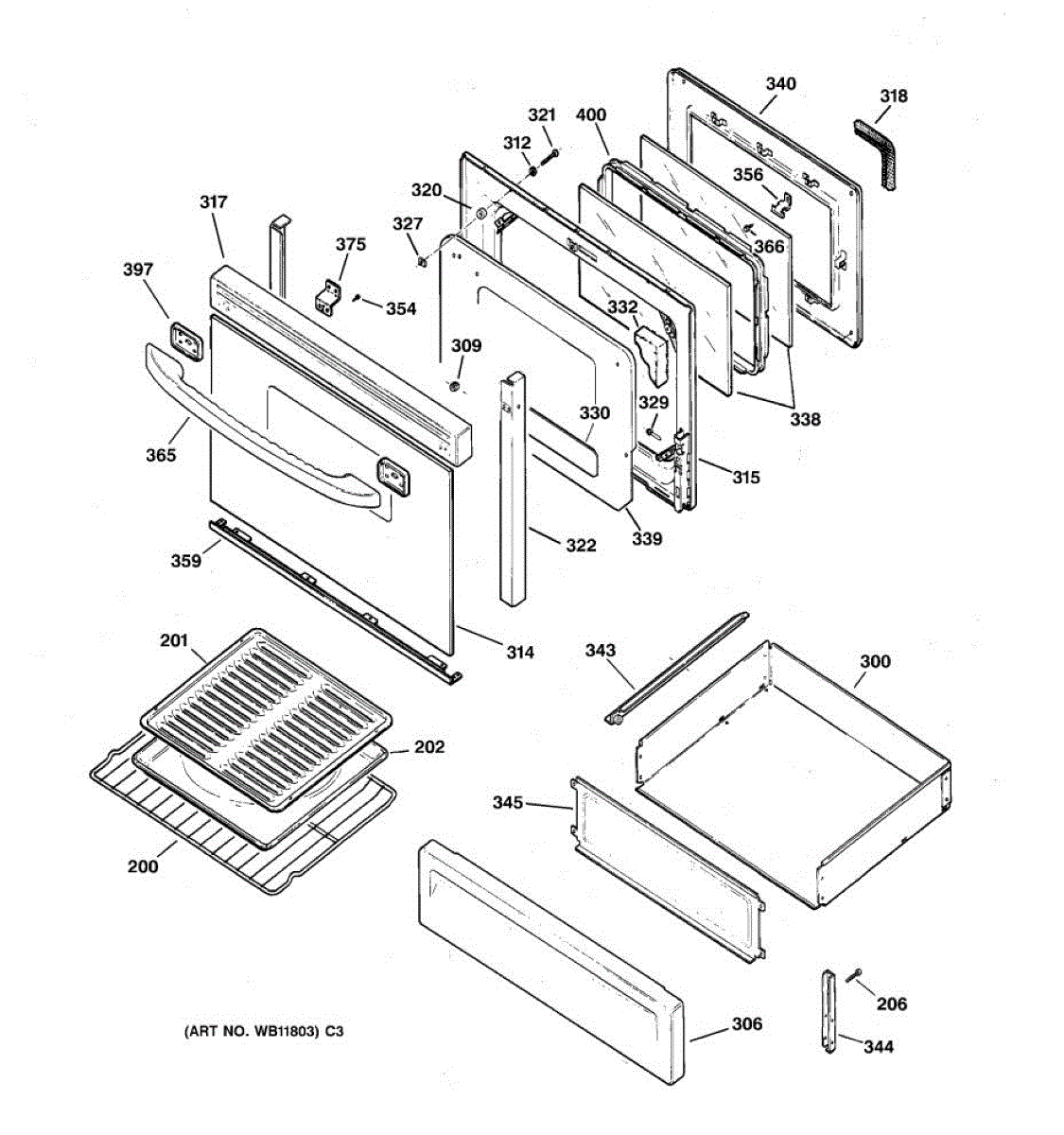

Parts for Ge JGBP79AEA3AA: 04 - Door & Drawer Parts

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Slotted grid that rests over the broiler pan to support food during broiling. Replace if cracked, warped, worn, or missing to restore proper function.

Size: 10-32 GXTT FLP.595 S

Includes 12 washers.

Includes 12 washers.

Door liner weld assembly for electric ranges. Replaces cracked, damaged, or broken door liner frames. Structural component that secures inner door panel.

Seals the gap between oven door and body to retain heat during cooking. Replace if cracked, worn, or heat escapes. Verify fit with your model number.

Spacer that fits between mating parts in your range or oven to maintain proper clearance and alignment. Replace if worn, missing, or damaged to prevent rubbing.

Includes 12 screws.

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Includes 12 screws.

Side

Insulation strip that installs along the bottom of your electric range door. Replace if torn, compressed, missing, or damaged to restore proper fit.

Oven door glass window pack for viewing food while cooking. Replaces cracked, shattered, or broken glass. Installs inside the oven door frame assembly.

Inner welded panel assembly for range control/backguard structure. Restores secure fit and alignment. Replace if bent, cracked, or damaged to stop rattling.

Secures the lower storage drawer assembly to your range cabinet. Replace this stamped metal bracket if cracked, bent, or missing to restore alignment.

10-32 mounting screw secures range handles and trim pieces to doors or panels. Replace when original hardware is missing, stripped, or damaged.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Positions and supports oven door glass to maintain proper alignment. Replace if worn, cracked, or missing to prevent glass rattling and gaps.
