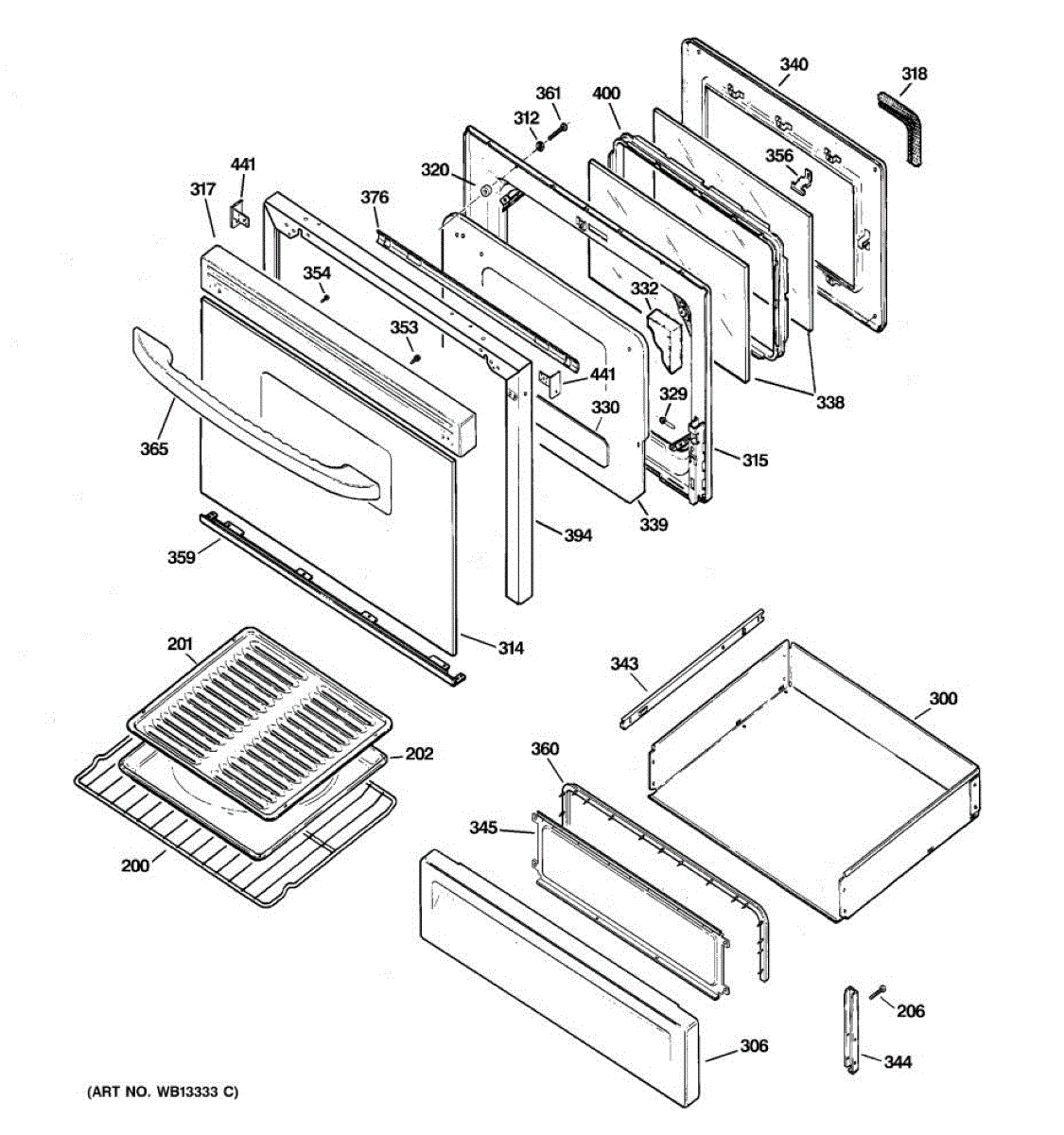

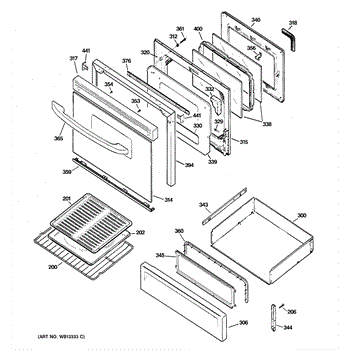

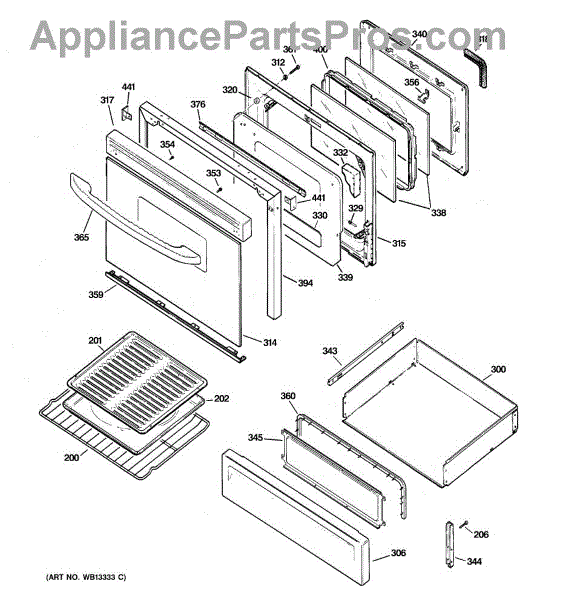

Parts for Ge JGBP85CEJ5CC: 04 - Door & Drawer Parts

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Size: 10-32 GXTT FLP.595 S

Color: Bisque

Includes 12 washers.

Replacement outer glass panel for range oven doors. Restores clear viewing area when original glass is cracked, broken, or fogged. Bisque color finish.

Door liner weld assembly for electric ranges. Replaces cracked, damaged, or broken door liner frames. Structural component that secures inner door panel.

Color: Bisque

Seals the gap between oven door and body to retain heat during cooking. Replace if cracked, worn, or heat escapes. Verify fit with your model number.

Includes 12 screws.

Side

Insulation strip that installs along the bottom of your electric range door. Replace if torn, compressed, missing, or damaged to restore proper fit.

Oven door glass window pack for viewing food while cooking. Replaces cracked, shattered, or broken glass. Installs inside the oven door frame assembly.

Inner welded panel assembly for range control/backguard structure. Restores secure fit and alignment. Replace if bent, cracked, or damaged to stop rattling.

Secures the lower storage drawer assembly to your range cabinet. Replace this stamped metal bracket if cracked, bent, or missing to restore alignment.

Hex

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This mounting screw secures an appliance end cap or trim piece, keeping covers and brackets fastened for safe, stable operation. It's a direct-fit replacement used when the original screw is lost, stripped, or damaged. What it does:

• Secures the end cap or trim to the appliance frame to prevent gaps and movement
• Stops rattling or vibration caused by a missing or worn screw
• Holds covers in place to protect internal components from debris
• Restores proper fit and alignment of the end cap/trim

• Disconnect power before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and tighten until snug—do not overtighten
• Replace damaged screws or threaded inserts to ensure a secure fit

Replaces cracked, rusted, or missing bottom trim on your range oven door. This decorative trim piece installs along the lower door edge for a finished look.

Replace a cracked, warped, or missing heat deflector shield on your range. This protective guard installs near heating elements to direct heat properly.

Decorative trim piece that frames the range oven door. Replace if cracked, chipped, discolored, or missing to restore your range's appearance.

Positions and supports oven door glass to maintain proper alignment. Replace if worn, cracked, or missing to prevent glass rattling and gaps.

Replace a cracked, broken, or missing end cap on your range door. This decorative trim piece installs at the door edge to complete the finished look.

Replace a cracked or missing end cap on your range door. This plastic trim piece covers the door edge, providing a finished look and protection.
