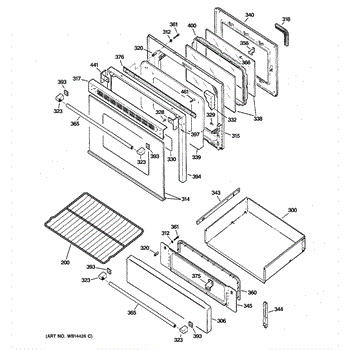

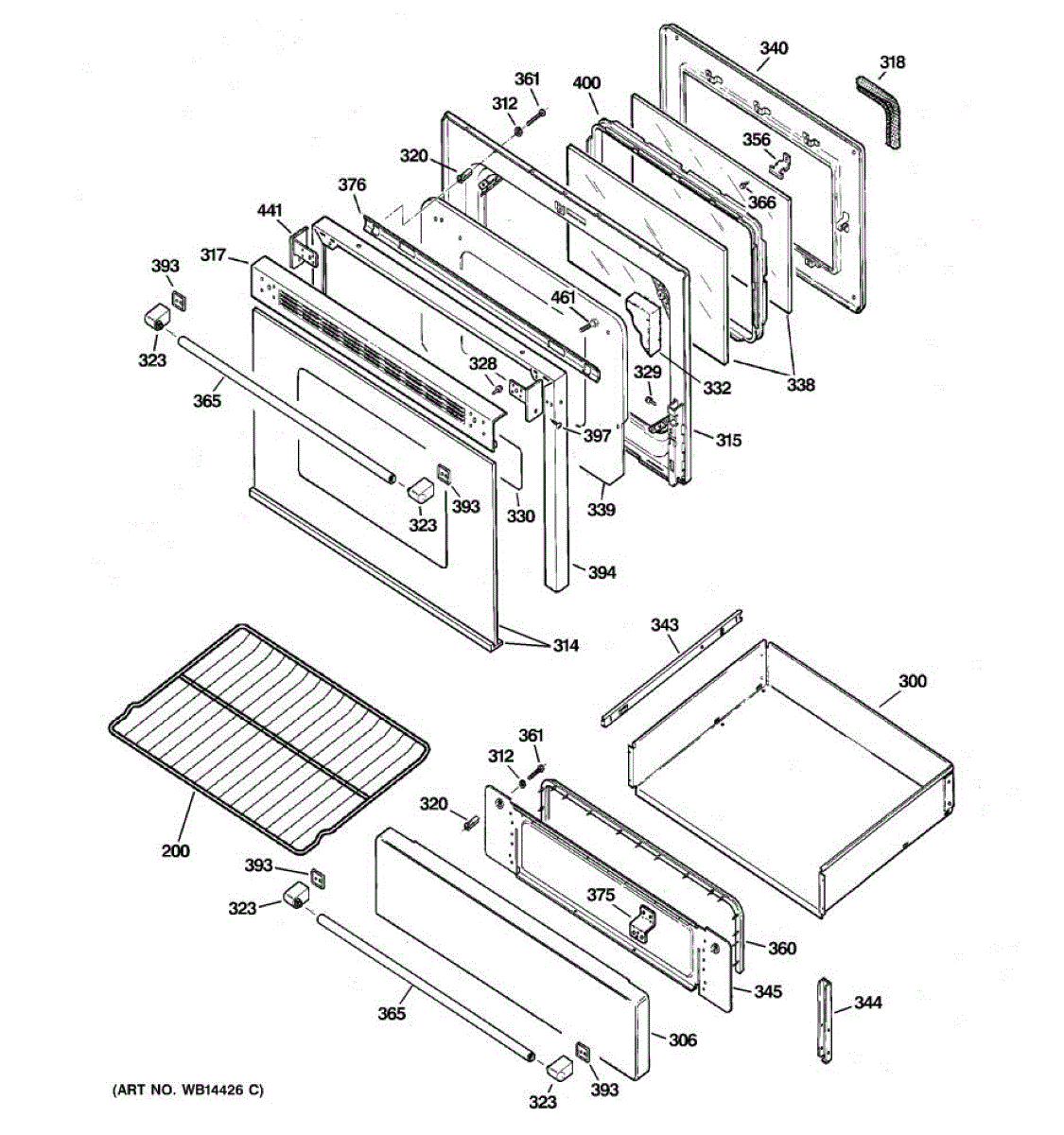

Parts for Ge JGBP90MEHABC: 04 - Door & Drawer Parts

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Includes 12 washers.

This pad is a small bumper-style cushioning part that protects surfaces, reduces vibration and noise, and prevents metal-on-metal contact in appliance assemblies. It helps maintain quiet, secure operation and prevents cosmetic damage where parts meet. What it does:

• Acts as a cushion between components to absorb shock and reduce rattling or vibration.
• Prevents direct contact and wear between adjacent surfaces or panels.
• Helps keep parts aligned by providing a friction surface that resists shifting.
• Reduces noise caused by vibration or loose-fitting panels.

• One replacement pad.

• Inspect the mounting area and remove any debris or adhesive residue before installing.
• Typically presses or adhesively mounts into place; align carefully to ensure full contact.
• Replace only with the exact part number to ensure fit and function.
• Disconnect power to the appliance or follow model-specific safety precautions before accessing internal panels.

Replace your range's door liner panel assembly when the original is cracked, warped, or damaged. Installs on the interior door to restore appearance.

Seals the gap between your range door and frame to contain heat and steam. Replace when worn or torn to restore efficiency and prevent heat leaks.

Maintains proper gap between range components for secure mounting. Replace if worn, missing, or cracked to prevent panel rubbing and ensure correct alignment.

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

Includes 12 screws.

Side

Insulation strip that installs along the bottom of your electric range door. Replace if torn, compressed, missing, or damaged to restore proper fit.

Oven door glass window pack for viewing food while cooking. Replaces cracked, shattered, or broken glass. Installs inside the oven door frame assembly.

Inner welded panel assembly for range control/backguard structure. Restores secure fit and alignment. Replace if bent, cracked, or damaged to stop rattling.

Secures the lower storage drawer assembly to your range cabinet. Replace this stamped metal bracket if cracked, bent, or missing to restore alignment.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Hex

Replace a cracked, warped, or missing heat deflector shield on your range. This protective guard installs near heating elements to direct heat properly.

Positions and supports oven door glass to maintain proper alignment. Replace if worn, cracked, or missing to prevent glass rattling and gaps.

Endcap for range storage drawer. Installs at drawer end to provide finished edge and structural support. Replace if cracked, broken, or missing.

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation

Replacement mounting screw for electric and gas ranges. Secures internal components and panels. Needed when original screws are stripped, missing, or lost.
