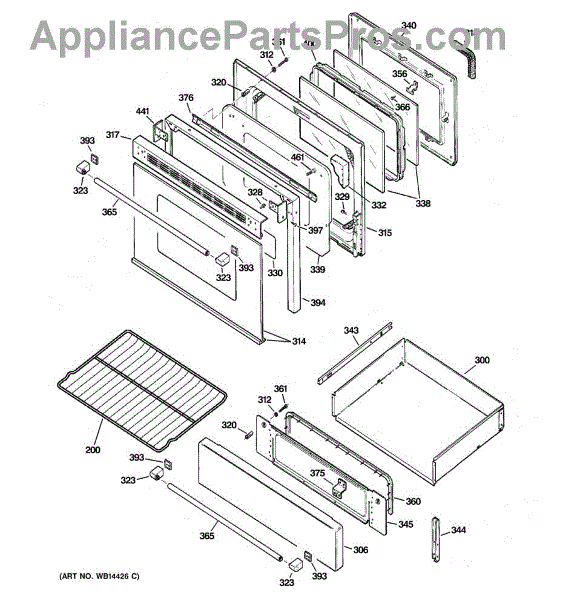

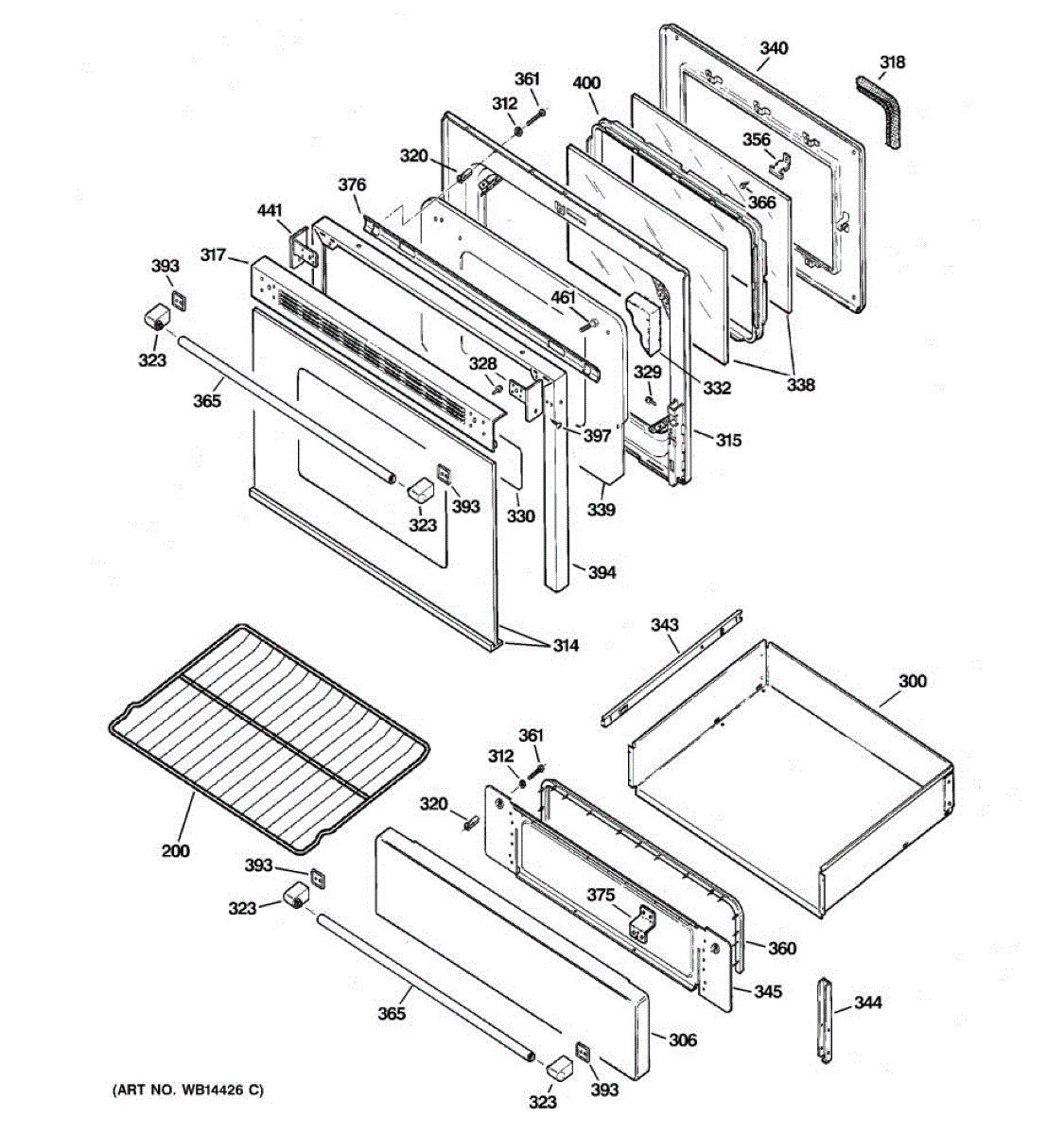

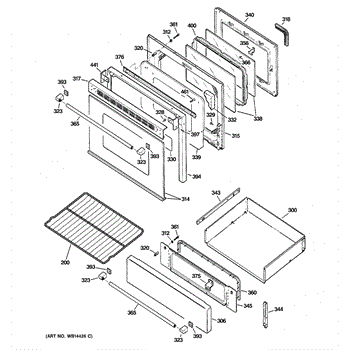

Parts for Ge JGBP90MEHBBC: 04 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

This pad is a small bumper-style cushioning part that protects surfaces, reduces vibration and noise, and prevents metal-on-metal contact in appliance assemblies. It helps maintain quiet, secure operation and prevents cosmetic damage where parts meet. What it does:

• Acts as a cushion between components to absorb shock and reduce rattling or vibration.
• Prevents direct contact and wear between adjacent surfaces or panels.
• Helps keep parts aligned by providing a friction surface that resists shifting.
• Reduces noise caused by vibration or loose-fitting panels.

• One replacement pad.

• Inspect the mounting area and remove any debris or adhesive residue before installing.
• Typically presses or adhesively mounts into place; align carefully to ensure full contact.
• Replace only with the exact part number to ensure fit and function.
• Disconnect power to the appliance or follow model-specific safety precautions before accessing internal panels.

This spacer sets the correct gap and alignment between appliance components so panels, brackets, or handles mount securely and operate quietly. Replacing a worn or missing spacer helps prevent rubbing, noise, and premature wear. What it does:

• Maintains proper clearance between mating parts for accurate alignment
• Positions mounting hardware at the correct depth
• Helps prevent rattling, rubbing, or uneven gaps
• Replaces a missing, cracked, warped, or heat-damaged spacer

• 1 spacer

• Disconnect power and allow the appliance to cool before service
• Note the original order/orientation of washers and spacers during disassembly
• Install the new spacer in the same position; reuse hardware if undamaged
• Tighten fasteners evenly and avoid overtightening; verify clearances before restoring power

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

Includes 12 screws.

Side

Bottom

The Window Pack is an OEM replacement part for GE ovens. This assembly includes the glass window for the oven door, allowing users to view the contents of the oven without opening the door and disrupting the cooking process.

The window pack can become damaged due to accidental impact, thermal stress from frequent temperature changes, or general wear and tear over time. A broken or cracked window not only affects visibility but can also pose safety risks and affect oven performance.

Symptoms of a bad window pack include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven
• Difficulty maintaining oven temperature
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This inner welded panel assembly restores the stove/oven control/backguard interior structure for a secure fit and proper alignment. Replaces a bent, cracked or damaged inner panel to help stop rattling and improve component support. What it does:

• Replaces the inner welded panel that supports the control/backguard area and helps align the outer trims.
• Restores structural integrity when the original panel is dented, cracked or separated at welds.
• Reduces rattling or vibration caused by loose or damaged interior paneling.
• Provides the proper mounting surface for switches, trim pieces and related hardware.

• One inner welded panel assembly as pictured.

• Disconnect power to the appliance before starting any work.
• Handle edges and sheet metal carefully—wear gloves and eye protection.
• May require removal of control panel, backguard or cooktop to access mounting points; retain original screws and clips for reassembly.

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Hex

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation

Size: 10-16 X 0.95 inch.
