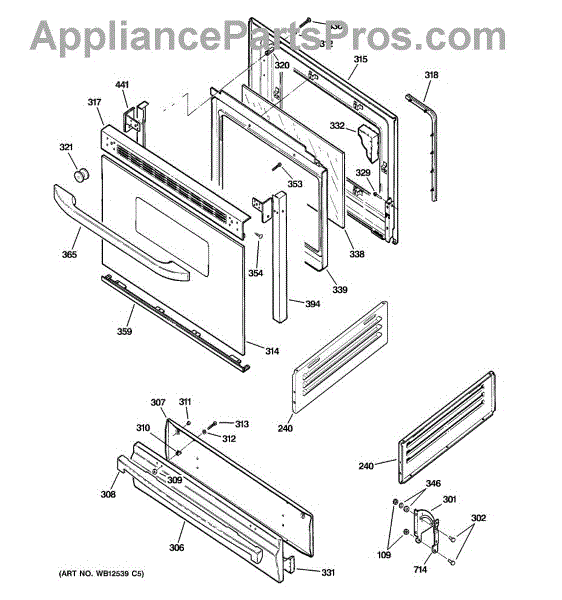

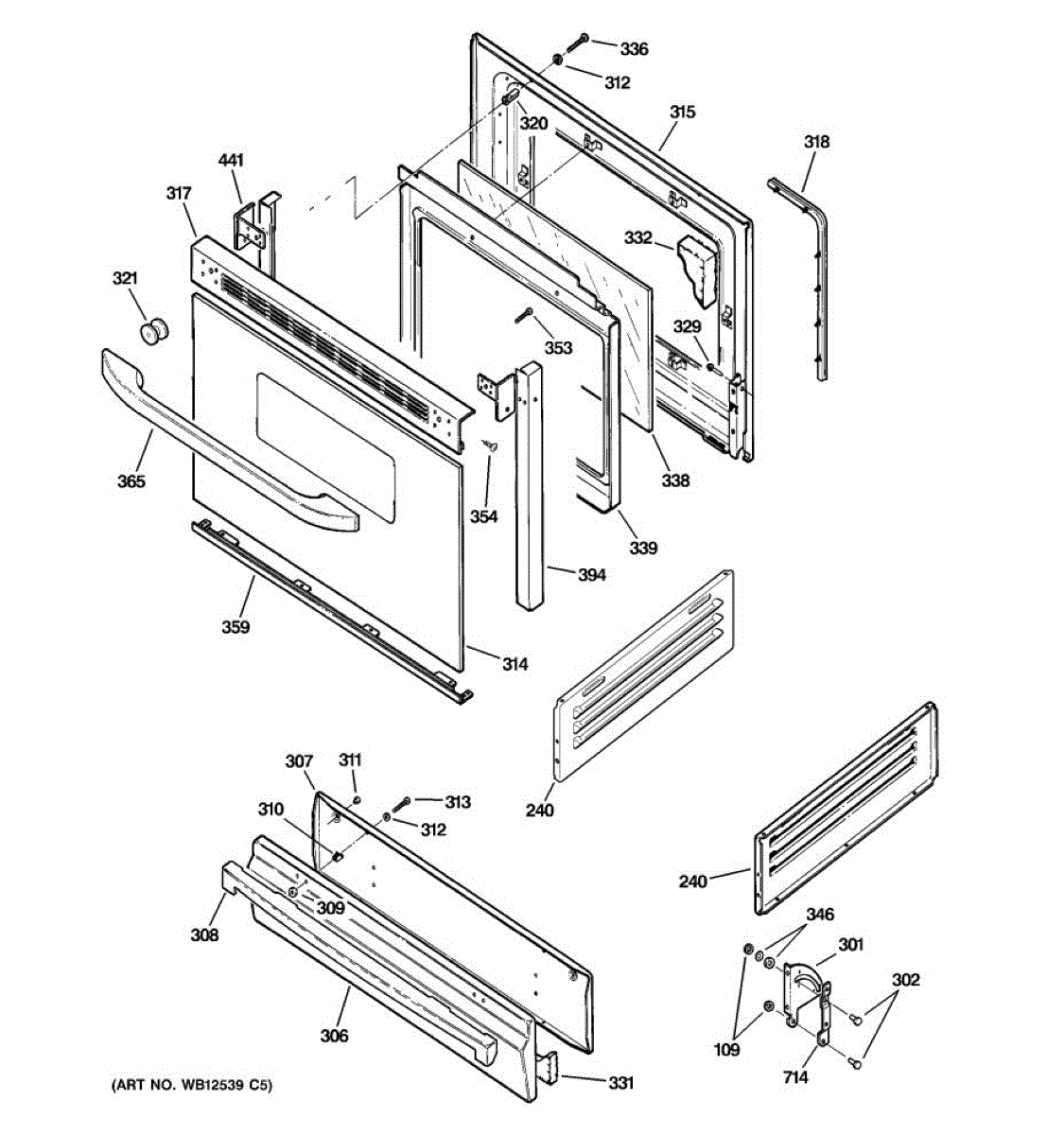

Parts for Ge JGBS10BEH2BB: 04 - Door & Drawer Parts

Includes 12 speed nuts.

Replace your gas range's broken or worn oven door hinge. This hinge bracket secures the door for smooth opening and closing. Ideal for cracked hinges.

Replacement broiler pin for gas ranges. This metal pin secures the broiler drawer in place. Order a new pin if your original is bent, broken, or missing.

Secures and stabilizes your gas range broiler drawer, allowing smooth sliding and proper alignment. Replace if worn, broken, or missing.

Replacement broil handle for gas ranges. Installs on the broil drawer to provide grip and control. Order a new handle if yours is cracked, broken, or worn.

Includes 12 washers.

Spacer that fits between mating parts in your range or oven to maintain proper clearance and alignment. Replace if worn, missing, or damaged to prevent rubbing.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

Replacement mounting screw for electric and gas ranges. Secures internal components and panels. Needed when original screws are stripped, missing, or lost.

Includes 12 screws.

Color: Black

Black trim piece that covers the top edge of your range oven door. Replace if cracked, broken, or missing to restore door appearance and finish.

Seals your oven door to retain heat and maintain proper cooking temperature. Replace if torn, brittle, or heat escapes. Clips into place in minutes.

Cushions and secures your range or oven door handle to the door surface. Replace if cracked, worn, or missing to eliminate handle rattling and restore snug fit.

Includes 12 screws.

Insulation pad that lines the oven door to retain heat and reduce exterior temperature. Replace if torn, compressed, or missing for proper efficiency.

Replaces cracked, shattered, or heat-damaged inner glass pane in your range oven door. Restores insulation, visibility, and protects from spills.

Insulation guard that installs inside the oven door assembly to protect internal components. Replace if cracked, torn, or missing during door maintenance.

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

Black trim piece that installs at the bottom edge of your range oven door. Replace if cracked, rusted, broken, or missing to restore appearance.

Color: Black

Endcap for range storage drawer. Installs at drawer end to provide finished edge and structural support. Replace if cracked, broken, or missing.

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation

Support bracket for gas range burners. Mounts underneath cooktop to secure burner assembly. Replace if bent, rusted, broken, or missing for proper fit.

Left-hand broiler support plate for gas ranges. Secures the broiler assembly in place. Replace if cracked, warped, or no longer holding components firmly.
