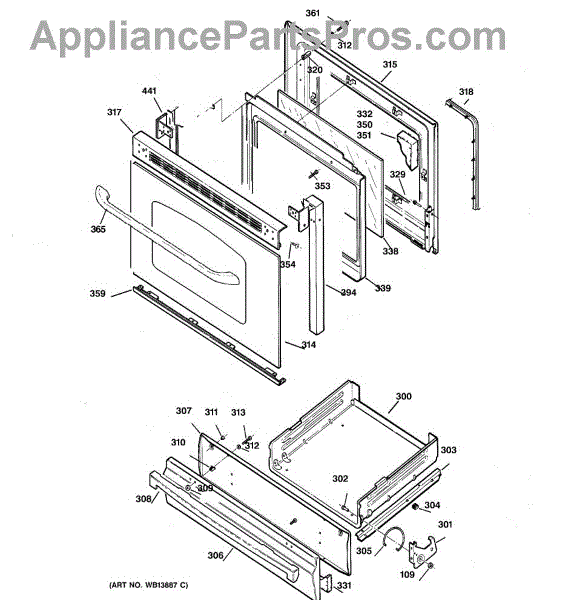

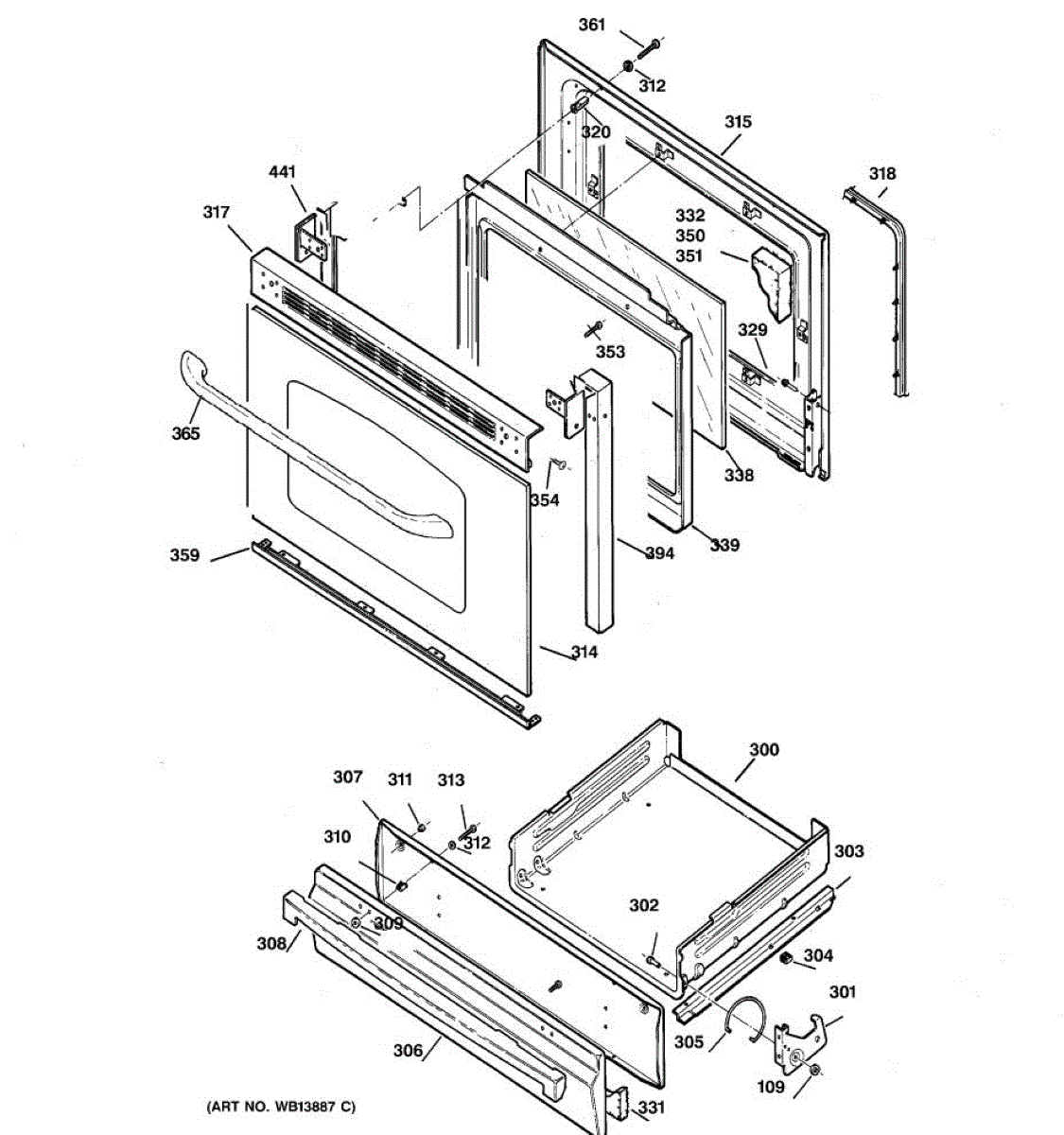

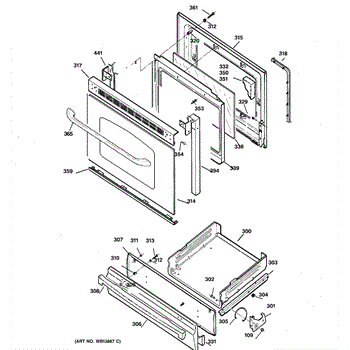

Parts for Ge JGBS23CEL2CC: 04 - Door & Drawer Parts

Includes 12 speed nuts.

This is the right side broiler hinge. For left side use WB10K6.

This is the left side broiler hinge. For right side use WB10K5.

This broiler pin secures the oven's broiler drawer or rack, letting it slide and lock smoothly for even broiling. Replaces a worn or broken pin to restore proper broiler movement and alignment. What it does:

• Acts as the hinge/anchor for the broiler drawer or rack so it opens and closes smoothly
• Prevents the drawer or rack from sagging, binding, or coming loose
• Helps maintain correct broiler alignment for even heat exposure
• Common symptom: drawer or rack won't slide, sits crooked, or falls out

• Disconnect power (and gas if applicable) and allow the appliance to cool before servicing.
• Remove the broiler drawer or rack per the owner's manual to access the pin.
• This part typically installs by sliding or snapping into a bracket; verify fit before final assembly.

This broiler slide is the oven rack support that lets the broiler pan and rack slide in and out smoothly for cooking and removal. It restores proper rack movement and helps keep broiler pans supported and stable. What it does

• Supports the broiler pan and rack so they sit level and slide smoothly
• Replaces worn or bent slides that cause racks to bind, tilt, or fall
• Reduces scraping, sticking, and uneven pan movement during use
• Restores safe access for inserting and removing broiler pans

• One broiler slide

• Disconnect power to the range before starting work; if a gas range, also shut off the gas supply
• Remove oven racks and broiler pan before replacing the slide to access mounting points
• Reuse original fasteners unless replacements are specified by the manufacturer

This is the right side broiler door spring. For left side use WB9K3.

This is the left side broiler door spring. For right side use WB9K2.

Includes 12 washers.

This spacer fits between mating parts in select GE cooking appliances to set correct clearance and alignment. Replacing a worn or missing spacer helps secure the assembly and prevents rubbing or damage to adjacent surfaces during use.

• Maintains proper spacing so hardware tightens squarely and components sit evenly
• Helps prevent metal-to-metal contact that can cause noise, wear, or surface damage
• If missing, broken, or deformed, you may notice looseness, misalignment, rattling, or scraping
• Restores original fit and finish when replaced

• Disconnect power; if applicable, shut off gas. Allow the appliance to cool completely
• Support the part being unfastened (such as a door, handle, or trim) to avoid strain on panels or glass
• Install the spacer in the same location/orientation as the original and reuse existing hardware if serviceable
• Tighten screws evenly; do not overtighten against glass or enameled surfaces

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

Size: 10-16 X 0.95 inch.

Color: Bisque

Color: Bisque

This oven door gasket restores the seal between the oven cavity and the door. Replacing a worn gasket helps the oven reach and maintain set temperatures while preventing heat and fumes from escaping around the door.

• Forms the compressible seal between the door and the oven front frame
• Helps the oven hold temperature for more consistent cooking results
• Reduces heat loss and leakage at the door perimeter
• Common signs to replace: frayed or flattened gasket, visible gaps at corners, heat or odors escaping, longer preheat or uneven baking

• Disconnect power before service; for gas ranges, also shut off the gas supply
• Allow the oven to cool completely and wear gloves
• Remove the old gasket by releasing its ends/retainers and clean the mounting area
• Fit the new gasket evenly without stretching; seat corners and ends fully, then check door closure

Includes 12 screws.

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This mounting screw secures an appliance end cap or trim piece, keeping covers and brackets fastened for safe, stable operation. It's a direct-fit replacement used when the original screw is lost, stripped, or damaged. What it does:

• Secures the end cap or trim to the appliance frame to prevent gaps and movement
• Stops rattling or vibration caused by a missing or worn screw
• Holds covers in place to protect internal components from debris
• Restores proper fit and alignment of the end cap/trim

• Disconnect power before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and tighten until snug—do not overtighten
• Replace damaged screws or threaded inserts to ensure a secure fit

Color: Bisque

Includes 12 screws.
