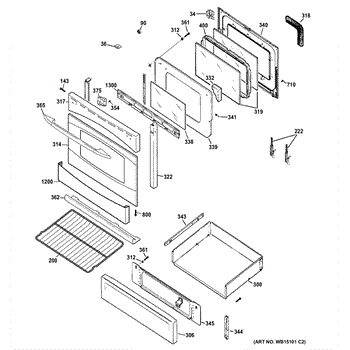

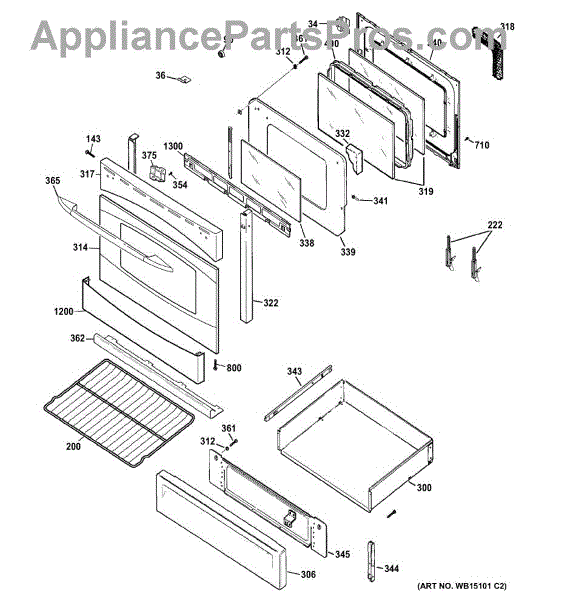

Parts for Ge PGB910SET2SS: 04 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Oven door hinge is an OEM part for GE  ranges. This left side hinge is responsible for securely and smoothly opening and closing the oven door. It allows for comfortable access in and out of the oven cavity.

Causes of a bad hinge can include wear and tear from repeated opening and closing of the door over time, stress from excessive weight on the door, or damage from impact.

Symptoms of a bad hinge include:

• The door not opening or closing properly
• Increased resistance or hesitation when operating the door
• Loosening or sagging of the door
• Uneven gaps around the door frame

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven door hinge is an OEM part for GE ranges. This right side hinge is responsible for securely and smoothly opening and closing the oven door. It allows for comfortable access in and out of the oven cavity.

Causes of a bad hinge can include wear and tear from repeated opening and closing of the door over time, stress from excessive weight on the door, or damage from impact.

Symptoms of a bad hinge include:

• The door not opening or closing properly
• Increased resistance or hesitation when operating the door
• Loosening or sagging of the door
• Uneven gaps around the door frame

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer body is the main inner tub that holds items in the appliance's lower drawer. It restores the drawer's structural support and proper fit so the drawer opens, closes, and holds contents securely. What it does:

• Replaces a cracked, warped, or damaged drawer tub that can leak or fail to support contents
• Restores alignment so the drawer slides and latches correctly
• Prevents rubbing or binding caused by a broken or misshapen inner body
• Helps maintain proper clearance for the drawer glide system

• One drawer body (inner tub) as pictured

• Disconnect power to the appliance before beginning any repair
• Remove the drawer assembly and mounting screws to access and replace the tub
• Handle edges carefully to avoid damage; reuse compatible clips/screws unless replacement fasteners are provided

Includes 12 washers.

The Oven Gasket Assembly is an OEM part for GE ranges. As the seal between the oven cavity and outer panel, this gasket plays a critical role isolating heat.

Causes of a bad gasket can include break down from prolonged exposure to high baking and broiling temperatures. General wear and cracking develops as it expands and contracts repeatedly during each cooking cycle.

Symptoms of a bad oven gasket assembly include:

• Inefficient or uneven cooking from heat escaping around edges
• Increased energy bills due to lost warm air
• Audible vibrations or squeaking when the oven door is moved
• Gaps appearing where the gasket has pulled away from mounting points

This genuine GE replacement gasket is compatible with Hotpoint, RCA and select Kenmore gas ranges as well.

This replacement oven door window glass restores clear viewing into the oven and helps keep the door assembly performing as designed. Replace when the original pane is cracked, shattered, or permanently stained.

• Clear glass pane used in the oven door window assembly
• Lets you check food without opening the door
• Contributes to proper heat retention as part of the multi-pane door design
• Common failure signs: cracked/shattered glass, loose or rattling window, visibility obscured by damage

• Disconnect power at the breaker or unplug; shut off gas for gas ranges. Allow the oven to cool completely.
• Wear cut-resistant gloves and eye protection; handle glass carefully to avoid injury.
• Access typically requires removing the door and separating inner/outer panels; keep screws organized by location.
• Reinstall any spacers/seals in their original positions and avoid overtightening fasteners against glass.

The Window Pack is an OEM replacement part for GE ovens. This assembly includes the glass window for the oven door, allowing users to view the contents of the oven without opening the door and disrupting the cooking process.

The window pack can become damaged due to accidental impact, thermal stress from frequent temperature changes, or general wear and tear over time. A broken or cracked window not only affects visibility but can also pose safety risks and affect oven performance.

Symptoms of a bad window pack include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven
• Difficulty maintaining oven temperature
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This liner drawer replaces a damaged or cracked inner refrigerator drawer to restore storage and containment in the fresh-food compartment. Durable molded plastic matches original fit for smooth sliding and easy cleaning. What it does:

• Replaces a broken, cracked or warped inner drawer that can no longer hold items securely
• Restores proper alignment so the drawer opens and closes smoothly
• Helps contain spills and keeps produce or packaged foods separated
• Improves interior organization and usable shelf space

• 1 liner drawer

• High-level replacement: remove contents, lift out old drawer and slide in the replacement; your model diagram for exact removal steps
• Use care to avoid scratching interior surfaces; wear gloves to protect hands from sharp edges
• Verify correct orientation and track engagement before loading the drawer
• If the drawer slides or tracks are damaged, inspect and replace those parts separately

This 10-32 mounting screw secures appliance handles and trim pieces, restoring proper fit and preventing loose or wobbly handles. Use it when a handle feels loose or the attachment hardware is missing or damaged. What it does:

• Fastens handles and related trim to appliance doors or panels
• Restores secure attachment to stop handle wobble or movement
• Replaces stripped, worn, or missing mounting hardware
• Matches OEM thread size for proper fit in mating fastener holes

• One 10-32 mounting screw

• Use the correct screwdriver or bit to avoid stripping the screw head
• Start threading by hand to ensure proper alignment before tightening
• Tighten until snug; avoid overtightening which can strip threads or crack panels
• Disconnect power and follow appliance safety instructions if disassembly exposes electrical components

This 10-32 x 9/16 hex washer head screw secures appliance panels and components for a snug, reliable fit. It replaces worn or missing fasteners so parts stay in place and doors or panels stop rattling. What it does:

• Fastens control panels, brackets, and trim to the appliance frame
• Restores secure mounting when original screws are stripped or lost
• Helps eliminate rattling, vibration noise, and loose-fitting panels
• Works where a small machine screw with integrated washer is required

• One 10-32 x 9/16 hex washer head screw

• Unplug the appliance or disconnect power before servicing
• Use the correct 10-32 driver or nut driver to avoid stripping the head
• Do not overtighten; snug until secure to avoid damaging threads or components
• Keep small parts away from children and magnetic surfaces for safety

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This stainless steel lower trim piece finishes and protects the bottom edge of the appliance door or opening, restoring appearance and sealing the lower edge. It fits where the factory lower trim was damaged or missing. What it does:

• Covers and protects the lower front edge from dings, scratches and wear
• Restores a clean, finished look to the appliance front
• Helps maintain proper door alignment and edge coverage when installed correctly
• Commonly replaced when the trim is dented, bent, corroded or missing

• Turn off power to the appliance and ensure the area is cool before beginning
• Removal/installation typically requires basic hand tools; handle trim carefully to avoid scratching
• Align trim with mounting tabs or screw holes and secure per factory fasteners
