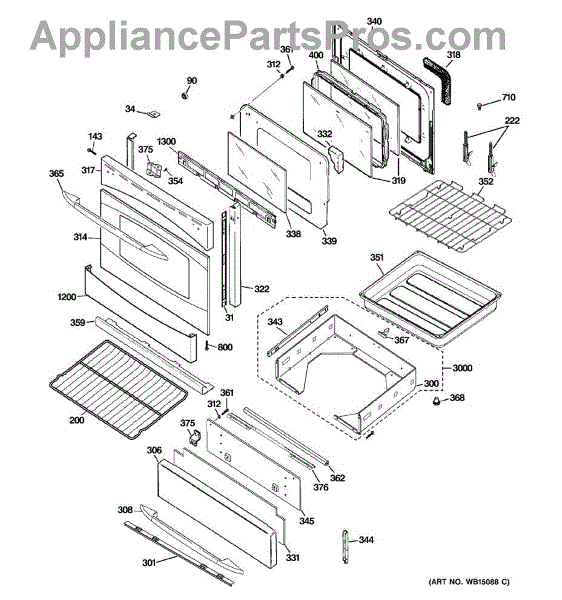

Parts for Ge PGB935SET1SS: 04 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven door hinge is an OEM part for GE  ranges. This left side hinge is responsible for securely and smoothly opening and closing the oven door. It allows for comfortable access in and out of the oven cavity.

Causes of a bad hinge can include wear and tear from repeated opening and closing of the door over time, stress from excessive weight on the door, or damage from impact.

Symptoms of a bad hinge include:

• The door not opening or closing properly
• Increased resistance or hesitation when operating the door
• Loosening or sagging of the door
• Uneven gaps around the door frame

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven door hinge is an OEM part for GE ranges. This right side hinge is responsible for securely and smoothly opening and closing the oven door. It allows for comfortable access in and out of the oven cavity.

Causes of a bad hinge can include wear and tear from repeated opening and closing of the door over time, stress from excessive weight on the door, or damage from impact.

Symptoms of a bad hinge include:

• The door not opening or closing properly
• Increased resistance or hesitation when operating the door
• Loosening or sagging of the door
• Uneven gaps around the door frame

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This front drawer panel replaces a damaged or worn exterior drawer face to restore the appliance's appearance and allow the drawer to open and close properly. It's a cosmetic and functional replacement for a worn front panel. What it does:

• Replaces a cracked, dented, or scratched drawer front to restore the appliance's look
• Provides the finished face for the storage/drawer compartment and helps guide the drawer during use
• Stops drafts and prevents small items from falling out of the drawer area
• Restores proper fit and alignment so the drawer opens and closes smoothly

• Disconnect power to the appliance before starting work if the drawer area is near electrical components
• Remove the drawer assembly per the owner's manual to access mounting screws or clips
• Handle the panel carefully to avoid scratching the new finish; use soft cloth or gloves
• Replace damaged fasteners or trim clips with OEM parts for a secure fit

This 30-inch door handle assembly replaces a worn or damaged refrigerator door handle to restore a secure grip and normal door operation. Durable replacement designed to match the original mounting points and finish. What it does

• Provides a solid grip for opening and closing the refrigerator door.
• Replaces cracked, loose, broken, or missing handles that make the door hard to operate.
• Restores proper alignment and feels like the original factory handle when mounted.
• Helps prevent further damage to the door face or trim from using a compromised handle.

• One 30-inch door handle assembly.

• Disconnect power to the appliance before beginning any repair to avoid injury.
• Use appropriate hand tools; some fasteners may be concealed under trim or caps.
• Handle mounting holes must align with existing door hardware—do not force.

Includes 12 washers.

The Oven Gasket Assembly is an OEM part for GE ranges. As the seal between the oven cavity and outer panel, this gasket plays a critical role isolating heat.

Causes of a bad gasket can include break down from prolonged exposure to high baking and broiling temperatures. General wear and cracking develops as it expands and contracts repeatedly during each cooking cycle.

Symptoms of a bad oven gasket assembly include:

• Inefficient or uneven cooking from heat escaping around edges
• Increased energy bills due to lost warm air
• Audible vibrations or squeaking when the oven door is moved
• Gaps appearing where the gasket has pulled away from mounting points

This genuine GE replacement gasket is compatible with Hotpoint, RCA and select Kenmore gas ranges as well.

This replacement oven door window glass restores clear viewing into the oven and helps keep the door assembly performing as designed. Replace when the original pane is cracked, shattered, or permanently stained.

• Clear glass pane used in the oven door window assembly
• Lets you check food without opening the door
• Contributes to proper heat retention as part of the multi-pane door design
• Common failure signs: cracked/shattered glass, loose or rattling window, visibility obscured by damage

• Disconnect power at the breaker or unplug; shut off gas for gas ranges. Allow the oven to cool completely.
• Wear cut-resistant gloves and eye protection; handle glass carefully to avoid injury.
• Access typically requires removing the door and separating inner/outer panels; keep screws organized by location.
• Reinstall any spacers/seals in their original positions and avoid overtightening fasteners against glass.

The Window Pack is an OEM replacement part for GE ovens. This assembly includes the glass window for the oven door, allowing users to view the contents of the oven without opening the door and disrupting the cooking process.

The window pack can become damaged due to accidental impact, thermal stress from frequent temperature changes, or general wear and tear over time. A broken or cracked window not only affects visibility but can also pose safety risks and affect oven performance.

Symptoms of a bad window pack include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven
• Difficulty maintaining oven temperature
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This internal slide is a single replacement rail used to restore smooth guidance and support for a sliding drawer or internal compartment. It prevents sticking and wobbling so the drawer opens and closes reliably. What it does:

• Guides and supports a drawer or compartment for smooth travel
• Replaces worn, bent, or damaged slide hardware that causes sticking or misalignment
• Helps restore proper drawer alignment and load support
• Reduces noise and binding when opening or closing the drawer

• Disconnect power to the appliance and remove any contents before starting
• Basic hand tools typically required; support the drawer while removing/installing the slide
• Align slide fully before tightening fasteners to ensure smooth operation
• Replace with equivalent screws for secure fit

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This rack baking drawer assembly restores a lower oven's storage and baking surface for sheet pans, pans and cookware. It provides a stable, removable rack that slides in and out for easy access and even heat exposure. What it does

• Provides a removable rack surface for baking or storing cookware in the lower drawer compartment
• Slides smoothly on drawer tracks to position pans and trays for cooking or access
• Helps promote even heat exposure to pans placed in the drawer area
• Replaces worn, bent or missing drawer rack assemblies that prevent proper sliding or support

• One rack baking drawer assembly as shown

• High-level replacement: remove the drawer from the oven, slide out old assembly, and install new drawer rack per factory diagram
• Use care to avoid scratching enamel surfaces and to keep track of any clips or rollers
• Disconnect power at the breaker for electric ovens before removing drawer components

This 10-32 mounting screw secures appliance handles and trim pieces, restoring proper fit and preventing loose or wobbly handles. Use it when a handle feels loose or the attachment hardware is missing or damaged. What it does:

• Fastens handles and related trim to appliance doors or panels
• Restores secure attachment to stop handle wobble or movement
• Replaces stripped, worn, or missing mounting hardware
• Matches OEM thread size for proper fit in mating fastener holes

• One 10-32 mounting screw

• Use the correct screwdriver or bit to avoid stripping the screw head
• Start threading by hand to ensure proper alignment before tightening
• Tighten until snug; avoid overtightening which can strip threads or crack panels
• Disconnect power and follow appliance safety instructions if disassembly exposes electrical components

This 10-32 x 9/16 hex washer head screw secures appliance panels and components for a snug, reliable fit. It replaces worn or missing fasteners so parts stay in place and doors or panels stop rattling. What it does:

• Fastens control panels, brackets, and trim to the appliance frame
• Restores secure mounting when original screws are stripped or lost
• Helps eliminate rattling, vibration noise, and loose-fitting panels
• Works where a small machine screw with integrated washer is required

• One 10-32 x 9/16 hex washer head screw

• Unplug the appliance or disconnect power before servicing
• Use the correct 10-32 driver or nut driver to avoid stripping the head
• Do not overtighten; snug until secure to avoid damaging threads or components
• Keep small parts away from children and magnetic surfaces for safety

This lower door gasket seals the bottom edge of the appliance door to help maintain proper temperature and reduce heat loss. It replaces a worn or damaged lower seal to improve performance and efficiency. What it does:

• Forms a tight seal along the bottom of the door to limit air and heat exchange
• Helps prevent heat or cold from escaping, supporting consistent cooking or cooling
• Reduces drafts, energy waste, and uneven temperatures caused by a failing seal
• Visible signs include cracked, torn, flattened, or missing gasket material

• Disconnect power (and gas for gas appliances) and allow the appliance to cool before starting.
• Remove the door or support it per the manufacturer's service instructions to access the lower gasket area.
• Replace only the lower gasket; inspect surrounding door frame for damage or debris and clean mating surfaces before installing.
• Press the gasket into its track evenly; do not force or stretch excessively. If adhesive or fasteners are specified by the manufacturer, follow OEM guidance.

The Bumper is an OEM replacement part for GE ovens and ranges. It is designed to cushion and protect the oven door or cooktop when it is opened or closed, preventing direct contact between components. This small yet crucial part helps reduce noise and wear by absorbing impact during regular use.

Over time, bumpers can wear out, deteriorate, or become dislodged due to frequent use or exposure to heat and cleaning agents. A damaged or missing bumper can lead to increased noise and potential wear on adjoining parts.

Symptoms of a bad or missing bumper include:

• Increased noise when the oven door or cooktop is opened or closed
• Visible wear or marks on the surfaces that contact the bumper
• The door or cooktop not aligning properly during use
• Missing or deformed bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This stainless steel lower trim piece finishes and protects the bottom edge of the appliance door or opening, restoring appearance and sealing the lower edge. It fits where the factory lower trim was damaged or missing. What it does:

• Covers and protects the lower front edge from dings, scratches and wear
• Restores a clean, finished look to the appliance front
• Helps maintain proper door alignment and edge coverage when installed correctly
• Commonly replaced when the trim is dented, bent, corroded or missing

• Turn off power to the appliance and ensure the area is cool before beginning
• Removal/installation typically requires basic hand tools; handle trim carefully to avoid scratching
• Align trim with mounting tabs or screw holes and secure per factory fasteners
