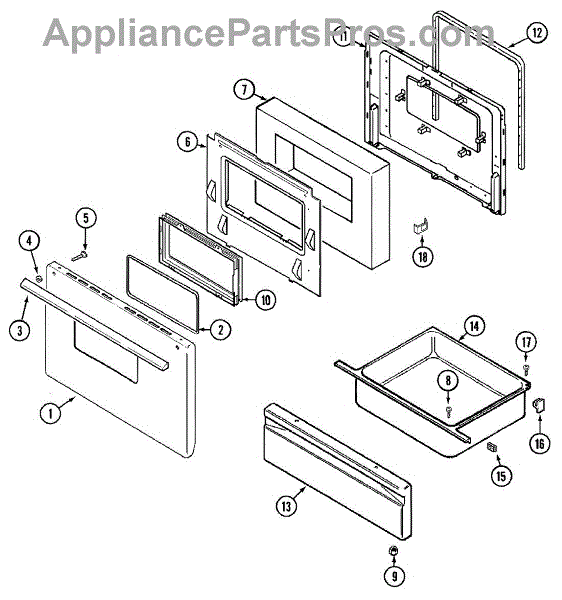

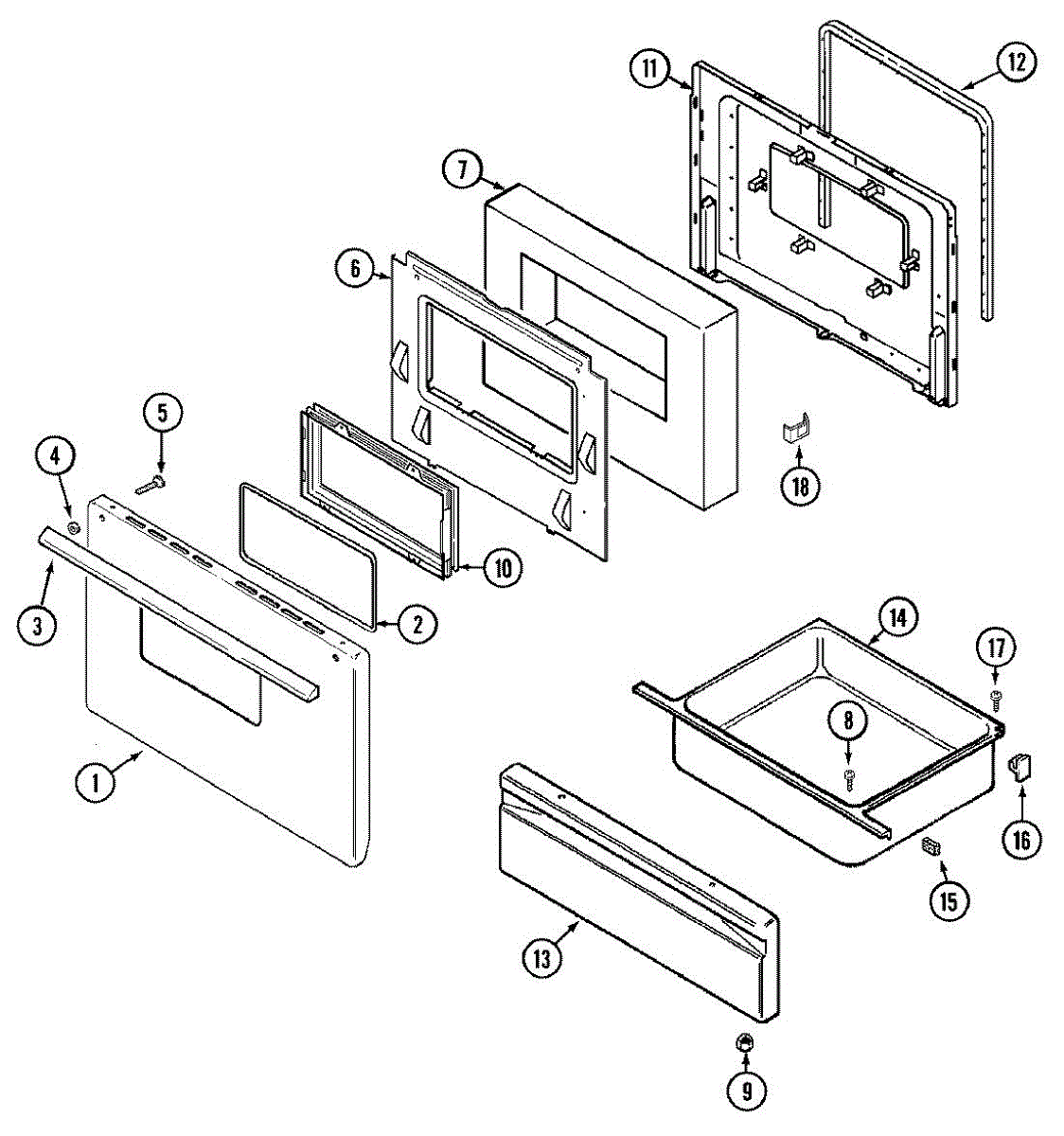

Parts for Magic Chef C3523WVV: 03 - Door / Drawer Parts

30-inch door handle replacement that restores a secure grip and the door's appearance. Replaces cracked, loose, or broken handles so you can open and close the appliance door safely and with confidence. What it does:

• Provides a comfortable, secure grip for opening and closing 30-inch appliance doors.
• Replaces damaged, loose or broken handles to restore normal door operation and appearance.
• Designed as a direct replacement for the factory door handle mounting pattern.
• Helps prevent accidental drops or slippage when opening a hot or heavy oven/range door.

• Always disconnect power to the appliance and allow it to cool before beginning any repair.
• Support the door during removal and installation; have a helper if the door is heavy or awkward.
• Use the correct screwdriver or bit for the mounting screws and keep removed hardware organized for reinstallation.

Bisque spacer that installs between range door handle and panel. Replace if cracked, broken, or missing to restore proper spacing and secure alignment.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

A 10-24 lock nut used to secure threaded fasteners and prevent loosening from vibration. Simple, durable replacement that restores proper fastening where the original nut has worn or failed. What it does:

• Secures shafts, studs, or bolts with 10-

Oven door seal creates an airtight barrier to prevent heat loss and maintain proper temperature. Replace when torn, cracked, or loose. Verify fit with model.

Includes two brackets part WP3801F813-51 to mount front panel to drawer. Front panel not included

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. T

Rear broiler drawer support.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers,
