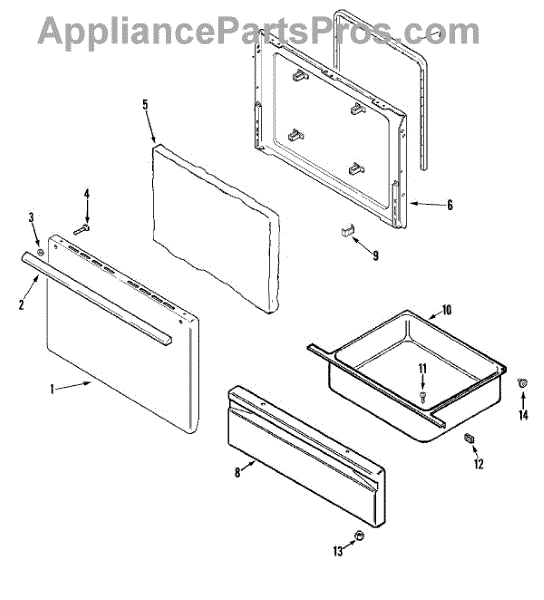

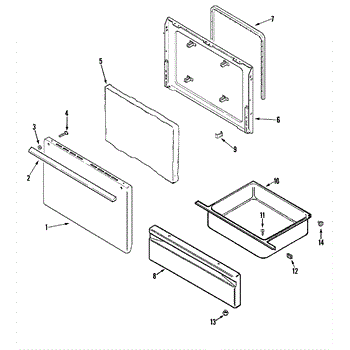

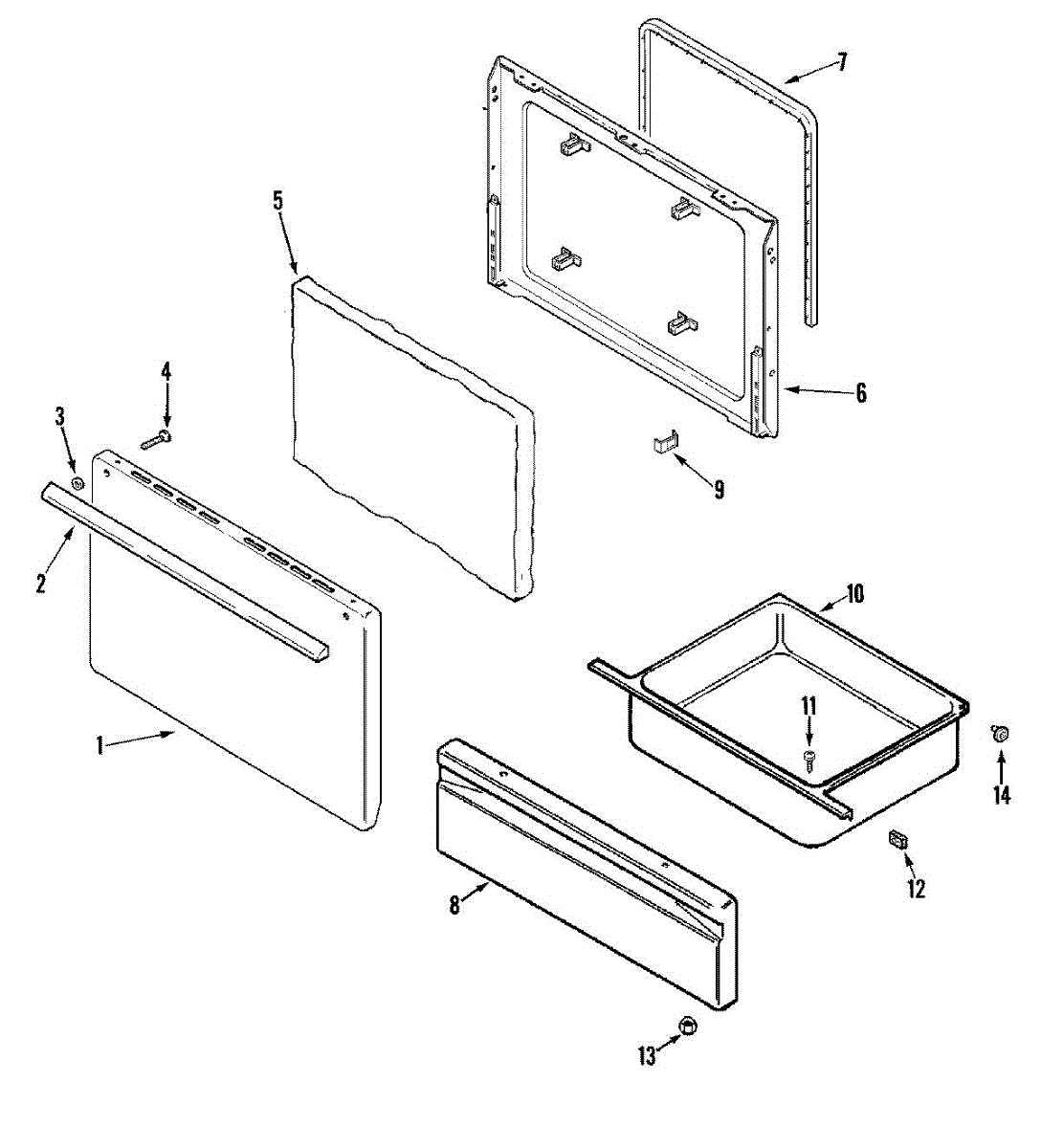

Parts for Magic Chef CER1140AAA: 03 - Door / Drawer Parts

This is a genuine replacement BSQ screw used to secure appliance components and trim. It restores proper fastening so panels and parts sit tight and function without rattling or shifting. What it does:

• Fastens interior or exterior components and trim where a BSQ screw is specified
• Prevents loose or vibrating panels and assemblies
• Restores secure attachment if an original screw is missing, stripped, or damaged
• Matches OEM fit and head style for correct engagement with the mating part

• Disconnect power to the appliance before doing any repairs to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten snugly but do not overtighten—over-torquing can strip threads or damage surrounding parts
• If threads are damaged, replace the mating fastener or insert as needed for a secure repair

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This door handle spacer fits between the handle and the door panel, providing the correct standoff and a clean, finished look. Replacing a worn spacer helps keep the handle secure and aligned.

• Maintains proper spacing between the handle and door surface
• Helps stabilize a loose or wobbly handle
• Replaces cracked, discolored, or missing spacers
• Color: Bisque (cream/tan finish) to match compatible appliances

• Disconnect power and allow the appliance to cool before servicing
• Support the door and handle while removing mounting screws
• Transfer or replace spacers on both sides of the handle if needed; do not overtighten screws
• Wear gloves to protect hands and avoid stressing glass panels

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Oven Door Seal is an OEM part for Whirlpool ovens. This seal is crucial for maintaining the oven’s efficiency by creating an airtight seal around the door, preventing heat from escaping during cooking. It helps ensure that the oven maintains the correct temperature, which is essential for even cooking and energy efficiency.

Common causes of a bad oven door seal include wear and tear from regular use, exposure to high temperatures, and damage from cleaning or handling.

Symptoms of a bad oven door seal include:

• Heat escaping from around the oven door
• Longer cooking times or uneven cooking
• The oven door not closing properly
• Visible cracks, tears, or deformation in the seal

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Includes two brackets part WP3801F813-51 to mount front panel to drawer. Front panel not included

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

A 10-24 lock nut used to secure threaded fasteners and prevent loosening from vibration. Simple, durable replacement that restores proper fastening where the original nut has worn or failed. What it does:

• Secures shafts, studs, or bolts with 10-24 threads and resists loosening under normal appliance vibration.
• Restores proper tension where a stripped or loose nut causes rattling or parts shifting.
• Helps maintain alignment of panels, brackets, or components that rely on a locked fastener.
• Small hardware solution for common fastening failures—no special part modifications required.

• Disconnect appliance power and water before beginning repairs.
• Use the correct 10-24 threaded fastener and a properly sized wrench or socket to avoid rounding the nut.
• Tighten to a snug fit—do not overtighten or force onto damaged threads.
• Inspect mating threads and replace the bolt/stud if threads are stripped or damaged.

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.
