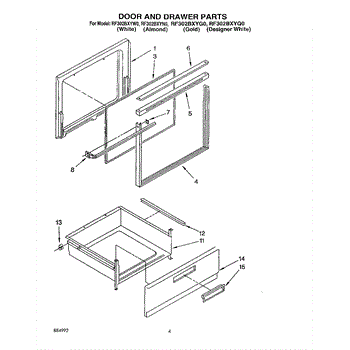

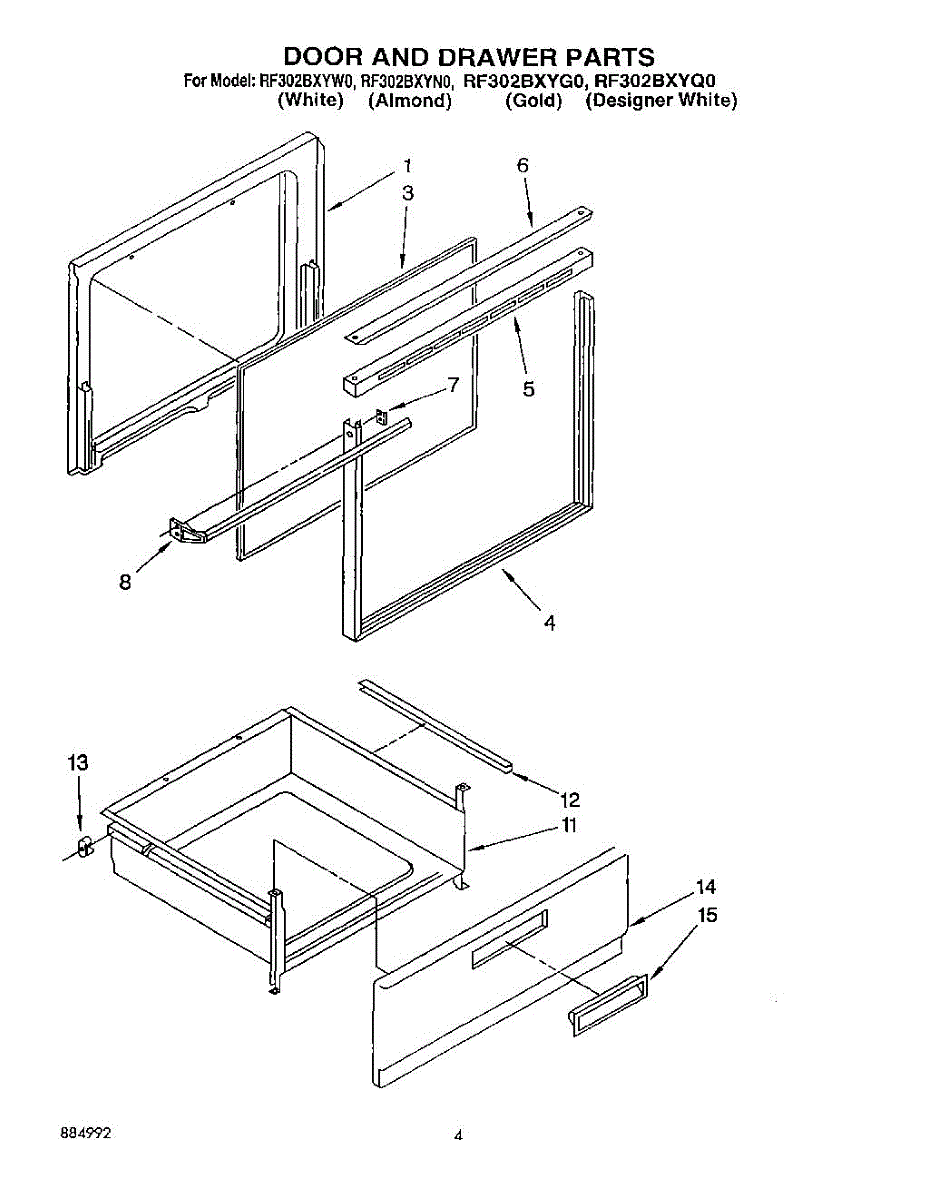

Parts for Whirlpool RF302BXYN0: 04 - Door And Drawer Parts

This part has been discontinued by the manufacturer and is no longer available.

Self-locking, phillips screw.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This part has been discontinued and is no longer available.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

A small replacement mounting clip that secures the appliance handle to the door or control panel for a firm fit and reliable operation. Replaces a worn or broken clip to restore handle stability and reduce movement. What it does:

• Holds the handle tight to the door or panel so the handle doesn't wobble or come loose
• Prevents the handle from detaching during normal use
• Helps stop rattling or shifting that can occur with a broken clip
• Fits into the handle mounting location to align and lock the handle in place

• One mounting handle clip

• Disconnect power (and water if applicable) before beginning any repair
• Access may require removing the door trim or interior panel—keep track of fasteners
• Use appropriate hand tools and avoid forcing plastic clips to prevent breakage

Size; 8-18 x 1/2 inch.
