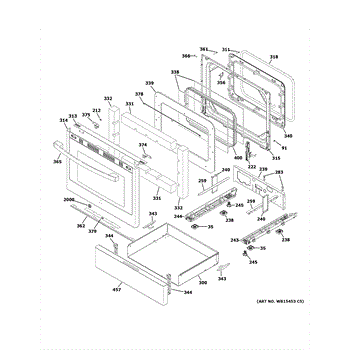

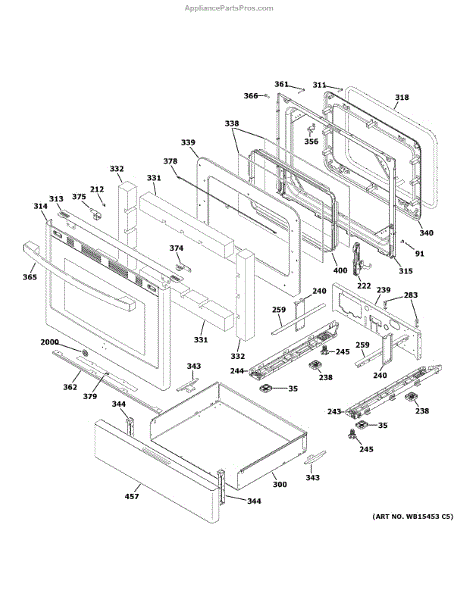

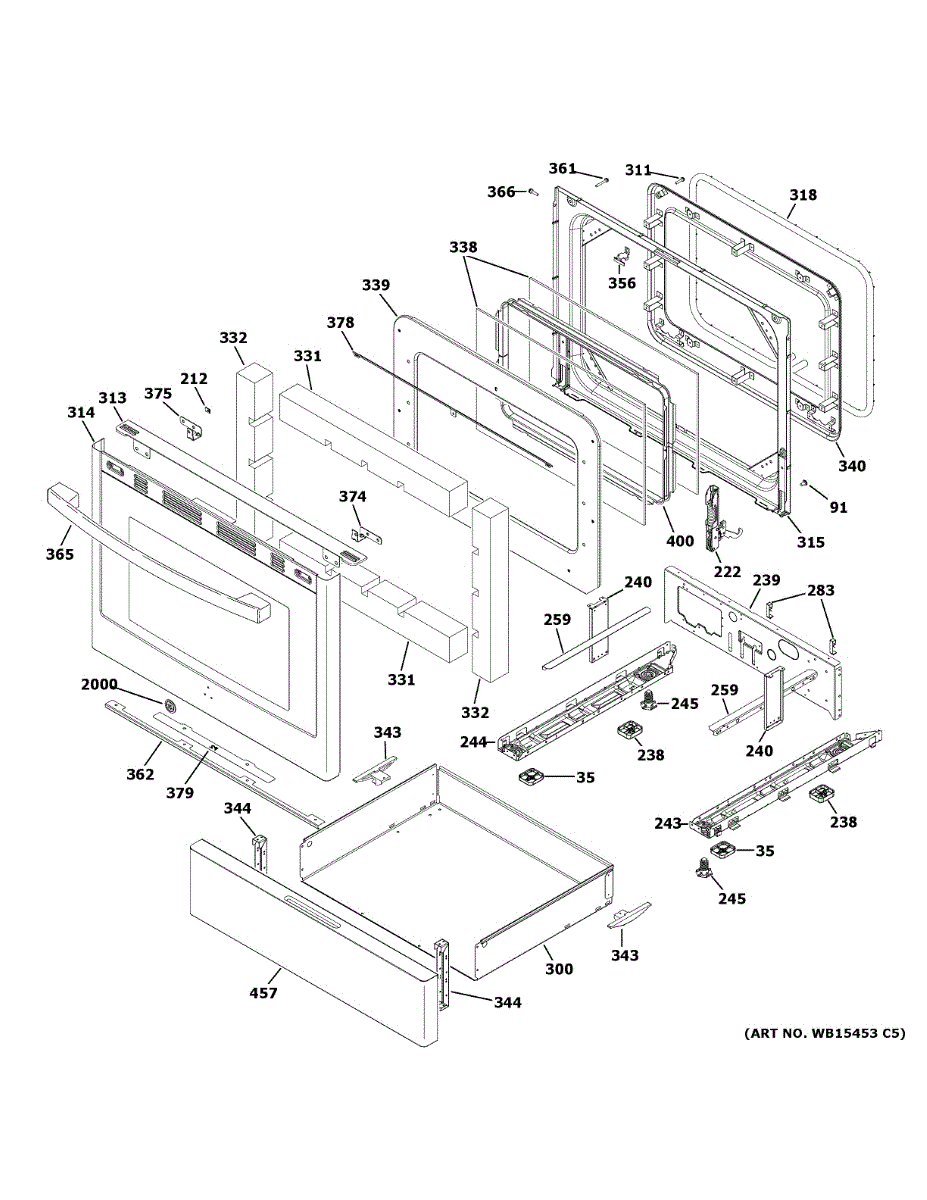

Parts for Ge JGB720BEJ2TS: Door & Drawer Parts

This door hinge restores smooth, secure door movement so the door aligns and seals properly. Replace a worn or damaged hinge to correct doors that sag, rub, or won't close all the way.

• Supports the door and guides controlled opening and closing
• Keeps the door aligned for a proper latch/gasket seal
• Helps prevent heat/steam escape caused by poor closure
• Common symptoms: door won't close fully, door drops or feels loose, uneven sealing, squeaking or binding at the hinge

• Disconnect power at the breaker or unplug; allow the appliance to cool completely
• Support the door while removing screws/retainers; note hinge orientation for reassembly
• Use care—hinge mechanisms can be under tension and edges may be sharp; wear gloves/eye protection
• After installation, verify door alignment and closure; replace the opposite hinge if needed for even action

This spacer base positions and supports components inside the appliance to maintain correct alignment and clearance, helping reduce vibration and wear. It's a simple replacement part when the original is cracked, broken, or missing. What it does:

• Provides a stable mounting surface and correct spacing for internal panels or components
• Restores proper alignment to reduce vibration, noise, and uneven operation
• Commonly replaced when the original spacer is cracked, deformed, or missing
• Helps maintain secure fastener engagement and proper component clearance

• Spacer base (single piece)

• Disconnect power to the appliance before starting any repair
• Follow manufacturer service instructions or parts diagram for correct location and orientation
• Basic hand tools typically required; inspect surrounding fasteners and mounting surfaces during installation

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer body is the metal pan that forms your range's lower drawer. Replacing a bent or rusted body restores alignment so the drawer slides smoothly, stays on its tracks, and safely supports its contents.

• Forms the structural base of the lower drawer assembly
• Attaches to the drawer front and the side glides/rails
• Keeps the drawer square and aligned for smooth travel
• Damage may cause sticking, scraping noises, sagging, or the drawer coming off track

• Disconnect power and let the appliance cool completely before servicing
• Remove the drawer; transfer the existing drawer front, handle, and any brackets to the new body as required
• Inspect and align the slides/rails, then seat the drawer on the tracks
• Test for smooth operation before loading the drawer

The Range Surface Burner Grate Bumper is an OEM replacement part for GE ranges. The bumper protects the burner grate from scratching or denting the cooktop surface below when lowered into position.

Symptoms of a damaged or missing bumper include:

• Scuff marks or abrasions on the cooktop under the burner grate area
• Noise or rubbing sensations when operating burners
• Loose or detached fit of the burner grate on the range surface

Causes stem from regular use of the burner grates over many cooking cycles. Natural wear and repeated contact with surfaces can degrade bumpers over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges and cooktops.

This glass door assembly replaces the outer glass panel on compatible oven doors to restore a clean, intact front surface and improve heat containment. Use it to repair cracked, chipped or broken outer oven door glass. What it does:

• Replaces the oven's outer door glass panel to restore appearance and a sealed door surface
• Helps maintain proper door integrity that supports oven operation and heat retention
• Stops drafts and visible cracks that can get worse with use
• Restores a smooth, clean surface that's easier to wipe down

• One glass door assembly

• Handle carefully — glass can break and cause injury; wear cut-resistant gloves and eye protection
• Disconnect power to the appliance before beginning repair to prevent electrical hazards
• Follow OEM instructions for door support and hinge handling; some disassembly of the door may be required
• If other door components are cracked or damaged, inspect them and replace as needed for a safe, proper repair

This door line weld assembly secures and reinforces the oven door structure to maintain alignment and a stable seal during use. It replaces a damaged or bent welded door line to restore proper door fit and operation. What it does:

• Provides the welded structural connection used in the oven door assembly
• Restores door alignment and helps maintain an effective seal after damage
• Addresses symptoms like a loose, misaligned, or sagging oven door
• Works as a direct-fit replacement when the original welded door line is worn or damaged

• Requires basic appliance disassembly; follow manufacturer instructions for door removal
• Disconnect power to the appliance before beginning any repair
• Handle sharp edges with care and use appropriate gloves

The Door Gasket Assembly is an OEM replacement part for GE ranges and wall ovens. This assembly forms an airtight seal around the oven door to retain heat within the cooking chamber. The door gasket is responsible for ensuring optimal cooking temperatures can be maintained regardless of outdoor conditions. It prevents hot air and moisture from escaping the oven cavity.

Causes of a bad door gasket assembly can include deterioration of sealing materials over many heating and cooling cycles. Physical damage from impact or over-closing of the heavy oven door may also occur.

Symptoms of a bad oven door gasket assembly include:

• Inefficient or uneven cooking as heat escapes around the edges
• Condensation appearing on exterior oven surfaces during baking
• Visibly observable gaps around the door frame when closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Crystal Window is an OEM part for GE ranges. This part is the inner glass window located on the oven door, allowing users to visually monitor the cooking process without opening the door. The window is designed to withstand high temperatures and provide clear visibility into the oven.

Causes of a bad crystal window can include regular wear and tear, thermal stress from repeated heating and cooling cycles, and accidental impacts that can cause cracks or scratches.

Symptoms of a bad crystal window include:

• Visible cracks or scratches on the window
• Cloudiness or discoloration obstructing the view
• Difficulty seeing inside the oven during cooking
• Potential safety concerns if the window's structural integrity is compromised

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Drawer Glide is an OEM replacement part for GE electric and gas ranges. It functions as the suspension mechanism facilitating smooth extension and retraction of range drawer shelves.

Causes of a bad drawer glide can include wear from years of use, damage from heavy pots or pans straining the glide, or loose mounting fixtures failing to securely support shelf weight.

Symptoms of a bad drawer glide include:

• Difficulty accessing or storing items within drawers
• Squeaking or grinding noises when opening/closing
• Drawers failing to fully extend or retract
• Risk of entire drawer assembly detaching over time

This OEM GE part is also compatible with some Hotpoint, RCA and select Kenmore electric and gas range models.

This drawer bracket secures and supports a refrigerator/ freezer drawer, restoring proper alignment and load-bearing at the front or side mounting point. It's a simple replacement that helps the drawer open and close smoothly. What it does:

• Holds and supports the drawer to prevent sagging or tipping under normal loads
• Keeps the drawer aligned on its track for smooth operation
• Restores proper engagement with the cabinet so the drawer seats and latches correctly
• Helps prevent binding, catching, or uneven gaps when opening or closing

• Disconnect power to the appliance before servicing and work with the drawer empty.
• Remove the drawer and any trim as needed to access the bracket; use appropriate hand tools (screwdriver/socket) for fasteners.
• Reuse existing screws only if undamaged; replace fasteners if stripped or corroded.
• Align the bracket carefully before tightening to avoid binding; do not force or overtighten plastic components.

This 10-24 machine screw secures panels and components on compatible appliances, restoring proper fit and preventing rattles or loose parts. Small, service-grade fastener for repeatable repairs and safe operation. What it does:

• Fastens control panels, trim pieces, brackets, or assemblies that use a 10-24 threaded screw
• Restores secure mounting when a screw is missing, stripped, or damaged
• Helps stop panel rattling, misalignment, or intermittent contact caused by loose parts
• Compatible with repair or replacement tasks requiring the standard 10-24 thread size

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct driver or socket to avoid stripping the head; do not overtighten
• Replace only like-for-like 10-24 fasteners to maintain proper fit and thread engagement
• If threads in the receiving part are damaged, repair or replace the mating component rather than relying on a longer or different screw

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

This bracket handle secures the appliance handle to the door or panel, restoring a firm, stable grip and preventing the handle from wobbling or detaching. Ideal when the handle feels loose or the mounting area is damaged. What it does:

• Provides a secure mounting point for the exterior handle
• Restores proper alignment and reduces handle wobble
• Prevents the handle from pulling away or falling off during use
• Works with the existing screws and handle hardware to reattach the handle

• High-level replacement—remove the door/panel or access trim per your model's service instructions
• Use the original screws or OEM-replacement fasteners to secure the bracket
• Disconnect power (or gas for ranges) and follow safety steps before accessing internal parts
• If fasteners or the handle itself are damaged, replace those components as well

This handle bracket secures a range or oven door handle to the door assembly, restoring a stable, usable handle and preventing wobble or detachment. Ideal when the handle feels loose or the bracket is broken. What it does:

• Provides a rigid mounting point for the door handle so the handle stays securely attached.
• Stops handle wobble, looseness, or movement when opening and closing the door.
• Replaces cracked, bent, or missing brackets that prevent proper handle function.
• Helps restore safe, reliable grip and normal door operation.

• One handle bracket

• Turn off power to the appliance and allow surfaces to cool before starting.
• Basic hand tools are typically required; follow the appliance manufacturer's service instructions.
• Handle removal and reattachment may require accessing inner door trim—retain screws and small parts.

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model
