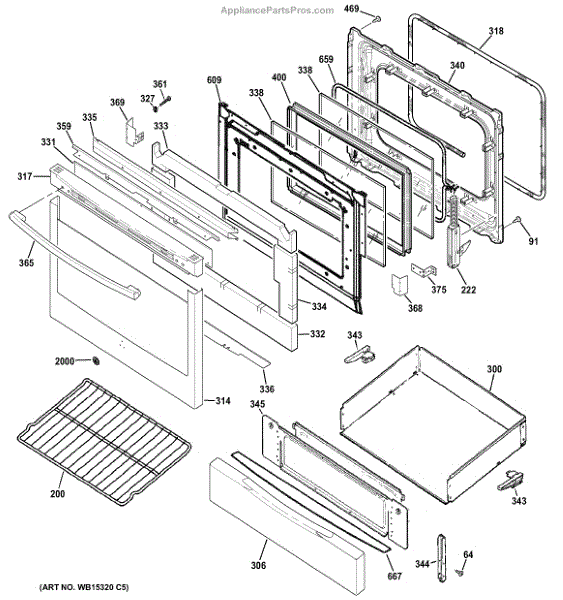

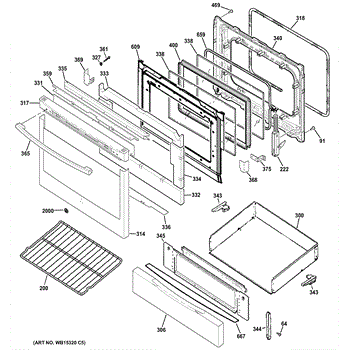

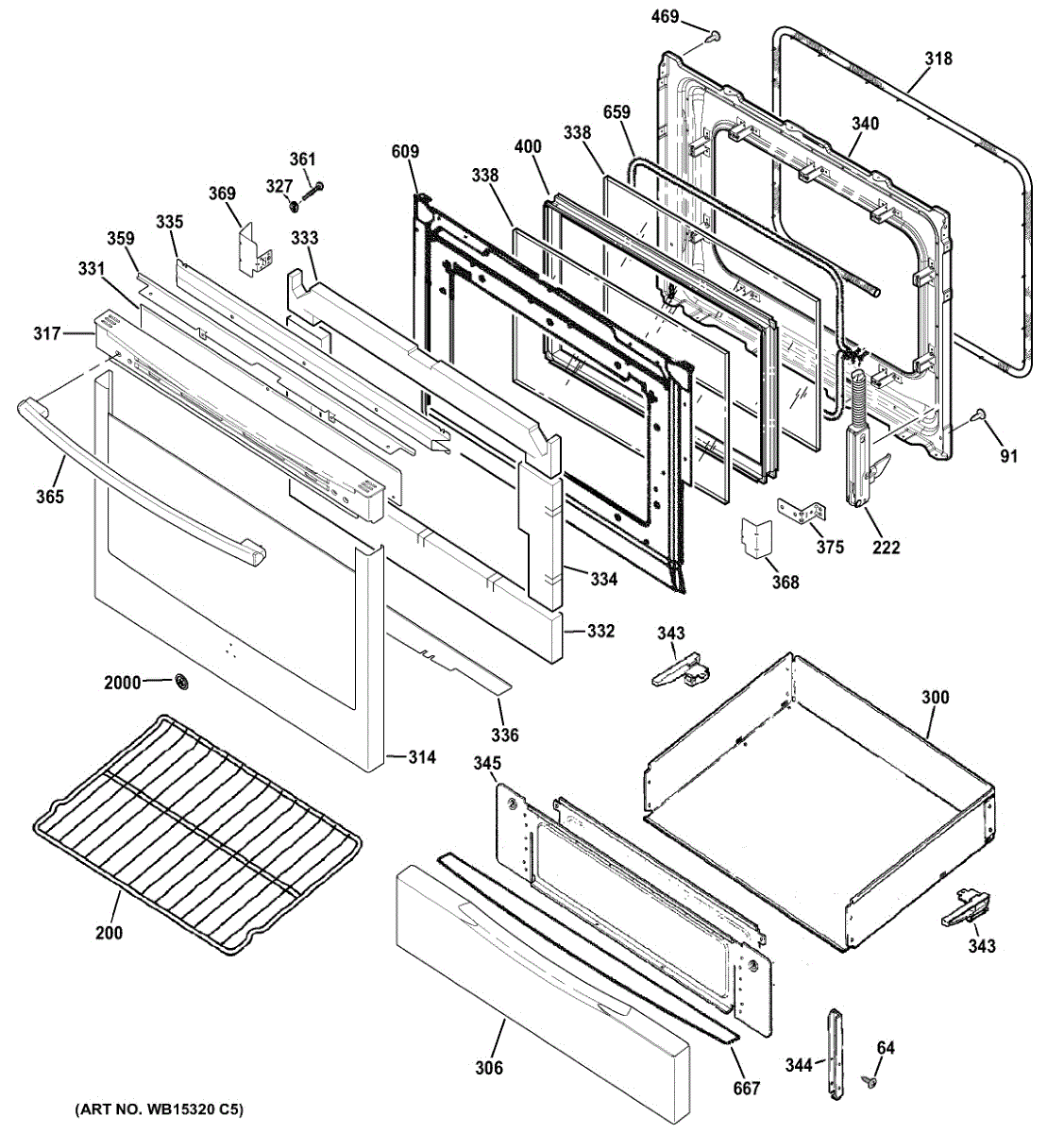

Parts for Ge JGB760EEF2ES: Door & Drawer Parts

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This replacement oven rack restores a sturdy, level surface for cookware. Replace a bent, rusted, or missing rack to safely position dishes at the proper height for baking and broiling. What it does:

• Supports pans and dishes on a stable, level surface during baking or broiling
• Slides along the oven's side supports to adjust rack positions
• Helps maintain correct spacing from the heat source for recipes
• Replaces racks that are bent, rusted, missing, or have broken welds/stops

• Allow the oven to cool completely and switch off power at the breaker for safety
• Pull the old rack forward to the stop, lift the front to clear the stop tabs, and remove
• Align the new rack with the side rails (stop notches toward the rear if present) and slide it in fully
• Follow your user manual for self-cleaning; many models require removing racks to protect the finish

The Door Hinge is an OEM part for GE gas ranges. It acts as the pivot point allowing the range door to smoothly and securely open and close.

Causes of a bad hinge include normal wear over time, damage from excessive door force, or broken coil springs/bearings in the hinge mechanism.

Symptoms of a bad door hinge can include:

• Resistance or difficulty smoothly opening and closing the door
• Noise, squeaking, or squealing coming from the hinge area
• Visual signs of damage or deformation of the hinge itself
• Improper alignment that prevents the door from fully closing

This OEM GE replacement hinge is also compatible with Hotpoint, RCA and select Kenmore gas range models.

This drawer panel replaces a damaged or worn front trim on the appliance drawer to restore appearance and a proper seal. It provides the visible exterior surface and mounting interface for the drawer assembly. What it does:

• Replaces cracked, dented, or scratched drawer front to restore cosmetic appearance
• Restores proper alignment and contact where broken panels allowed the drawer to sit unevenly
• Helps maintain the intended fit and finish of the drawer opening

• Disconnect power to the appliance and remove any contents from the drawer before beginning work
• Handle the panel carefully to avoid scratching the new finish; use non-marring tools as needed
• Installation typically requires removing the drawer assembly and fastening the panel with the original screws/clips
• If mounting tabs or clips are broken, inspect adjacent parts and replace as needed for secure fit

The Oven Gasket Assembly is an OEM part for GE ranges. As the seal between the oven cavity and outer panel, this gasket plays a critical role isolating heat.

Causes of a bad gasket can include break down from prolonged exposure to high baking and broiling temperatures. General wear and cracking develops as it expands and contracts repeatedly during each cooking cycle.

Symptoms of a bad oven gasket assembly include:

• Inefficient or uneven cooking from heat escaping around edges
• Increased energy bills due to lost warm air
• Audible vibrations or squeaking when the oven door is moved
• Gaps appearing where the gasket has pulled away from mounting points

This genuine GE replacement gasket is compatible with Hotpoint, RCA and select Kenmore gas ranges as well.

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

This replacement oven door window glass restores clear viewing into the oven and helps keep the door assembly performing as designed. Replace when the original pane is cracked, shattered, or permanently stained.

• Clear glass pane used in the oven door window assembly
• Lets you check food without opening the door
• Contributes to proper heat retention as part of the multi-pane door design
• Common failure signs: cracked/shattered glass, loose or rattling window, visibility obscured by damage

• Disconnect power at the breaker or unplug; shut off gas for gas ranges. Allow the oven to cool completely.
• Wear cut-resistant gloves and eye protection; handle glass carefully to avoid injury.
• Access typically requires removing the door and separating inner/outer panels; keep screws organized by location.
• Reinstall any spacers/seals in their original positions and avoid overtightening fasteners against glass.

The Oven Drawer Glide is an OEM replacement part for GE electric and gas ranges. It functions as the suspension mechanism facilitating smooth extension and retraction of range drawer shelves.

Causes of a bad drawer glide can include wear from years of use, damage from heavy pots or pans straining the glide, or loose mounting fixtures failing to securely support shelf weight.

Symptoms of a bad drawer glide include:

• Difficulty accessing or storing items within drawers
• Squeaking or grinding noises when opening/closing
• Drawers failing to fully extend or retract
• Risk of entire drawer assembly detaching over time

This OEM GE part is also compatible with some Hotpoint, RCA and select Kenmore electric and gas range models.

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This liner drawer replaces a damaged or cracked inner refrigerator drawer to restore storage and containment in the fresh-food compartment. Durable molded plastic matches original fit for smooth sliding and easy cleaning. What it does:

• Replaces a broken, cracked or warped inner drawer that can no longer hold items securely
• Restores proper alignment so the drawer opens and closes smoothly
• Helps contain spills and keeps produce or packaged foods separated
• Improves interior organization and usable shelf space

• 1 liner drawer

• High-level replacement: remove contents, lift out old drawer and slide in the replacement; your model diagram for exact removal steps
• Use care to avoid scratching interior surfaces; wear gloves to protect hands from sharp edges
• Verify correct orientation and track engagement before loading the drawer
• If the drawer slides or tracks are damaged, inspect and replace those parts separately

The Handle and End Cap Assembly is an OEM part for GE ovens. This assembly comprises the handle used to open and close the oven door, along with the end caps that secure the handle firmly in place. The handle measures 27.5 inches long

Over time, the handle and end caps can become worn or damaged due to frequent use, exposure to high temperatures, or accidental impact. Such issues can make it challenging to operate the oven door properly and safely.

Symptoms of a bad Handle and End Cap Assembly include:

• Difficulty in opening or closing the oven door
• A loose or wobbly handle
• Visible cracks or damage to the handle or end caps
• The handle detaching from the oven door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement handle bracket that secures the oven door handle to the door assembly, restoring a solid, stable grip for opening and closing. Use this bracket to replace a cracked, loose or missing handle support. What it does:

• Secures the oven door handle to the door assembly so the handle stays tight and aligned
• Replaces cracked, bent or broken brackets that cause a loose or wobbly handle
• Helps prevent the handle from detaching during normal use
• Restores safe, confident operation when opening and closing the oven door

• Disconnect power to the appliance before beginning any repair.
• Access may require removing the oven door trim or handle screws—retain all fasteners for reassembly.
• Use the correct screwdriver or socket to avoid stripping screws; align bracket before tightening.

This silicon controlled rectifier (SCR) is an electronic switching component used on appliance control boards to regulate power to heating elements or motors, restoring proper control and operation when the SCR fails. What it does:

• Acts as a power-control switch on control boards to deliver variable current to heaters or motors
• Helps regulate on/off cycles and output under control-board commands
• Failure may cause no heat, intermittent heating, or components not running as expected
• Replacing a faulty SCR can restore consistent power control and appliance function

• Disconnect all power before servicing; risk of electric shock or damage
• Static-sensitive component—use proper ESD precautions when handling
• Replacement typically requires desoldering/soldering on the control board or replacement of the control module

This oven door insulation panel fits behind the oven door to help retain cooking heat and reduce heat transfer to the outer door. It restores proper thermal performance for safer, more consistent cooking. What it does:

• Provides a thermal barrier behind the oven door to help keep heat inside the oven cavity
• Helps the oven reach and hold set temperatures more consistently
• Reduces excessive heat on the exterior door surface
• Replace if insulation is torn, missing, or visibly degraded

• Disconnect power to the appliance before beginning any service
• Follow the oven/door removal and reassembly steps from the manufacturer's service manual
• Wear gloves and eye protection; insulation may have fibrous material
• Avoid compressing or folding the insulation during installation; ensure it is positioned as originally installed
