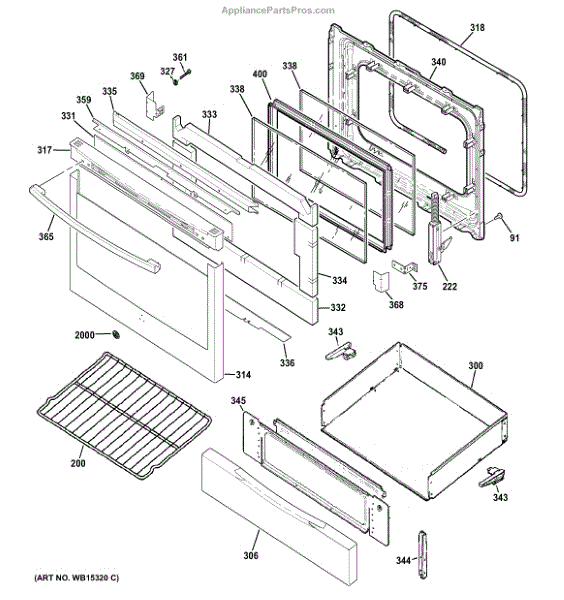

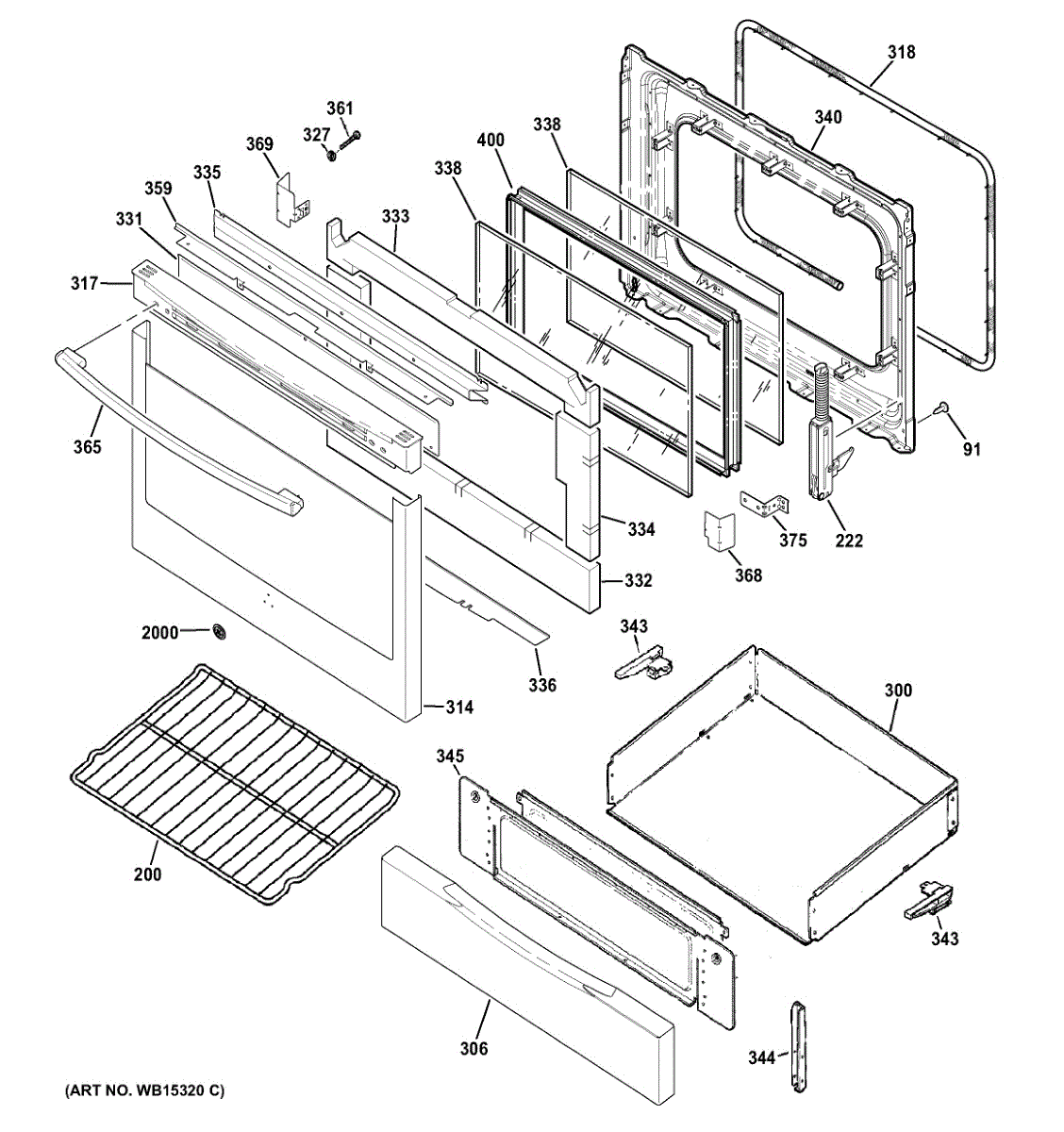

Parts for Ge JGB770DEF1BB: Door & Drawer Parts

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.

Flat wire shelf that slides into your oven's side supports to hold bakeware at the correct height. Replace if bent, warped, or missing a rack position.

Replacement oven door hinge for your range. Installs on the door frame to support opening and closing. Order a new hinge if yours is broken or bent.

Replace a worn, broken, or loose oven door hinge on your range. This hinge attaches the door to the range frame, providing support and smooth opening.

Replacement warming drawer body for your range. Installs below the main oven cavity. Order a new drawer body if yours is cracked, damaged, or warped.

Replacement drawer panel for range storage compartments. Install this panel if your original is cracked, damaged, or missing to restore proper drawer appearance.

Outer glass assembly for range oven doors. Replaces cracked, chipped, or foggy door glass to restore appearance and maintain proper heat containment.

Seals the oven cavity to contain heat and improve efficiency. Replace if you notice heat escaping, uneven cooking, or visible wear. Confirm fit with your model.

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Door liner weld assembly for ranges. Structural component that forms the inner door frame. Replace if cracked, warped, or damaged from heat exposure.

Replacement drawer glide for range bottom drawer. Needed when glide is broken, cracked, or snapped, causing drawer to fall, scrape floor, or not slide.

Secures the lower storage drawer assembly to your range cabinet. Replace this stamped metal bracket if cracked, bent, or missing to restore alignment.

This liner drawer replaces a damaged or cracked inner refrigerator drawer to restore storage and containment in the fresh-food compartment. Durable molded plastic matches original fit for smooth sliding and easy cleaning. What it does:

• Replaces a broken, cracked or warped inner drawer that can no longer hold items securely
• Restores proper alignment so the drawer opens and closes smoothly
• Helps contain spills and keeps produce or packaged foods separated
• Improves interior organization and usable shelf space

• 1 liner drawer

• High-level replacement: remove contents, lift out old drawer and slide in the replacement; your model diagram for exact removal steps
• Use care to avoid scratching interior surfaces; wear gloves to protect hands from sharp edges
• Verify correct orientation and track engagement before loading the drawer
• If the drawer slides or tracks are damaged, inspect and replace those parts separately

Screw for electric and gas ranges. Secures internal components and panels. Replace if lost, stripped, or corroded to properly fasten range parts.

Includes 12 screws.

Replace your cracked, broken, or worn range oven door handle. This black handle installs on the front door for opening and closing your range oven.

A replacement handle bracket that secures the oven door handle to the door assembly, restoring a solid, stable grip for opening and closing. Use this bracket to replace a cracked, loose or missing handle support. What it does:

• Secures the oven door handle to the door assembly so the handle stays tight and aligned
• Replaces cracked, bent or broken brackets that cause a loose or wobbly handle
• Helps prevent the handle from detaching during normal use
• Restores safe, confident operation when opening and closing the oven door

• Disconnect power to the appliance before beginning any repair.
• Access may require removing the oven door trim or handle screws—retain all fasteners for reassembly.
• Use the correct screwdriver or socket to avoid stripping screws; align bracket before tightening.
