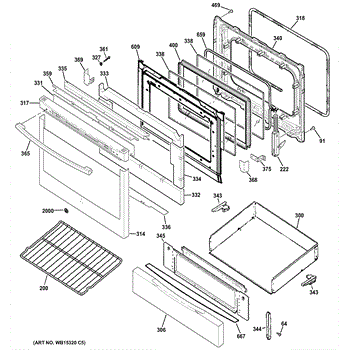

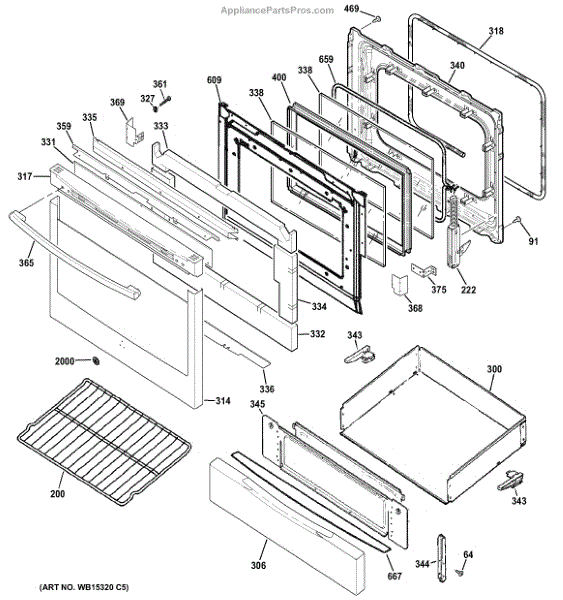

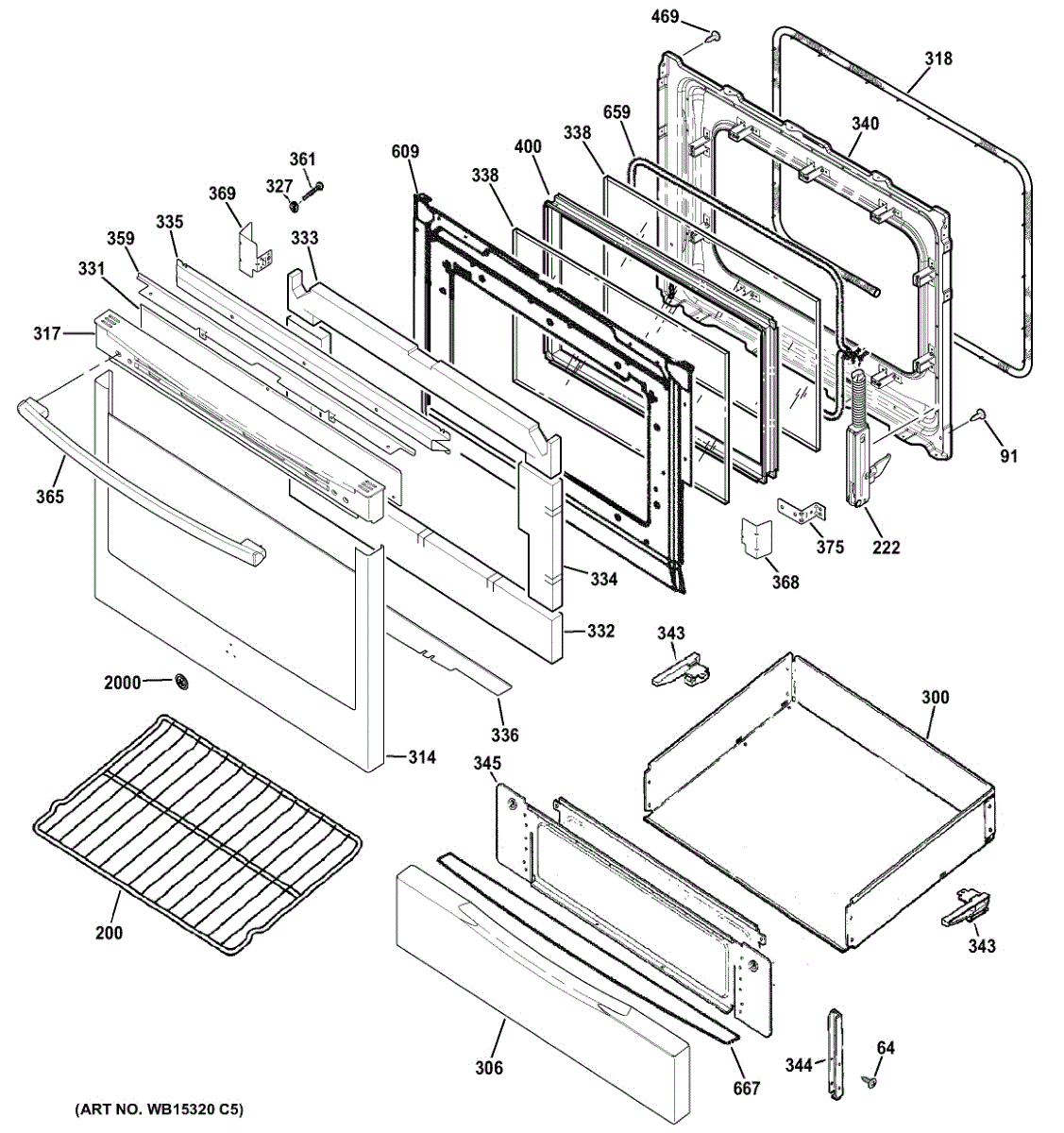

Parts for Ge JGB770SEF2SS: Door & Drawer Parts

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.

Flat wire shelf that slides into your oven's side supports to hold bakeware at the correct height. Replace if bent, warped, or missing a rack position.

The Door Hinge is an OEM part for GE gas ranges. It acts as the pivot point allowing the range door to smoothly and securely open and close.

Causes of a bad hinge include normal wear over time, damage from excessive door force, or broken coil springs/bearings in the hinge mechanism.

Symptoms of a bad door hinge can include:

• Resistance or difficulty smoothly opening and closing the door
• Noise, squeaking, or squealing coming from the hinge area
• Visual signs of damage or deformation of the hinge itself
• Improper alignment that prevents the door from fully closing

This OEM GE replacement hinge is also compatible with Hotpoint, RCA and select Kenmore gas range models.

Replacement warming drawer body for your range. Installs below the main oven cavity. Order a new drawer body if yours is cracked, damaged, or warped.

Seals the oven cavity to contain heat and improve efficiency. Replace if you notice heat escaping, uneven cooking, or visible wear. Confirm fit with your model.

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Replace cracked, shattered, or stained oven door window glass. Clear glass pane restores viewing into the oven cavity. Installs in door assembly.

Door liner weld assembly for ranges. Structural component that forms the inner door frame. Replace if cracked, warped, or damaged from heat exposure.

Replacement drawer glide for range bottom drawer. Needed when glide is broken, cracked, or snapped, causing drawer to fall, scrape floor, or not slide.

Secures the lower storage drawer assembly to your range cabinet. Replace this stamped metal bracket if cracked, bent, or missing to restore alignment.

This is an inner liner panel for the storage drawer located beneath the range oven compartment. It fits inside the drawer body to provide a smooth, finished interior surface and protect the drawer structure from heat and wear. Replace this liner if it is warped, cracked, rusted, or otherwise damaged from prolonged heat exposure.

This 10-24 machine screw secures panels and components on compatible appliances, restoring proper fit and preventing rattles or loose parts. Small, service-grade fastener for repeatable repairs and safe operation. What it does:

• Fastens control panels, trim pieces, brackets, or assemblies that use a 10-24 threaded screw
• Restores secure mounting when a screw is missing, stripped, or damaged
• Helps stop panel rattling, misalignment, or intermittent contact caused by loose parts
• Compatible with repair or replacement tasks requiring the standard 10-24 thread size

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct driver or socket to avoid stripping the head; do not overtighten
• Replace only like-for-like 10-24 fasteners to maintain proper fit and thread engagement
• If threads in the receiving part are damaged, repair or replace the mating component rather than relying on a longer or different screw

The Handle and End Cap Assembly is an OEM part for GE ovens. This assembly comprises the handle used to open and close the oven door, along with the end caps that secure the handle firmly in place. The handle measures 27.5 inches long

Over time, the handle and end caps can become worn or damaged due to frequent use, exposure to high temperatures, or accidental impact. Such issues can make it challenging to operate the oven door properly and safely.

Symptoms of a bad Handle and End Cap Assembly include:

• Difficulty in opening or closing the oven door
• A loose or wobbly handle
• Visible cracks or damage to the handle or end caps
• The handle detaching from the oven door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement handle bracket that secures the oven door handle to the door assembly, restoring a solid, stable grip for opening and closing. Use this bracket to replace a cracked, loose or missing handle support. What it does:

• Secures the oven door handle to the door assembly so the handle stays tight and aligned
• Replaces cracked, bent or broken brackets that cause a loose or wobbly handle
• Helps prevent the handle from detaching during normal use
• Restores safe, confident operation when opening and closing the oven door

• Disconnect power to the appliance before beginning any repair.
• Access may require removing the oven door trim or handle screws—retain all fasteners for reassembly.
• Use the correct screwdriver or socket to avoid stripping screws; align bracket before tightening.

Fiberglass gasket cord for range door or panel sealing. Replaces worn, frayed, or missing cord that no longer seals properly. Ensures tight fit.

If your oven won't reach temperature or the outer door gets too hot, the door insulation panel may be damaged. Restores heat retention and safety.
