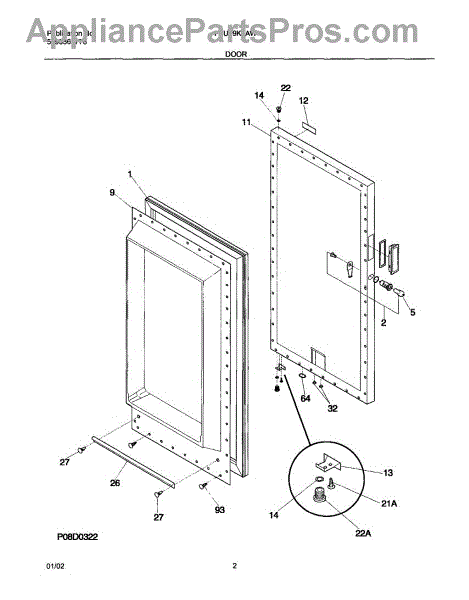

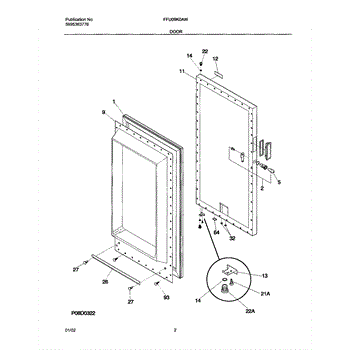

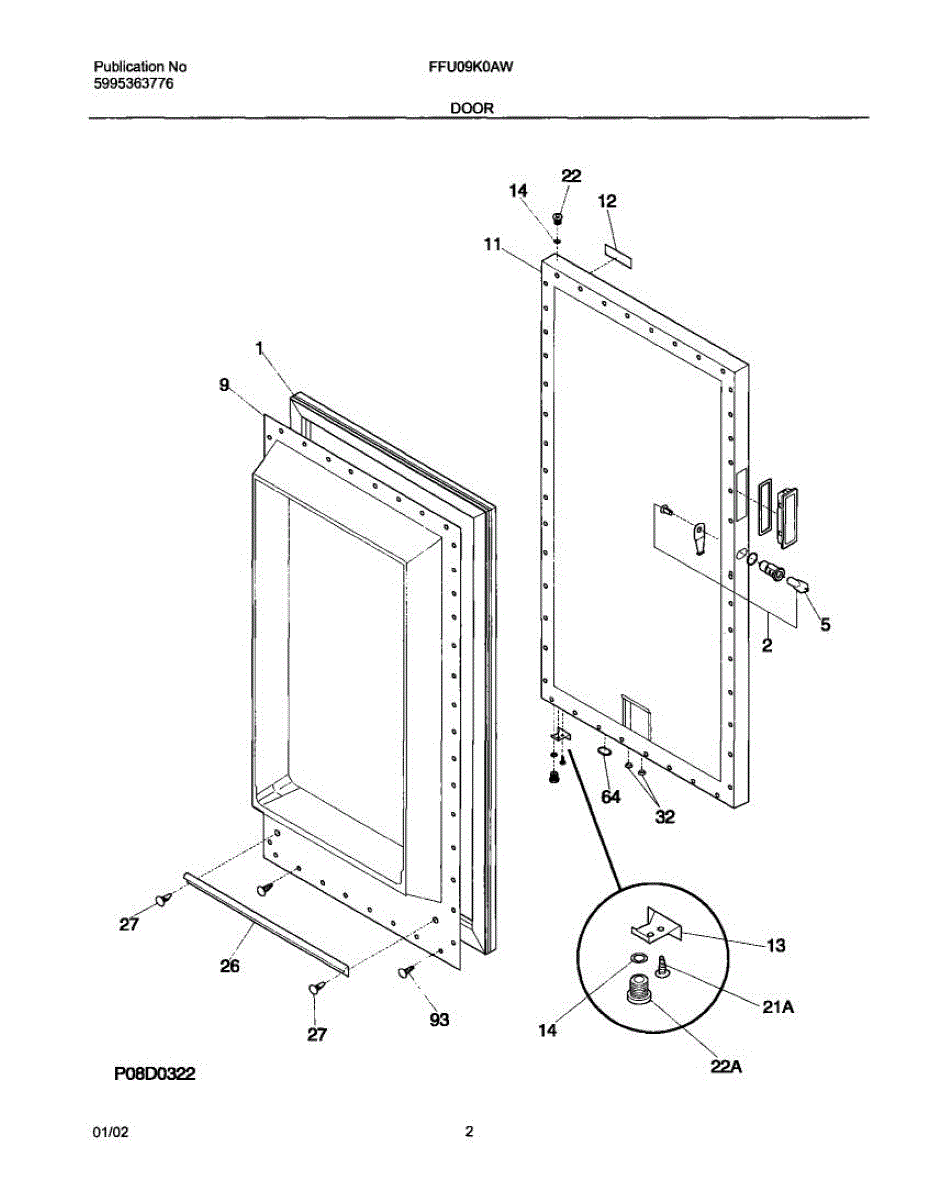

Parts for Frigidaire FFU09K0AW2: 03 - Door Parts

This door gasket seals the perimeter of the refrigerator or freezer door to maintain an airtight closure. Replacing a worn gasket restores a proper seal, helps stabilize temperatures, reduces frost and condensation, and supports efficient operation. What it does:

• Creates a tight seal between the door and cabinet to keep cold air in and warm air out
• Helps reduce frost buildup and moisture around the door opening
• Can address temperature fluctuations, long run times, and doors that won't fully close
• Replace if torn, deformed, brittle, or no longer sealing evenly

• 1 door gasket

• Disconnect power before servicing; open the door and remove the old gasket from its retainer/channel
• Warm the new gasket (soak in warm water) to relax and straighten before installation
• Seat the corners first, then work evenly around the perimeter to fully engage the retainer
• Close the door and check for uniform contact; adjust the gasket/retainer as needed for a complete seal

By Frigidaire. Includes Freezer key 5303310289.

The Freezer Door Key is an OEM replacement part for Frigidaire refrigerators. This small but essential component is designed to securely lock the freezer door, preventing accidental openings or unauthorized access.

Symptoms of needing to replace the freezer door key include:

• Difficulty in locking or unlocking the freezer door
• The key not fitting properly or becoming stuck in the lock
• Visible wear, damage, or breakage of the key itself

Causes of a faulty freezer door key can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the locking mechanism itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

Color: White

Quantity of 1 clip.

Note: See kit# 5303922007 and 5304406520.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener
