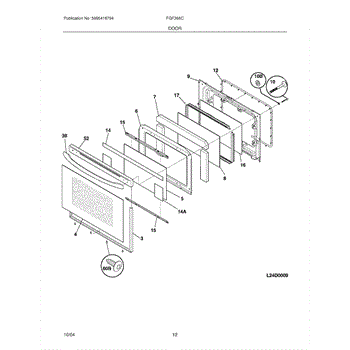

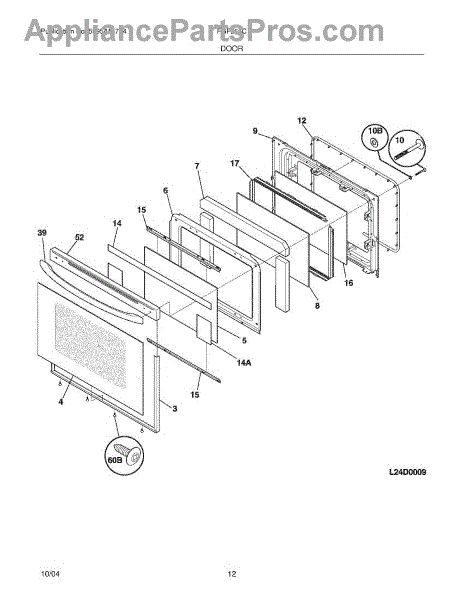

Parts for Frigidaire FGF366CSF: 11 - Door Parts

Color: White. This is a 3-sided door trim kit.

Color: White. This is the outer door glass. Kit includes foil tape.

This is the inner oven door glass heat barrier. NOTE: Approximate size:20 3/8"w X 13 7/8"h

The Inner Door Glass is an  OEM replacement part for Frigidaire ranges. It is responsible for providing a safe viewing window into the oven cavity while protecting interior components from external damage.

Causes of a bad inner door glass include normal wear and tear such as chips or cracks developing from years of use. Accidental impact or thermal shocks from sudden temperature changes can also compromise the integrity of the glass.

Symptoms of a bad inner door glass:

• Cracks or breaks visible in the glass
• Difficulty seeing into the oven cavity clearly
• Increased risk of heat escaping when the oven is in use
• Potential safety hazards if glass cracks or shatters

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

Size: 3/4 inch od x 1/4 inch id.

The Screw is an OEM part for Frigidaire ovens. This screw secures the oven door handle to the door, ensuring it remains firmly attached and stable during use.

Causes of a bad screw can include wear and tear over time, corrosion from exposure to heat and moisture, or damage from over-tightening or stripping.

Symptoms of a bad screw include:

• The oven door handle feeling loose or wobbly
• The handle detaching from the door
• Difficulty in securing the handle properly
• Visible damage or rust on the screw

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This factory seal creates a tight barrier between cooking appliance components to contain heat, moisture, and spills so your unit performs efficiently. Replace a worn or damaged seal to restore proper containment and performance. What it does:

• Seals joints between mating parts to prevent air leaks and liquid intrusion
• Helps maintain stable oven temperatures and efficient preheating
• Reduces escape of heat, odors, and smoke from sealed areas
• Replace if cracked, flattened, torn, or missing

• 1 seal

• Disconnect power; shut off gas supply before servicing
• Allow the appliance to cool completely
• Note the original seal's routing/orientation; remove old seal and clean mating surfaces
• Seat the new seal evenly without stretching; verify proper fit and operation after reassembly

Size: 4 x 5.5 inch.

Color: White. For bisque order 316270202. This oven door handle no longer comes with an insert for the screw. Which means you will need to order the replacement screws part number 5304500008 to grip into the plastic of the new handle.

This replacement surface burner cap sits on top of the gas burner head to focus and distribute the flame for even, efficient heating. Replacing a damaged or missing cap can restore proper ignition and flame pattern. What it does:

• Covers and protects the burner head from spills and debris
• Spreads and concentrates the flame for consistent cooking performance
• Helps prevent yellow, lifting, or uneven flames when properly seated
• Common symptoms: uneven or yellow flames, poor simmer, delayed ignition, chipped/warped/missing cap

• 1 surface burner cap

• Allow the cooktop to cool; disconnect power and shut off gas if servicing beyond simple cap replacement
• Lift off the old cap and clean the burner head surface of residue or debris
• Center the new cap on the matching burner head so it sits level—do not force
• Use the correct cap for the burner position; test ignition and flame after installation

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

Size: 10-32 x 0.312 inch. Color: Black.

Size: 8-32t x 0.500 inch. Color: Black.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
